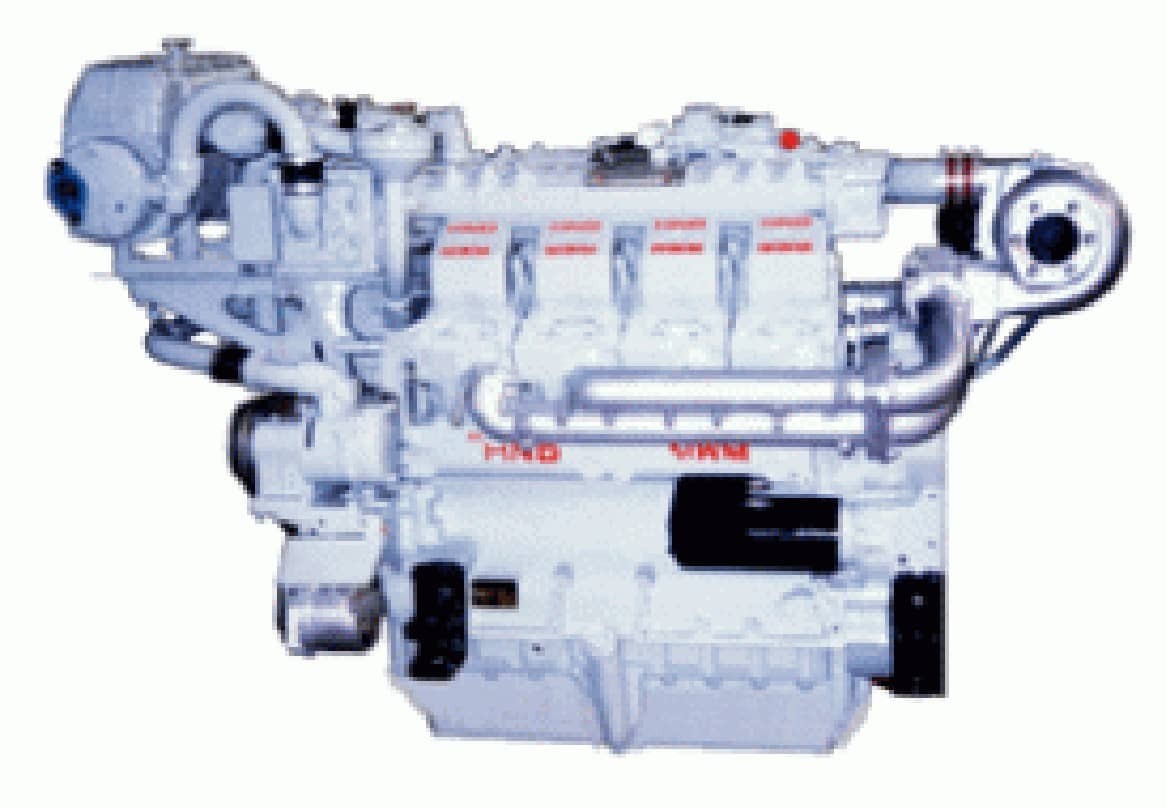

Deutz TBD234V8 186kW Generator Engine (1800 RPM)
The Deutz TBD234V8 186kW diesel engine is engineered specifically for continuous power generation. Manufactured under the strict Deutz-MWM license by the Henan Diesel Engine Plant (HND), this 8-cylinder, V-type engine delivers reliable auxiliary power for both marine and demanding industrial applications. With a 14.4L displacement and a stable 1800 RPM operating speed, it provides a highly durable core for heavy-duty gensets.
At HekoPower, we supply this specific 186kW configuration for buyers who need predictable fuel efficiency and long overhaul intervals. Our supply network ensures you receive genuine factory-assembled units, complete with accessible replacement parts and accurate lead times.
Tech Specs of Deutz TBD234V8 186kW Generator Engine
General Engine Data
Engine Model: Deutz TBD234V8-186KW
Type: 8 Cylinders, V Type, 4 Stroke
Displacement: 14.4 L
Bore * Stroke: 128 * 140
Wet Weight (with heat exchanger): 1500 Kg
Overall Dimension: 2032mm*1130mm*1587mm
Key Performance Data
Rated Power/Speed: 186 kW @ 1800 rpm
Standby Power/Speed: 205 kW/1800 rpm
Min. Speed at Full Load: 1000 rpm
Low Idle Speed: 650 rpm
Fuel Consumption: 210 g/kW.hr
More Technical Data
Certification: CCS/IMO Certificates
Aspiration: Turbocharged and Intercooled
Fuel System: High Pressure Fuel Pump
Compression Ratio: 15:1
Starting Method: Electrical Start (24V), Air Start
Cooling Method: Water Cooled
Ignition Sequence: A1-B2-A3-B1, A4-B3-A2-B4
Technical Comparisons and Performance Context
When evaluating the TBD234V8 186kW against other power generation engines in the 14-liter class, buyers often weigh it against standard industrial engines or different RPM configurations of the same series.
The primary distinction of this specific model is its calibration for 186kW at 1800 RPM. This makes it an ideal fit for 60Hz power generation setups. While you can find other TBD234V8 variants rated at 1500 RPM for 50Hz applications, this 1800 RPM version is optimized for regions and marine vessels operating on standard 60Hz electrical grids. The continuous power output is highly stable, which prevents the frequency dips common in lighter-duty engines when sudden loads are applied.
Compared to inline-six cylinder engines of similar displacement, the V8 architecture of the Deutz TBD234 offers a shorter overall length. This compact footprint is a major advantage in cramped marine engine rooms or containerized generator sets. Furthermore, the HND Deutz manufacturing process utilizes an individually cast cylinder head design. Unlike single-piece block heads found on some competing brands, this design means that if a single cylinder drops a valve or suffers heat damage, you only need to replace one head rather than discarding the entire top end.
Real Application Scenarios
The Deutz TBD234V8 186kW generator engine is incredibly versatile, but it truly excels in continuous-duty environments where failure is not an option.
As a Deutz marine auxiliary engine, it is heavily utilized in commercial fishing boats and tugboats. In these vessels, the main propulsion engines drive the hull, while the TBD234V8 runs continuously to power onboard electrical systems. The engine's resistance to saltwater corrosion and its tolerance for high ambient engine room temperatures make it a dependable choice for marine power generation. The 186kW output perfectly matches the electrical loads required for onboard refrigeration units, winches, and navigation equipment.
Beyond marine applications, HekoPower frequently supplies this engine to industrial generator set builders. In remote mining camps, construction sites, and telecommunications outposts, this engine serves as a prime power source. Because it features direct injection and a robust mechanical fuel system, it tolerates lower-quality diesel fuel much better than modern, highly sensitive electronic common-rail engines. This makes it a preferred choice for operators in remote locations where fuel purity cannot always be guaranteed.
Maintenance and Replacement Tips
Keeping your TBD234V8 engine operating at peak efficiency requires adherence to a strict maintenance schedule.
Because this is a turbocharged engine, the health of the turbocharger is critical to maintaining the 186kW output. Always allow the engine to idle for three to five minutes before shutting it down. This simple practice prevents oil coking in the turbo bearings, which is a leading cause of premature turbo failure.
Valve lash adjustments should be performed every 1,000 operating hours. The V8 configuration makes the valve train relatively accessible, but ignoring this clearance can lead to poor fuel economy and excessive exhaust smoke. Furthermore, the cooling system must be flushed and refilled with the correct mixture of anti-freeze and corrosion inhibitors every two years. Even in stationary industrial setups, coolant degrades and can lead to cavitation pitting on the wet cylinder liners.
When sourcing TBD234V8 generator parts, always verify compatibility with the HND build specifications. HekoPower supplies genuine replacement parts that match the exact tolerances required for the Deutz-MWM license. Using aftermarket substitute injectors or fuel pumps often results in erratic idle speeds and poor load acceptance.
Common Misconceptions About the TBD234V8
A frequent misconception about this engine is the distinction between marine and industrial versions. Some buyers assume that an industrial TBD234V8 can be dropped directly into a marine auxiliary role without modification. This is incorrect. The marine generator engine version features specific adaptations, including a heat exchanger designed for raw sea water cooling and double-walled high-pressure fuel lines to meet marine safety classifications. Always specify your exact application when ordering from HekoPower so we can supply the correct configuration.
Another common myth is that mechanical fuel injection engines like this one are obsolete. While electronic engines offer tighter emissions control, mechanical injection systems remain the standard for remote and harsh environments. The lack of an electronic control unit (ECU) means this engine is immune to software glitches and complex sensor failures, making it far easier to troubleshoot and repair in the field.
HND Deutz TBD234 Engine Series Options
While the 186kW model is an excellent choice for mid-range power generation, the HND Deutz product line encompasses a wide variety of configurations to meet different power demands. HekoPower supplies the full spectrum of these engines for both propulsion and auxiliary power. Exploring the broader range allows you to match engine capacity precisely to your operational requirements.
Deutz TBD234-Marine Generator Series, Marine Generator Diesel Engines for commercial and recreational applications, original products from Henan Diesel Engine Plant (HND). This series mainly includes TD234V6, TD234V8, TBD234V6-116KW, TBD234V6-132KW, TBD234V6-186KW, TBD234V6-205KW, TBD234V6-222KW, TBD234V6-244KW, TBD234V8-160KW, TBD234V8-186KW, TBD234V8-249KW, TBD234V8-274KW, TBD234V8-296KW, TBD234V8-325KW, TBD234V12-373KW, TBD234V12-444KW.
Frequently Asked Questions
What is the expected lead time for a complete TBD234V8 186kW generator engine?
Lead times vary based on factory production schedules and your specific configuration requirements. Standard industrial builds generally ship faster than class-certified marine versions. Contact the HekoPower sales team directly for exact current inventory and shipping estimates.
Can this engine be run at lower speeds to save fuel?
No. Generator engines are designed to operate at a fixed, constant speed. For this model, it must maintain 1800 RPM to generate the correct electrical frequency (60Hz). Attempting to run it at a lower speed will cause the generator end to produce low voltage and incorrect frequencies, potentially damaging your electrical equipment.
Does HekoPower provide the generator end (alternator) or just the diesel engine?
HekoPower primarily supplies the bare engine (the prime mover). However, we frequently work with genset builders and can advise on compatible alternators that mate perfectly with the TBD234V8 flywheel housing dimensions.
How often do the cylinder liners need to be replaced?
The wet cylinder liners on the TBD234V8 are highly durable. With proper cooling system maintenance to prevent cavitation, they typically last until the first major engine overhaul, which generally occurs between 12,000 and 15,000 operating hours depending on load factors.
