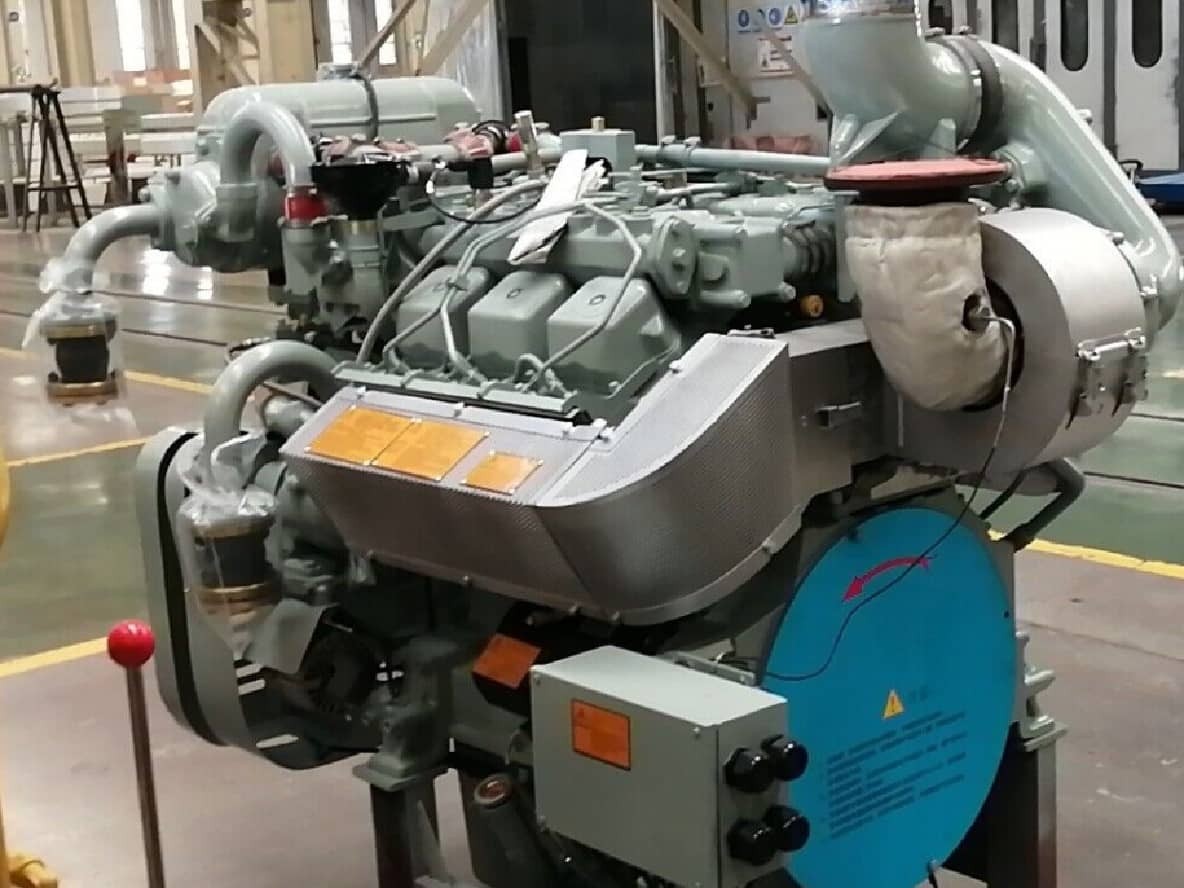

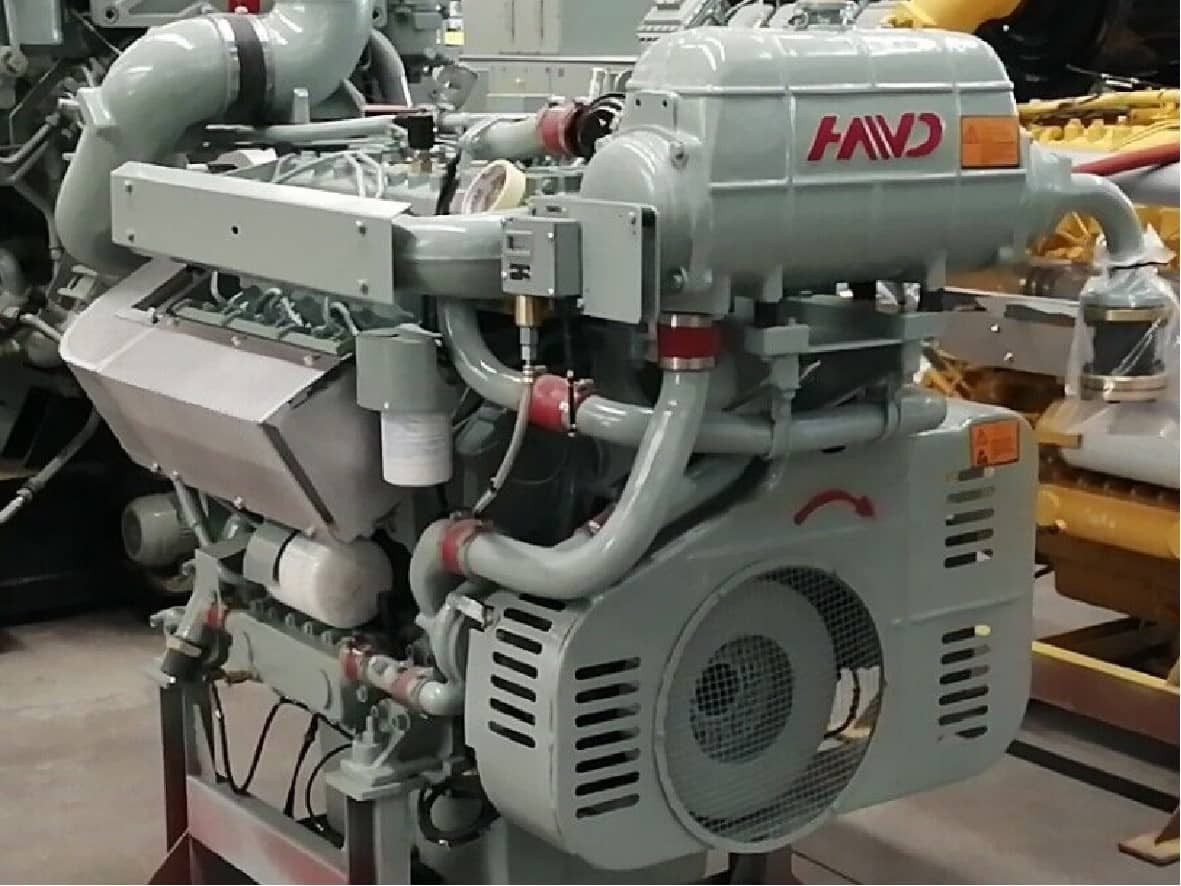

Deutz TBD234V6 186kW Marine Generator Engine
The Deutz TBD234V6 186kW diesel generator engine is engineered specifically for heavy-duty 50Hz power generation. Operating at a fixed 1500 rpm, this 10.8L V6 Deutz generator engine provides stable electrical output for demanding marine auxiliary and land-based applications. As a direct continuation of the proven MWM design architecture, this water cooled generator engine delivers exceptional block rigidity and thermal management under continuous load profiles. HekoPower supplies this precise configuration for shipyards and power stations requiring exact OEM specifications, full classification society approvals, and guaranteed rotational stability.
Tech Specs of Deutz TBD234V6
General Engine Data
Engine Model: Deutz TBD234V6-186KW
Type: 6 Cylinders, V Type, 4 Stroke
Displacement: 10.8 L
Bore * Stroke: 128 * 140
Wet Weight (with heat exchanger): 1300 Kg
Overall Dimension: 1847mm*1130mm*1587mm
Key Performance Data
Rated Power/Speed: 186 kW @ 1500 rpm
Standby Power/Speed: 205 kW @ 1500 rpm
Min. Speed at Full Load: 1000 rpm
Low Idle Speed: 650 rpm
Fuel Consumption: 210 g/kW.hr
More Technical Data
Certification: CCS/IMO Certificates
Aspiration: Turbocharged and Intercooled
Fuel System: High Pressure Fuel Pump
Compression Ratio: 15:1
Starting Method: Electrical Start (24V), Air Start
Cooling Method: Water Cooled
Ignition Sequence: A1-B2-A3, B1-A2-B3
Direct Replacement for MWM TBD234V6 Ship Engines
Vessel operators and power station managers frequently encounter the challenge of replacing aging MWM prime movers. Our HND Deutz TBD234V6 auxiliary diesel engine serves as a true drop-in direct replacement for the legacy MWM TBD234V6 186kW ship engine. The structural footprint, engine mounts, and alignment geometry remain identical to the original block.
When you order the Deutz TBD234V6 replacement generator engine from HekoPower, you eliminate the need for costly engine bed modifications or engine room pipe routing changes. The exhaust manifolds, raw water intakes, and power take-off points align with your existing engine room infrastructure. The flywheel and flywheel housing adhere strictly to standard SAE configurations, ensuring immediate coupling to your existing alternator. This seamless physical integration drastically reduces shipyard labor costs and vessel downtime during major repower projects.
Technical Comparison: 186kW Continuous vs. Standby Power Profiles
Understanding the exact power rating is critical when selecting a Deutz TBD234V6 power generation engine. The 186kW continuous power generator engine rating is designed for prime base-load operation. In this configuration, the engine can run uninterrupted for thousands of hours at a steady 1500 rpm, providing the primary electrical grid for a vessel or isolated power station.
This prime rating is structurally distinct from the TBD234V6 205kW standby power engine configuration. The standby profile allows for higher momentary output during emergency blackouts but restricts operating hours and mandates lower average load factors to prevent thermal fatigue. For the 186kW continuous setup, the internal thermal management is optimized for sustained combustion pressure. The Deutz TBD234V6 128x140mm diesel engine geometry, paired with a compression ratio of 15:1, creates a long-stroke mechanical advantage that easily absorbs sudden electrical load steps without RPM droop.
Additionally, the Deutz TBD234V6 186kW engine fuel consumption curve hits its peak efficiency at this exact prime rating. Operators can expect fuel consumption at 1500 rpm to hover optimally around 202 g/kw.h. Pushing the same block to higher standby ratings forces the fuel curve into a less efficient band. By matching the 186kW output to your base electrical load, you achieve the lowest possible operational expenditure over the lifecycle of the unit.
Core Application Scenarios and 50Hz Generation
The engineering behind this 6-cylinder V-type marine engine with CCS/IMO certification makes it highly adaptable across multiple commercial sectors.
For marine sectors, the TBD234V6 engine for marine auxiliary generator setups is the standard for offshore support vessels, commercial fishing fleets, and coastal tugboats. It easily handles the severe electrical demands of heavy deck cranes, centralized HVAC systems, and high-capacity bow thrusters. Because marine environments require enclosed engine room operation, the turbocharged intercooled diesel engine design ensures dense, cool intake air maximizes combustion efficiency even in high ambient engine room temperatures.
On land, the TBD234V6 engine for power station applications provides localized grid stability. Facilities operating on standard 50Hz electrical networks require an unyielding 1500rpm engine for 50Hz generator coupling. Whether powering remote mining camps, island communities, or industrial manufacturing facilities, this engine maintains strict frequency control through advanced governing systems.
Maintenance Strategies and Common Misconceptions
Maximizing the operational life of the TBD234V6 diesel generator engine requires strict adherence to its unique maintenance schedule. Preventative maintenance should focus heavily on fuel delivery and starting systems. The TBD234V6 high pressure fuel pump is precisely calibrated to atomize marine diesel at exact intervals following the standard TBD234V6 firing order. Keeping the fuel supply free of water and particulate matter is the single most effective way to prevent premature wear on the injection components.
Depending on the engine room safety requirements, operators can specify either a TBD234V6 24V electric start engine or a TBD234V6 air start diesel engine. The air start configuration is often preferred in hazardous marine environments or dead-ship startup scenarios where battery storage is impractical.
A common misconception among operators is that parts for any Deutz TBD234V6 6 cylinder 10.8L diesel engine are universally interchangeable. This is entirely false. Parts sourced for a commercial truck or agricultural variant of the TBD234 will not withstand the sustained thermal loads of the 186kW continuous marine application. Always source genuine marine-grade parts through an authorized HND Deutz TBD234V6 generator engine supplier to ensure proper alloy compositions and cooling jacket capacities.
TBD234 Series Engine Configurations
Selecting the correct power node ensures your vessel or facility operates at maximum mechanical efficiency. While the 186kW model provides the perfect balance for standard 50Hz auxiliary requirements, your specific electrical load calculations may dictate a different output rating within the same footprint. The broader TBD234 family accommodates a wide range of operational demands across varying RPM profiles.
Deutz TBD234-Marine Generator Series, Marine Generator Diesel Engines for commercial and recreational applications, original products from Henan Diesel Engine Plant (HND). This series mainly includes TD234V6, TD234V8, TBD234V6-116KW, TBD234V6-132KW, TBD234V6-186KW, TBD234V6-205KW, TBD234V6-222KW, TBD234V6-244KW, TBD234V8-160KW, TBD234V8-186KW, TBD234V8-249KW, TBD234V8-274KW, TBD234V8-296KW, TBD234V8-325KW, TBD234V12-373KW, TBD234V12-444KW.
Engineering FAQs
What are the exact HND TBD234V6 marine auxiliary engine dimensions and weight?
Space is always limited in marine retrofits. The standard TBD234V6 engine dimensions and weight come in at roughly 1660 mm in length, 738 mm in width, and 1582 mm in height. The dry weight is approximately 1500 kg, though this can vary slightly based on specific starter and cooling configurations.
Is this Deutz TBD234V6 generator engine for sale as a bare engine or a complete genset?
As a primary TBD234V6 186kW engine OEM supplier and exporter, HekoPower provides this unit as a bare engine designed for existing genset replacement. This allows you to retain your perfectly functional Stamford or Leroy Somer alternator while upgrading the prime mover.
How does the Deutz TBD234V6 1500RPM continuous duty power requirement affect pricing?
The TBD234V6 186kW engine price reflects its heavy-duty internal components designed for thousands of hours of uninterrupted use. While exact TBD234V6 186kW generator engine price quotes fluctuate based on global shipping and specific classification society certifications (like CCS or ABS), buying directly from a TBD234V6 generator engine wholesale supplier like HekoPower ensures you bypass third-party markups.
