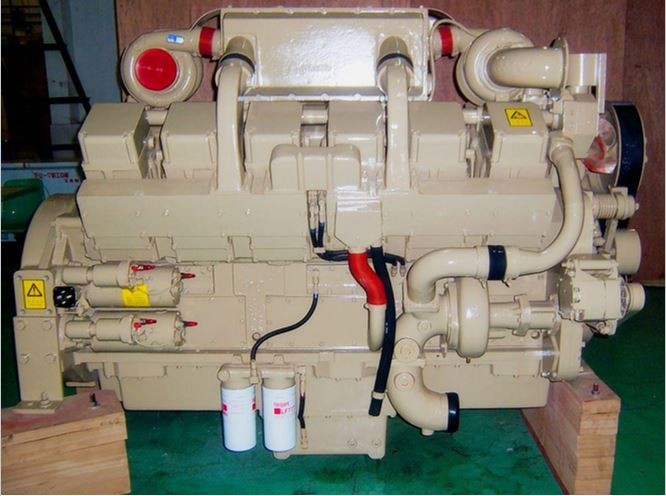

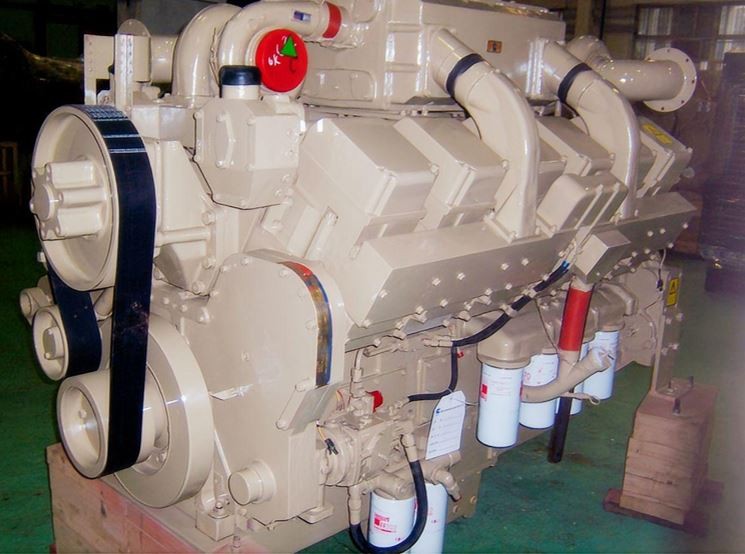

CCEC Cummins KTA38-C1400 Industrial Diesel Engine Assembly
Procuring the right power unit for severe-duty industrial applications requires an engine built for relentless operational cycles. The Cummins KTA38-C1400 is a highly engineered 37.7L V12 diesel engine designed specifically to meet the punishing demands of heavy machinery. Delivering a massive 1400HP at 2100rpm, this engine provides the mechanical foundation for some of the world's most demanding earthmoving and extraction equipment.
As a dedicated engine supplier, HekoPower provides the genuine CCEC KTA38-C1400 complete engine assembly, ensuring your equipment experiences minimized downtime and maximum productivity. Whether you are sourcing a new KTA38-C1400 industrial power pack or seeking a reliable KTA38-C1400 replacement diesel engine to extend the life of your fleet, understanding the core capabilities of this 1038kW engine is critical for operational planning.
Tech Specs of KTA38-C1400
General Engine Data
Engine Model: Cummins KTA38-C1400
Type: 12 Cylinders in Line, V Type
Displacement: 37.7 L
Bore * Stroke: 159 * 159
Overall Dimension: 2003mm*1362mm*1661mm
Net Weight (with flywheel & alternator): 3606 Kg
Key Performance Data
Rated Power: 1038 kW/1400HP
Rated Speed: 2100 rpm
Max Torque/Speed: 5264 N.m @ 1400 rpm
Fuel Consumption @ Rated Power: 210 g/Kw.h
Max. Continuous Running Altitude: 2000 m
Idle Speed: 725 rpm
More Technical Data
Certification: Euro II
Aspiration: Turbocharged-Intercooled
Fuel System: Direct Injection PT Pump, STC
Compression Ratio: 13.9:1
Electrical System (Starter Motor/Alternator): 12V/24V
Lowest Starting Temp Without auxiliary system: -12℃
Cooling Method: Water cooled
Engine Cooling Fluid Volume: 31 L
Real Application Scenarios for the KTA38-C1400
The deployment of a KTA38-C1400 complete power unit spans multiple heavy industries where power density and durability are non-negotiable.
Heavy Mining and Earthmoving Operations
In the open-pit mining sector, the Cummins KTA38-C1400 for heavy mining trucks serves as a primary propulsion system. Haul trucks carrying hundreds of tons of ore rely entirely on the engine's ability to maintain momentum up steep, unpaved gradients. The KTA38-C1400 5264 Nm torque output is engineered precisely for this kind of low-end lugging power. Similarly, as a 1400HP Cummins excavator replacement engine, it revitalizes aging massive hydraulic excavators. The KTA38-C1400 earthmoving equipment engine configuration ensures rapid hydraulic response times, allowing operators to maintain fast bucket cycle times even when tearing through compacted rock and shale.
Oilfield and Drilling Rig Machinery
Beyond moving dirt, the Cummins KTA38-C1400 oilfield engine is a staple in energy extraction. When utilized as a KTA38-C1400 power pack for drilling rig operations, the engine must sustain high continuous loads for days or weeks without interruption. Furthermore, configuring it as a KTA38-C1400 mud pump engine requires exceptional mechanical stability to drive heavy fluid displacement under extreme pressure. The rugged block design and reliable mechanical fuel delivery make the KTA38-C1400 engine power unit highly resistant to the harsh, dust-heavy environments typical of active oilfields.
Technical Comparisons: Understanding the 1400HP Configuration
When evaluating the KTA38-C1400 industrial engine assembly against other variants in the K38 family or competing 37-liter class engines, the defining difference lies in its specific industrial calibration. While generator-drive engines in this class are locked to a fixed 1500rpm or 1800rpm, the Cummins KTA38 construction engine is calibrated for variable speed operations peaking at 2100rpm.
The KTA38-C1400 1038kW torque curve is exceptionally broad. Competitor engines often suffer from a narrow torque peak, requiring the operator to constantly adjust gearing to keep the engine in its optimal power band. In contrast, the CCEC KTA38-C1400 engine maintains near-peak torque across a much wider RPM range. This allows heavy construction machinery to power through sudden load increases—like an excavator hitting bedrock—without stalling or requiring a downshift.
A major contributor to this performance is the KTA38-C1400 PT STC fuel system. The Step Timing Control (STC) mechanism advances fuel injection timing during cold starts and light load conditions. This significantly reduces white smoke and improves cold-weather idling. As the load increases, the STC transitions to normal timing, optimizing the KTA38-C1400 Euro II diesel engine for peak cylinder pressure and maximum power output. Combined with a highly efficient KTA38-C1400 turbocharged intercooled engine design, the volumetric efficiency remains incredibly high, forcing dense, cool air into the cylinders for optimal combustion.
Common Misconceptions About the KTA38-C1400
A frequent misunderstanding regarding the Cummins KTA38-C1400 complete engine involves altitude derating. Equipment managers often assume that deploying this engine in high-altitude mining operations will result in an immediate, severe loss of the rated 1400HP. However, the factory KTA38-C1400 2000m altitude rating means the turbocharged air management system is calibrated to compensate for thinner air up to 2,000 meters above sea level before any significant mechanical derating is required.
Another misconception revolves around the definition of a power pack. Buyers often confuse a bare long block with a KTA38-C1400 complete power-pack configuration. A true KTA38-C1400 industrial power pack provided by HekoPower is a drop-in ready unit. It typically encompasses the base CCEC Cummins KTA38-C1400, the complete KTA38-C1400 cooling system (radiator and fan drive), air filtration systems, exhaust silencers, and customized mounting skids tailored for immediate integration into your industrial machinery.
Maintenance and Replacement Tips
Maximizing the lifespan of your KTA38-C1400 heavy construction engine requires strict adherence to fluid maintenance and an understanding of its physical architecture.
Fuel System Calibration
The KTA38-C1400 PT fuel pump is mechanically robust, making it highly tolerant of varying global fuel qualities compared to modern high-pressure common rail systems. However, to maintain optimal KTA38-C1400 fuel consumption specs, the PT pump and injectors must be professionally calibrated at recommended intervals. Neglecting overhead adjustments (valve and injector clearances) will slowly degrade the KTA38-C1400 compression ratio efficiency, leading to higher fuel burn and reduced torque response under load.
Installation and Structural Planning
When preparing to buy genuine CCEC KTA38-C1400 engine wholesale for a major fleet repower, logistics and rigging must be planned carefully. The KTA38-C1400 engine dimensions are massive, and the dry KTA38-C1400 engine weight exceeds 3,700 kilograms. Performing an engine swap on a mining truck or outfitting a KTA38-C1400 power pack for mining equipment requires heavy-duty overhead cranes and precise alignment tools. Always inspect the KTA38-C1400 engine package vibration isolators during a replacement, as utilizing old mounts will transfer destructive harmonics directly into the equipment chassis.
Cummins K38-C Series Exploration
Finding the exact power match for your specific industrial machinery requires looking at the broader engine family. While the 1400HP Cummins KTA38-C1400 diesel engine serves extreme heavy-duty needs, other configurations within the same 38-liter architectural footprint offer varied output levels to suit different equipment weight classes and operational duty cycles. Evaluating the entire lineup ensures you select the most efficient power-to-weight ratio for your specific application.
As a professional Cummins KTA38-C1400 engine supplier, HekoPower provides the original Cummins KTA38-C1400 and a full range of Cummins KTA38-C engine series products. This series mainly includes KT38-C925, KTA38-C1050, KTA38-C1100, KTA38-C1200, KTA38-C1400, QSK38-C.
We ensure every Cummins KTA38-C1400 engine meets industrial standards and customer-specific requirements. For customers in need of replacement parts, we supply CCEC KTA38 parts and Cummins KTA38 repairs and spare parts kit with reliable quality.
Frequently Asked Questions (FAQ)
What is included when I purchase a KTA38-C1400 engine assembly for sale?
When you source a Cummins KTA38-C1400 engine assembly through HekoPower, you are receiving a fully built, factory-tested unit. A standard complete diesel engine includes the block, head, PT fuel system, turbochargers, air compressor, starter, alternator, and manifolds. If you specify a KTA38-C1400 complete power unit, it will also include the structural skid, radiator cooling group, and control panel.
How does the KTA38-C1400 cooling system handle extreme industrial environments?
The KTA38-C1400 industrial machinery engine utilizes a high-capacity gear-driven water pump and large-volume coolant passages specifically designed to reject the massive heat generated by continuous 1038kW operations. The intercooled design ensures that even during extended high-load earthmoving tasks in high ambient temperatures, the intake air remains dense enough to prevent exhaust gas temperatures from reaching critical limits.
Is the KTA38-C1400 suitable as a direct replacement for older 38-liter engines?
Yes, the Cummins KTA38-C1400 replacement engine shares the fundamental block footprint and mounting points of older K38 series models. However, because this specific KTA38-C1400 1400HP 2100rpm engine produces exceptional torque, you must verify that your equipment's transmission, torque converter, and driveline components are rated to handle 5264 Nm of input force before completing the upgrade.
