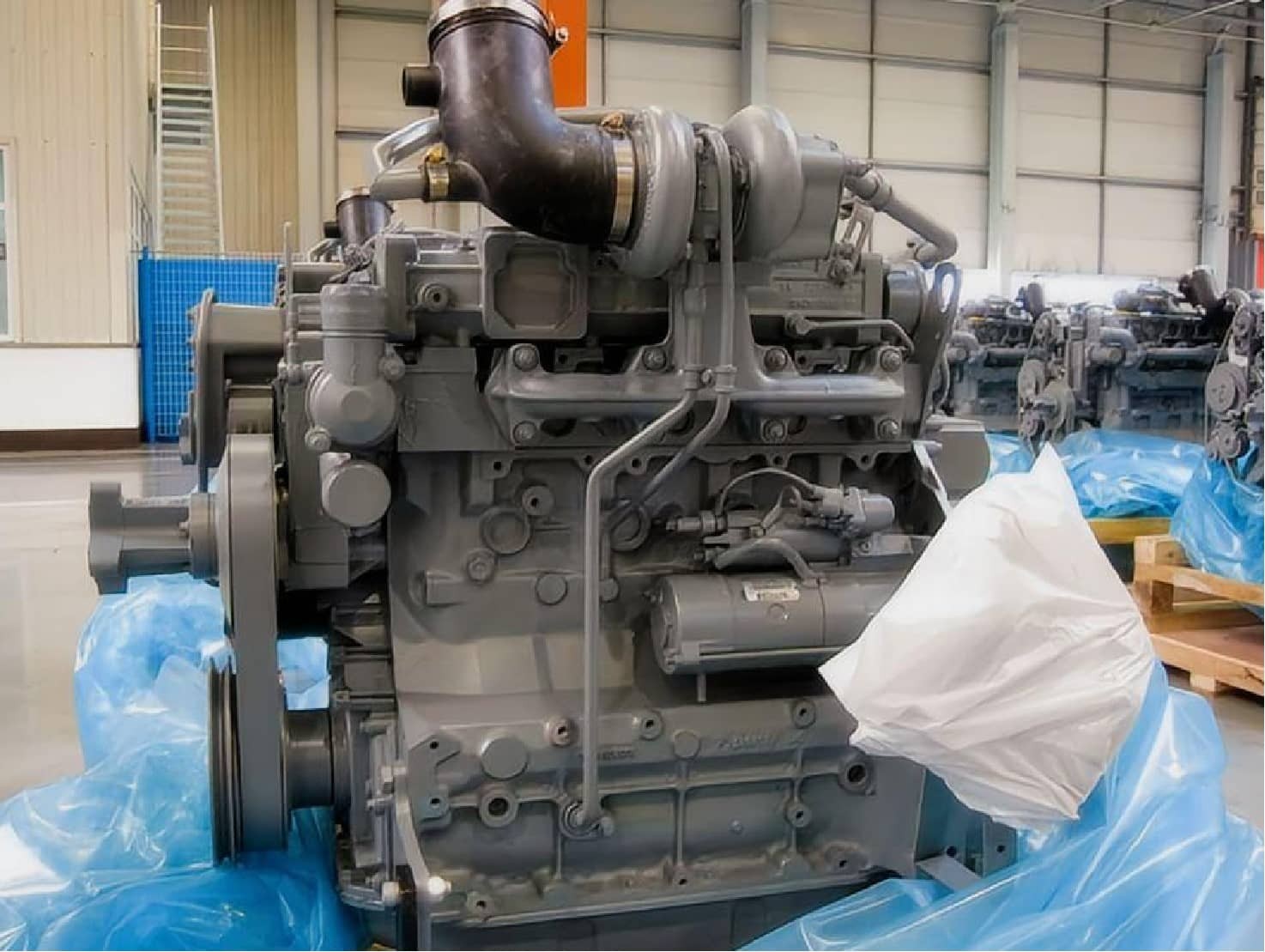

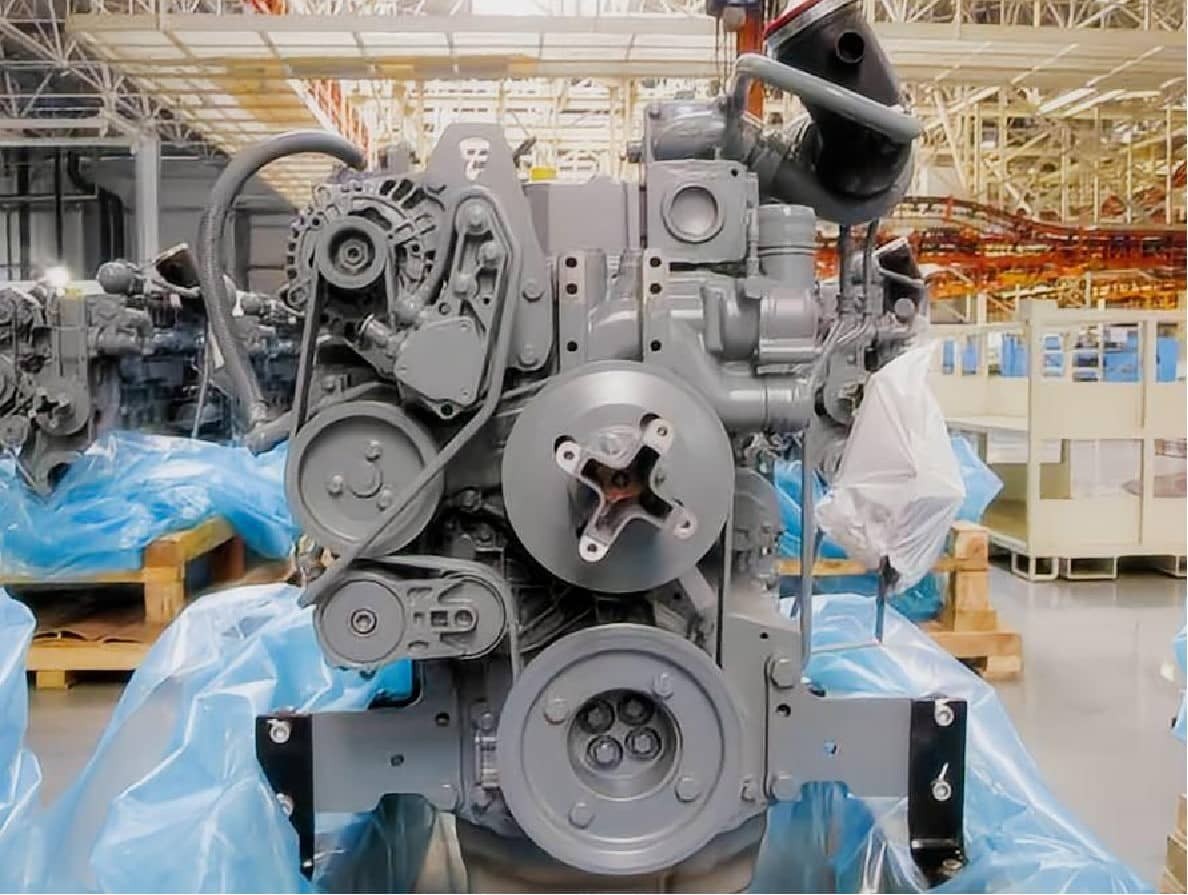

Genuine Deutz BF6M2012-20E4 Complete Vehicle Engine Assembly
Finding a robust, emission-compliant power plant for commercial transport can be challenging. Fleet operators need a balance of low fuel consumption, high torque, and straightforward maintenance. The Deutz BF6M2012-20E4 vehicle engine meets these exact needs. Manufactured by the trusted Dalian Deutz facility, this water-cooled, 6-cylinder diesel engine is engineered specifically for modern trucks and buses.
As a dedicated engine supplier, HekoPower provides the original Deutz BF6M2012-20E4 engine to commercial fleet operators and repair facilities worldwide. Whether you are looking for a Deutz BF6M2012-20E4 130HP truck engine replacement for medium-duty routes or the fully tuned Deutz BF6M2012-20E4 147kW diesel engine for heavier payloads, this platform offers exceptional reliability.
Customers often ask us how this specific model fits into the broader engine lineup. The BFM2012 family is diverse, offering multiple power bands and configurations tailored for different global markets.
To give you a complete picture of the options available through HekoPower, Deutz BFM2012-Vehicle Diesel Engine Series, original products from Dalian Deutz Engine Plant. This series mainly includes Deutz BF4M2012-13E3, Deutz BF4M2012-14E3, Deutz BF4M2012-16E3, Deutz BF4M2012-14E4, Deutz BF4M2012-16E4, Deutz BF6M2012-18E3, Deutz BF6M2012-22E3, Deutz BF6M2012-22E3U, Deutz BF6M2012-16E4, Deutz BF6M2012-18E4, Deutz BF6M2012-20E4, Deutz BF6M2012-22E4.
Tech Specs of Deutz BF6M2012-20E4
General Engine Data
Engine Model: Deutz BF6M2012-20E4
Type: 4 Cylinders, in Line
Displacement: 4.04 L
Bore * Stroke: 101 * 126
Overall Dimension: 799mm*601mm*832mm
Net Weight (with flywheel & alternator): 391 Kg
Key Performance Data
Rated Power: 101 kW/130 HP
Max. Torque/Speed: 430 N.m @ 1500 rpm
Rated Speed: 2500 rpm
Idle Speed: 650-750 rpm
Fuel Consumption @ rated Power: 229.13 g/kw.h
Max. Continuous Running Altitude: 2000 m
Min. Fuel Consumption @ Full-load: 192 g/Kw.h
More Technical Data
Certification: Euro III
Aspiration: Turbocharged & Aftercooled
Fuel System: Electronic Unit Pump, Direct Injection
Cooling Method: Water Cooled
Starting System: Electronic Starting (12V/24V)
Compression Ratio: 18.1:1
Engine Cooling Fluid Volume: 9 L
Real-World Application Scenarios
The BF6M2012-20E4 is not a generic industrial engine slightly modified for roads. It is a dedicated commercial vehicle diesel engine designed from the ground up for the transportation sector.
In the trucking industry, the Deutz BF6M2012-20E4 truck engine is frequently utilized in medium to heavy-duty freight vehicles. The wide power range, starting from the 101kW Deutz Euro 4 commercial engine setup up to the Deutz BF6M2012-20E4 200HP engine configuration, allows fleet managers to match the engine precisely to their chassis weight and typical cargo loads. Its low-end torque is particularly effective for trucks navigating steep inclines or rural routes with heavy loads.
For passenger transport, the BF6M2012-20E4 engine for bus and coach applications shines due to its quiet operation and minimal vibration. Passenger comfort relies heavily on the engine’s refinement. The precision of the EUP fuel system minimizes diesel knock, making it an excellent fit for city transit buses that undergo constant stop-and-go driving. The efficient cooling properties of this water-cooled 101kW vehicle diesel engine BF6M2012 also prevent overheating during prolonged idling in dense urban traffic.
Expert Maintenance and Replacement Tips
Replacing a commercial vehicle engine is a major investment. To protect that investment, our technical team at HekoPower highly recommends following a strict preventative maintenance schedule tailored to the EUP system.
First, pay close attention to fuel filtration. Because the BF6M2012-20E4 Euro IV EUP engine relies on high-pressure injection, even microscopic contaminants in the diesel can cause premature wear on the unit pumps. Always use OEM-spec fuel filters and drain the water separators regularly.
Second, the BF6M2012-20E4 is a highly efficient turbocharged diesel engine. This means the turbocharger bearings rely entirely on the engine oil for lubrication and cooling. Never shut the engine off immediately after a heavy haul. Allow the engine to idle for three to five minutes. This lets the oil continue circulating and cools the turbocharger down, preventing the oil from caking inside the hot bearings.
When installing a BF6M2012-20E4 replacement engine, ensure your electrical system matches the engine’s configuration. We supply these units with either a 12V or 24V starting system depending on your vehicle's architecture. Always inspect the chassis ground cables during installation; a weak ground will cause slow cranking and can eventually damage the starter motor and the electronic control unit.
Finally, keep the aftercooler clean. An aftercooled engine relies on dense, cold air to produce its 200HP efficiently. If the aftercooler fins become clogged with road grime or debris, intake temperatures will rise. This forces the engine to burn more fuel to maintain power, negatively impacting your fuel economy.
Common Misconceptions About the BF6M2012-20E4
There is a persistent myth that stepping up to a Euro IV engine makes maintenance unnecessarily complicated. While it is true that the BF6M2012-20E4 utilizes an electronic control unit, the underlying architecture is deeply rooted in Deutz’s legendary mechanical simplicity. The EUP system is actually easier to diagnose than older inline pumps because a technician can plug into the diagnostic port to read exact fault codes, rather than guessing which mechanical component has failed.
Another common misconception revolves around the brand origin. Some buyers hesitate when they see the name Dalian Deutz BF6M2012-20E4 supplier, assuming it might be an aftermarket copy. This is entirely false. Dalian Deutz is an official manufacturing joint venture. A genuine Deutz BF6M2012-20E4 engine built in this facility uses the exact same engineering blueprints, metallurgy, and quality control standards as any Deutz facility globally.
Frequently Asked Questions
Is the BF6M2012-20E4 available as a fully assembled unit?
Yes, HekoPower provides the BF6M2012-20E4 complete diesel engine. This assembly includes the block, cylinder head, fuel system, turbocharger, and all necessary external manifolds, making it ready for a direct drop-in replacement.
What dictates the power difference between the 130HP and 200HP models?
The BF6M2012-20E4 series spans from 101kW to 147kW. The physical engine dimensions and engine weight remain largely identical across these variants. The difference in output is primarily managed by the turbocharger sizing, the EUP fuel delivery mapping, and the specific engine control software tailored to the buyer's requested specifications.
Can HekoPower provide export and wholesale services?
Absolutely. As a dedicated Deutz BF6M2012-20E4 engine exporter, we handle international shipping logistics. We also offer highly competitive Deutz BF6M2012-20E4 engine price structures for wholesale buyers purchasing multiple units for fleet overhauls.
