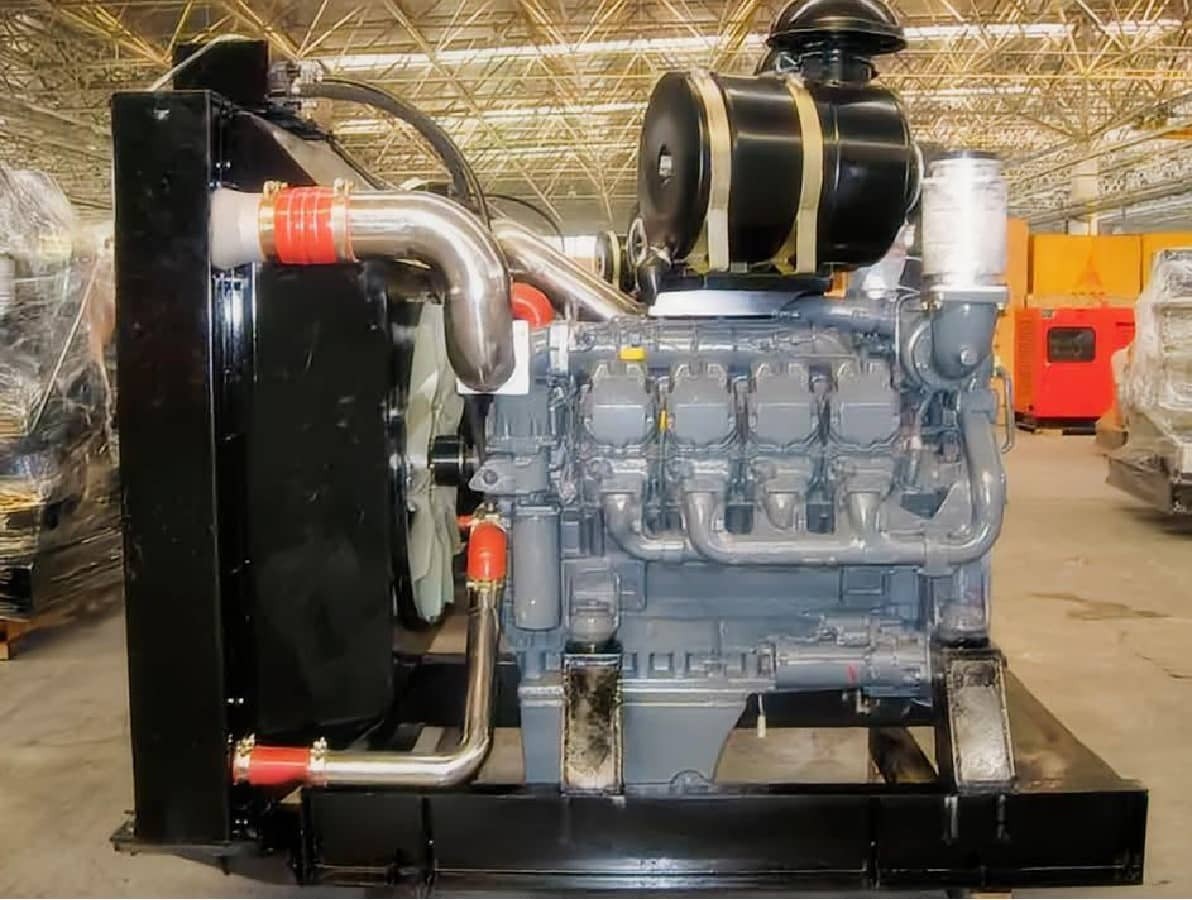

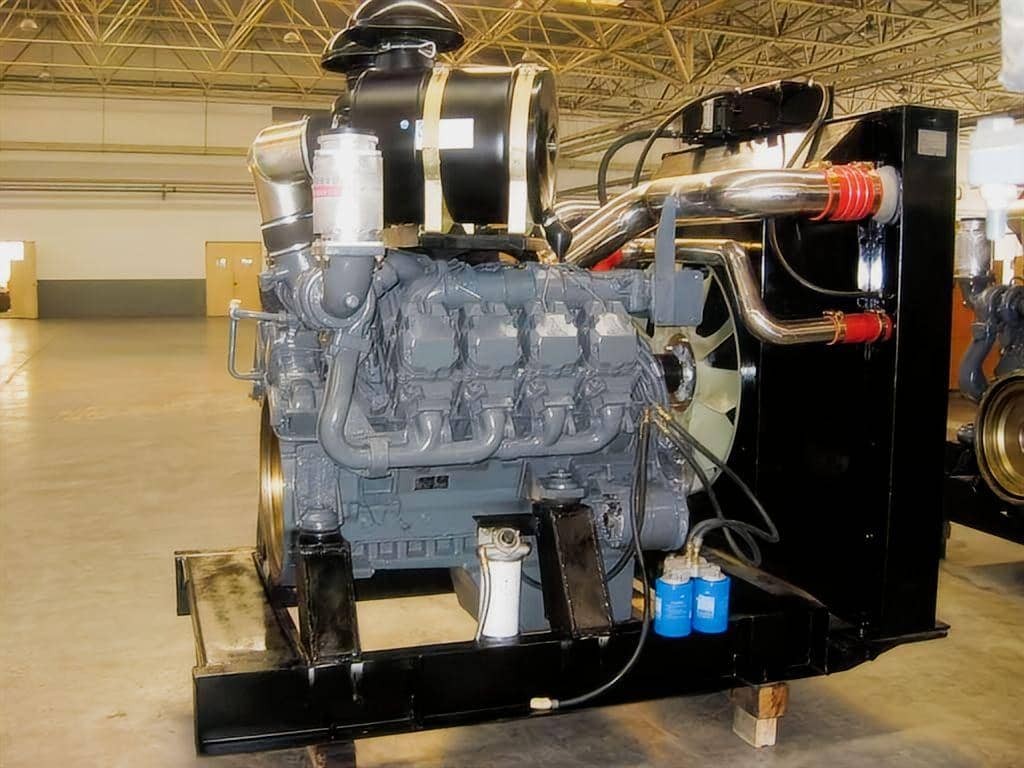

Engineering Overview of the Deutz BF8M1015CP-G5 Generator Engine
Industrial power generation demands prime movers capable of maintaining strict frequency stability and thermal endurance under heavy cyclical loads. As an established global engine supplier, HekoPower provides the Deutz BF8M1015CP-G5 generator engine as a premier solution for heavy-duty stationary power stations, backup generation plants, and large-scale industrial facilities. Operating at a synchronous speed of 1500 RPM, this V8 diesel engine is specifically calibrated to drive 50Hz alternator systems, delivering a reliable standby power output of 560kW. Built on the rugged foundations of the German-engineered BFM1015 architecture, this power plant combines high power density with exceptional mechanical durability.
Tech Specs of Deutz BF8M1015CP-G5 Generator Engine
General Engine Data
Engine Model: Deutz BF8M1015CP-G5
Type: 8 Cylinders in Line
Displacement: 15.874 L
Bore * Stroke: 132 * 145
Net Weight (with flywheel and alternator): 1060 Kg
Overall Dimension: 1151mm*955mm*1174mm
Key Performance Data
Standby Power: 560 kW
Rated Speed: 1500 rpm
Low Idle Speed: 550-650 rpm
Specific Fuel Consumption: 209 g/Kw.h
More Technical Data
Certification: Euro II
Aspiration: Turbocharged & Intercooled
Fuel System: EUP
Cooling Method: Water Cooled
Lubricant Capacity: 50 L
Electrical System (Starter Motor/Alternator): Electronic Starting (24V)
Technical Comparisons Within the BFM1015 Engine Family
Understanding how the BF8M1015CP-G5 differs from adjacent models in the BFM1015 lineup is essential for proper application engineering. When evaluating the BF8M1015CP-G5 against earlier iterations such as the G3 and G4 variants, or parallel ratings like the standard BF8M1015CP, distinct calibration differences emerge.
Unlike lower-rated utility engines in the series that rely on traditional mechanical fuel injection pumps with fixed delivery profiles, the G5 variant features optimized fuel injection timing and refined governor mapping. This ensures superior transient load response, allowing the engine to recover frequency almost instantaneously when sudden block loads are applied to the generator set. Furthermore, compared to inline 6-cylinder configurations in the same power bracket, the V8 architecture of the BF8M1015CP-G5 delivers a significantly shorter overall engine length, allowing original equipment manufacturers to package a 560kW generator set into more compact sound-attenuated enclosures without compromising service accessibility.
Real-World Industrial Application Scenarios
The operational versatility of the Deutz BF8M1015CP-G5 industrial generator engine makes it the preferred choice across diverse mission-critical sectors. In remote mining operations across regions like Southern Africa, where grid instability threatens continuous processing, this engine serves as the prime mover for heavy-duty containerized diesel generator sets. Its ability to accept rapid block loading supports the high starting torque demands of large slurry pumps, crushers, and mill drives.
Another primary deployment sector is commercial data center backup power and municipal infrastructure support. Hospitals, water treatment facilities, and telecommunication hubs require emergency power systems that can transition from cold standby to full load within seconds. The reliable electronic or mechanical governing options on the BF8M1015CP-G5 ensure precise ISO 8528 G3 class governing performance, guaranteeing strict frequency and voltage regulation required by sensitive electronic loads during utility power failures.
Maintenance, Overhaul, and Genuine Parts Replacement Tips
Maximizing the operational lifespan of a 560kW Deutz diesel genset engine requires strict adherence to preventive maintenance protocols. Operators should implement regular fluid analysis schedules to monitor lubricating oil contamination, coolant degradation, and fuel system particulate levels.
Cooling System Integrity: Inspect the charge air cooler piping and core integrity every 500 operating hours to prevent boost pressure leaks, which can lead to elevated exhaust gas temperatures and power loss.
Valve Clearance Adjustments: Perform professional valve lash inspections and adjustments every 1,500 to 2,000 hours to maintain optimal compression and prevent mechanical wear on the rocker arms and valve bridges.
Fuel Filtration Management: Because high-pressure fuel injection components operate with tight manufacturing tolerances, always replace primary and secondary fuel filters using genuine HekoPower-supplied components to prevent premature injector wear.
Addressing Common Product Misconceptions
Several technical misunderstandings frequently arise when specifying large displacement diesel engines for generator applications. A common misconception is that standby engines can be operated indefinitely at their maximum 560kW rating without regard for duty cycle limitations. Standby power ratings are specifically engineered for emergency backup service where utility power is unreliable, operating under variable loads for limited annual hours. For continuous base-load operations, proper derating and load profiling must be calculated to prevent thermal overloading.
Another misconception involves fuel quality sensitivity. Modern high-output turbo-diesel engines require ultra-low sulfur diesel fuel to prevent sulfur deposits on piston rings and premature degradation of the turbocharger turbine housing. Using low-grade, high-sulfur fuels without appropriate additive packages accelerates cylinder liner wear and significantly shortens oil change intervals.
Series Navigation and Integration Guide
For engineers and procurement managers exploring alternative output classes or auxiliary power options, HekoPower maintains a comprehensive inventory of matching assemblies. Deutz BFM1015-Generator Engine Series, original products from Huachai Deutz Engine Plant. This series mainly includes BF6M1015-GA, BF6M1015C-G1A, BF6M1015C-G2A, BF6M1015C-G3A, BF6M1015C-G4A, BF6M1015-GB, BF6M1015C-G1B, BF6M1015C-G2B, BF6M1015C-G3B, BF6M1015CP-G, BF8M1015C-G1A, BF8M1015C-G1B, BF8M1015C-G2, BF8M1015CP-G1A, BF8M1015CP-G1B, BF8M1015CP-G2, BF8M1015CP-G3, BF8M1015CP-G4, BF8M1015CP-G5, BF8M1015CP-G2B, BF8M1015CP-G3B.
Frequently Asked Questions (FAQs)
What alternator sizing is recommended for the Deutz BF8M1015CP-G5 engine?
To properly match the 560kW standby power output at 1500 RPM, select a synchronous brushless alternator rated between 600kVA and 630kVA, accounting for alternator efficiency losses and transient overload safety margins.
Does the BF8M1015CP-G5 support electronic governing systems?
Yes, the engine can be configured with advanced electronic governing actuators and controllers, providing superior speed stability and synchronization capabilities for parallel generator installations.
Is this engine suitable for continuous prime power, or just emergency standby?
The BF8M1015CP-G5 is rated for both. It can operate as a prime power generator engine for continuous operation under variable loads, provided the average load does not exceed the manufacturer's specified thresholds. It also serves exceptionally well as a heavy-duty standby generator engine, supplying up to 560kW during grid failures.
How does the cooling fan operate on this model?
The engine utilizes a gear-driven fan equipped with a fluid coupler, measuring 980mm in diameter. It is an exhaust-type fan that moves 4.6 cubic meters of air per second. Because it is gear-driven rather than belt-driven, it eliminates the risk of belt slippage or failure, which is a major advantage for continuous operation in high-heat environments.
Does the BF8M1015CP-G5 support electronic governing systems?
Yes, the engine can be configured with advanced electronic governing actuators and controllers, providing superior speed stability and synchronization capabilities for parallel generator installations.
