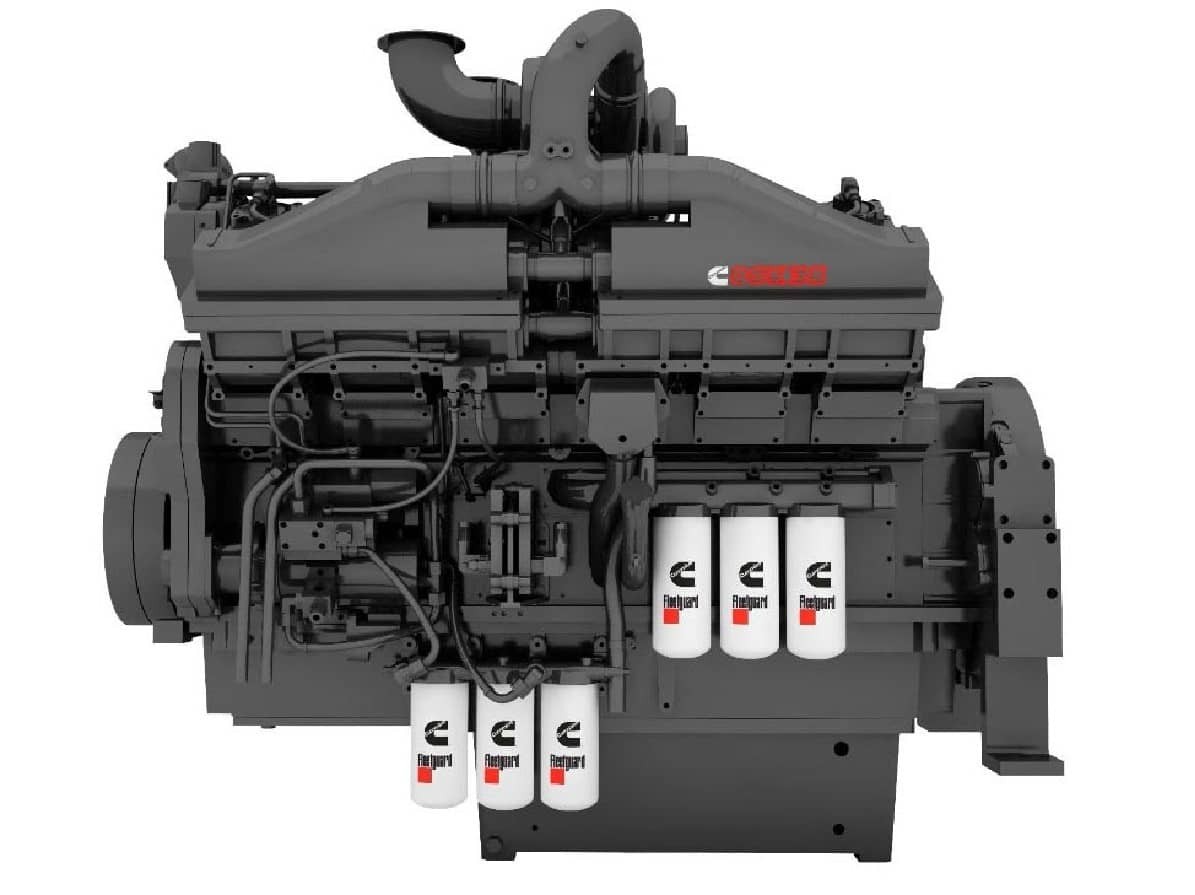

Genuine CCEC Cummins QSK38-G4 G-Drive Engine (1231kW / 1800RPM)
HekoPower specializes in supplying factory-direct CCEC heavy-duty engines to global genset manufacturers and industrial end-users. The Cummins QSK38-G4 is a 37.7L, 12-cylinder V-engine designed specifically for demanding 60Hz power generation. Boasting a prime power rating of 1231 kW (1650 HP) at 1800 RPM and an emergency standby capacity of 1376 kW, this engine is built for continuous, reliable operation. Engineered under configuration D233042GX03 and CPL 3572, the QSK38-G4 represents a significant technological leap in fuel efficiency and emission control for heavy-duty power applications.
Tech Specs of Cummins QSK38-G4
General Engine Data
Engine Model: Cummins QSK38-G4
Type: 12 Cylinders
Displacement: 37.7 L
Bore * Stroke: 159 * 159
Net Weight: 3825 Kg
Overall Dimension: 2081mm*1492mm*1866mm
Key Performance Data
Rated Power/Standby Output: 1231kW(1651HP), 1376kW(1845HP)
Rated Speed: 1500 rpm
Low Idle Speed: 700-800 rpm
Fuel Consumption: 78.7 g/kWh
More Technical Data
Fuel System: Cummins Direct Injection MCRS
Aspiration: Turbocharged, After-cooled
Electrical System (Starter Motor/Alternator): 24V
Cooling System Design: 2 pump- 2 loop
Technical Comparisons: How the QSK38-G4 Fits Your Build
Choosing the right 38-liter engine requires matching the exact RPM and fuel delivery system to your operational region. Many procurement managers ask us about the differences between this unit and similar models in the Cummins family. Understanding these distinctions is critical for specifying the right equipment for your project.
QSK38-G4 vs. Legacy KTA38-G4
The most critical difference between the QSK38-G4 and the older KTA38-G4 lies in the fuel injection technology. The KTA38 utilizes the traditional mechanical PT fuel pump system, which is renowned for its simplicity but lacks modern efficiency. In contrast, the QSK38-G4 features the advanced Modular Common Rail System (MCRS) controlled by the Quantum System electronic module. The MCRS delivers much higher injection pressures, resulting in significantly lower fuel consumption per kWh, reduced exhaust noise, and full compliance with EPA Tier 2 emissions standards. If your project requires precise load acceptance and modern digital diagnostics, the QSK38 is the superior upgrade.
1800 RPM (QSK38-G4) vs. 1500 RPM (QSK38-G5)
Genset builders must select their engine based on regional electrical frequency requirements. The QSK38-G4 is explicitly governed at 1800 RPM to produce 60 Hz power, making it the standard choice for North America, parts of South America, and specific island utility grids. Meanwhile, the QSK38-G3 and QSK38-G5 operate at 1500 RPM for 50 Hz markets. You cannot simply adjust the governor on a G5 to run at 1800 RPM safely under high loads. The internal cooling flows, specifically the two-pump two-loop cooling system on the G4, are factory-calibrated for the specific thermal rejection rates produced at 1800 RPM.
Real Application Scenarios for the QSK38-G4
MCRS Fuel System for Fuel Efficiency
HekoPower has shipped the QSK38-G4 to various industrial sectors worldwide. Because of its massive displacement and electronic precision, this model is exceptionally well-suited for two distinct heavy-duty operating environments.
60 Hz Prime Power in Remote Mining and Oil Rigs
Mining operations demand continuous, uninterrupted power to drive crushers, conveyer belts, and ventilation systems. A sudden loss of voltage can cost thousands of dollars in halted production. The QSK38-G4 delivers 1231 kW of continuous prime power specifically tuned for the 60 Hz electrical grids prevalent in the Americas. Because the engine features a robust low-temperature aftercooling setup, it handles the intense thermal loads generated during 24/7 operation in harsh, dusty, high-ambient environments. Rapid transient response from the electronic controls ensures the engine meets immediate torque demands from drilling rig mud pumps without stalling or dropping frequency.
High-Capacity Data Center Standby Power
Modern data centers are measured by their uptime reliability, often requiring strict tier-IV certification. During a municipal grid failure, the backup generators must synchronize and take over the entire facility load in less than ten seconds. The QSK38-G4 excels in this strict emergency standby environment, offering a robust 1376 kW rating. The electronic fuel injection allows for highly precise speed governing, meaning the electrical frequency remains perfectly stable to protect sensitive servers and uninterruptible power supply systems from damaging voltage spikes.
Maintenance, Overhaul, and Replacement Tips
Protecting your investment in a high-power generator engine requires strict adherence to factory maintenance schedules. Because HekoPower supplies both the complete engine assembly and genuine spare parts, we advise clients to stock essential consumables on site to prevent unnecessary downtime.
Managing the MCRS Fuel System
The MCRS fuel system is the heart of the engine's efficiency, but it requires diligent maintenance. Operating at extremely high pressures, the injectors atomize fuel perfectly for a clean burn. However, this high pressure makes the internal components highly susceptible to scoring from microscopic debris or water suspended in the diesel. Operators must commit to strict fuel management practices. Always use genuine Fleetguard multi-stage fuel water separators and replace them exactly at the specified hour intervals. Neglecting this routine is the leading cause of premature fuel pump failure. For sites relying on bulk fuel storage tanks, installing an active fuel polishing system is a highly recommended best practice.
Engine Overhaul and CPL 3572 Parts Sourcing
When the QSK38-G4 approaches its major overhaul target, accurate parts sourcing is non-negotiable. Every engine is governed by a Control Parts List that dictates the exact internal components used during factory assembly. For the QSK38-G4 operating at 1800 RPM, the specific designation is CPL 3572, operating on the FR-6789 performance curve. You must provide these reference numbers when contacting HekoPower for replacement parts. Relying on generic aftermarket parts based solely on the 38-liter displacement can lead to mismatched cylinder liners or incorrect piston rings. We supply complete factory-certified overhaul gasket kits, main bearings, and upper engine rebuild kits guaranteed to match your exact engine serial number.
Common Misconceptions to Avoid
Over the years, we have seen buyers make costly mistakes during the procurement and operational phases. Recognizing these pitfalls early will save time and protect your warranty.
First, never assume parts are interchangeable between the mechanical KTA38 and the electronic QSK38 platforms. Although they share the same 37.7L block footprint, the cylinder heads, camshafts, and entire fuel delivery infrastructure are completely different. Attempting to cross-reference parts between the two will result in failure.
Second, many procurement managers mistakenly believe they can purchase a 1500 RPM 50 Hz generator engine and simply recalibrate the software to run at 1800 RPM for a 60 Hz project. Pushing a 50 Hz engine to run continuously at 60 Hz speeds can exceed the factory design limits for the turbocharger mapping and cooling pump flow rates. Always purchase the factory-designated QSK38-G4 for 60 Hz applications rather than attempting field modifications.
Finally, do not underestimate the specific installation requirements for the cooling system. The QSK38-G4 uses a dual-loop cooling system where the jacket water circuit and the aftercooler circuit have different temperature thresholds. Genset packagers must strictly follow the installation manual regarding radiator sizing and coolant friction head limits to prevent catastrophic overheating at full load.
Complete Your Power Setup
Sourcing a high-horsepower generator engine is only the first step. To ensure seamless operation and long-term reliability, building your system with perfectly matched components from the same engine family is highly recommended. Whether you are expanding an existing power plant or standardizing your fleet across multiple remote sites, HekoPower offers a comprehensive lineup of complementary power solutions.
Cummins QSK-G Series, original products from Chongqing Cummins Engine Plant(CCEC). This series mainly includes QSNT-G, QSK19-G4, QSK19-G5, QSKTAA19-G3, QSK38-G1, QSK38-G2, QSK38-G3, QSK38-G4, QSK38-G5, QSK50-G2, QSK50-G3, QSK50-G4, QSK50-G6, QSK50-G7.
Frequently Asked Questions
What is the typical lead time for the QSK38-G4 engine assembly?
Factory-direct production and testing at the Chongqing CCEC facility typically require 15 to 30 working days. Ocean freight transit times vary by your final destination. HekoPower will provide a precise delivery schedule upon order confirmation.
How is the engine packaged for international export?
We utilize heavy-duty, fumigation-free wooden cases specifically designed to secure the 3,825 kg dry weight of the engine. The export packaging strictly protects the electronic control modules, wiring harnesses, and turbochargers from moisture and vibration during sea transit.
What is the fuel consumption rate at full load?
Running at 100 percent prime load (1231 kW), operators achieve highly competitive liters-per-hour fuel usage thanks to the MCRS technology. We provide the exact factory FR-6789 fuel consumption chart with your official quote, detailing the precise burn rates at 50, 75, and 100 percent load capacities to assist with your site's operational budget planning.
Can HekoPower supply this engine as a complete generator set?
Yes. While many of our clients are OEM packagers who buy the bare G-drive engine, we also supply fully assembled 60Hz diesel generators powered by the QSK38-G4, complete with Stamford alternators and Deep Sea synchronization controllers.
