Details

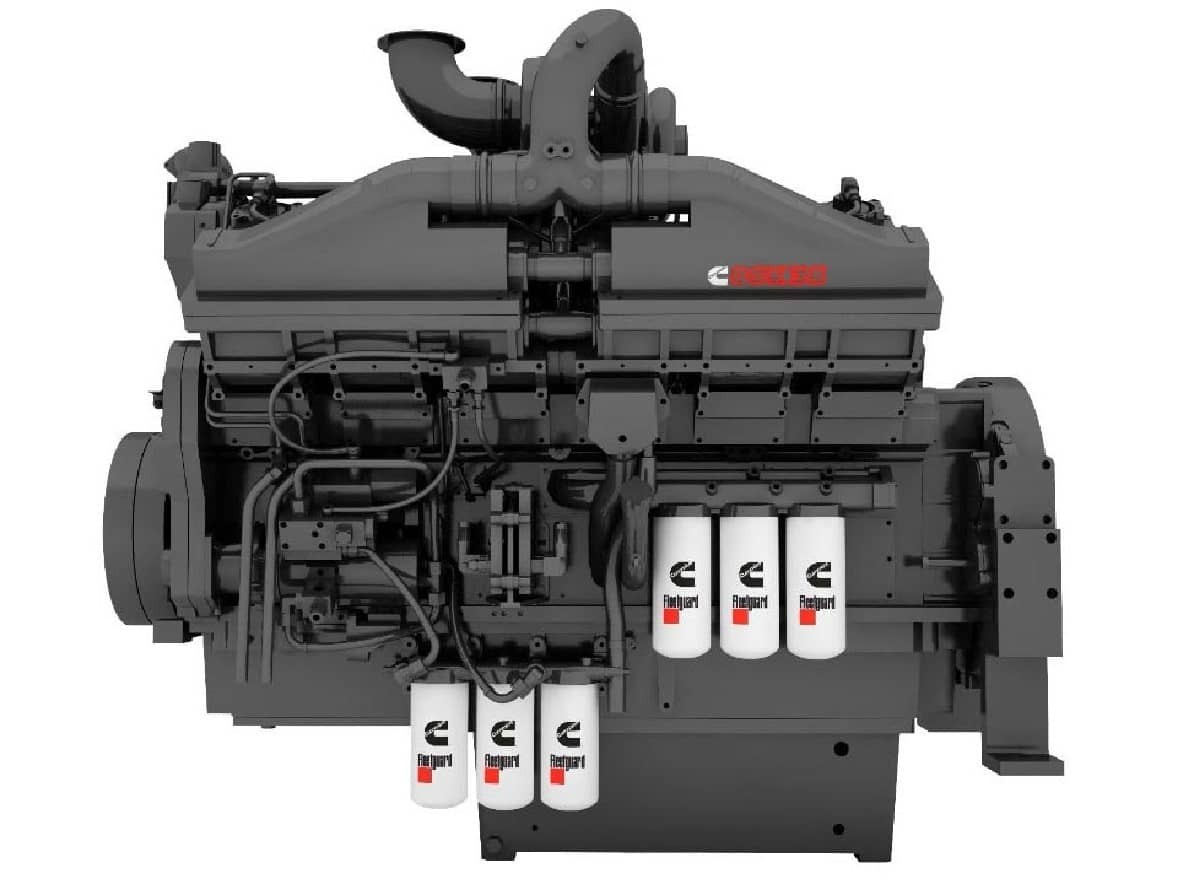

Heavy Duty V12 Cummins QSK38-G1 G-Drive Engine
The Genuine CCEC Cummins QSK38-G1 is a heavy-duty V12 diesel engine designed for industrial generator drive applications requiring reliable standby and continuous power performance. Manufactured by Chongqing Cummins Engine Company (CCEC), the QSK38-G1 combines high displacement capacity with advanced fuel control technology to support stable operation in demanding environments.
Unlike smaller generator drive engines used for light commercial applications, the QSK38-G1 is engineered for large-scale facilities where power stability is critical. The engine is widely used in data centers, mining projects, hospitals, oilfield infrastructure and industrial manufacturing plants that require dependable emergency or prime power systems.
With a rated standby power output of 876kW at 1500RPM, the engine is suitable for 50Hz generator sets in international markets. Its V12 structure provides balanced power delivery and smooth load acceptance under fluctuating operating conditions.
The QSK38-G1 also benefits from Cummins Modular Common Rail System (MCRS) fuel technology, which improves fuel atomisation efficiency and supports lower fuel consumption during long-duration operation.
Tech Specs of Cummins QSK38-G1
General Engine Data
Engine Model: Cummins QSK38-G1
Type: 12 Cylinders
Displacement: 37.7 L
Bore * Stroke: 159 * 159
Net Weight: 3825 Kg
Overall Dimension: 2081mm*1492mm*1866mm
Key Performance Data
Rated Power/Standby Output: 876 kW/1175 HP, 970 kW/1300 HP
Rated Speed: 1500 rpm
Low Idle Speed: 700-800 rpm
Fuel Consumption: 56 g/kWh
More Technical Data
Fuel System: Cummins Direct Injection MCRS
Aspiration: Turbocharged, After-cooled
Electrical System (Starter Motor/Alternator): 24V
Cooling System Design: 2 pump- 2 loop
Cummins QSK38-G1 MCRS Fuel System Integration
The defining advantage of the Cummins QSK38-G1 over older mechanical engines is its Modular Common Rail System (MCRS). Unlike standard high-pressure fuel pumps that wear out under continuous load, the Cummins QSK38-G1 MCRS fuel system utilizes electronic injection controls to optimize combustion across every cylinder. This setup achieves precise fuel metering, resulting in a documented Cummins QSK38-G1 fuel efficiency comparison advantage over traditional distribution pumps. The electronic control module ECM continuously monitors fuel rail pressures to maintain stable engine speeds under sudden block loads.
Low Temperature Aftercooling 2P2L Configuration
Managing thermal efficiency in a 38 litre V12 diesel engine requires advanced cooling engineering. The QSK38-G1 low temperature aftercooling 2P2L setup features a two-pump, two-loop radiator design. The first circuit isolates engine block jacket water, while the second dedicated circuit cools the intake air charge after turbocharging. This Cummins QSK38-G1 turbocharged aftercooled diesel engine configuration maximizes air density in the combustion chambers, lowering exhaust gas temperatures (EGT) and extending cylinder head operational lifespans during extended runtime cycles.
Power Ratings and Commercial Application Scenarios
The QSK38-G1 G-Drive engine operates within highly specific power parameters tailored for diverse grid environments.
Cummins QSK38-G1 Standby Power Engine Roles
For facilities where power failure is not an option, the 876kW Cummins standby engine provides rapid frequency acceptance.
- Data Centers: The Cummins QSK38-G1 for data center backup power meets strict Uptime Institute Tier III and Tier IV requirements, achieving stable voltage regulation within seconds of a grid outage.
- Healthcare Institutions: Installing a Cummins QSK38-G1 for hospital standby generator networks protects life-support systems by handling heavy inductive loads from HVAC and medical imaging machinery simultaneously.
- Emergency Infrastructure: The Cummins QSK38-G1 emergency standby engine layout guarantees immediate start-up capabilities even after prolonged periods of inactivity.
Cummins QSK38-G1 Prime Power Engine Roles
When utility grids are non-existent or unreliable, the engine transitions into a continuous mechanical workhorse.
- Mining Operations: The Cummins QSK38-G1 mining power engine runs continuously in high-altitude, dusty environments to drive remote camp ventilation and heavy ore processing equipment.
- Remote Energy Extraction: The Cummins QSK38-G1 for oil and gas generator systems operates efficiently on off-grid drilling platforms, utilizing its massive torque reserves to manage fluctuating drilling rig loads.
- Continuous Operations: Every Cummins QSK38-G1 continuous power application benefits from a deep-sump oil pan design, extending fluid life during non-stop base load operations.
Engineering Comparison: QSK38-G1 vs. Market Competitors
Industrial procurement agents frequently evaluate the genuine Chongqing Cummins QSK38-G1 against alternative engine platforms before making a purchase decision.
Comparison with Alternative Engine Brands
Compared to European engine brands in the 1000kVA class, the original CCEC QSK38-G1 engine offers significantly lower lifecycle operational costs. European alternatives often require proprietary diagnostic tools and complex software licensing. Conversely, the Cummins QSK38-G1 1500RPM platform relies on open architecture INSITE software, making field diagnostics simpler for local mechanics anywhere in the world. Furthermore, the 38-liter displacement provides a heavier thermal mass, running cooler than downsized, highly-stressed competitors.
Compliance with Emission Regulations
The U.S. EPA Tier 2 Cummins QSK38-G1 diesel engine balances strict emissions compliance with fuel economy. Unlike modern Tier 4 Final units that require complex Selective Catalytic Reduction (SCR) and continuous Diesel Exhaust Fluid (DEF) replenishment, the Tier 2 platform utilizes in-cylinder combustion optimization. This makes it the ideal candidate for export to regions throughout South America, Africa, Southeast Asia, and the Middle East, where high-sulfur diesel fuel would instantly damage sensitive Tier 4 exhaust aftertreatment systems.
Maintenance, Overhaul, and Spare Parts Procurement
Long-term reliability depends directly on adhering to the official Cummins QSK38-G1 maintenance schedule and sourcing verifiable components.
Routine Maintenance and Diagnostic Frameworks
Preventative service minimizes unexpected downtime. Operators should reference a clear Cummins QSK38-G1 troubleshooting guide to monitor fault codes generated by the ECM. Oil and filter changes must occur every 250 to 500 operating hours, depending on fuel quality and environmental dust levels. Valve lash adjustments should be inspected at 1,500-hour intervals to preserve valvetrain alignment and protect the injector rocker arms from premature fatigue.
Overhaul Sourcing via Critical Parts Lists (CPL)
When executing a mid-life or major engine rebuild, ordering parts blindly by engine model causes costly shipping errors. Every QSK38 engine variant relies on a specific Critical Parts List. When purchasing Cummins QSK38-G1 CPL 3570 engine parts, you must match the CPL number stamped on the engine dataplate. HekoPower keeps a dedicated inventory of CPL 3570 cylinder liners, piston kits, main bearings, and upper gasket sets to ensure seamless compatibility during rebuilds. Our global Cummins QSK38-G1 service support network guarantees that Cummins QSK38-G1 overhaul parts ship with verified factory certificates, maintaining original equipment tolerances.
Wholesale Sourcing and Shipping Schedules
HekoPower operates as a verified Cummins QSK38-G1 factory supplier China hub. Because we manage direct distribution channels, we dramatically reduce the standard factory lead time. Standard Cummins QSK38-G1 lead time averages 4 to 6 weeks for standard builds, while custom radiator-mounted packages are delivered within 8 weeks. Every engine undergoes a rigorous load-bank test before being secured inside a fumigated, heavy-duty wooden box lined with anti-corrosion vapor barriers. This guarantees the engine arrives free of flash rust, ready for immediate installation on your assembly floor.
Cummins QSK-G Series, original products from Chongqing Cummins Engine Plant(CCEC). This series mainly includes QSNT-G, QSK19-G4, QSK19-G5, QSKTAA19-G3, QSK38-G1, QSK38-G2, QSK38-G3, QSK38-G4, QSK38-G5, QSK50-G2, QSK50-G3, QSK50-G4, QSK50-G6, QSK50-G7.
Procurement FAQ for International Buyers
How do I request a reliable CCEC Cummins QSK38-G1 wholesale price quote?
To receive an accurate commercial quote, please submit your target delivery port, required electrical frequency (50Hz 1500RPM vs 60Hz 1800RPM options), and your specific radiator cooling requirements to the HekoPower sales team.
Is it safe to buy Cummins QSK38-G1 online for international shipping?
Yes. When you partner with a verified genuine Cummins QSK38-G1 supplier like HekoPower, all transactions are backed by official factory manufacturing certificates, pro-forma invoices, and bill of lading documentation. We handle all export customs clearance processing from Chinese ports.
What is the exact Cummins QSK38-G1 spare parts availability guarantee?
We offer long-term supply chain security for all QSK38 components. Beyond the complete engine block, our warehouse maintains a rolling stock of fuel pumps, MCRS injectors, turbochargers, ECM replacements, and filtration kits to service your equipment for its entire operational lifecycle.
