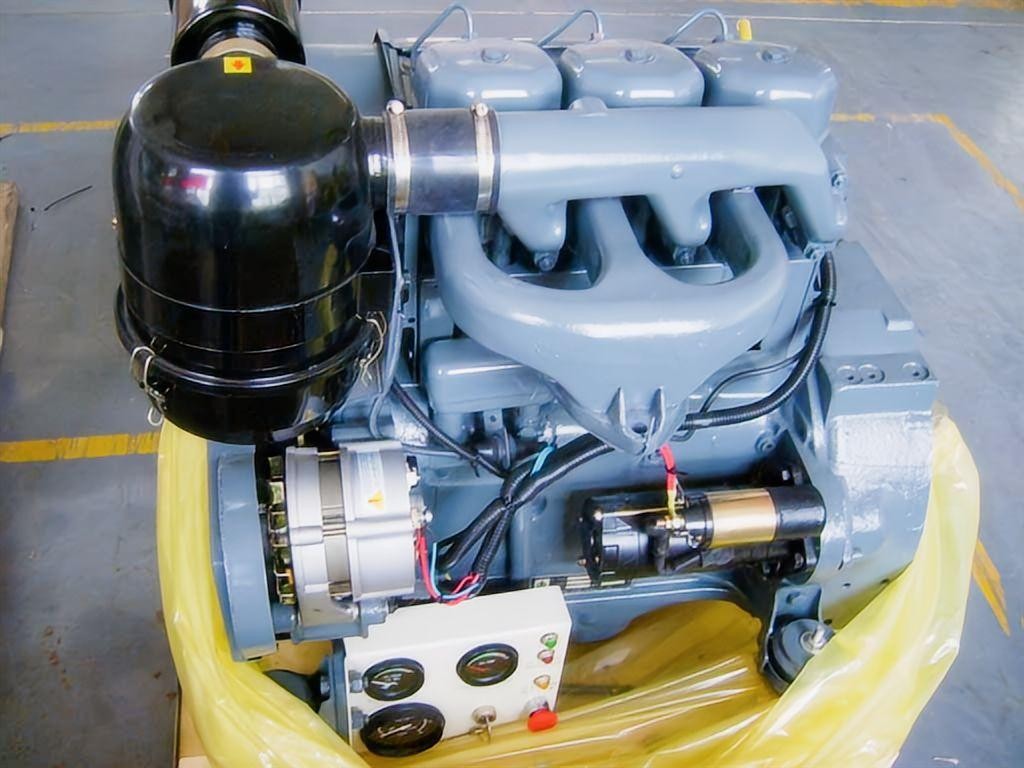

Deutz F3L912 Generator Engine: Reliable Air-Cooled Power for Gensets
If you are building a small power generator or replacing a failed unit, the Deutz F3L912 generator engine is a proven solution. Manufactured by the Beinei Deutz joint venture in China, this 3-cylinder air-cooled Deutz engine is engineered specifically for generator sets requiring steady power in unforgiving environments.
As a dedicated engine supplier, HekoPower stocks the complete Deutz F3L912 engine assembly, offering both wholesale supply and single replacement units.
Tech Specs of Deutz F3L912 Generator Engine
General Engine Data
Engine Model: Deutz F3L912-Generator Engine
Type: 3 Cylinders, in Line
Displacement: 2.828 L
Bore * Stroke: 100 * 120
Overall Dimension: 730mm*673mm*815mm
Net Weight: 275 Kg
Key Performance Data
Continue Power(1500 RPM): 24 kW
Continue Power(1800 RPM): 28 kW
Max. Power Output(1500 RPM): 26 kW/1500 rpm
Max. Power Output(1800 RPM): 30 kW/1800 rpm
Rated Speed: 1500/1800 rpm
Prime/Standby Generator Power: 20 kW/22 kW
Noise Standard: 103 dB(a)
Fuel Consumption with Full-Load: 232 g/kW.h
More Technical Data
Aspiration: Natural Intake
Fuel System: Direct Injection Pump
Cooling Method: Air Cooling
Electrical System (Starter Motor/Alternator): Electronic Starting (12V/24V)
Compression Ratio: 17:1
Exhaust Gas Flow & Temprature: 2.18 m³/min; 3
Governor Type: Mechanical/Electronic Governor
Why Choose an Air-Cooled Deutz F3L912?
Many buyers ask us why they should choose an air-cooled model over a water-cooled alternative. The primary advantage is environmental resilience.
Water-cooled engines are vulnerable in temperature extremes. Freezing conditions can crack engine blocks if the coolant mixture is wrong, while extreme heat can cause boil-overs. The Deutz F3L912 air cooled diesel engine eliminates these risks entirely.
Ideal Application Scenarios
Because of this resilience, we frequently supply this model as a Deutz F3L912 engine for standby generator units in remote areas. It is particularly popular as a Deutz F3L912 engine for agricultural generator setups, where equipment is often left out in the elements and subjected to heavy dust.
Telecom towers, off-grid construction sites, and small rural facilities rely heavily on the 24kW/28kW generator engine supplier network because these air-cooled units require far less daily oversight than their water-cooled counterparts.
Technical Comparisons: F3L912 vs. Similar Engines
To make an informed purchasing decision, it helps to compare the Deutz F3L912 diesel generator engine against other common options on the market.
F3L912 vs. F4L912
While both belong to the Deutz FL912 series generator engine family, the obvious difference is the cylinder count. The F3L912 is a 3-cylinder unit maxing out at 28kW (1800rpm), while the F4L912 adds a fourth cylinder, bumping the power up to around 38kW at 1800rpm. If your genset requires under 30kW, the F3L912 is the more fuel-efficient and compact choice.
Beinei Deutz vs. Original German Deutz
A common misconception is that engines manufactured in China are "knock-offs." This is incorrect. The Beinei Deutz F3L912 fuel consumption, block metallurgy, and performance metrics match the original German specifications. Beinei operates under a legitimate joint venture, utilizing Deutz AG technology and tooling. You get the same rugged reliability at a much more competitive Deutz F3L912 diesel engine price.
Maintenance and Fuel Consumption Guidelines
Even the most robust engines require proper care. If you want your replacement Deutz F3L912 diesel engine for genset applications to last, you must manage its fuel and cooling.
Deutz F3L912 Fuel Consumption
Fuel economy is a strong point for this series. At full load, the engine consumes roughly 230 g/kWh. However, fuel consumption varies based on the load profile and the alternator's efficiency. Running the Deutz F3L912 1500 rpm genset engine at low loads (under 30%) for extended periods can cause "wet stacking," where unburnt fuel builds up in the exhaust. Always try to run the engine at 60% load or higher.
Cooling System Maintenance
It is a mistake to assume "air-cooled" means "zero maintenance." The engine relies on a belt-driven cooling fan to force air over the cylinder fins.
You must regularly inspect the fan belt for tension and wear. More importantly, the cooling fins on the engine block must be kept clean. In agricultural or construction settings, chaff, dust, and oily dirt can clog these fins, acting as an insulating blanket and causing the engine to overheat.
Replacing Your F3L912 Engine
If your current engine has suffered catastrophic failure, buying a Deutz F3L912 engine replacement for your genset is often more cost-effective than attempting a major overhaul.
When you buy a Deutz F3L912 generator engine from HekoPower, you are getting a complete engine assembly in stock and ready for integration. We provide the base engine, cooling fan, fuel injection system (pump and injectors), and starter motor.
We serve as a primary China Deutz F3L912 replacement engine manufacturer and distributor, meaning we can also advise on adapting the engine to your specific alternator frame.
Deutz F2L912/FL913-Generator Engine Series, original products from Beinei Deutz Engine Plant. This series mainly includes Deutz F2L912, Deutz F3L912, Deutz F3L913, Deutz F4L912, Deutz F4L912T, Deutz F4L913, Deutz BF4L913, Deutz F6L912, Deutz F6L912T, Deutz F6L913, Deutz BF6L913, Deutz BF6L913C. In accordance with the criteria of Machinery Safety Directive 2006/42, movable elements such as distribution belts, fans, and parts that acquire high temperatures during operation, such as exhaust manifolds, have their respective safeguards. Before being delivered, the generator is thoroughly checked at the factory. Voltage, frequency, and load are all tested, as well as the appropriate operation of warnings and the influence of engine oil temperature on stop.
Frequently Asked Questions (FAQ)
What is the lead time for a Deutz F3L912 complete engine assembly?
HekoPower generally maintains these units in stock. Standard preparation and testing take roughly 15 to 20 business days before shipping.
Do you supply parts for the Deutz F3L912?
Yes. Beyond acting as a Deutz F3L912 engine wholesale supplier, HekoPower provides comprehensive spare parts support, including fuel pumps, injectors, and overhaul kits to keep your genset running.
Can this engine be run at both 1500rpm and 1800rpm?
Yes, the governor can be set for either speed depending on whether you are generating 50Hz (1500rpm) or 60Hz (1800rpm) power. We will configure the Deutz F3L912 power output and rpm to your exact requirements prior to shipping.
