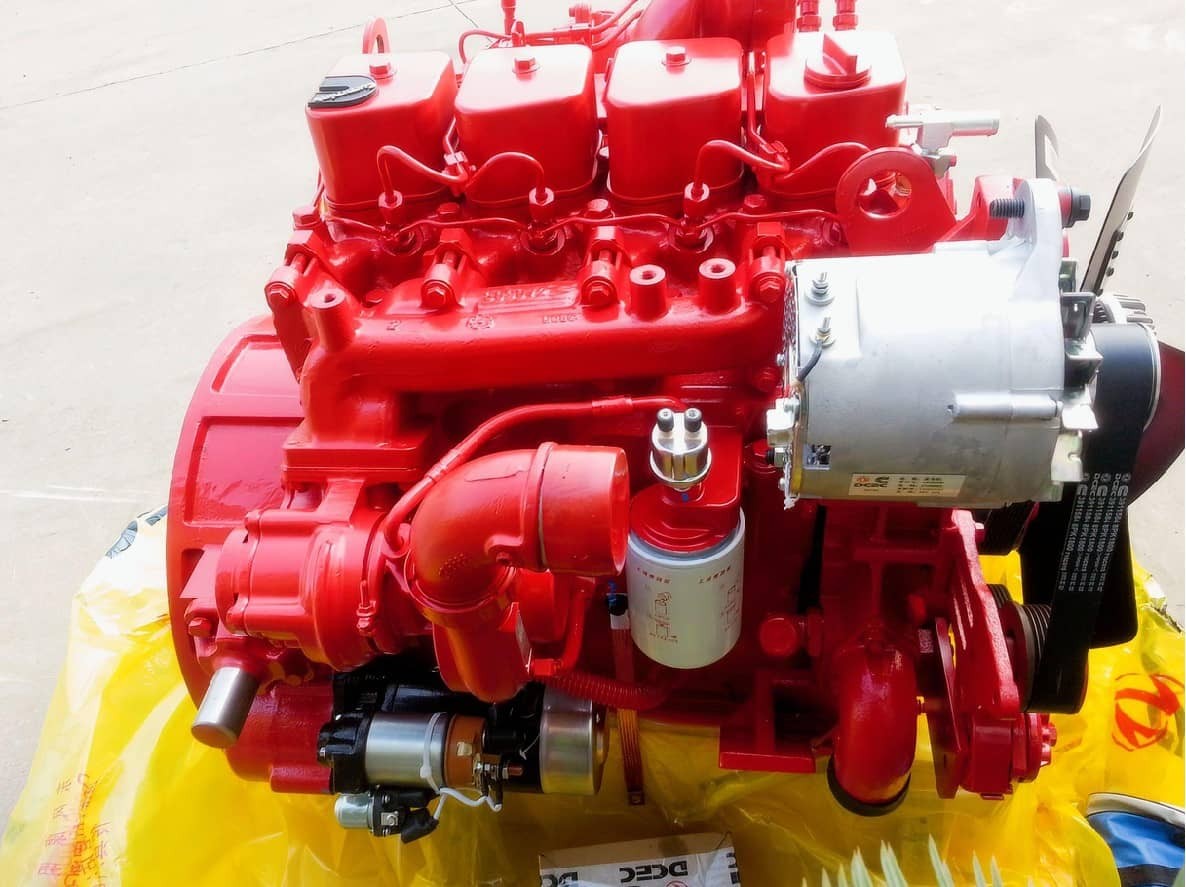

Buy Mechanical Cummins 125HP Engine Assembly: The DCEC B125-33
Fleet managers dealing with aging commercial vehicles often face a critical decision. Do you spend weeks rebuilding a tired motor, or do you opt for a complete drop-in replacement? For operators requiring absolute reliability without the complication of modern electronics, the Cummins B125-33 complete engine assembly remains the most practical solution on the market.
As a trusted DCEC 4BT3.9 125HP mechanical engine, this unit delivers straightforward power without the fragility of modern ECM sensors. It is a robust, Euro II compliant powerhouse designed specifically for markets where fuel quality fluctuates and field repairability is paramount. At HekoPower, we supply this DCEC B125-33 engine directly to fleet owners, logistics companies, and repair facilities, ensuring you get a genuine product with a verified factory warranty. Whether you are searching for a single Cummins B125-33 engine for sale or looking to secure a reliable partner for Cummins B125-33 engine wholesale orders, this 3.9L block is engineered to keep your fleet moving.
Tech Specs of Cummins B125-33
General Engine Data
Engine Model: Cummins B125-33
Type: 4 Cylinders in Line
Displacement: 3.9 L
Bore * Stroke: 102 * 120
Net Weight (with flywheel & alternator): 362 Kg
Overall Dimension: 778mm*634mm*912mm
Key Performance Data
Rated Power: 92 kW/125HP
Rated Speed: 2800 rpm
Max Torque/Speed: 410 N.m @ 1500 rpm
Torque/Rated Speed: 317 N.m @ 2800 rpm
Fuel Consumption @ Rated Power: 244 g/Kw.h
Max. No-load Governed Speed: 3150 rpm
Idle-Speed: 750±100 rpm
Max Continuous Running Altitude: 3000 m
More Technical Data
Certification: Euro II
Aspiration: Turbocharged & Intercooled
Fuel System: Wuxi Weifu Pump
Compression Radio: 17.3:1
Electrical System (Starter Motor/Alternator): 12V (500A)/24V (250A)
Lowest Starting Temp Without auxiliary system: -10℃/-25℃
Cooling Method: Water cooled
Engine Cooling Fluid Volume: 7.0 L
Real-World Application Scenarios for the B125-33 Engine
Understanding where a specific engine excels is crucial to avoiding costly mismatches in fleet operations. The Cummins B125-33 vehicle engine is not designed for heavy-duty highway hauling. Instead, it is a purpose-built Cummins B125-33 light truck engine that dominates the urban logistics and regional transport sectors.
We heavily recommend this specific 3.9L diesel engine for trucks operating in the 3 to 5-ton payload category. Its compact dimensions make it an ideal fit for narrow-cab designs commonly seen in Asian and South American commercial vehicle markets. Because it is a B125-33 turbocharged intercooled engine, it manages heat exceptionally well during stop-and-go city driving, which is the primary operational environment for a Cummins B125-33 logistics truck engine.
Beyond freight, this unit is highly sought after as a Cummins B125-33 bus engine. Mid-sized transit buses and 6-to-8 meter coaches benefit greatly from the engine’s ability to deliver consistent low-end grunt. The Cummins B125-33 410Nm torque curve peaks early, allowing heavily loaded passenger vehicles to pull away from bus stops smoothly without excessive clutch wear or aggressive throttle input.
Technical Comparisons: Understanding Your 4BT3.9 Options
When buyers contact us for a Cummins B125-33 engine quotation, they frequently ask how this model stacks up against other units in the B series. The most common inquiry revolves around the difference between Cummins B125-33 and B140-33. While both share the same 3.9L displacement and basic block architecture, their application intents are quite different. The B140-33 pushes 140 horsepower and is geared toward slightly heavier chassis or vehicles that spend more time at highway speeds. However, for a standard 3-ton delivery truck operating entirely within city limits, the Cummins B125-33 92kW engine is actually the superior choice. It generates less internal thermal stress, resulting in longer intervals between overhauls, and offers slightly better fuel economy at lower RPMs.
Another frequent comparison is the Cummins B125-33 vs EQB125-20. The EQB series represents an earlier iteration of Dongfeng Cummins engineering, primarily targeting Euro I or non-emission regulated markets. Upgrading to the B125-33 Euro II engine provides operators with a more refined combustion cycle, noticeably less black smoke under heavy load, and better overall fuel atomization without losing the mechanical simplicity that mechanics love.
We also see buyers debating between the Cummins B125-33 vs B160-33. If your vehicle is rated for a 5-ton payload but routinely carries 8 tons over mountainous terrain, the B160-33 is necessary. But if you are operating strictly within the legal weight limits on relatively flat regional routes, installing the 125HP unit prevents you from overpaying for power you will never actually use.
Maintenance, Misconceptions, and Pump Adjustments
There is a persistent misconception in the commercial trucking industry that mechanical fuel systems are obsolete and inherently inefficient. This is completely false, especially in harsh operational environments. The Cummins B125-33 mechanical fuel injection engine is equipped with a highly durable pump system that provides a distinct advantage in regions with inconsistent diesel quality.
A major selling point of this unit is the inclusion of the B125-33 Wuxi Weifu pump. Unlike sensitive common-rail electronic injectors that can be destroyed by a single tank of water-contaminated fuel, the Wuxi Weifu mechanical pump is incredibly resilient. Furthermore, Cummins B125-33 Wuxi Weifu pump adjustment can be performed by virtually any trained diesel mechanic using standard hand tools. There is no need to wait days for a specialized technician with proprietary diagnostic laptops to arrive at your depot. You can manually adjust the idle speed, govern the maximum RPM, and fine-tune the fuel delivery directly on the pump housing.
This mechanical simplicity leads directly into another common misconception regarding fuel efficiency. Operators assume an older Euro II design will burn through diesel rapidly. However, the Cummins B125-33 fuel consumption curve is actually exceptionally flat. When driven correctly, keeping the engine near its optimal Cummins B125-33 2800 RPM range during cruising speeds, it achieves a highly competitive fuel burn rate that rivals early electronic engines, keeping your cost-per-kilometer strictly managed.
Streamlining Your Engine Drop-in Replacement
When an engine fails, fleet downtime costs money every single hour. Attempting to piece together a rebuild kit often leads to delays, mismatched tolerances, and repeat failures. This is why securing a DCEC B125-33 engine drop-in replacement is the most cost-effective strategy for fleet maintenance.
As a premier Cummins B125-33 complete engine supplier, HekoPower ensures that B125-33 engine replacement compatibility is never a guessing game. Our complete assemblies arrive ready to mate with your existing transmission and engine mounts. Because we understand the urgency of commercial logistics, we maintain an optimized supply chain. When you inquire about the Cummins B125-33 engine lead time, you will find that our turnaround—often around 10 business days—is significantly faster than waiting for a local shop to machine and rebuild a blown block. You are not just buying parts; you are buying a complete Cummins B125-33 replacement engine assembly that resets the lifespan of your vehicle immediately.
Exploring Other Options in the Cummins B Series
While the 125HP model is the absolute top choice for 3-5 ton logistics and mid-sized coaches, we recognize that your fleet might require different specifications. Heavy-duty applications, varying emission laws, and larger payloads demand a wide variety of power profiles. As a dedicated DCEC Cummins B125-33 engine for sale provider, HekoPower also offers a comprehensive lineup of related powerplants to match any chassis requirement you may have in your garage.
DCEC B Series, original products from Dongfeng Cummins Engine Plant (DCEC), Cummins Joint Venture Plant since 1986, 50% shareholding by Cummins USA. This series mainly includes B125-33, B140-33, B160-33, B170-33, B180-33, B190-33, B210-33.
Frequently Asked Questions About the B125-33
How do I confirm the Cummins B125-33 engine dimensions and weight will fit my truck?
The dry weight of this Cummins B125-33 3.9L diesel engine is generally around 343kg to 362kg, depending on the exact accessory configuration. Its compact inline-four profile makes it a standard fit for almost all 3-to-5 ton Asian commercial truck chassis. Our technical team can verify your exact chassis mounting points prior to purchase.
Are you a genuine Cummins B125-33 engine supplier?
Yes. HekoPower works directly with the top-tier supply chains to provide authentic DCEC B125-33 replacement engine units. We do not sell counterfeit or unregulated aftermarket rebuilds. Every assembly meets exact factory specifications and comes with a reliable warranty.
How do I get an accurate Cummins B125-33 engine price?
Because shipping logistics, destination ports, and exact accessory configurations (such as specific alternators or starter motors) vary by client, we do not list a flat retail price. We encourage fleet managers to contact us directly for a customized Cummins B125-33 engine quotation tailored to your specific delivery requirements.
