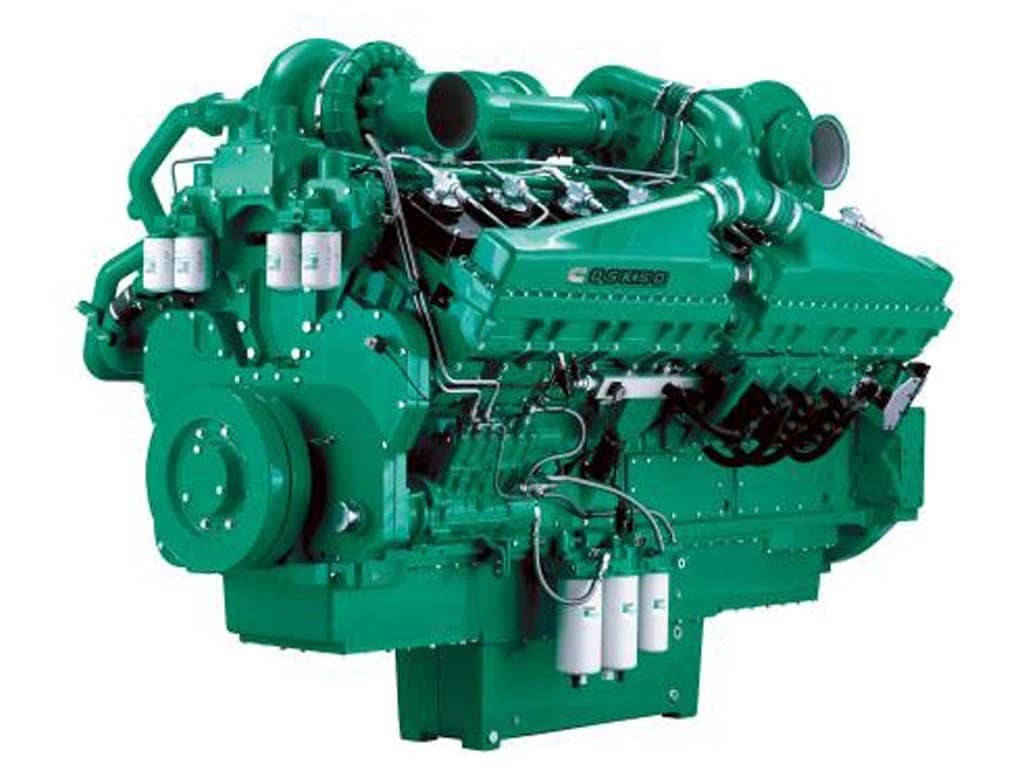

Genuine Cummins QSK50-G4 Generator Drive Diesel Engine Assembly
HekoPower supplies the authentic Cummins QSK50-G4 generator drive diesel engine. This heavy-duty V16 power unit delivers the extreme block-load acceptance demanded by modern mission-critical facilities. Built on a 50-liter platform, the Cummins 50l v16 diesel engine provides robust thermal efficiency and reliable mechanical endurance. As an established Chongqing Cummins QSK50-G4 exporter, HekoPower sources these complete G-Drive assemblies directly from the manufacturing facilities. This direct pipeline guarantees that international engineering firms receive genuine CCEC Cummins QSK50-G4 units. Every engine configuration matches identical factory-level build sheets.
International procurement managers face challenges with unverified brokers who supply mismatched engine configurations. HekoPower operates exclusively as a verified Cummins QSK50-G4 diesel engine supplier. We handle all documentation, factory testing verifications, and regional compliance audits. This process ensures your investment meets exact industrial power demands right out of the shipping crate.
Tech Specs of Cummins QSK50-G4
General Engine Data
Engine Model: Cummins QSK50-G4
Type: 16 Cylinders
Displacement: 50.3 L
Bore * Stroke: 159 * 159
Net Weight: 7492 Kg
Overall Dimension: 4674mm*2468mm*3100mm
Key Performance Data
Rated Power/Standby Output(1500 rpm): 1328 kW, 1477 kW
Rated Power/Standby Output(1800 rpm): 1470 kW, 1656 kW
Rated Speed: 1500/1800 rpm
Low Idle Speed: 700-800 rpm
Fuel Consumption(1500 rpm): 89.2 g/kWh @ 1500 rpm
Fuel Consumption(1800 rpm): 96.4 g/kWh @1800 rpm
More Technical Data
Fuel System: Cummins Direct Injection MCRS
Aspiration: Turbocharged, After-cooled
Electrical System (Starter Motor/Alternator): 24V
Cooling System Design: 2 pump- 2 loop
Cooling System Integration
The integrated Cummins QSK50-G4 cooling system utilizes a two-pump, two-loop radiator design. The low-temperature aftercooling loop maintains low intake manifold temperatures to ensure dense air charging. The main engine coolant jacket manages core cylinder block heat. Radiator fan selection must account for total static restriction to prevent air recirculation loops.
Generator Compatibility Guidelines
The rear flywheel housing adheres to standard SAE 0 dimensions with an SAE 18 coupling design. This uniform configuration ensures proper Cummins QSK50-G4 generator compatibility across major alternator brands like Stamford, Leroy Somer, and Marathon. Proper axial alignment checks protect the front crankshaft bearing from premature wear.
Engineered for Heavy-Duty Industrial Power Applications
The Cummins QSK50-G4 industrial power engine serves as the core prime mover for high-output generator configurations globally. Its structural rigidity and advanced fuel management make it a reliable choice for severe-duty environments.
Data Center Backup Systems
A sudden power grid failure requires instant, clean power generation. The QSK50-G4 for data center backup power meets these requirements by achieving a stable voltage frequency within seconds. Its rapid transient response manages massive electrical load steps without dropping frequency thresholds. This performance prevents localized facility UPS systems from degrading during emergency operations.
Heavy-Duty Oil & Gas Frac Rigs
Hydraulic fracturing operations expose machinery to high ambient temperatures and heavy vibration. The heavy duty frac rig qsk50 cummins engine replacement plan relies on the engine's cast-iron block design. It manages sudden torque changes during high-pressure pumping intervals. This durability keeps oilfield operations moving without unscheduled power dropouts.
Mining and Remote Infrastructure
Remote mining sites depend entirely on isolated microgrids. The QSK50-G4 engine for mining generators supplies steady electricity to crushing plants, conveyor systems, and worker base camps. It tolerates variable fuel qualities while maintaining high uptime metrics under non-stop usage profiles.
Critical Healthcare Installations
Hospitals cannot tolerate minor power flickers. The Cummins QSK50-G4 for hospital standby systems provides emergency backup electricity to life-support systems, surgery wings, and climate controls. The engine complies with international emergency-start safety protocols.
Telecom Base Stations and National Hubs
Modern communication infrastructure handles massive data streams. The Cummins QSK50-G4 for telecom power station duty works well in large regional data transmission nodes. It provides long continuous running windows when the primary national grid experiences seasonal brownouts.
Technical Comparison and Structural Evolution
Understanding how the modern QSK50 platform differs from older legacy designs helps operators make informed decisions during system updates.
QSK50-G4 MCRS vs Legacy KTA50 Mechanical Engines
The main difference lies within the high-pressure fuel infrastructure. The newer Cummins QSK50 MCRS fuel system specifications outline a modular common rail architecture. Older KTA50 models use individual mechanical unit injectors.
The MCRS platform maintains high injection pressures independent of engine speed. This precise fuel timing cuts down on wet-stacking issues during low-load idling. It also lowers overall combustion noise and reduces particulate matter.
1500 RPM (50Hz) vs 1800 RPM (60Hz) Operational Performance
The engine block accommodates two major utility grid standards through simple electronic calibration changes.
- 50Hz Power Grids: The Cummins QSK50-G4 1500RPM engine produces a tailored qsk50-g4 1500 rpm 50hz standby power rating of 1656 kWm. This configuration suits the European, Middle Eastern, and Asian utility markets.
- 60Hz Power Grids: The Cummins QSK50-G4 1800RPM engine yields a higher standby rating of 1790 kWm. This configuration meets North American grid requirements. The 1800 RPM setup alters the qsk50-g4 1800 rpm 60hz cooling system air flow demands due to higher parasitic fan loads.
Genuine Cummins QSK50-G4 Fuel Consumption Matrix
Fuel costs represent a significant percentage of lifetime operating expenditures. The Cummins QSK50-G4 fuel consumption curve remains flat across varying loading profiles. At a 75% prime load setting, the cummins qsk50-g4 fuel consumption per hour at 75 prime registers at approximately 291 liters per hour. Running at 100% prime power application increases fuel demand to roughly 384 liters per hour. The MCRS system matches cylinder fueling rates with instantaneous boost pressure from the turbochargers to limit fuel waste.
Emission Profile and Environmental Certificates
Global environmental codes dictate regional engine choices. The cummins qsk50 g4 emission certification levels comply with US EPA Tier 2 limits and TA Luft soil guidelines. The clean combustion profile lowers the required exhaust scrubbing hardware. This simplified setup makes it easier to install inside restricted indoor generator rooms.
Maintenance Protocols and Overhaul Strategies
Routine preventative care preserves emergency power availability and protects long-term mechanical assets.
Fuel System Preventative Care
The MCRS fuel system relies on clean diesel fuel. Operators must change the stage-three fuel filters every 250 operating hours. Fine particulate contamination can erode injection nozzles, leading to cylinder imbalances and rough idling.
Coolant Chemistry and Liner Pitting Prevention
The 50-liter engine block uses wet cylinder liners that are susceptible to cavitation pitting from localized bubble collapse. Operators should monitor Supplemental Coolant Additive (SCA) levels at every oil change interval. Maintaining proper chemistry protects the outer cylinder walls from pinhole leaks into the oil pan.
Complete Overhaul Component Sourcing
The engine will eventually require a complete mid-life mechanical restoration. HekoPower provides original CCEC QSK50-G4 engine supplier overhaul kits. These packages include new cylinder liners, piston rings, main bearings, and upper gasket kits. Replacing worn internal parts with factory components restores fuel efficiency to original factory specifications.
Procurement and Global Logistics Management
Sourcing large-displacement machinery requires careful logistics planning, secure financial channels, and robust packaging standards.
Sourcing Direct CCEC Production
Buying a Cummins QSK50-G4 wholesale price assembly involves working directly with regional production centers. HekoPower manages the entire supply pipeline through the Chongqing Cummins factory footprint. This direct arrangement cuts out secondary broker margins, allowing us to pass a Cummins QSK50-G4 factory direct price along to your project budget.
Export Packaging and Protective Measures
Long-distance ocean transport exposes bare iron components to corrosive salt air. HekoPower applies heavy rust-preventative coatings to all exposed shafts and pulleys. We then seal the entire engine assembly within vacuum-barrier plastic wrapping inside heavy industrial wooden crates. This packaging maintains a dry internal environment during long transit periods.
Global Supply Footprint
HekoPower coordinates international shipping to main regional logistics hubs.
- Middle East Markets: We act as an active Cummins QSK50-G4 exporter to Middle East ports like Jebel Ali and Dammam, supplying regional prime power contractors.
- African Infrastructure: Our logistical network serves as a reliable Cummins QSK50-G4 Africa distributor for backup mine operations.
- Asia Pacific Region: We route units to deep-water harbors to support ongoing Cummins QSK50-G4 for Southeast Asia projects.
Every engine package ships alongside a comprehensive Cummins QSK50-G4 specifications pdf manual, factory test logs, and an official international warranty registration certificate.
Cummins QSK-G Series, original products from Chongqing Cummins Engine Plant(CCEC). This series mainly includes QSNT-G, QSK19-G4, QSK19-G5, QSKTAA19-G3, QSK38-G1, QSK38-G2, QSK38-G3, QSK38-G4, QSK38-G5, QSK50-G2, QSK50-G3, QSK50-G4, QSK50-G6, QSK50-G7.
Frequently Asked Questions
What is included in the HekoPower Cummins QSK50-G4 Coolpac package?
The cummins qsk50-g4 coolpac engine price includes the base V16 engine assembly, a factory-matched radiator, an engine-driven fan, air cleaners, and an integrated structural steel sub-base. This complete package simplifies on-site generator assembly.
How can I buy genuine cummins qsk50-g4 with warranty protection?
HekoPower registers every engine sale directly within the global factory tracking network. This registration ensures you can buy genuine cummins qsk50-g4 with warranty coverage that is valid at authorized service centers worldwide.
What is the specific QSK50-G4 standby generator engine rating limit?
The QSK50-G4 standby generator engine rating provides maximum power during utility outages. It permits a peak output of 1656 kWm at 1500 RPM for the duration of an emergency outage, with an average load factor limit of 80% over each 24-hour running period.
Does HekoPower offer options to buy Cummins QSK50-G4 online?
Industrial buyers can initiate the procurement process online. You can view technical specifications and buy Cummins QSK50-G4 generator engine China packages by requesting formal quotes through our secure web interface. Our engineering team will review your application requirements before shipping.
Can this engine operate continuously in remote locations?
Yes. The platform is well-suited for industrial diesel generator powered by QSK50-G4 configurations running in continuous power applications. For continuous service, operators should follow the reduced kWm prime power curves to optimize the engine's long-term service life.
