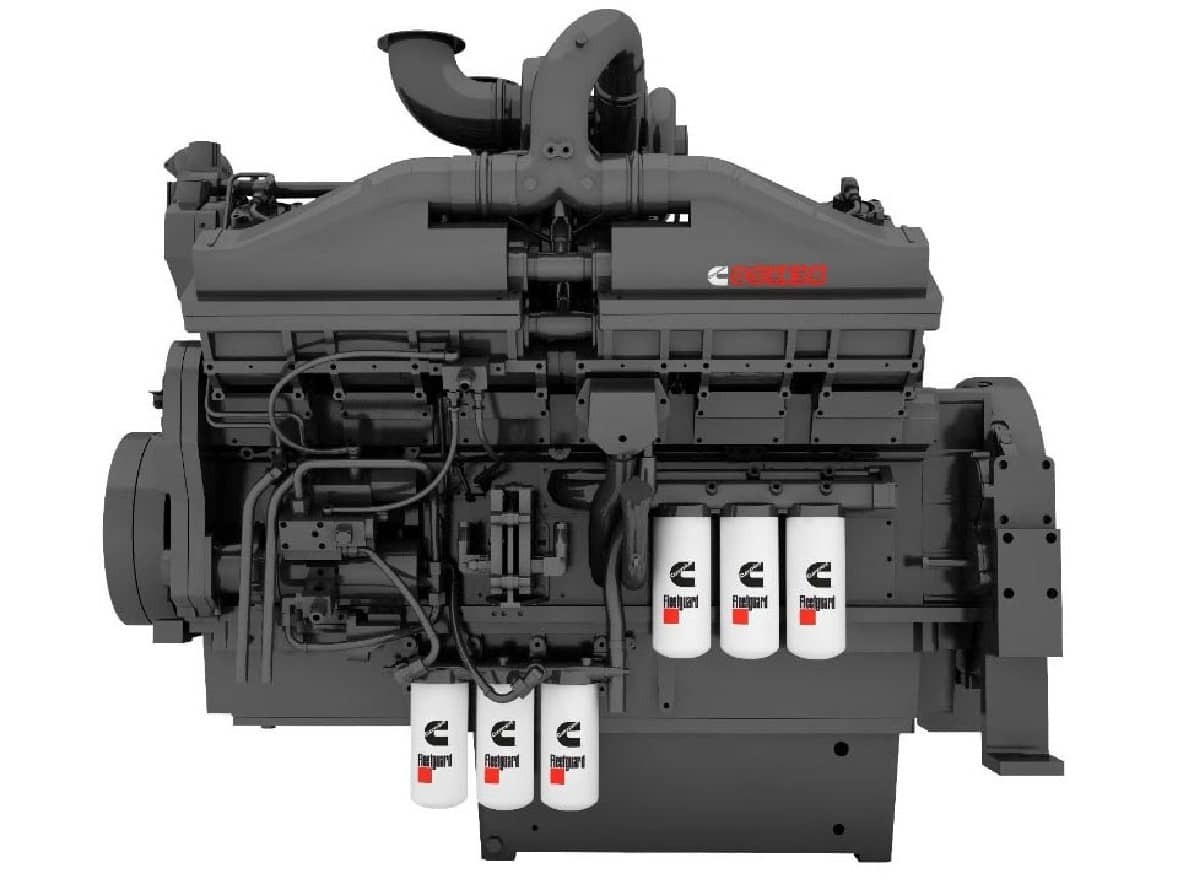

Cummins QSK38-G3 Generator Engine (1107kW, 1500RPM)
As a leading export supplier of heavy-duty industrial power solutions, HekoPower provides the genuine Cummins QSK38-G3 generator engine for global clients requiring uncompromising prime power reliability. Manufactured by Chongqing Cummins Engine Company (CCEC), the QSK38-G3 is a 12-cylinder, 37.7L diesel engine engineered specifically for high-demand, continuous power generation. Delivering a robust 1107 kW of gross mechanical output at 1500 RPM, this unit serves as the heavy-duty backbone for premium 50 Hz generator sets worldwide.
Whether you are sourcing a completely new QSK38-G3 engine assembly for a specialized OEM generator build, or require a direct replacement engine to minimize facility downtime, our direct factory relationships ensure you receive original equipment at highly competitive wholesale engine pricing.
Tech Specs of Cummins QSK38‑G3 1107KW
General Engine Data
Engine Model: Cummins QSK38-G3
Type: 12 Cylinders
Displacement: 37.7 L
Bore * Stroke: 159 * 159
Net Weight: 3825 Kg
Overall Dimension: 2091mm*1492mm*1866mm
Key Performance Data
Rated Power/Standby Output: 1107kW(1484HP), 1223kW(1640HP)
Rated Speed: 1500 rpm
Low Idle Speed: 700-800 rpm
Fuel Consumption: 70 g/kWh
More Technical Data
Fuel System: Cummins Direct Injection MCRS
Aspiration: Turbocharged, After-cooled
Electrical System (Starter Motor/Alternator): 24V
Cooling System Design: 2 pump- 2 loop
Technical Comparisons within the QSK38 Family
Procurement teams often face confusion when selecting between the various G-drive models in this family. When evaluating the QSK38-G3 against the QSK38-G5, the distinction lies primarily in the intended application and operational limits. The QSK38-G3 is precision-tuned for 50 Hz markets, operating flawlessly at 1500 RPM to deliver its 1107 kW prime rating. It is the gold standard for standard heavy-duty prime power.
Conversely, the G5 variant is often calibrated to hit higher standby peaks or accommodate different emission tiers and dual-frequency switching (1500 RPM and 1800 RPM). If your facility strictly requires a steadfast 50 Hz continuous power supply without the added cost of dual-speed complexities, the QSK38-G3 remains the most cost-effective and operationally stable choice. Furthermore, compared to the lower-output QSK38-G2, the G3 pushes volumetric efficiency further, squeezing superior transient response out of the identical 37.7L block footprint.
Real-World Application Scenarios
The QSK38-G3 is not a lightweight standby unit; it is an industrial workhorse built for continuous prime power and mission-critical standby applications.
One of the most common applications for the QSK38-G3 1107kW engine is serving as the driving force behind 1250 kVA to 1375 kVA diesel generators in remote mining operations. In these off-grid scenarios, the engine must operate as the primary power source for weeks on end. The robust cast iron block and ferrous cast ductile iron pistons ensure the structural integrity required to handle constant mechanical stress and heavy load steps when mining crushers and conveyors start up.
Additionally, this engine is heavily favored as a data center backup generator engine. Data centers demand extremely tight frequency regulation and fast load-acceptance capabilities to prevent server interruptions during a grid failure. The integrated electronic control module on the QSK38-G3 communicates seamlessly with modern synchronization panels, allowing multiple 1250 kVA gensets to parallel together in seconds. We also frequently supply this model to clients building factory standby generators for continuous manufacturing plants, where a sudden loss of power would result in catastrophic material loss.
Overcoming Common Technical Misconceptions
A frequent mistake made during the procurement process is confusing gross engine power with generator electrical output. Buyers will see the 1107 kW rating of the QSK38-G3 and assume it can power exactly 1107 kW of electrical load. In reality, the engine provides 1107 kW of mechanical power to the alternator flywheel. Factoring in typical alternator efficiency losses and cooling fan parasitic draws, this engine is perfectly sized to drive a 1000 kWe (1250 kVA) generator set at a 0.8 power factor. Understanding this distinction prevents costly under-sizing during facility planning.
Another misconception relates to power ratings. The QSK38-G3 prime power rating indicates it can run for an unlimited number of hours per year at variable loads, with a 10% overload capability available for one hour in every twelve. Its standby generator engine rating pushes the output closer to 1223 kW, but this is strictly for emergency use during utility outages, with no overload permitted. Operating a standby-rated setup under prime power conditions will quickly void warranties and accelerate component wear.
Maintenance and Replacement Tips
To maximize the lifecycle of your CCEC QSK38-G3, strict adherence to the Cummins maintenance schedule and manual is non-negotiable.
Because the engine relies on the high-pressure MCRS fuel system, fuel cleanliness is the single most critical maintenance factor. The advanced injectors have extremely tight tolerances. Using sub-standard fuel or neglecting the two-stage fuel filtration system will lead to premature injector scoring and a rapid drop in fuel efficiency. Always ensure your bulk fuel storage is polished and water-free before it ever reaches the engine's primary filters.
Regarding the 2-pump 2-loop cooling system, technicians must ensure that coolant mixtures are accurate and consistently maintained with proper supplemental coolant additives. Failure to maintain the distinct chemistry in the low-temperature loop can lead to liner pitting and localized boiling.
When facing an aging unit with tens of thousands of hours, facility managers must decide between a complete overhaul and a drop-in replacement engine. Opting for a brand new QSK38-G3 replacement engine assembly from HekoPower often proves more economical than a major in-frame overhaul. A complete replacement eliminates the hidden labor costs, unpredictable machining delays, and downtime associated with rebuilding, instantly resetting your facility's power security to zero hours.
QSK38 Series Engine Family and Related Models
To assist equipment designers, power engineers, and procurement specialists in selecting the appropriate power unit, CCEC produces a range of high-horsepower engines sharing similar architecture or structural design principles. Integrating the correct engine configuration into your generator assembly ensures compatibility with local grid standards and duty cycle requirements.
Cummins QSK-G Series, original products from Chongqing Cummins Engine Plant(CCEC). This series mainly includes QSNT-G, QSK19-G4, QSK19-G5, QSKTAA19-G3, QSK38-G1, QSK38-G2, QSK38-G3, QSK38-G4, QSK38-G5, QSK50-G2, QSK50-G3, QSK50-G4, QSK50-G6, QSK50-G7.
Frequently Asked Questions (FAQ)
What is the lead time for a QSK38-G3 engine order?
As an established export supplier in China, HekoPower typically fulfills QSK38-G3 orders with a lead time of around 15 to 30 business days, depending on current factory allocations and shipping schedules. We handle all export documentation to ensure smooth port transit.
What is the engine shipping weight and dimension?
The QSK38-G3 has a net dry weight of approximately 3,825 kg. Its robust physical dimensions are roughly 2081 mm in length, 1492 mm in width, and 1866 mm in height. Buyers must ensure their logistics partners and installation sites can accommodate these heavy-lift requirements.
Can I use this engine for a 60 Hz application?
While the engine can technically be governed to different speeds, the QSK38-G3 is highly optimized and primarily deployed as a 50 Hz generator engine running at 1500 RPM. Utilizing it outside of its designed frequency curve without proper factory recalibration will negatively impact the fuel consumption curve and thermal limits.
Do you supply replacement parts for this engine?
Yes, in addition to complete engine assemblies, HekoPower supplies genuine Cummins QSK38-G3 replacement parts, including MCRS injectors, water pumps, turbochargers, and overhaul gasket kits to support your long-term maintenance needs.
