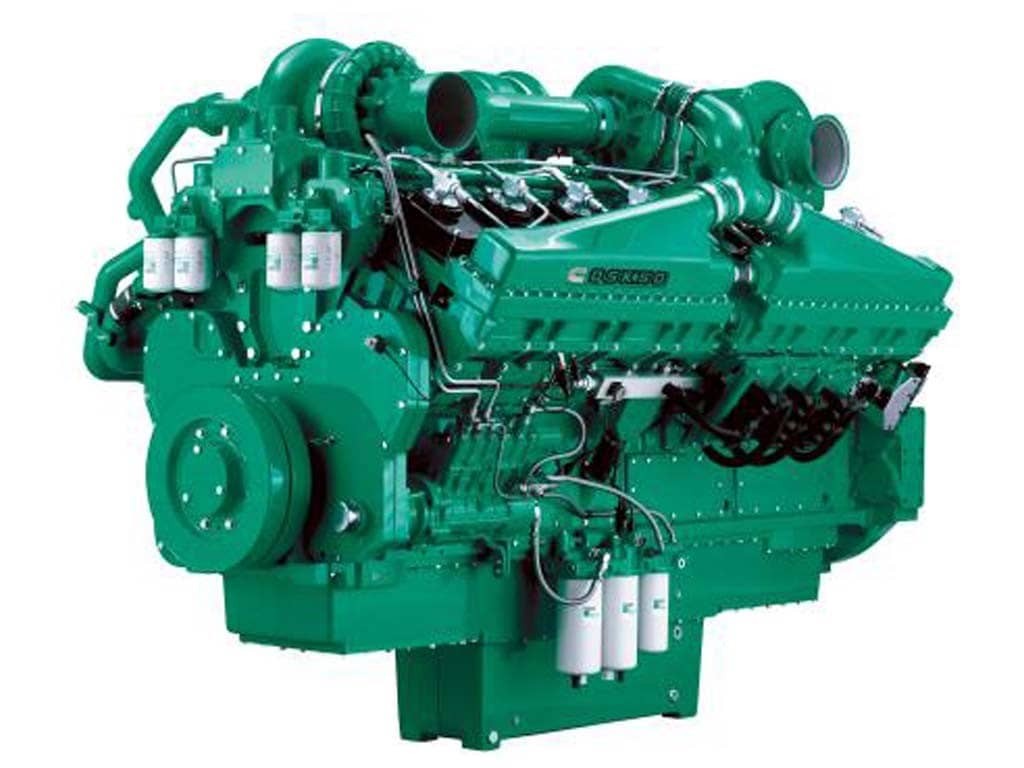

CCEC Cummins QSK50-G3 Diesel Generator Engine
Welcome to the definitive source for the genuine QSK50-G3 engine. As a trusted engine exporter and QSK50-G3 diesel engine supplier, HekoPower provides comprehensive solutions for large-scale power generation. The Cummins QSK50-G3 is a powerhouse 50.3L V16 diesel engine engineered specifically for heavy-duty generator sets. Designed to operate flawlessly in both 50 Hz and 60 Hz environments, this model delivers exceptional reliability for facilities demanding continuous or emergency energy. Buyers looking for the wholesale price Cummins QSK50-G3 generator engine will find our supply chain highly efficient, ensuring you receive an authentic product direct from the Chongqing Cummins Engine Plant (CCEC).
Tech Specs of Cummins QSK50-G3 Generator Engine
General Engine Data
Engine Model: Cummins QSK50-G3
Type: 16 Cylinders
Displacement: 50.3 L
Bore * Stroke: 159 * 159
Net Weight: 7492 Kg
Overall Dimension: 4674mm*2468mm*3100mm
Key Performance Data
Rated Power/Standby Output(1500 rpm): 1210 kW, 1401 kW
Rated Speed: 1500/1800 rpm
Low Idle Speed: 700-800 rpm
Fuel Consumption(1500 rpm): 85.5 g/kWh @ 1500 rpm
Fuel Consumption(1800 rpm): 91.1 g/kWh @1800 rpm
More Technical Data
Fuel System: Cummins Direct Injection MCRS
Aspiration: Turbocharged, After-cooled
Electrical System (Starter Motor/Alternator): 24V
Cooling System Design: 2 pump- 2 loop
Key Technical Features and Advantages
High-Efficiency Fuel System (MCRS)
The Modular Common Rail System (MCRS) ensures precise fuel injection, improving combustion efficiency and reducing fuel consumption. This makes the QSK50-G3 engine suitable for long-duration continuous operation.
Advanced Turbocharging System
Equipped with HX83 turbochargers, the engine achieves optimal air intake and power output, ensuring stable performance under high load conditions.
Robust Cooling Structure
The 2 pump 2 loop cooling system enhances thermal management, allowing the engine to operate efficiently even in extreme environments such as mining and desert applications.
Engineering Excellence: Power and Configuration
The QSK50-G3 generator engine is built on a legacy of structural durability. When configured as a QSK50-G3 50 Hz generator engine, it provides a highly stable QSK50-G3 1500 rpm 1210 kW engine rating for prime power applications, while its standby capacity scales up to a robust QSK50-G3 1401 kW standby power output. For regions operating on a 60 Hz frequency, the QSK50-G3 60 Hz generator engine configuration shifts to a QSK50-G3 1800 rpm 1395 kW engine rating for continuous usage, with the QSK50-G3 1559 kW standby engine capability easily handling sudden peak load demands.
Achieving these precise power outputs relies heavily on the advanced QSK50-G3 MCRS fuel system. The Modular Common Rail System ensures perfectly timed, high-pressure fuel injection, which directly improves the Cummins QSK50-G3 fuel consumption per hour across various load capacities. By optimizing the cylinder burn rate, this engine maintains impressive efficiency ratings, notably achieving a QSK50-G3 85.5 g/kWh fuel consumption at 1500 rpm and a QSK50-G3 91.1 g/kWh fuel consumption at 1800 rpm under standard testing conditions.
Technical Engine Comparisons
Understanding how the QSK50-G3 fits into the broader Cummins lineup helps procurement teams make the right choice for their power generation needs. Comparing these units directly reveals distinct engineering paths without the need for complex data formatting.
QSK50-G3 vs KTA50-G3 and the KTA50 Family
When evaluating the QSK50-G3 vs KTA50-G3, the primary difference lies in the fuel and emission management architecture. The older KTA50 series relies on the mechanical PT fuel system, which is incredibly durable but lacks the precise electronic fuel metering of modern engines. In contrast, the QSK50 vs KTA50 generator engine debate is largely settled by the QSK50's MCRS fuel system. This electronic fuel control provides the QSK50-G3 with faster load acceptance and lower emissions, making it the preferred choice for modern facilities with strict environmental compliance requirements. The displacement remains similar, but the QSK50-G3 extracts more usable power per drop of diesel.
QSK50-G3 vs QSK38
Buyers sometimes weigh the QSK50-G3 vs QSK38 for medium-to-large prime power projects. The QSK38 is a 38-liter V12 engine, whereas the Cummins 50-liter V16 engine offers significantly more displacement. If your facility requires power outputs hovering around the 900 kW to 1000 kW mark, the QSK38 is sufficient. However, for demands strictly pushing past 1200 kW prime, the QSK50-G3 16 cylinder generator engine operates with far less structural stress at those higher loads, resulting in longer intervals between major overhauls.
Comparing the QSK50-G3 vs QSK50-G2, G4, G6, and G7
The QSK50-G3 also sits in the middle of a highly specialized sub-family. When looking at the QSK50-G3 vs QSK50-G2, the G3 model offers slightly higher baseline power outputs tuned for different alternator pairings. The QSK50-G3 vs QSK50-G4 comparison often comes down to specific prime versus continuous duty ratings required by local grid codes. Upgraded iterations like the QSK50-G3 vs QSK50-G6 and QSK50-G3 vs QSK50-G7 involve newer electronic control module programming and variations in the QSK50-G3 HX83 turbocharger configurations to meet varying global emissions tiers. The G3 remains the most balanced, cost-effective choice for unregulated or Tier 2 equivalent markets requiring maximum mechanical reliability.
Common Misconceptions About the QSK50-G3
Many buyers hold misconceptions regarding large-displacement V16 engines. A frequent misunderstanding involves the QSK50-G3 fuel consumption at 25% load, 50% load, 75% load, and full load. Operators often assume fuel burn scales perfectly linearly with load size. In reality, the QSK50-G3 fuel consumption at 1500 rpm or QSK50-G3 fuel consumption at 1800 rpm is highly optimized at the 75% to 80% load mark. Running the engine at a bare 25% load for extended periods is not only inefficient regarding fuel usage but can lead to wet stacking—a condition where unburned fuel accumulates in the exhaust system.
Another misconception relates to the physical installation space. When reviewing the QSK50-G3 technical specifications, facility planners often overestimate the foundation requirements. While the QSK50-G3 engine dimensions and weight are significant, the footprint is thoroughly optimized for standard ISO containerized generator setups. Furthermore, people often mistake the QSK50-G3 2 pump 2 loop cooling system as overly complex to pipe and install. In practice, this QSK50-G3 low temperature aftercooling design actually simplifies the radiator sizing requirements, allowing for more compact canopy designs compared to single-loop systems of the past. The standard QSK50-G3 SAE 0 flywheel housing also ensures universal compatibility with major alternator brands, eliminating the myth that expensive custom coupling adapters are required.
Proven Industrial Application Scenarios
The versatility of the CCEC Cummins QSK50-G3 prime and standby power capabilities makes it the backbone of several critical industries globally.
Data centers demand absolute power security. Using a QSK50-G3 engine for data center backup power ensures that server farms remain online during grid failures. The QSK50-G3 24V electrical system provides rapid starting capabilities, allowing the generator to accept 100% block load in seconds to meet the stringent uptime requirements of major tech facilities.
In remote extraction sites, the QSK50-G3 engine for mining generator sets operates in harsh, dusty, and high-altitude environments. The robust QSK50-G3 turbocharged aftercooled engine design compensates for thin air at high elevations, ensuring the equipment does not suffer severe power derating.
Municipalities frequently source this unit as a QSK50-G3 engine for power plant operations and as an engine for industrial standby power at water treatment facilities. Whether running continuously as a prime power generator engine in a remote village or sitting ready as an emergency backup generator engine in a modern hospital, the reliability of this powerhouse is unmatched.
Essential Maintenance and Replacement Tips
Keeping your Cummins QSK50-G3 generator engine running at peak performance requires disciplined maintenance. As a dedicated QSK50-G3 spare parts supplier, HekoPower recommends establishing a strict service schedule based on operating hours rather than calendar months.
Routine maintenance should prioritize the QSK50-G3 MCRS fuel system. Because this system operates under extreme pressure, utilizing only high-quality, genuine fuel filters is mandatory to prevent microscopic debris from scoring the injectors. When sourcing a QSK50-G3 replacement engine or components, always ensure you are purchasing a genuine QSK50-G3 engine part to maintain factory performance standards.
Pay close attention to the QSK50-G3 2 pump 2 loop cooling system. Operators should routinely test the coolant chemistry to prevent cavitation on the internal cylinder liners. The QSK50-G3 HX83 turbocharger also requires clean air intake; regularly inspecting air filter restriction indicators will prevent turbo compressor wheel damage and maintain optimal air-to-fuel ratios. If you are preparing for a major overhaul, consulting the official Cummins QSK50-G3 technical specifications and datasheet is crucial for obtaining the correct torque values and component wear limits.
Cummins QSK-G Series Engine Coverage
Choosing the right power generation equipment requires a thorough understanding of the entire product line. While the QSK50-G3 stands out for its exceptional balance of 50-liter V16 power and operational efficiency, HekoPower supplies a comprehensive range of Cummins engines to suit varying operational scales and technical requirements. Exploring the broader catalog ensures your specific project parameters are met with the ideal engineering match.
Cummins QSK-G Series, original products from Chongqing Cummins Engine Plant(CCEC). This series mainly includes QSNT-G, QSK19-G4, QSK19-G5, QSKTAA19-G3, QSK38-G1, QSK38-G2, QSK38-G3, QSK38-G4, QSK38-G5, QSK50-G2, QSK50-G3, QSK50-G4, QSK50-G6, QSK50-G7.
Frequently Asked Questions
What is the exact displacement of the QSK50-G3?
The QSK50-G3 is a 50.3-liter V16 diesel engine designed specifically for high-capacity power generation.
Where is the QSK50-G3 manufactured?
The genuine CCEC Cummins QSK50-G3 is manufactured by the Chongqing Cummins Engine Plant, operating as an official joint venture with Cummins Inc.
How do the 1500 rpm and 1800 rpm configurations differ?
The QSK50-G3 1500rpm / 1800rpm configurations correspond directly to local electrical frequency requirements. The 1500 rpm setting is used for 50 Hz grids, yielding a 1210 kW prime power output, while the 1800 rpm setting is used for 60 Hz grids, yielding a 1395 kW prime power output.
Where can I find a Cummins QSK50-G3 for sale?
As an authorized QSK50-G3 wholesale engine exporter, HekoPower provides the complete engine, technical support, and genuine replacement parts directly to international procurement teams.
What is the advantage of the MCRS system?
The Modular Common Rail System provides precise, high-pressure fuel injection regardless of engine speed, which significantly lowers operational noise, reduces exhaust smoke, and improves the overall fuel consumption of the QSK50-G3.
