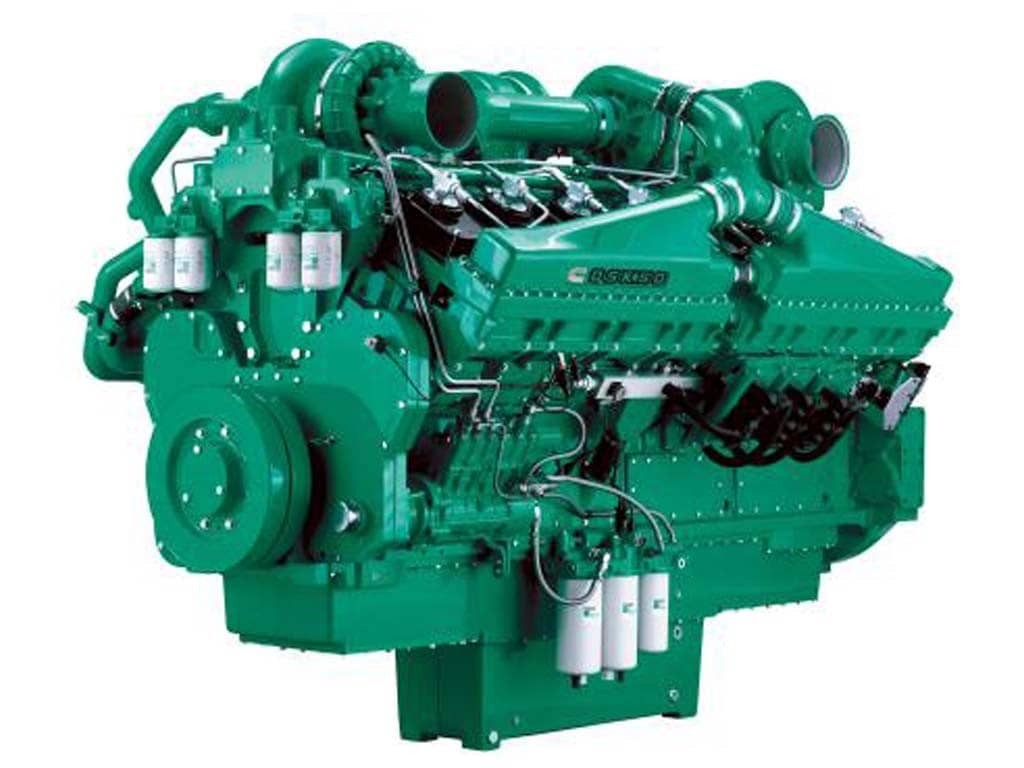

CCEC Cummins QSK50-G7 Power Generation Engine: Sourcing & Engineering Guide
If you are looking to build or replace a high-capacity heavy duty genset engine, the choice of prime mover dictates your entire system's reliability. As an industrial engine supplier, HekoPower provides direct access to the genuine CCEC Cummins QSK50-G7 power generation engine. This V16 powerhouse is specifically engineered to meet strict transient response requirements while keeping structural footprints minimal.
Whether you need to buy a genuine CCEC QSK50-G7 engine for a new generator assembly or require an exact matching unit for a complex retrofitting project, understanding its commercial and mechanical variables is essential.
Tech Specs of Cummins QSK50-G7
General Engine Data
Engine Model: Cummins QSK50-G7
Type: 16 Cylinders
Displacement: 50.3 L
Bore * Stroke: 159 * 159
Net Weight: 7492 Kg
Overall Dimension: 4674mm*2468mm*3100mm
Key Performance Data
Rated Power/Standby Output: 1421 kW(1905HP), 1581 kW(2120HP)
Rated Speed: 1500 rpm
Low Idle Speed: 700-800 rpm
Fuel Consumption: 92.0 g/kWh @ 1500 rpm
More Technical Data
Fuel System: Cummins Direct Injection MCRS
Aspiration: Turbocharged, After-cooled
Electrical System (Starter Motor/Alternator): 24V
Cooling System Design: 2 pump- 2 loop
Technical Architecture & Industrial Capabilities
The core appeal of the Cummins QSK50-G7 1500RPM engine lies in its heavy-duty design block. Utilizing 16 cylinders arranged in a V-configuration, this 50-liter engine balances massive thermal output with precise electronic management.
Advanced Fuel Injection with the MCRS System
Unlike older mechanical fuel injection systems that struggle with varied fuel quality and strict emissions, the Cummins QSK50-G7 MCRS fuel system utilizes modular common rail technology. The Modular Common Rail System isolates the high-pressure fuel lines within the injector assembly, allowing injection pressures up to 1600 bar.
This layout means the engine achieves a cleaner, sharper fuel spray pattern regardless of operating speed. For industrial buyers, this translates directly into a QSK50-G7 low fuel consumption diesel engine profile that minimizes smoke puff during sudden load blocks.
Thermal Management via 2P2L Cooling
Managing the thermal load of a high horsepower V16 diesel engine requires a sophisticated cooling strategy. This model features a Low Temperature Aftercooling 2P2L system on QSK50-G7 platforms. The two-pump, two-loop architecture uses separate circuits for the engine block and the intake air aftercooler. By dropping intake air temperatures before it reaches the combustion chamber, air density increases, maximizing combustion efficiency and protecting internal components during continuous high-load cycles.
Application Scenarios for Critical Infrastructure
The genuine Cummins QSK50-G7 generator engine is rarely used for generic or low-priority applications. Its engineering profile is strictly optimized for high-risk, mission-critical environments.
Powering Tier III and Hyperscale Data Centers
In modern digital infrastructure, power failure is not an option. The QSK50-G7 data center backup engine is a primary choice for engineers globally.
- It fulfills the stringent transient performance criteria needed for QSK50-G7 diesel engine for Tier III data centers.
- It can accept a 100% block load in a single step, ensuring that when the main grid fails, the Cummins QSK50-G7 for hyperscale data center backup takes over the load before UPS systems drain.
- The system is a core building block for an 1825 kVA data center standby generator engine QSK50-G7 setup running at 50Hz.
Emergency Backup Power Solutions for Healthcare and Mining
Beyond data, human lives rely on stable electricity. The QSK50-G7 engine for hospital emergency generators provides immediate, high-reliability emergency power during blackouts.
Similarly, the rugged construction makes the Cummins QSK50-G7 for mining power stations and remote Cummins QSK50-G7 for oil and gas standby systems successful. These environments present high ambient dust and extreme temperature swings, situations where the robust Cummins QSK50-G7 emergency backup power solution excels.
Technical Comparison: Cummins QSK50-G7 vs. Competitor Alternatives
When drafting procurement tenders, engineers frequently compare the Cummins QSK50-G7 standby diesel engine against other large-displacement alternatives, such as the Perkins 4016 series or MTU 16V4000 units.
While MTU engines offer high power density, their field maintenance protocols require highly specialized electronic tooling that can delay operations in remote regions. The Cummins QSK50-G7 prime power engine platform utilizes a more practical, widely understood design philosophy.
With an established worldwide service network, sourcing parts for a QSK50-G7 is vastly simpler and more cost-effective than managing European alternatives. Additionally, compared to smaller 12-cylinder alternatives pushed to their thermal limits, the V16 structure of the QSK50 guarantees lower internal mechanical stress and longer operational lifetimes between overhauls.
Lifecycle Maintenance & Genuine Spare Parts Support
An engine is only as reliable as its ongoing maintenance schedule. Operating a QSK50-G7 long running standby engine requires strict adherence to factory-recommended intervals.
Managing the MCRS Infrastructure and High-Wear Components
The sophisticated nature of the Cummins QSK50-G7 electronic control system means that generic aftermarket parts can cause immediate system faults. For example, failing to track the Cummins QSK50-G7 MCRS fuel pump replacement cost or using non-genuine fuel filters can allow microscopic contaminants to score the high-pressure fuel rails. HekoPower guarantees long-term operational security by providing ongoing QSK50-G7 genuine spare parts support, supplying original fuel injectors, ECMs, and gaskets globally.
Overhaul Engineering and Long-Term Operations
When an engine reaches its terminal hours in the field, a complete replacement is not always necessary. Our technical supply chain covers full Cummins QSK50-G7 overhaul service kits. From cylinder liners and pistons to complete turbocharger assemblies, keeping your QSK50-G7 high reliability standby engine updated with factory parts extends its operating lifespan by another two decades.
Sourcing, Logistics, and Global Export Realities
Procuring a 50-liter class power unit involves substantial supply chain management. Buyers cannot simply look at a catalog; they must evaluate real logistics data to avoid costly project delays.
Navigating Chongqing Cummins QSK50-G7 Lead Time and Shipping Weight
Because this engine weighs over five metric tons dry, planning your freight framework is non-negotiable. HekoPower operates as a reliable Cummins QSK50-G7 export supplier. When you request a Cummins QSK50-G7 distributor agent price quote, our logistics team calculates the precise freight footprint based on a dry mass configuration.
The standard Chongqing Cummins QSK50-G7 lead time and shipping weight depend on current production block scheduling at the CCEC plant. We maintain regular allocation slots to cut standard factory lead times down significantly for international engineering contractors.
HekoPower as Your Genuine CCEC QSK50-G7 Wholesale Partner
When looking to buy original Cummins QSK50-G7 from China, engineering firms often run into multi-tiered trading networks that inflate costs. HekoPower functions as a direct Cummins QSK50-G7 OEM export engine source. Our genuine CCEC QSK50-G7 wholesale model ensures that the engine arrives with its original factory data plate, matching serial numbers, and global warranty eligibility intact, eliminating the tracking risks of unverified brokers.
Cummins QSK-G Series, original products from Chongqing Cummins Engine Plant(CCEC). This series mainly includes QSNT-G, QSK19-G4, QSK19-G5, QSKTAA19-G3, QSK38-G1, QSK38-G2, QSK38-G3, QSK38-G4, QSK38-G5, QSK50-G2, QSK50-G3, QSK50-G4, QSK50-G6, QSK50-G7.
Frequently Asked Questions Regarding the QSK50-G7 Engine
What is the precise QSK50-G7 fuel consumption rate at 75 percent prime load?
At a 75% prime power application running at 1500 RPM, the engine burns approximately 260 to 275 liters of diesel fuel per hour. This consumption curve optimizes thermal efficiency, making it an excellent choice for a QSK50-G7 industrial continuous power engine.
Where is the best place to buy original QSK50-G7 for 1500kw generator build?
The engine should be sourced through an authorized supply partner like HekoPower who can verify the CCEC manufacturing origin. This avoids counterfeit or refurbished components being sold as new factory inventory.
Is the Cummins QSK50-G7 compliant with EPA Tier 2 Stationary Emergency standards?
Yes, the engine configuration meets the required emission limits for Cummins QSK50-G7 emissions compliant engine status under the EPA Tier 2 rules for stationary emergency standby applications. Always specify your local emission requirements when requesting your initial quote.
