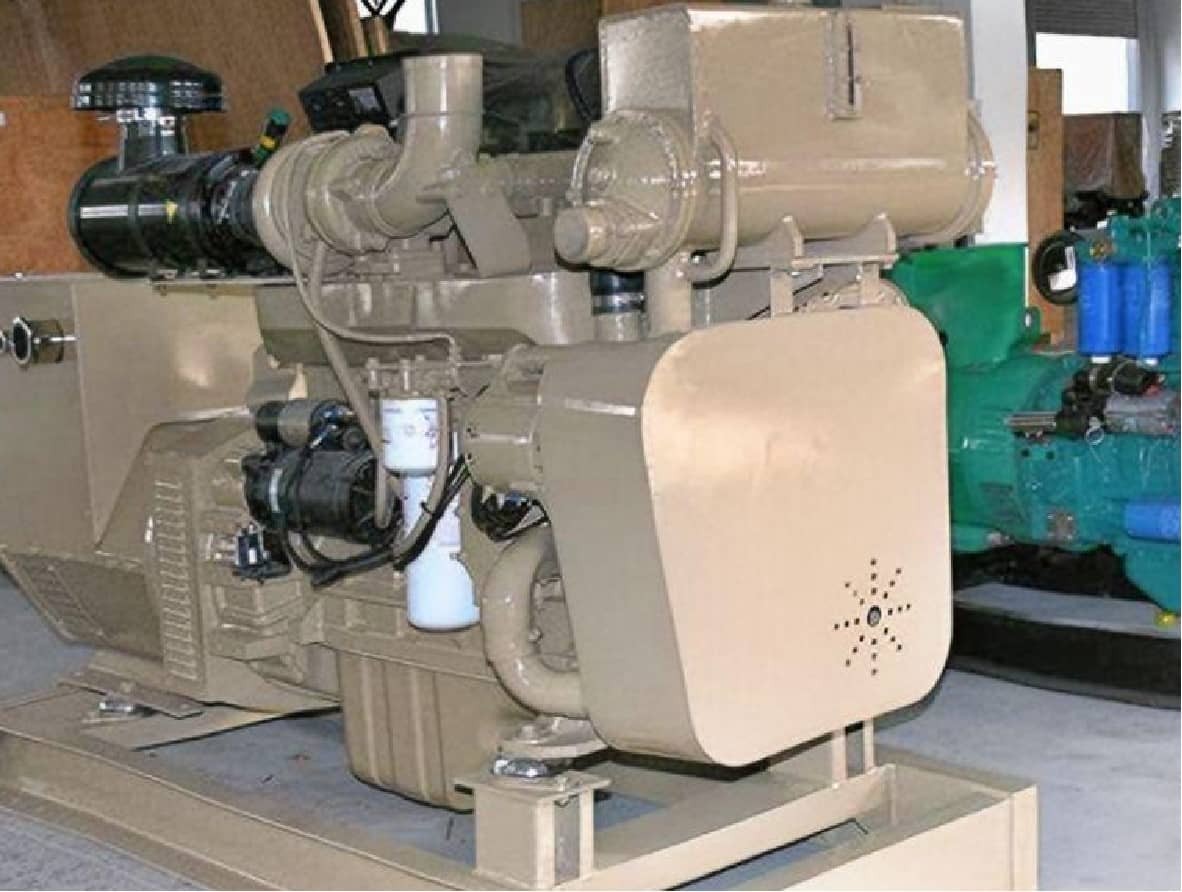

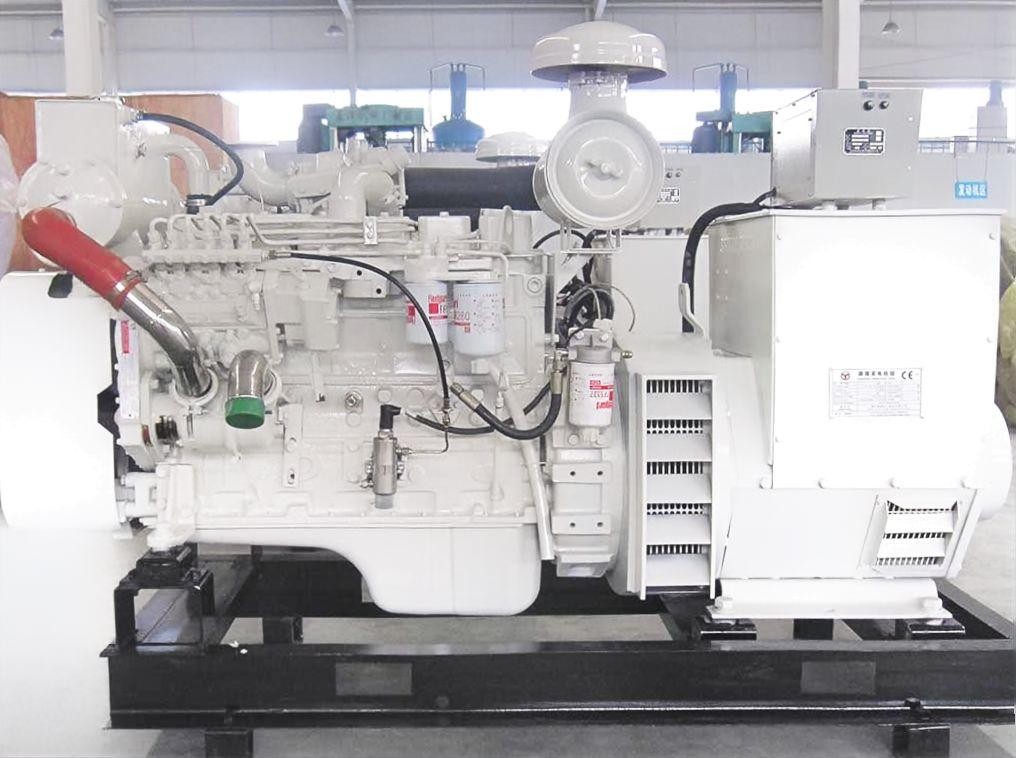

Cummins 6CTA8.3-GM155 Marine Generator Engine: 155kW Auxiliary Power Solution
As a specialized maritime power supplier, HekoPower provides the genuine Cummins 6CTA8.3-GM155 marine generator engine. This robust system functions as a high-performance DCEC Cummins 6CTA8.3-GM155 auxiliary diesel engine, carefully configured to serve as the core mechanical driver for 50Hz shipboard power infrastructure. Engineered for continuous marine applications, this 6-cylinder inline power plant delivers predictable electrical reliability under varying open-sea environments.
Competitor catalogs often copy factory datasheets word for word. To ensure clear differentiation, our engineering team looks past raw numbers to explore specific integration parameters, fuel curves, and custom component builds that matter to marine outfitters.
Tech Specs of Cummins 6CTA8.3-GM155
General Engine Data
Engine Model: Cummins 6CTA8.3-GM155
Type: 6 Cylinders in Line
Displacement: 8.3 L
Bore * Stroke: 114 * 135
Net Weight (with flywheel & alternator): 637 Kg
Overall Dimension: 1360mm*780mm*988mm
Engine Configuration No.: D413065MX03
Key Performance Data
Rated Power/Standby Power: 155 kW/208HP, 170 kW/288HP
Rated Speed: 1500 rpm
Low Idle Speed: 750-850 rpm
Fuel Consumption (Running Speed): ≤ 230 g/kW.hr
More Technical Data
Certification: CCS Certificates
Aspiration: Turbocharged/Water-air Intercooled
Fuel System: BYC PB Pump/GAC Governor
Compression Ratio: 17.3:1
Starting Method: Electrical/Air Start (12V/24V)
Lowest Starting Temp Without auxiliary system: -12℃
Cooling Method: Water cooled
Engine Cooling Fluid Volume: 12.3 L
Ignition Order: 1-5-3-6-2-4
Technical Comparison Between 6CTA8.3-GM155 and 6CT8.3-GM129
Many buyers compare the 6CTA8.3-GM155 with the lower-rated 6CT8.3-GM129 when selecting marine auxiliary power systems.
The most significant difference is power reserve capability under continuous electrical load conditions.
The 6CT8.3-GM129 is commonly used for smaller auxiliary power systems where onboard electrical demand is relatively stable. However, vessels operating refrigeration systems, hydraulic deck machinery, or heavy onboard equipment often require the additional output margin provided by the 155kW model.
The 6CTA8.3-GM155 also offers improved transient load response, which helps stabilize generator frequency during sudden electrical demand changes.
For vessels requiring future electrical expansion capacity, the higher-rated 6CTA8.3-GM155 generally provides greater operational flexibility.
Mechanical vs. Electronic Governing in Marine Configurations
When choosing a 1500RPM marine auxiliary diesel engine, selecting the right speed control configuration is vital for power grid stability:
- Mechanical Governors: These assemblies provide reliable, purely analog control. They are highly resistant to moisture, salt fog, and electrical interference. However, they allow for a minor engine speed drop (droop) during sudden electrical load changes.
- Electronic Governor Upgrades: Utilizing an electronic actuator connected to a digital controller allows the 6CTA8.3-GM155 to run with near-zero speed droop. This configuration maintains an exactly steady 50Hz AC frequency, protecting sensitive onboard marine electronics from voltage and frequency fluctuations.
Maintenance, Wear Parts, & Lifetime Support
Real-World Cummins 6CTA8.3-GM155 Fuel Consumption Patterns
Understanding real-world fuel use is essential for calculating operational budgets. The Cummins 6CTA8.3-GM155 fuel consumption curve reflects its specialized 1500RPM design.
At 100% prime load, the engine consumes approximately 39.5 to 40 liters of diesel fuel per hour. Dropping down to a 75% load profile brings consumption closer to 30 liters per hour. Running marine auxiliaries beneath 40% load for extended periods is not recommended; it causes low cylinder temperatures that lead to unburnt fuel deposits and "wet oiling" within the turbocharger system.
Critical Spare Parts Identification
Maintaining power delivery requires keeping essential spares on hand. The mid-range Cummins C8.3 marine auxiliary power engine shares many core components with its automotive and industrial counterparts, but uses unique, specialized marine components:
- Sea Water Pump Impellers: Flexible neoprene impellers require inspection every 500 operating hours.
- Fleetguard Filtration Kits: Marine-grade primary fuel-water separators and spin-on secondary filters must be replaced every 250 hours to protect the injection pump from water damage.
- Sacrificial Zinc Anodes: Mounted inside the heat exchanger shell, these plugs must be inspected monthly and replaced once 50% eroded to stop galvanic corrosion.
Overhaul Horizons and Liner Maintenance
The cylinder block uses premium replaceable wet liners honed with a cross-hatch pattern. This design retains lube oil on the cylinder walls and pairs with high-nickel cast iron pistons to extend service life before a major rebuild. Expect a major overhaul horizon between 12,000 and 15,000 operating hours, provided regular fluid change intervals are maintained.
Real Application Scenarios & Marine Integration
Commercial Fishing Vessel Auxiliary Duty
On multi-day commercial fishing voyages, the auxiliary engine faces demanding duty cycles. A Cummins marine diesel engine for commercial vessel applications must reliably power heavy hydraulic deck winches, refrigeration compressors for the catch holds, and standard shipboard lighting simultaneously. The 6CTA8.3-GM155 handles these sudden electrical load spikes with rapid torque response from its integrated Holset wastegate turbocharger.
Offshore Support Vessel Main Grid Integration
For offshore supply boats, crew tenders, and tugs, this model provides excellent performance as a primary harbor generator drive or a dedicated 155kW Cummins marine emergency generator engine. Its compact footprint allows for easy installation within tight auxiliary machinery spaces, leaving more room for cargo or functional gear.
Custom Dual-Starter Systems for Emergency Classification
International maritime safety rules often demand redundant starting systems for emergency gensets. To fulfill class approvals, HekoPower configures customized 6CTA8.3-GM155 dual starter motor system options. We mount a primary 24V electric starter alongside an independent mechanical spring starter or pneumatic air-start motor, ensuring the engine can fire up even during a total blackout.
Spare Parts and Global Service Support
Availability of replacement parts is a major factor when selecting marine auxiliary engines.
Because the 6CTA8.3 platform is widely used internationally, many components are relatively accessible compared with low-volume marine engine platforms.
HekoPower supplies:
- genuine Cummins replacement parts
- overhaul kits
- turbochargers
- seawater pumps
- injectors
- filters
- starter motors
- marine cooling components
Export support is available for shipyards, marine equipment distributors, and vessel operators requiring international logistics coordination.
Cummins C8.3-GM Series, Marine Auxilliary Diesel Engines for commercial and recreational applications, original products from Dongfeng Cummins Engine Plant (DCEC), Cummins Joint Venture Plant since 1986, 50% shareholding by Cummins USA. This series mainly includes 6CT8.3-GM115, 6CT8.3-GM129, 6CTA8.3-GM155, 6CTA8.3-GM175. All engines complete with sea water pump, heat exchanger, CCS/IMO certificates.
Frequently Asked Questions
What classification certificates are available for this engine?
HekoPower supplies this engine with official CCS certified (China Classification Society) documentation. We can also coordinate with international bodies like BV, ABS, or DNV during assembly to meet your specific flag-state requirements.
Is the 6CTA8.3-GM155 engine compliant with global emissions standards?
Yes, this engine meets IMO II compliant emission requirements. It is fully legal for use on commercial vessels operating in international waters where IMO Tier II standards apply.
What cooling package options do you offer for this model?
We specialize in providing integrated Cummins 6CTA8.3-GM155 heat exchanger cooling packages, which feature an engine-mounted expansion tank and a seawater-cooled cupronickel heat exchanger. For vessels utilizing keel cooling, we can deliver a simplified configuration tailored for external skin coolers.
What are the exact shipping dimensions and weight?
The standard bare engine profile measures approximately 1494mm in length, 796mm in width, and 1228mm in height, with a dry net weight of 637 kg. Fully packaged onto a structural steel base skid with a marine alternator, the final footprint varies depending on your chosen component specifications.
What is the typical price and lead time from HekoPower?
Our production lead time ranges from 15 to 30 working days depending on classification testing. Please contact our sales engineering department with your certification requirements to receive an accurate, up-to-date price quote.
What cooling system is used?
Most marine configurations use a heat exchanger cooling system designed for saltwater marine environments.
