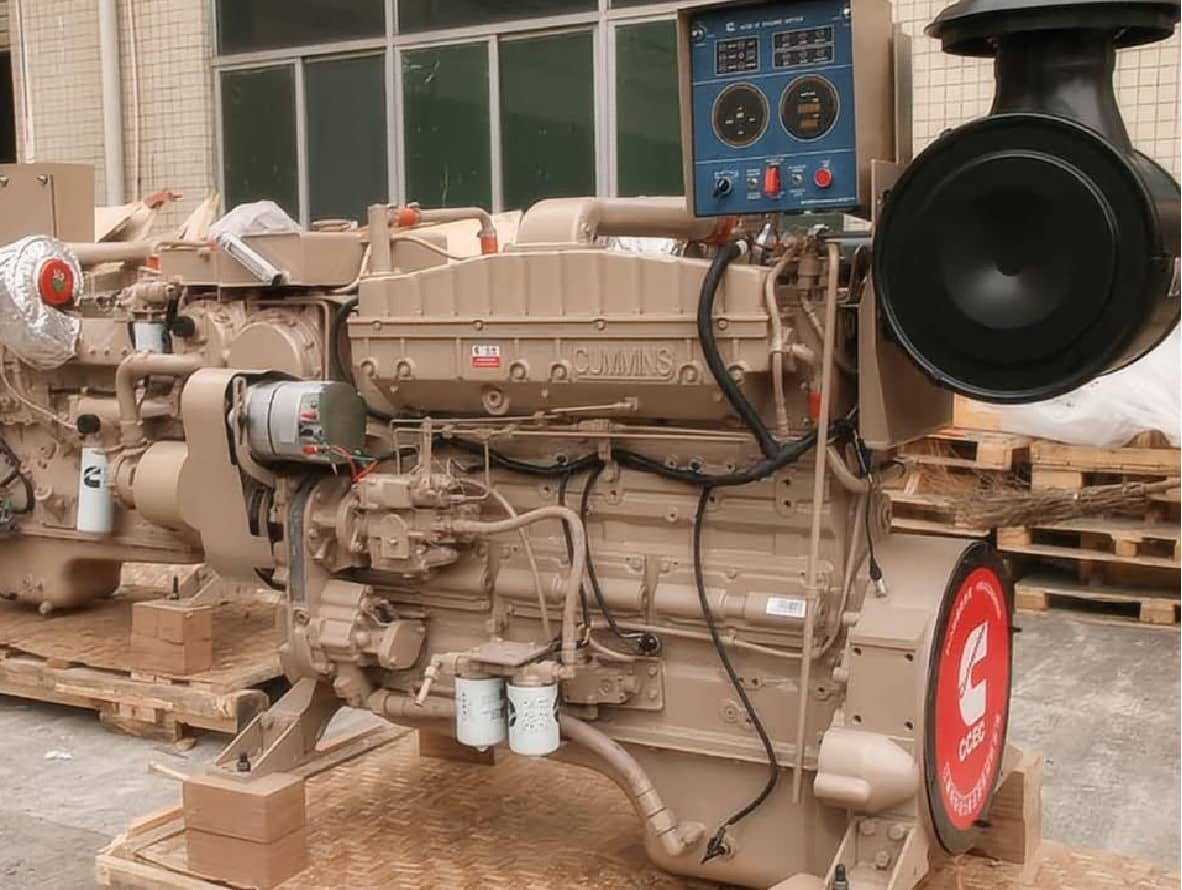

CCEC Cummins NTA855-M450 Marine Propulsion Diesel Engine (336kW / 450HP)
The CCEC Cummins NTA855-M450 is a robust 14-liter, 6-cylinder in-line mechanical marine engine manufactured by Chongqing Cummins Engine Co., Ltd. Delivering a continuous rated output of 336 kW (450 HP), this turbocharged and aftercooled engine is built specifically for heavy-duty commercial marine environments. HekoPower supplies the complete Chongqing Cummins NTA855-M450 marine main engine assembly to shipyards, fleet operators, and independent vessel owners worldwide.
Unlike modern common-rail platforms, this 14L Cummins NTA855-M450 marine engine relies on a proven mechanical fuel architecture. It provides exceptional reliability in remote saltwater conditions where electronic components are prone to failure. We deliver comprehensive propulsion solutions tailored to your vessel’s specific cooling requirements, gear reduction ratios, and classification standards.
Tech Specs of Cummins NTA855-M450
General Engine Data
Engine Model: Cummins NTA855-M450
Type: 6 Cylinders in Line
Displacement: 14 L
Bore * Stroke: 140 * 152
Net Weight (with flywheel & alternator): 1430 Kg
Overall Dimension: 1809mm*881mm*1598mm
Engine Configuration No.: D0903348MX02
Key Performance Data
Rated Power: 336 kW/450HP
Rated Speed: 1800 rpm(Heavy Duty)/2100 rpm(Medium Continuous)
Low Idle Speed: 575-675 rpm
High Idle Speed(1800 rpm): 1962-2106 rpm
High Idle Speed(2100 rpm): 2290-2415 rpm
Fuel Consumption (Running Speed): ≤ 83 L/hr
More Technical Data
Certification: CCS/IMO Certificates
Governor Type: Mechanical Control
Aspiration: Turbocharged/Aftercooled
Compression Radio: 14.5:1 (1800 rpm), 14.0:1 (2100 rpm)
Fuel System: Cummins Pressure Time (PT Pump)
Starting System: Electrical Start (24V/100AMP)
Lowest Starting Temp Without auxiliary system: -12℃
Cooling Method: Sea water pump, Heat exchanger, Water cooled
Technical Comparisons and Operating Dynamics
Selecting the correct propulsion configuration requires a deep understanding of how the engine performs under different loads. We must look at operating speeds and fuel delivery mechanisms to ensure the engine matches your specific hull design.
Understanding NTA855-M450 1800 RPM vs 2100 RPM Ratings
The Cummins NTA855-M450 336kW marine propulsion engine is offered in two distinct operating speeds. Choosing between the 1800 RPM and 2100 RPM configurations directly impacts your vessel's operational lifespan and fuel efficiency.
The Cummins NTA855-M450 1800 RPM marine engine configuration features a heavy-duty rating. This setup allows for uninterrupted, continuous operation at full throttle. Running at a lower 1800 RPM reduces piston travel speed and decreases the thermal load on the cylinder liners. It allows the vessel to swing a larger propeller, maximizing low-end torque. This is the optimal choice for displacement hulls operating under constant, heavy loads.
The Cummins NTA855-M450 2100 RPM marine engine targets a medium continuous rating. This configuration is better suited for commercial boats operating with variable throttle demands up to a few thousand hours annually. The higher engine speed provides faster throttle response and higher peak speeds for lighter or semi-displacement hulls. Operators must adhere to stricter scheduled maintenance intervals when running the 2100 RPM configuration compared to the heavy-duty 1800 RPM setup.
Mechanical Fuel Systems versus Electronic Alternatives
A significant advantage of the CCEC NTA855-M450 450HP marine propulsion engine is its mechanical architecture. The engine utilizes the proprietary Cummins NTA855-M450 PT fuel system.
The Pressure-Time (PT) fuel pump and mechanical governor setup operates completely independent of electrical power once the engine is started. The Cummins NTA855-M450 PT pump marine diesel system controls fuel pressure strictly based on engine rotational speed. Mechanical injectors then meter the fuel directly into the combustion chamber. This completely eliminates complex electronic control units, fragile wiring harnesses, and sensitive rail pressure sensors.
Electronic common-rail engines are highly sensitive to fuel contamination. The NTA855-M450 mechanical fuel system easily tolerates the varying diesel fuel qualities commonly found in remote coastal ports. Vessel engineers can service or adjust the mechanical governor at sea using standard hand tools. This field serviceability drastically reduces costly downtime for commercial fleets.
Real Application Scenarios in Commercial Marine
The NTA855-M450 450hp diesel propulsion engine for commercial boats delivers exceptional low-end torque. This makes it highly adaptable across diverse marine applications.
Powering Fishing Vessels, Tugboats, and Cargo Barges
The Cummins NTA855-M450 marine engine for tugboats and fishing vessels provides the continuous thrust required for rigorous offshore operations. For fishing trawlers and seiners, the heavy torque curve supports deep-water net hauling while maintaining sustained speeds against strong ocean currents.
When installed as an NTA855-M450 engine for tugboat operations, running at 1800 RPM provides the essential low-speed bollard pull needed to maneuver heavy barges. As an NTA855-M450 engine for cargo vessel transit, it serves as a relentless workhorse requiring minimal monitoring during long river journeys.
HekoPower provides complete Cummins NTA855-M450 marine engine matching gearboxes. We partner with trusted marine transmission manufacturers like Advance and ZF. We supply the complete Cummins NTA855-M450 marine engine power pack package, integrating the engine, gearbox, torsional coupling, and local monitoring panel.
Heat Exchanger Sea Water Pump vs. Keel Cooling Options
Effective heat dissipation is critical to engine longevity. The NTA855-M450 offers two distinct factory cooling configurations to match your operating environment.
The NTA855-M450 heat exchanger sea water pump cooling configuration uses a closed freshwater loop coupled with a corrosion-resistant heat exchanger. A bronze seawater pump draws raw water through the heat exchanger tube bundle. This cools the engine jacket water before the raw water is discharged overboard via the wet exhaust system. This setup is the standard choice for offshore deep-water vessels.
The NTA855-M450 keel cooling option completely isolates the engine coolant from raw seawater. The engine coolant circulates through external cooling pipes welded directly to the outside of the vessel's hull below the waterline. Keel cooling entirely eliminates the need for a raw water pump, sea strainer, and raw water heat exchanger. This is the preferred cooling option for shallow-water barges and river tugs operating in muddy waters where raw water strainers frequently clog.
Marine Engine Replacement and Maintenance Tips
Repowering an aging vessel restores propulsion performance while avoiding the massive capital expenditure of a new boat build.
Repowering with the NTA855-M450 Power Pack Package
Replacing marine diesel engines with CCEC Cummins NTA855-M450 units is a highly cost-effective upgrade. It is an ideal 450HP Cummins marine engine replacement for older 855-cubic-inch platforms or legacy two-stroke marine engines.
The physical engine bed dimensions and SAE #1 flywheel housing standards on the NTA855 match many existing vessel designs. During a repower project, operators must verify that current engine mounts can support the dry weight of the engine. It is also crucial to ensure the exhaust piping diameter meets factory guidelines to prevent restrictive backpressure on the turbocharger.
HekoPower acts as your dedicated NTA855-M450 engine replacement supplier. We support shipyard repower projects with technical dimensional drawings and bell housing adapters. We provide transparent NTA855-M450 engine price and lead time estimates to keep your refit on schedule.
Routine Maintenance and Common Misconceptions
Achieving optimal lifespan from your marine engine requires adherence to straightforward maintenance protocols. Inspect the mechanical injector valve lash every 1,500 operating hours. Regularly replacing fuel filters is mandatory to protect the tight tolerances inside the PT pump. For heat-exchanger-cooled models, operators must inspect the zinc sacrificial anodes every 250 hours and replace them when they are half depleted.
There are several common misconceptions regarding mechanical marine engines. A frequent misconception is that mechanical engines cannot meet modern emission standards. In reality, the genuine CCEC NTA855-M450 engine can be configured as a Cummins NTA855-M450 with CCS IMO Tier 2 marine certification, ensuring compliance for global commercial operations.
Another misconception is that higher RPMs always result in better towing capability. The truth is that torque dictates towing power. The 1800 RPM continuous duty rating provides superior low-end torque for heavy displacement pushing compared to running a smaller engine at a higher rotational speed.
Exploring the Chongqing Cummins NTA855-M Series
HekoPower supplies a wide range of CCEC marine engines tailored to different hull sizes, displacement weights, and operational profiles. While the 450HP configuration is ideal for specific commercial vessels, fleet operators often require varied power outputs for different vessels within their organization.
To support comprehensive fleet planning and ensure you find the exact propulsion match for your engine room layout, Cummins N855-M Series (N855 Marine Engine), marine propulsion engines for commercial and recreational applications, original products from Chongqing Cummins Engine Plant(CCEC). This series mainly includes NTA855-M350, NTA855-M400, NTA855-M450, NTA855-M200, NTA855-M220, NTA855-M240, NTA855-M250, NTA855-M270, NTA855-M300. All engines complete with sea water pump, heat exchanger, CCS/IMO certificates.
Frequently Asked Questions (FAQ)
What is the expected NTA855-M450 marine engine price and availability?
Pricing fluctuates based on the chosen cooling configuration, classification society certificates, and included marine gearboxes. As a wholesale NTA855-M450 Cummins engine supplier, HekoPower offers highly competitive factory-direct pricing. Standard factory assembly generally requires roughly 20 business days.
Can I get the NTA855-M450 marine diesel engine fuel consumption curve and specs?
Yes. At full continuous load generating 336 kW at 1800 RPM, the baseline fuel consumption is highly efficient for its class. HekoPower provides comprehensive technical data sheets, including precise fuel consumption curves, to assist naval architects in calculating required bunker tank capacities.
Does HekoPower supply authentic replacement parts for this engine?
Absolutely. We supply the original NTA855-M450 marine engine alongside a complete catalog of genuine CCEC replacement parts. This includes replacement PT fuel pumps, seawater pumps, and complete overhaul kits to support your vessel throughout its entire lifecycle.
