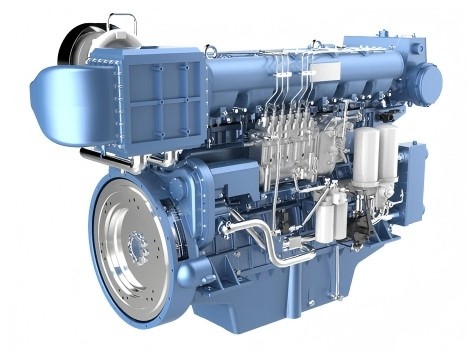

Weichai X6170ZC540-2 Marine Propulsion Engine: The Ultimate 540HP Heavy-Duty Solution for Commercial Vessels
Commercial maritime operations demand uncompromising power, structural reliability, and long-term thermal efficiency. As a premier global Weichai marine engine supplier and genuine Weichai 6170 series engine spare parts exporter, HekoPower is proud to present the Weichai X6170ZC540-2 marine engine. This specific variant represents a pinnacle configuration within the legendary Weichai 6170 marine diesel engine family, widely recognized for its unrelenting work ethic across international waters.
The X6170ZC540-2 propulsion engine delivers a rated power output of 397kW (540HP) at a stable 1200rpm marine diesel engine speed baseline. This 6-cylinder marine diesel engine features a massive 27.24L marine diesel engine displacement, utilizing an inline four-stroke architecture. This setup provides the critical low-end torque profiles required to push high-displacement hulls through challenging marine environments.
Whether you are looking to buy Weichai X6170ZC540-2 units for a new vessel construction or searching for a trusted wholesale Weichai X6170ZC540-2 source for fleet repowering, understanding the precise engineering profile of this 397kW marine propulsion engine ensures your maritime investment yields maximum ROI.
Tech Specs of Weichai X6170ZC540-2
General Engine Data
Engine Model: Weichai X6170ZC540-2
Cylinder Count: 6 / 8 Cylinders in Line
Engine Type: 4-stroke, water cooled, in-line, turbocharged and aftercooled
Total Engine Displacement: 27.24 L / 36.32 L
Bore * Stroke: 170×200 (mm)
Dimensions L×W×H) / net weight: L6 2463×1200×1650 (mm) / 3100kg; L8 2650×1040×1818 (mm) / 3800kg
Key Performance Data
Rated Power: 397 kW / 540 HP
Rated Speed: 1200 RPM
Idle Speed: 450-650 RPM
Minimum fuel consumption rate: 197 g/kW.h
Oil consumption rate: ≤0.5 g/kW.h
Torque reserve: 20-34%
More Technical Data
Certification: IMO Tier II
Aspiration: turbocharged and aftercooled
Starting system: Gas/Electrical
Rotation(facing the flywheel) : Counter-clockwise
Fuel system: Mechanical pump
Power rating: P1
Noise: ≤105 dB(A)
Technical Architecture and Design Innovations of the Weichai 170 Series
Breaking Down the Mechanics of the 397kW Marine Propulsion Engine
The performance of the Weichai X6170ZC540-2 marine engine relies directly on its deliberate, heavy-duty physical dimensions and structural composition. The foundation consists of a high-strength, gantry-type cast-iron engine block paired with a one-piece forged crankshaft. The cylinder bore is precisely set at 170mm, complemented by a 200mm piston stroke. This large stroke-to-bore ratio creates high thermal efficiency during compression, allowing the engine to easily sustain its maximum 540HP output under continuous load profiles.
The engine uses a turbocharged aftercooled marine diesel design layout. By routing hot compressed air from the X6170 turbocharger through a high-efficiency water-cooled intercooler, the density of the intake air increases dramatically before entering the combustion chambers. This structural arrangement ensures complete fuel burn, reduces thermal stress on internal engine components, and allows the engine to strictly comply with international IMO Tier II marine engine emissions standards.
Fuel System Configuration and Oil Economy Advancements
A primary differentiator for the Weichai X6170ZC540-2 specifications is the integration of a highly reliable mechanical fuel pump marine engine layout. The high-pressure, P-type mechanical inline injection pump works perfectly with multi-hole mechanical injectors. This system avoids the delicate electronics that frequently fail in high-humidity, saltwater marine environments. The pure mechanical timing ensures consistent fuel delivery pressures even when running under varying marine fuel qualities.
Furthermore, Weichai engineers completely overhauled the Weichai X6170ZC540-2 fuel consumption and oil seals layout. The cylinder head uses an optimized four-valve per cylinder architecture that lowers flow resistance during intake and exhaust cycles. This drops the baseline Weichai X6170ZC540-2 fuel consumption down to an economical 197g/kW·h at rated power.
Simultaneously, the addition of specialized, wear-resistant viton crankshaft oil seals and an updated piston ring tension profile cuts lubricating oil consumption by more than 40% compared to legacy 170 series generations. For commercial fleet owners, these small percentage gains accumulate into huge operational cost reductions over long voyages.
Technical Comparisons: X6170ZC540-2 vs. Standard 6170 Variants
The Engineering Reality Behind Power Ratings and RPM Variables
When browsing options from a China Weichai marine engine supplier, it is easy to mistake different 6170 models for identical machinery. However, the internal setups vary significantly based on the intended duty cycles. For example, comparing the Weichai X6170 marine engine rated at 540HP at 1200rpm against higher-speed variants rated at 1500rpm reveals a fundamental engineering shift.
The 1200rpm marine diesel engine version focuses heavily on torque density and component longevity. Running at a lower rated rotational speed means the pistons travel fewer linear meters per minute, drastically lowering the mechanical wear on the X6170 cylinder liner and piston rings. Higher-speed variants might offer comparable horsepower from a lighter block framework, but they cannot match the continuous, year-round durability that the 1200rpm platform provides to heavy commercial displacement vessels.
P1 Duty Continuous Unrestricted Classification Advantages
The true strength of the X6170ZC540-2 propulsion engine becomes clear when evaluating its official P1 duty marine engine classification. In the marine engineering world, a P1 rating denotes an engine built for unrestricted continuous operation at 100% full load without periodic power cycling. Many alternative engines on the market are restricted to P2 or P3 intermittent ratings, requiring operators to scale back throttle settings after a set number of hours to prevent overheating or component failure.
The P1 duty rating of this 540HP Weichai inboard engine means the cooling system, oil pump delivery volume, and bearing surface areas are oversized from the factory. The engine can run at a full 397kW output for weeks at a time during deep-sea transits. When evaluating the overall Weichai X6170ZC540-2 weight of roughly 3100 kg, this mass reflects the thicker cylinder walls and heavier cast iron components required to handle continuous, long-term mechanical stress without suffering structural fatigue.
Real Application Scenarios Across Commercial Maritime Sectors
Propulsion Efficiency for Deep-Sea and Coastal Fishing Vessels
In the commercial fishing industry, an engine must handle two completely opposite operational demands: running fast out to the fishing grounds, and then long hours of low-speed, high-load trawling. The Weichai X6170ZC540-2 engine for fishing boat operations excels here because of its massive 30% torque reserve. When a 540HP marine engine for fishing vessel use drops speed to drag heavy nets through rough swells, the pulse turbocharger maintains high boost pressures, preventing the engine from bogging down or smoking.
HekoPower frequently supplies these robust propulsion packages to fishing fleets operating in unpredictable coastal waters. The engine’s pure mechanical configuration means a vessel's crew can troubleshoot minor issues directly at sea without needing specialized diagnostic laptops or satellite tech links, ensuring total self-reliance during critical fishing seasons.
Reliable Tonnage Transport for Cargo Vessels and Inland River Ships
For commercial cargo transportation, keeping operational expenses low is the main priority. The Weichai engine for cargo vessel applications provides a highly predictable fuel consumption curve that helps operators precisely calculate voyage costs. When navigating winding, high-current waterways, a Weichai engine for inland river ship duty needs immediate, responsive throttle control to steer heavy barge setups safely.
The 27.24L displacement block delivers high thrust even at idle speeds, giving captains the precise control required for docking or passing through narrow river locks. Additionally, because HekoPower maintains a massive wholesale inventory of identical blocks, fleet managers can easily standardize their mechanical maintenance programs across multiple river transport vessels.
High-Thrust Demands for Tug Boats and Engineering Vessels
Tug boats and maritime engineering workboats operate under extreme mechanical conditions, frequently requiring sudden bursts of maximum bollard pull. The Weichai engine for tug boat operations and the specialized 397kW marine diesel engine for workboat projects use a heavy-duty flywheel configuration designed to absorb sudden torque spikes when towing large ships.
For a Weichai engine for engineering vessel installations—such as floating dredgers, piling barges, or marine crane platforms—the front end of the crankshaft is engineered to support a high-capacity, free-end power take-off (PTO) mechanism. This design choice allows operators to couple heavy-duty hydraulic pumps directly to the main engine block, providing reliable mechanical power to shipboard winches, cranes, and auxiliary deck machinery without needing a separate auxiliary generator engine.
Maintenance Protocols, Lifecycle Longevity, and Spare Parts Sourcing
Critical Maintenance Rotations for the 170 Series Platform
To ensure your Weichai X6170ZC540-2 marine engine reaches its targeted 20,000-hour major overhaul milestone, you must adhere to a strict preventative maintenance schedule. Oil changes should occur every 250 to 300 hours of operation using high-quality marine grade lubricants. Because the marine environment subjects components to constant saltwater exposure, checking the zinc sacrificial anodes inside the raw-water heat exchanger circuit every month is vital to stop galvanic corrosion from damaging the internal cooling passages.
Fuel system hygiene is another critical area. Operators should check the dual-mounted duplex fuel filters daily and drain off any trapped water. Since these filters are designed to be changed out while the engine is running, there is zero reason to delay maintenance during extended voyages.
Adjusting the mechanical valve clearances on the X6170 cylinder head should be done every 1000 operational hours to keep the four-valve breathing sequence perfectly in sync and maintain optimal fuel economy.
Component Replacement Guidelines and Warning Indicators
As the engine accumulates hours, certain high-wear parts require proactive inspection to avoid unexpected failures at sea. A steady rise in exhaust gas temperatures, visible black smoke from the stack, or a slow throttle response usually points to a worn or fouled X6170 turbocharger compressor wheel. If you notice lubricating oil turning milky white, it generally means a wet cylinder liner o-ring seal is failing, or there is an internal leak within the oil cooler core that needs immediate repair.
When the engine nears its mid-life service intervals, typically around 10,000 hours, engineers should perform a comprehensive top-end overhaul. This includes removing the cylinder heads to inspect the valve seats, replacing the internal components of the X6170 fuel injection pump, and installing fresh injector nozzles. Taking care of these items early restores original compression ratios, brings fuel usage back down to factory specs, and extends the remaining life of the lower engine block components.
Secure Genuine Spare Parts from an Authorized Exporter
Using cheap, unverified aftermarket components on a critical marine engine is a recipe for catastrophic failure. A non-genuine X6170 piston kit may lack the correct thermal expansion properties or precise silicon-aluminum alloys needed to handle the high combustion pressures of a 540HP engine, leading to scuffed cylinder walls or a seized engine block within months.
As an established, genuine Weichai 6170 spare parts supplier, HekoPower ships factory-certified components globally. Our inventory includes genuine X6170 cylinder liner sleeves, precision-matched piston kits, complete cylinder head assemblies, and factory-calibrated fuel injection pumps.
By sourcing parts through an authorized Weichai 6170 series engine spare parts exporter, you ensure every single component matches the original metallurgy and precise manufacturing tolerances required to maintain your engine's CCS certified marine engine status.
Weichai WP10 series marine diesel engine, original products from Weichai. This series mainly includes WP10C313-21, WP10C350-18, WP10C375-21, WP10C395-22.
Frequently Asked Questions Regarding the Weichai X6170ZC540-2
What is the exact Weichai X6170ZC540-2 lead time for international commercial delivery?
The standard production and delivery lead time generally spans between twenty to thirty business days, depending on factory order volumes and specific marine classification requirements. HekoPower works hard to maintain a rolling stock of base engine blocks to expedite urgent vessel repower projects. For bulk wholesale orders or custom configurations involving specific front-end PTO additions, our sales logistics team will provide a firm, transparent shipping schedule tailored to your port of destination.
Does the engine ship with a complete Weichai X6170ZC540-2 PDF datasheet and operational manual?
Yes. Every engine supplied by HekoPower includes a comprehensive documentation package, containing the official Weichai X6170ZC540-2 marine engine manual, detailed engineering layout blueprints, and the complete Weichai X6170ZC540-2 technical data breakdown. We can also provide a downloadable Weichai X6170ZC540-2 technical specifications PDF directly to your engineering team before purchase to simplify vessel engine room integration planning.
What are the exact physical Weichai X6170ZC540-2 engine dimensions for installation?
The standard physical footprint for the X6170ZC540-2 configuration measures 2463mm in total length, 1200mm in width, and 1650mm in vertical height. The net dry Weichai X6170ZC540-2 weight sits at approximately 3100 kg, plus or minus 50 kg depending on whether you opt for an expansion tank or an external heat exchanger setup. This dense, compact design allows the engine to fit easily into traditional engine rooms without requiring major structural modifications.
Is this 540HP Weichai engine fully certified by the China Classification Society?
Yes, every unit built for commercial propulsion is a fully CCS certified Weichai X6170ZC marine diesel engine. The engine comes standard with official CCS type-approval documentation and full EIAPP emissions certification certificates. This ensures your vessel complies with national and international maritime regulatory frameworks during safety inspections and registration.
How can I get a reliable, up-to-date Weichai X6170ZC540-2 price quote from HekoPower?
Because currency exchange rates, material costs, optional equipment packages, and shipping configurations fluctuate, we provide custom pricing upon request. Whether you need a single unit for a local fishing boat or are looking to wholesale Weichai X6170ZC540-2 units for a commercial shipbuilding yard, simply contact our sales desk via the HekoPower inquiry portal. Our team will put together a comprehensive, transparent price quote that reflects your exact technical requirements and delivery destination.
