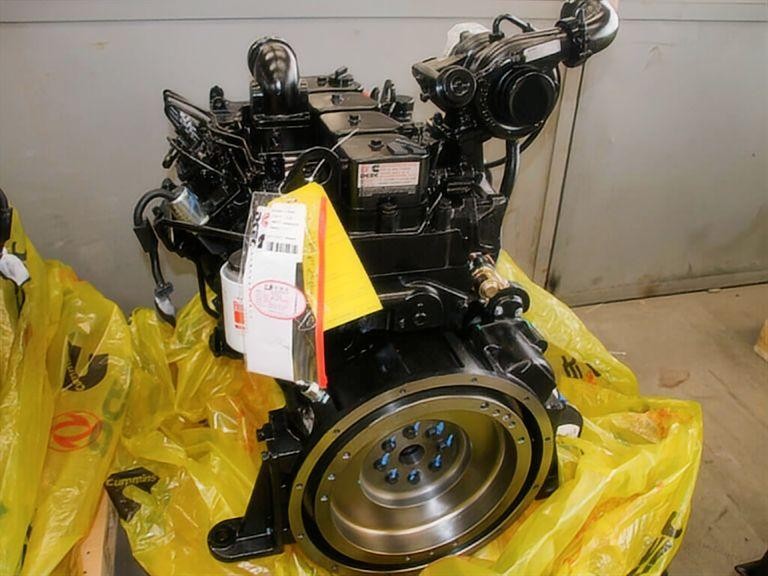

Genuine DCEC Cummins 4BTA3.9-C120 Diesel Engine Assembly
The DCEC Cummins 4BTA3.9-C120 engine assembly stands as a mechanical workhorse in the heavy equipment industry. Delivering a reliable 120 HP, this Cummins 3.9L turbocharged diesel engine is engineered specifically to withstand the brutal workloads of construction, mining, and industrial operations.
As a premier genuine DCEC Cummins 4BTA3.9-C120 supplier, HekoPower delivers complete, factory-tested engine units ready for immediate drop-in replacement. We bridge the gap between technical reliability and cross-border logistics, ensuring your machinery returns to service with minimal downtime.
Tech Specs of Cummins 4BTA3.9-C120
General Engine Data
Engine Model: Cummins 4BTA3.9-C120
Type: 4 Cylinders in Line
Displacement: 3.9 L
Bore * Stroke: 102 * 120
Overall Dimension: 867mm*544mm*988mm
Net Weight (with flywheel & alternator): 338 Kg
Key Performance Data
Rated Power: 90 kW/120HP
Rated Speed: 2400 rpm
Max Torque/Speed: 480 N.m @ 1500 rpm
Fuel Consumption @ Rated Power: 210 g/Kw.h
Max Continuous Running Altitude: 2000 m
More Technical Data
Certification: Euro I
Aspiration: Turbocharged-Intercooled
Fuel System: Weifu PW/RSV
Compression Ratio: 17.3:1
Electrical System (Starter Motor/Alternator): 12V/24V
Lowest Starting Temp Without auxiliary system: -12℃
Cooling Method: Water cooled
Engine Cooling Fluid Volume: 8.3 L
Technical Performance and Machinery Comparisons
Industrial operators frequently face challenges when choosing between different iterations of the Cummins 4-cylinder family. Selecting the wrong variant leads to costly retrofitting mistakes.
4BTA3.9-C120 vs 4BT3.9-C100
The primary distinction between these two models lies in air handling and power density. The Cummins 4BTA3.9-C120 engine features a highly efficient air-to-air intercooler (indicated by the "A" in the model name). This setup allows it to push a reliable 120 horsepower.
In contrast, the standard 4BT3.9-C100 relies solely on turbocharging without intercooling, capping its output at 100 horsepower. If your machinery operates under high ambient temperatures or continuous heavy loads, the 120HP variant offers crucial thermal headroom and higher torque capacity.
Mechanical vs Electronic Cummins 4BT Engine
The 4BTA3.9-C120 utilizes a traditional, highly dependable mechanical fuel injection system. Modern electronic engines (like the QSB3.9 series) offer precise emissions control but require complex ECUs, wiring harnesses, and expensive diagnostic computers.
The mechanical injection setup on the 4BTA3.9-C120 makes it exceptionally resilient against lower-quality diesel fuel often found on remote construction sites. It simplifies field repairs and eliminates electronic failure points completely.
Genuine vs Aftermarket Cummins Engine Assemblies
Investing in a genuine Cummins 4BTA3.9-C120 engine guarantees block integrity, factory-balanced crankshafts, and precise cylinder wall honing. Aftermarket or clone engines frequently compromise on metallurgy, leading to premature head gasket failures and rapid piston ring wear under heavy thermal strain.
HekoPower provides original DCEC builds equipped with authentic Holset turbochargers, safeguarding your equipment investment.
Real-World Machinery Application Scenarios
The 120 HP Cummins construction engine adapts easily across a broad spectrum of heavy machinery due to its compact structural footprint and high low-end torque.
Excavators and Hydraulic Systems
Hydraulic excavators demand immediate power responses when handling heavy breakout forces. The Cummins 4BTA3.9-C120 engine for excavator retrofits integrates seamlessly with standard hydraulic pump drives. The stable torque delivery ensures that main hydraulic pumps maintain consistent system pressure, preventing hydraulic lag during complex multi-valve operations.
Compaction and Earthmoving Equipment
Road rollers and loaders run for extended hours under constant vibration. Operating a 120hp Cummins engine for road rollers and loaders ensures structural longevity. The rigid, cast-iron cylinder block absorbs the persistent high-frequency harmonic vibrations inherent to asphalt and soil compaction machinery.
Specialized Drilling and Pumping Stations
For stationary deployments, this power unit excels as a Cummins 4-cylinder 90 kW engine for industrial water pumps and high-pressure drilling rigs. Its self-contained cooling design allows it to run continuously at a stable RPM, providing unwavering mechanical output for deep-well agricultural irrigation, mine dewatering, and foundation drilling operations.
Engineering Retrofit and Long-Term Maintenance Guide
Machinery Retrofit and Spatial Dimensions
When planning a swap, verifying exact 4BTA3.9-C120 dimensions for machinery retrofit is the vital first step. This model features a length of approximately 821 mm, a width of 694 mm, and a height of 849 mm.
Engineers must ensure a minimum clearance of 50 mm around the cooling fan shroud and clear access to the oil filtration side for routine maintenance accessibility.
Fuel System Configuration and Governor Specifications
The engine employs a mechanical inline fuel injection pump paired with a mechanical governor. This setup maintains precise RPM control even under sudden hydraulic load spikes. To protect this fuel system:
- Install a high-capacity water-separator pre-filter.
- Bleed the low-pressure fuel lines thoroughly whenever replacing filters to prevent air locks in the injection pump.
- Monitor governor linkages every 500 operating hours to ensure crisp throttle response.
Cooling System Management and Overhaul Intervals
The Cummins water-cooled diesel engine 120HP layout requires a properly balanced 50/50 glycol-to-water coolant ratio to avoid wet-sleeve cylinder liner cavitation. Neglecting coolant chemistry leads to pinhole leaks in the cylinder walls.
Following the official Cummins 4BTA3.9-C120 maintenance manual guarantees an average time-between-overhaul (TBO) of over 10,000 operating hours, provided oil changes occur every 250 hours using premium CH-4 or CI-4 grade lubrication oils.
Global Sourcing, Logistics, and Procurement Processes
As a trusted original Cummins 4BTA3.9-C120 for sale channel, HekoPower optimizes the entire international procurement pipeline to protect your capital.
Sea Freight Packing and Rust Prevention
Industrial machinery transit demands heavy-duty protection against oceanic moisture. Every Cummins 4BTA3.9-C120 engine exporter protocol at HekoPower mandates treating unpainted surfaces with marine-grade rust preventatives.
The complete engine assembly is tightly sealed in heavy VCI (Vapor Corrosion Inhibitor) plastic film before being bolted securely into a custom, ISPM-15 compliant fumigated wooden crate. This prevents any physical movement or exposure to salt air during long-distance maritime shipping.
Lead Time, Customs Documentation, and Delivery
We maintain stable inventory levels to reduce your equipment downtime. Standard order processing and logistics dispatch take 7 to 10 business days.
HekoPower provides a complete shipping documentation suite—including the Original Bill of Lading, Certificate of Origin, Commercial Invoice, and detailed Packing Lists—ensuring seamless customs clearance at your destination port.
Cummins B3.9-C Series, original products from Dongfeng Cummins Engine Plant (DCEC), Cummins Joint Venture Plant since 1986, 50% shareholding by Cummins USA. This series mainly includes 4BT3.9-C80, 4BT3.9-C100, 4BT3.9-C105, 4BT3.9-C110, 4BTA3.9-C80, 4BTA3.9-C100, 4BTA3.9-C110, 4BTA3.9-C120, 4BTA3.9-C125, 4BTA3.9-C130, 4BTAA3.9-C80, 4BTAA3.9-C100, 4BTAA3.9-C110, 4BTAA3.9-C115, 4BTAA3.9-C125, 4BTAA3.9-C130.
Frequently Asked Questions Regarding the Cummins 4BTA3.9-C120
What is the exact fuel consumption rate for the Cummins 4BTA3.9-C120 engine?
The specific fuel consumption rate typically sits at approximately 215 g/kW·h at rated power. Actual consumption varies based on the machinery's duty cycle, hydraulic configuration, and operator throttle habits.
What emissions standard does this engine model comply with?
The mechanical injection Euro I emission Cummins 120hp engine assembly is designed primarily for non-regulated regions, export markets, and replacement applications in older machinery. Always cross-reference local environmental and import regulations before finalizing procurement.
Can I replace a standard 4BT3.9 engine with this 4BTA3.9-C120 model?
Yes. The core cylinder block dimensions and flywheel housing footprints match closely. However, you must allocate extra space in the engine bay to accommodate the air-to-air intercooler piping and ensure your existing radiator can handle the increased thermal output.
Where can I source authentic replacement components for overhauls?
HekoPower provides access to a comprehensive Cummins 4BTA3.9-C120 spare parts catalogue. We stock everything from complete cylinder heads, Holset turbochargers, and pistons to minor gasket kits, ensuring your maintenance team has access to original components.
What specific type of warranty protection comes with the assembly?
Every single original 4BTA3.9-C120 engine warranty from China exporter options via HekoPower features comprehensive coverage against manufacturing and material defects. This warranty protection remains valid for 12 months or 1,000 operating hours from the date of installation, whichever milestone occurs first.
