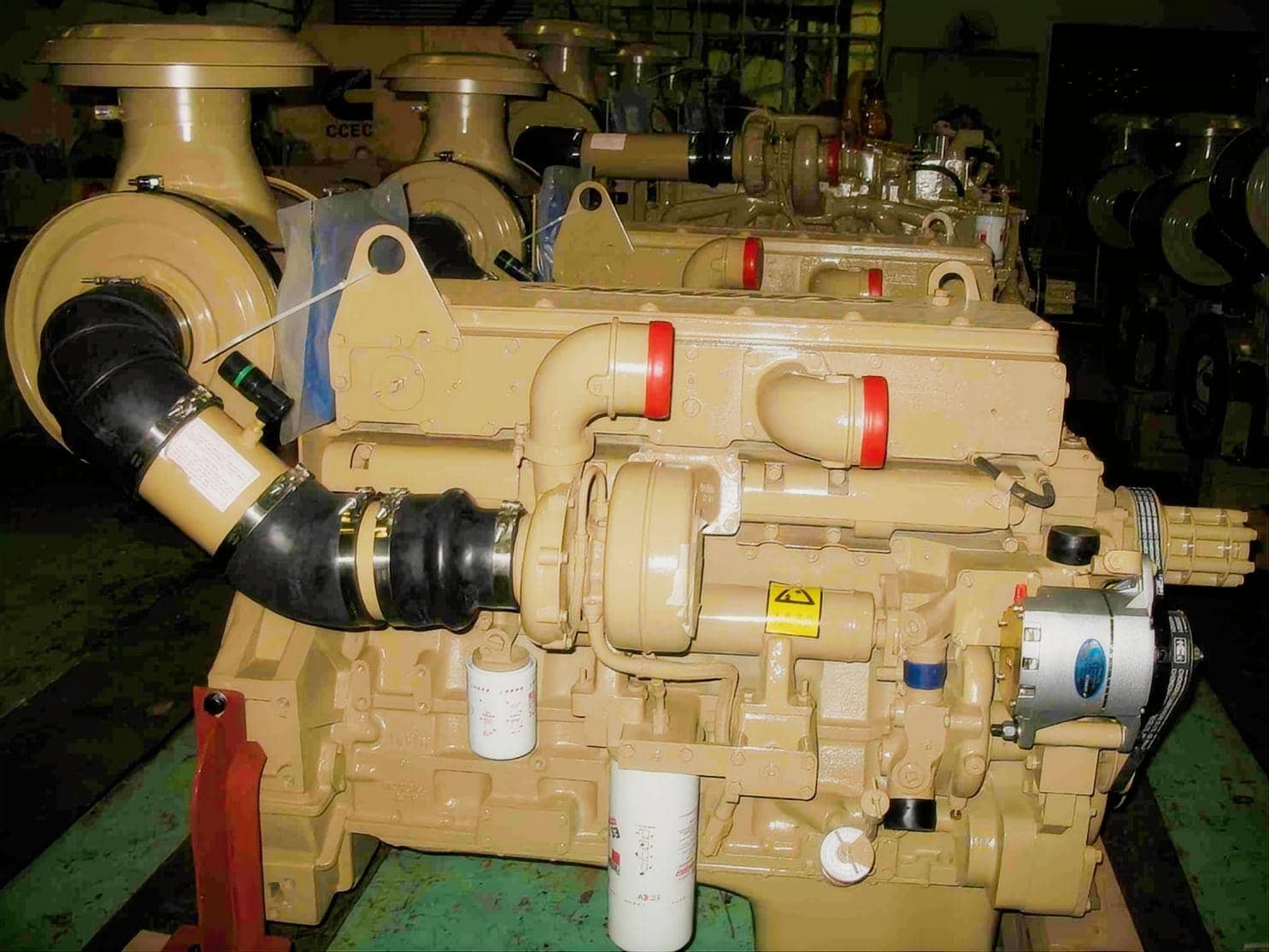

Cummins M11-C300 Complete Engine Assembly: Industrial Power Unit
The Cummins M11-C300 Complete Engine Assembly serves as a core power source for heavy duty industrial machinery globally. Manufactured by Chongqing Cummins Engine Co. (CCEC) under strict licensing, this 10.8-liter mechanical workhorse delivers a rated power output of 300 HP (224 kW) at 2100 RPM.
As a specialized engine supplier, HekoPower provides this complete diesel engine as a drop-in replacement solution for global construction, mining, and engineering clients looking to restore fleet performance without long factory backorders.
Tech Specs of Cummins M11-C300
General Engine Data
Engine Model: Cummins M11-C300
Type: 6 Cylinders in Line
Displacement: 10.8 L
Bore * Stroke: 125 * 147
Overall Dimension: 1450mm*950mm*1010mm
Net Weight (with flywheel & alternator): 980 Kg
Key Performance Data
Rated Power: 224 kW/300HP
Rated Speed: 2100 rpm
Max Torque/Speed: 1424 N.m @ 1300 rpm
Max. No-Load Speed: 2450 rpm
Fuel Consumption @ Rated Power: 64.4 L/hr
Idle Speed: 675-750 rpm
Max. Continuous Running Altitude: 3048 m
More Technical Data
Certification: Tier 1
Aspiration: Turbocharged-Intercooled
Fuel System: Direct Injection PT Pump, STC
Compression Ratio: 16.1:1
Electrical System (Starter Motor/Alternator): 12V/24V
Lowest Starting Temp Without auxiliary system: -12℃
Cooling Method: Water cooled
Engine Cooling Fluid Volume: 12.9 L
Cummins M11-C300 Engine with PT Fuel System Specs
Unlike newer electronic common-rail engines, the original Cummins M11-C300 uses the legendary Cummins PT (Pressure-Time) fuel system. This purely mechanical injection architecture relies on a low-pressure fuel pump and mechanically driven unit injectors.
The PT system adjusts fuel delivery based entirely on engine speed and throttle pressure. For heavy equipment operators, this design provides two critical benefits: high resistance to low-quality or contaminated diesel fuel, and straightforward troubleshooting without complex electronic scanning tools.
Fuel Consumption & Fluid Efficiency Profile
Operating at its optimal torque band around 1300 to 1500 RPM, the M11-C300 optimizes brake specific fuel consumption (BSFC). The engine average fuel consumption curve remains flat even under 80% load cycles.
Its lube oil system holds 39 liters of oil, featuring a combination of full-flow filtration and bypass bypass valves to protect internal bearings from carbon soot during extended operational shifts.
Real Application Scenarios for the 300 HP Cummins Construction Engine
The M11 series owes its popularity to its versatile power-to-weight ratio. The 300 HP variant is specifically calibrated for machinery that demands high breakout force and steady hydraulic flow.
Heavy Mining Equipment and Construction Excavators
The Cummins M11-C300 engine for excavator applications powers machines in the 35 to 50-ton class. These environments demand rapid transient response when the hydraulic pumps stroke up during deep digging cycles. The mechanical governor reacts instantly to load spikes, maintaining stable hydraulic system pressure without engine bogging.
Cummins M11-C300 Engine for Rotary Drilling Rig & Piling Machines
Foundation drilling requires prolonged periods of high torque at low ground speeds. The M11-C300 engine for rotary drilling rig applications provides the necessary structural rigidity to handle severe rotational vibrations. It is also an ideal match as a Cummins M11-C300 engine for piling machine configurations, where repetitive axial shocks put immense stress on the flywheel housing and engine mounts.
Infrastructure, Infrastructure Machinery, and Cranes
Beyond heavy excavation, this power unit is widely deployed as a:
- Cummins M11-C300 engine for crawler crane systems requiring precise load lifting and holding power.
- Cummins M11-C300 engine for road machinery including large asphalt milling units and heavy scrapers.
- Dedicated Cummins M11-C300 engine for compressor packs and industrial power units running automated processing plants in remote territories.
Technical Comparisons: M11-C300 vs. Alternative Power Units
Selecting the correct replacement power unit requires comparing legacy models with modern alternatives across lifecycle costs, emissions, and installation footprints.
M11-C300 Mechanical vs. QSM11 Electronic Systems
When evaluating a replacement engine, buyers often choose between the mechanical M11-C300 and the electronically controlled QSM11. The QSM11 features an ECM (Electronic Control Module) that manages fuel curves to meet tighter emissions standards. However, for operations in developing infrastructure regions, the mechanical M11-C300 remains preferred. It requires no specialized software to diagnose, uses cheaper service parts, and operates reliably in environments where ultra-low sulfur diesel is unavailable.
Displacement Advantages Over 8.3L and 9L Engine Classes
Some operators consider down-sizing to smaller 8.3-liter or 9-liter engines to save weight. While those engines can be tuned up to reach a 300 HP peak rating, they operate at the very edge of their structural limits.
The 10.8-liter displacement of the M11-C300 provides a wider thermal buffer and higher low-end torque. This translates directly into a longer Time Between Overhauls (TBO) under heavy industrial duties.
Industrial Maintenance and Replacement Tips
Maximizing the operational lifespan of a new or remanufactured industrial diesel engine requires strict adherence to specialized field protocols.
Critical Cummins M11-C300 Dimensions & Installation Footprint
Before ordering a replacement unit, verify your equipment engine bay clearances. The dry weight of a standard Cummins M11-C300 complete diesel engine assembly is approximately 940 kg.
Its physical dimensions measure roughly 1315 mm in length, 922 mm in width, and 1153 mm in height. Ensure your existing radiator core can support the cooling demands of a 224 kW thermal load, especially if upgrading from a lower-horsepower configuration.
Preventative Maintenance Schedule for Harsh Environments
In dusty mining or drilling environments, standard service intervals must be shortened. Replace primary and secondary fuel filters every 250 operating hours to protect the PT pump plungers from abrasive wear. Check the overhead valve lash adjustments and injector heights every 1500 hours to maintain correct injection timing and prevent raw fuel from washing down the cylinder walls.
Sourcing Strategy for Cummins M11-C300 Service Parts
When managing a fleet overhaul, prioritize using genuine CCEC or high-quality OEM Cummins M11-C300 service parts. Critical wear items—such as cylinder liners, piston rings, main bearings, and turbocharger rebuild kits—must match the exact CPL (Critical Parts List) number stamped on your engine data plate to guarantee proper oil clearances and thermal expansion tolerances.
Cummins M11-C Series, original products from Chongqing Cummins Engine Plant(CCEC). This series mainly includes M11-C225, M11-C245, M11-C250, M11-C265, M11-C270, M11-C275, M11-C280, M11-C290, M11-C300, M11-C310, M11-C315, M11-C320, M11-C330, M11-C335, M11-C350.
Frequently Asked Questions (FAQs)
Where can I buy an authentic Chongqing Cummins M11-C300 engine assembly?
Authentic units can be sourced through verified industrial exporters like HekoPower. We supply genuine complete engines manufactured by the CCEC joint venture factory in Chongqing, ensuring all internal components meet original engineering standards.
What is included in a HekoPower complete engine assembly quotation?
Our standard Cummins M11-C300 quotation covers a fully built engine from the valve cover to the oil pan. It includes the complete PT fuel injection system, water pump, oil pump, turbocharger, and starter motor. Optional accessories like alternators, cooling fans, and instrument panels can be integrated upon request.
How does HekoPower guarantee the quality of an OEM Cummins M11-C300 complete engine?
Every engine undergoes dynamic dyno testing at the factory prior to shipment. We monitor oil pressure, coolant temperatures, smoke density, and power output across the entire RPM range to verify that the assembly delivers its rated 300 HP output before it is crated for export.
Is the M11-C300 interchangeable across different machinery brands?
Yes, provided the flywheel housing size (typically SAE 1 or SAE 2) and front motor mounts match your existing chassis setup. When requesting a quote, please supply your current engine serial number so our engineering team can configure the replacement unit to match your exact throttle linkage and hydraulic pump interface.
