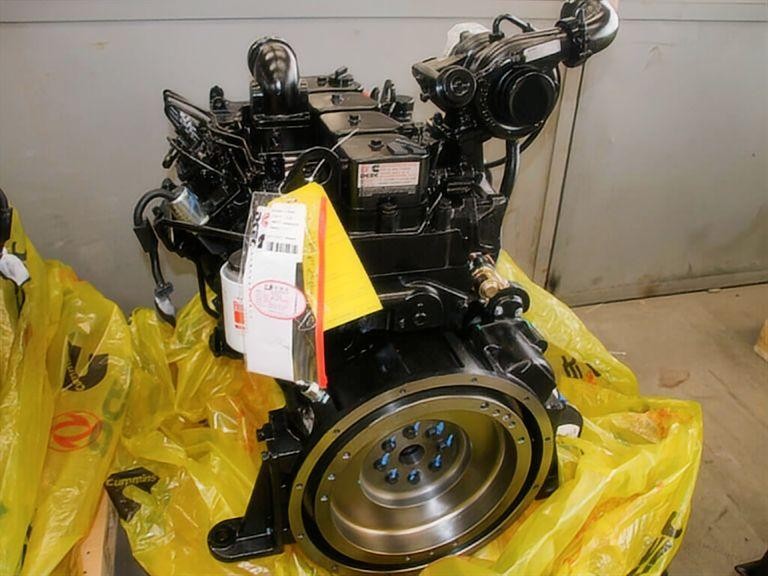

Dongfeng Cummins 4BT3.9-C110 Industrial Diesel Engine
The Cummins 4BT3.9-C110 is a widely used 3.9L industrial diesel engine designed for construction equipment, hydraulic systems and continuous-duty industrial applications. As a genuine DCEC mechanical engine platform, it remains popular in overseas markets where durability, service simplicity and long-term parts availability are important considerations.
HekoPower supplies complete Cummins 4BT3.9-C110 engine assemblies for customers involved in machinery maintenance, fleet rebuilding and industrial equipment export. Compared with many newer electronic diesel platforms, the 4BT3.9-C110 continues to perform well in demanding environments where operators require reliable mechanical fuel injection systems and easier field servicing.
The engine is commonly used in wheel loaders, excavators, road rollers, drilling rigs, forklifts and mobile hydraulic power systems. Its turbocharged water-cooled structure provides stable torque output while maintaining reasonable fuel efficiency under medium and heavy load conditions.
Tech Specs of Cummins 4BT3.9-C110
General Engine Data
Engine Model: Cummins 4BT3.9-C110
Type: 4 Cylinders in Line
Displacement: 3.9 L
Bore * Stroke: 102 * 120
Overall Dimension: 867mm*544mm*988mm
Net Weight (with flywheel & alternator): 338 Kg
Key Performance Data
Rated Power: 80 kW/110HP
Rated Speed: 2600 rpm
Max Torque/Speed: 350 N.m @ 1500 rpm
Fuel Consumption @ Rated Power: 258g/Kw.h
Max Continuous Running Altitude: 2000 m
More Technical Data
Certification: Euro I
Aspiration: Turbocharged-Intercooled
Fuel System: Weifu PW/RSV
Compression Ratio: 17.3:1
Electrical System (Starter Motor/Alternator): 12V/24V
Lowest Starting Temp Without auxiliary system: -12℃
Cooling Method: Water cooled
Engine Cooling Fluid Volume: 7.9 L
Aftermarket vs Genuine 4BT3.9-C110 Parts
Investing in a genuine DCEC Cummins 4BT3.9-C110 assembly guarantees optimal material specifications. Genuine DCEC cylinder blocks use a high-tensile alloy cast iron structure with induction-hardened cylinder bores. This preserves structural roundness under high thermal stress.
Conversely, generic aftermarket blocks often exhibit uneven wall thickness, causing block distortion, piston ring blow-by, and early oil consumption. Furthermore, genuine DCEC connecting rods and forged steel crankshafts undergo magnetic particle testing to ensure zero structural micro-cracks, preventing catastrophic failures under heavy hydraulic loading.
Industrial Engine with Weifu Fuel System
Unlike newer electronically controlled engines, the 110HP mechanical Cummins engine utilizes a reliable mechanical injection diesel engine platform. The fuel distribution system relies entirely on an inline Weifu PW fuel pump paired with an RSV mechanical governor.
This mechanical setup allows the engine to handle variable or lower-quality diesel fuel without triggering fault codes or sudden shutdowns. The RSV governor maintains consistent engine speed during sudden torque demands, keeping the hydraulic equipment responsive during strenuous operations.
High Torque 3.9L Engine Architecture
This turbocharged water-cooled diesel engine utilizes a wastegate turbocharger to optimize air intake volume. The 3.9L displacement yields a maximum torque of 360 N·m at 1500 rpm.
By delivering peak torque lower in the RPM range, it functions as a highly efficient engine for continuous duty operation. The integrated water-cooling layout uses a gear-driven water pump and heavy-duty oil cooler to maintain stable internal temperatures during extended summer shifts.
Real Application Scenarios and Machinery Integration
The versatile performance envelope of the Cummins 3.9L construction equipment engine allows it to serve as a drop-in power source for various mobile and stationary heavy machinery applications.
Cummins Engine for Excavator and Loader Applications
Hydraulic excavators and medium-sized wheel loaders subject an engine to rapid, cyclical load changes. The Cummins 4BT3.9-C110 replacement engine handles these severe load cycles effortlessly.
- Wheel Loaders: It serves as a direct 110HP Cummins engine for Liugong Lonking wheel loaders and similar machines, pairing directly with standard hydrodynamic torque converters.
- Excavators: It is an ideal Cummins 4BT3.9-C110 engine for excavator repowering projects, fitting smoothly into the tight engine bays of 6-to-9-ton tracked machines.
Heavy Equipment and Industrial Power Packs
Beyond traditional earthmoving equipment, the 4BT3.9-C110 satisfies the precise power requirements of specialized infrastructure machinery:
- Road Rollers: Provides the steady, low-vibration power required for an 110HP engine for road rollers and asphalt compactors.
- Drilling Rigs: Functions as an industrial engine for drilling machines and piling rigs that require reliable mechanical torque for deep earth boring.
- Concrete Mixers & Forklifts: Serves as a heavy-duty Cummins engine for concrete mixer drums and an engine for forklift application profiles where 24-hour runtime is standard.
- Stationary Power Packs: Widely used as a 4BT3.9-C110 diesel engine for water pump power packs, agricultural irrigation setups, and custom diesel engines for hydraulic power packs.
Maintenance, Troubleshooting, and Installation Guide
Maintaining a reliable Cummins 4BT3.9-C110 replacement engine requires consistent adherence to torque limits and valve clearance parameters.
Standard Configuration Checklist for Cummins 4BT3.9-C110
Before mounting the engine onto your machinery chassis, verify the component layout matches your operational needs. Every wholesale DCEC diesel engine shipped by HekoPower includes:
- Inline Weifu PW fuel injection pump and mechanical governor.
- 24V electric starter motor and 24V charging alternator.
- Top-mounted or rear-mounted turbocharger configuration.
- Spin-on Fleetguard oil and fuel filtration systems.
- SAE standard flywheel housing for straightforward hydraulic pump adaptation.
How to Troubleshoot Cummins 4BT3.9-C110 Cold Start Issues
Cold start problems generally point to fuel delivery restrictions or low cranking compression. If the engine cranks but fails to ignite in cold weather, check the fuel lift pump for air leaks. Air bubbles inside the Weifu pump gallery interrupt the injection timing. Use the manual fuel primer lever to expel any air.
If white smoke issues from the exhaust while cranking, it indicates unburnt diesel. Inspect the glow plugs, intake air grid heater, or fuel timing adjustments. Ensure the 24V batteries are providing sufficient cranking speed to reach full combustion temperature.
Valve Clearance Adjustments and Component Torque Specifications
To prevent valve train wear and secure optimal cylinder pressure, execute valve clearance adjustments every 1,000 hours. The engine must be cold during adjustment. Set the intake valve clearance to 0.25 mm and the exhaust valve clearance to 0.51 mm.
When replacing components, follow the exact multi-stage cylinder head torque specifications:
- Tighten all cylinder head bolts to 70 N·m.
- Torque all bolts evenly to 105 N·m.
- Turn the long bolts an additional 90 degrees and the short bolts an additional 180 degrees to achieve the correct factory clamping load.
Cummins B3.9-C Series, original products from Dongfeng Cummins Engine Plant (DCEC), Cummins Joint Venture Plant since 1986, 50% shareholding by Cummins USA. This series mainly includes 4BT3.9-C80, 4BT3.9-C100, 4BT3.9-C105, 4BT3.9-C110, 4BTA3.9-C80, 4BTA3.9-C100, 4BTA3.9-C110, 4BTA3.9-C120, 4BTA3.9-C125, 4BTA3.9-C130, 4BTAA3.9-C80, 4BTAA3.9-C100, 4BTAA3.9-C110, 4BTAA3.9-C115, 4BTAA3.9-C125, 4BTAA3.9-C130.
Cummins 4BT3.9-C110 Procurement and Supply FAQ
What is the expected delivery timeframe for a HekoPower Cummins 4BT3.9-C110 assembly?
Standard production, final assembly, and factory dyno testing require 7 to 10 working days. If your machine requires a specialized flywheel housing configuration or an alternative oil pan angle, custom orders take roughly 12 to 15 days. HekoPower maintains a steady stock of core components to ensure rapid turnaround times for urgent machinery repair projects.
Can this unit act as an OEM Cummins replacement engine for lower-rated 4BT models?
Yes. The 110HP mechanical version can replace lower-output 4BT engines, such as the 80HP (C80) or 100HP (C100) variations. Because the exterior dimensions and mounting holes are identical across the 4BT industrial family, this engine offers a simple way to upgrade machine power without modifying the existing equipment chassis.
Does the engine include a clear Cummins 4BT3.9-C110 torque specifications and wiring diagram?
Yes. Every engine shipped by HekoPower includes a comprehensive technical packet containing the wiring schematic, torque limits, and maintenance intervals. Because this engine relies on a mechanical injection system, the electrical hookup is simple, requiring only basic connections for the starter, alternator, and oil/water temperature sensors.
How does HekoPower prepare industrial engines for long-distance international export?
As an experienced Cummins industrial engine exporter, we implement rigid preservation steps. We spray the engine with anti-corrosion oil, wrap the unit in high-grade VCI anti-rust film, and secure it to a rugged wooden pallet base. The engine is then enclosed inside an IPPC-certified, fully closed fumigated wooden crate, making it export-ready for global shipping to any destination port.
