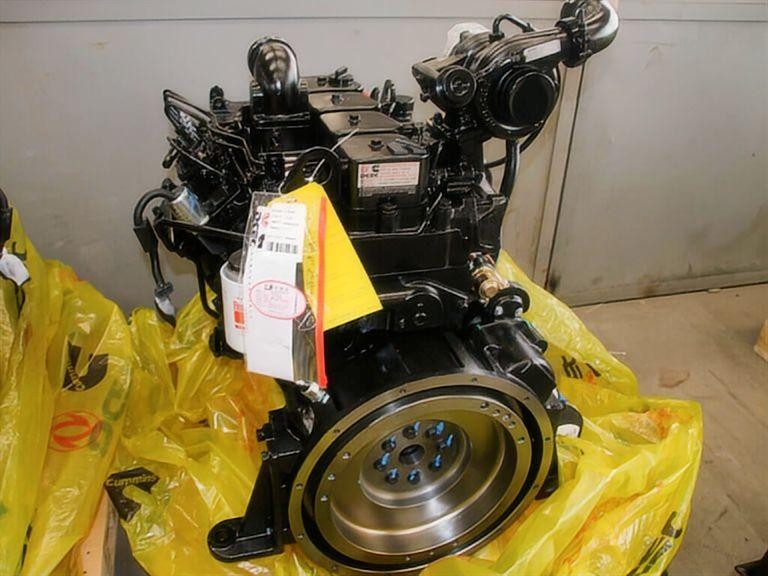

Genuine Cummins 4BTAA3.9-C125 Industrial Diesel Engine Supply
The DCEC Cummins 4BTAA3.9-C125 industrial engine is a robust, 4-cylinder mechanical workhorse. It delivers a reliable 125HP at 2200 RPM, making it a foundational power plant for heavy industrial applications globally. Built by the Dongfeng Cummins Joint Venture, this configuration utilizes advanced turbocharging and charge-air cooling. It serves as an ideal drop-in solution for new equipment builds, pump drives, and machinery repowering projects.
Competitors often display only the standard factory datasheet. At HekoPower, we know that buying a replacement engine requires engineering context. As an established engine supplier, we verify the specific flywheel housings, oil pan configurations, and electrical systems before shipping to prevent installation downtime.
Tech Specs of Cummins 4BTAA3.9-C125
General Engine Data
Engine Model: Cummins 4BTAA3.9-C125
Type: 4 Cylinders in Line
Displacement: 3.9 L
Bore * Stroke: 102 * 120
Overall Dimension: 867mm*544mm*988mm
Net Weight (with flywheel & alternator): 338 Kg
Key Performance Data
Rated Power: 93 kW/125HP
Rated Speed: 2200 rpm
Max Torque/Speed: 475 N.m @ 1500 rpm
Fuel Consumption @ Rated Power: 210 g/Kw.h
Max Continuous Running Altitude: 2000 m
More Technical Data
Certification: Euro II
Aspiration: Turbocharged-Intercooled
Fuel System: Diesel Injection Pump
Compression Ratio: 17.3:1
Electrical System (Starter Motor/Alternator): 12V/24V
Lowest Starting Temp Without auxiliary system: -12℃
Cooling Method: Water cooled
Engine Cooling Fluid Volume: 8.3 L
Technical Comparisons: Upgrading Your Industrial Power
Choosing the right block configuration saves thousands in maintenance and fuel overhead. Understanding the specific architectural differences between the C125 and legacy variants protects your operational margins.
Replacing the Cummins 4BTA3.9-C110 Engine with the C125
Many fleet operators look for a replacement for Cummins 4BTA3.9-C110 engine configurations to upgrade to C125 power standards. The fundamental difference lies in the aspiration design. While the C110 utilizes a standard turbocharger, the C125 features a turbocharged intercooled Cummins 3.9L industrial engine performance profile.
When you upgrade industrial diesel engine designs from 110HP to 125HP, you gain structural enhancements alongside the extra power. The C125 high power version 4BTAA3.9 series utilizes jacketed air-to-air cooling. This setup drops intake temperatures drastically, providing denser oxygen delivery to the cylinders. The result is a cleaner burn, reduced thermal stress on the exhaust valves, and lower fuel consumption per kilowatt-hour under continuous load.
DCEC Production Versus Regional Market Configurations
The Dongfeng Cummins 4BTAA3.9 engine assembly built in China follows exact Cummins global global engineering guidelines. It features a reinforced heavy-duty 125HP duty cycle engine block that handles high internal cylinder pressures.
Unlike standard automotive variants, this mid-high output industrial configuration engine incorporates a wide-mouthed oil pan for high-angle operation on uneven terrain, along with structural gear housings meant to support heavy hydraulic auxiliary pumps directly off the gear train.
Real Application Scenarios and Integration Guides
The DCEC Cummins 4BTAA3.9-C125 industrial engine operates across distinct commercial environments, including construction, power generation, and fluid transport.
Heavy Construction Machinery Retrofits
The 125HP Cummins diesel engine for excavator and loader fleets functions as an OEM replacement diesel engine for construction machinery retrofit projects. It mounts natively into mid-sized machinery brands like Liugong, SDLG, and XCMG.
Its mechanical simplicity bypasses complex electronic control modules (ECMs), making it the preferred choice for operators working in rugged, remote locations where diagnostic computers are unavailable. It delivers steady hydraulic flow without experiencing electronic power derates due to sensor faults.
Industrial Fluid Management and Water Pump Systems
The Cummins 4BTAA3.9-C125 pump drive engine for hydraulic system networks easily drives high-pressure water pumps. It serves as a reliable diesel engine for water pump industrial application needs, operating at a steady 125HP.
For agricultural or municipal applications, this high torque 3.9L engine for agricultural irrigation pump stations runs efficiently for hours at high duty cycles. HekoPower configures these units with specialized front-end power take-offs (PTO) to run triple or double hydraulic gear pumps smoothly.
Standby and Continuous Power Generation Sets
When utilized as a 4 cylinder Cummins engine for genset power system integration, this engine easily anchors a Cummins 4BTAA3.9-C125 engine for generator set applications in the 100–150kW structural range.
It provides excellent transient response times during sudden load additions, making it a reliable industrial diesel engine for backup power generator application demands in hospitals, data clusters, and factories.
Maintenance, Component Lifecycle, and Replacement Tips
Extending the operational lifespan of your Cummins 3.9L industrial block requires disciplined maintenance and a clear understanding of its structural components.
Reviewing the Fuel System and Block Specifications
To avoid unexpected downtime, team buyers should review the precise Cummins 4BTAA3.9-C125 fuel pump and block specifications. The mechanical injection pump requires precise timing synchronization with the camshaft gear.
The cylinder block uses a deep-skirt design with replaceable wet-sleeve liners. If a cylinder suffers damage or scuffing, fleet mechanics can replace individual sleeves rather than boring out the entire block, saving time and money during overhauls.
Preventative Lifecycle Schedules for Heavy-Duty Operations
- Engine Oil and Filter Changes: Every 250 operating hours using high-grade CH-4 or CI-4 lubricants.
- Cooling System Flushes: Every 2,000 hours to prevent scale buildup in the intercooler matrix.
- Valve Clearance Adjustments: Inspect and adjust the mechanical overhead valve clearances every 1,500 hours to ensure fuel efficiency.
- Fuel-Water Separator Drains: Daily inspection is required to prevent water from pitting the high-pressure injection nozzles.
Commercial Procurement and Logistics Support
DCEC 4BTAA3.9-C125 Wholesale Price and Lead Time
HekoPower maintains direct supply pipelines to provide authentic DCEC engines with stable lead times. Pricing varies based on the specific industrial flywheel housing configuration (SAE #2 or SAE #3), electrical specifications (12V or 24V starter systems), and required auxiliary attachments like air compressors or hydraulic pumps. Standard production and validation lead times generally range between 10 to 15 business days, followed by secure export crating and delivery to major shipping ports. Please submit your technical requirements below for an exact quotation.
Cummins B3.9-C Series, original products from Dongfeng Cummins Engine Plant (DCEC), Cummins Joint Venture Plant since 1986, 50% shareholding by Cummins USA. This series mainly includes 4BT3.9-C80, 4BT3.9-C100, 4BT3.9-C105, 4BT3.9-C110, 4BTA3.9-C80, 4BTA3.9-C100, 4BTA3.9-C110, 4BTA3.9-C120, 4BTA3.9-C125, 4BTA3.9-C130, 4BTAA3.9-C80, 4BTAA3.9-C100, 4BTAA3.9-C110, 4BTAA3.9-C115, 4BTAA3.9-C125, 4BTAA3.9-C130.
Frequently Asked Questions
What parts are included in a complete HekoPower engine assembly?
Our complete engine assembly includes the cylinder block, cylinder head, crankshaft, camshaft, turbocharger, intercooler pipes, water pump, mechanical fuel injection system, starter motor, and charging alternator. We can also provide radiators and air filters based on your specific installation requirements.
Can this engine directly replace an electronically controlled Tier 3 or Tier 4 engine?
Physically, it can mount into similar engine bays if the SAE housing matches. However, because this is a purely mechanical engine, you will need to bypass or remove the existing electronic wiring harnesses, dashboard ECU interfaces, and throttle sensors. It is an excellent choice for converting complicated electronic machines into simpler, easier-to-maintain mechanical equipment.
How does HekoPower ensure the quality of its Cummins engines?
Every DCEC engine assembly undergoes a rigorous multi-point factory inspection. We verify the build sheets against the Cummins database to guarantee all components are genuine. Before final packaging, the engine is placed on a test bench to monitor oil pressure, cooling efficiency, and power output across its operational RPM range.
What packaging standard do you use for international freight shipping?
We pack every engine assembly inside a heavy-duty, fumigated export wooden case. The unit is secured to a structural wooden skid and wrapped in a heavy anti-moisture plastic barrier. This prevents movement damage and rust during long ocean transits or extended customs holding periods.
