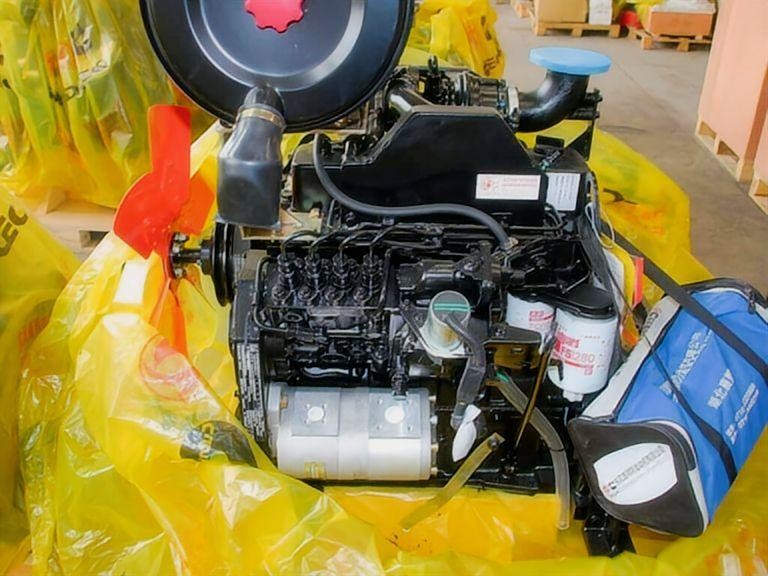

Genuine Cummins 4BT3.9-C80 Engine Assembly: Industrial Power Solutions
The Cummins 4BT3.9-C80 is more than just a mechanical component; it is the backbone of mid-range construction machinery. As a dedicated engine supplier, HekoPower provides the Genuine DCEC 4BT3.9-C80 diesel engine, specifically engineered for high-torque applications at 2200RPM. This 4-cylinder industrial diesel engine Cummins model is renowned for its mechanical simplicity and ability to withstand harsh environments where electronic sensors often fail.
Tech Specs of Cummins 4BT3.9-C80
General Engine Data
Engine Model: Cummins 4BT3.9-C80
Type: 4 Cylinders in Line
Displacement: 3.9 L
Bore * Stroke: 102 * 120
Overall Dimension: 867mm*544mm*988mm
Key Performance Data
Rated Power: 60 kW/80HP
Rated Speed: 2000 rpm
Max Torque/Speed: 330 N.m @ 1500 rpm
Fuel Consumption @ Rated Power: 249g/Kw.h
Max Continuous Running Altitude: 2000 m
More Technical Data
Certification: Euro I
Aspiration: Turbocharged-Intercooled
Fuel System: Weifu PW/RSV
Compression Ratio: 16.5:1
Electrical System (Starter Motor/Alternator): 12V/24V
Lowest Starting Temp Without auxiliary system: -12℃
Cooling Method: Water cooled
Engine Cooling Fluid Volume: 7.9 L
The Mechanical Fuel Injection Advantage
The Cummins 4BT mechanical fuel injection engine utilizes a Bosch-style A-type or VE pump. Unlike newer common-rail systems, this heavy-duty mechanical diesel engine does not require an ECU. This means it is immune to electrical interference and can be repaired in remote fields with basic tools.
Torque vs. Horsepower Balance
At 80HP, this Dongfeng Cummins 80HP industrial engine is optimized for "low-end grunt." It delivers peak torque precisely where hydraulic pumps need it most, preventing engine stall during heavy lifting or high-pressure digging cycles.
Comparing the 4BT3.9-C80 vs. QSB3.9-C80
Many buyers ask if they should upgrade to the QSB (electronic) version. While the QSB offers slightly better emissions, the 4BT3.9-C80 construction engine is preferred for older fleets because of its high torque low speed diesel engine profile and lower cost of ownership. It is a "drop-in" replacement that doesn't require a complete rewiring of the machine’s dashboard.
Real-World Application Scenarios: Beyond the Spec Sheet
The versatility of the Cummins 4BT industrial power unit allows it to serve multiple sectors. At HekoPower, we have supplied this model for diverse industrial needs.
Excavators and Earthmovers
The Cummins 4BT3.9-C80 for excavator use is common in 8-ton to 12-ton machines. Brands like Liugong, Sany, and SDLG frequently utilize this 3.9L block because it handles the constant fluctuating loads of hydraulic systems without overheating.
Road Compaction and Paving
For a Cummins 4BT3.9-C80 for road roller, the engine must run at a steady RPM for hours. The turbocharged 3.9L industrial diesel engine design ensures that air intake remains consistent even in dusty paving environments, provided the air filtration is maintained.
Hydraulic Power Packs and Water Pumps
The Cummins 4BT3.9-C80 pump drive engine is a favorite for stationary power. Whether it’s a Cummins diesel engine for hydraulic power pack or an irrigation pump, the mechanical governor ensures the engine doesn't "hunt" for RPM under load.
Maintenance and Replacement Tips for Long Service Life
To maintain Cummins 4BT engine reliability, operators must move beyond basic oil changes. As an OEM DCEC Cummins engine supplier, we recommend the following expert practices.
Managing Fuel Quality
Since this is an industrial diesel engine with mechanical injection pump, the pump's lubrication comes from the diesel fuel itself. Low-quality fuel with high water content will score the plungers. Always use a high-quality water separator to ensure a long life industrial diesel engine.
Cooling System Vigilance
The inline 4-cylinder Cummins diesel engine is compact, which can lead to heat soak if the radiator is undersized. When installing a replacement engine 4BT3.9-C80 for road rollers, verify that the fan pitch and shroud clearance match the original DCEC specifications to prevent cracked cylinder heads.
Turbocharger Health
The Cummins 3.9L turbocharged diesel engine relies on oil for both lubrication and cooling of the turbo bearing. Never shut down the engine immediately after heavy work; allow it to idle for 3-5 minutes to prevent oil "coking" in the turbo lines.
Choosing a Reliable OEM Cummins Industrial Engine Exporter
The market is flooded with "rebuilt" engines sold as new. When you buy genuine DCEC 4BT3.9-C80, you are looking for specific casting marks and a verifiable data plate. HekoPower operates as a Cummins 4BT3.9-C80 factory direct sale partner, ensuring that every genuine Cummins engine assembly supplier claim is backed by a DCEC certificate of conformity.
Our Cummins 4BT3.9-C80 wholesale price structure is designed for fleet owners and machinery manufacturers who need OEM Cummins industrial engine exporter services without the middleman markup found on general trading sites.
Cummins B3.9-C Series, original products from Dongfeng Cummins Engine Plant (DCEC), Cummins Joint Venture Plant since 1986, 50% shareholding by Cummins USA. This series mainly includes 4BT3.9-C80, 4BT3.9-C100, 4BT3.9-C105, 4BT3.9-C110, 4BTA3.9-C80, 4BTA3.9-C100, 4BTA3.9-C110, 4BTA3.9-C120, 4BTA3.9-C125, 4BTA3.9-C130, 4BTAA3.9-C80, 4BTAA3.9-C100, 4BTAA3.9-C110, 4BTAA3.9-C115, 4BTAA3.9-C125, 4BTAA3.9-C130.
Frequently Asked Questions (FAQ)
What is the fuel consumption of the Cummins 4BT3.9-C80 engine?
Generally, the fuel consumption of Cummins 4BT3.9-C80 engine units ranges between 210-225 g/kW.h at full load. This makes it a low fuel consumption industrial engine compared to older naturally aspirated models.
Can I replace a 4BT3.9-C100 with a 4BT3.9-C80?
Yes, but you will notice a drop in hydraulic speed. The C80 is tuned for 80HP. If your equipment requires the higher 100HP output for heavy lifting, we recommend sticking to the C100 variant to avoid straining the Cummins 4BT3.9-C80 assembly for construction machinery.
How do I identify a Genuine DCEC 4BT3.9-C80 diesel engine?
Check the serial number on the engine data plate against the DCEC database. Genuine units will feature the Dongfeng Cummins logo cast into the block and specific holographic seals on the fuel pump.
What spare parts are most critical for this engine?
To ensure easy maintenance mechanical diesel engine operation, always keep a stock of Cummins 4BT diesel engine spare parts such as fuel injectors, lift pumps, and fan belts. These are the most common wear items in high-dust environments.
