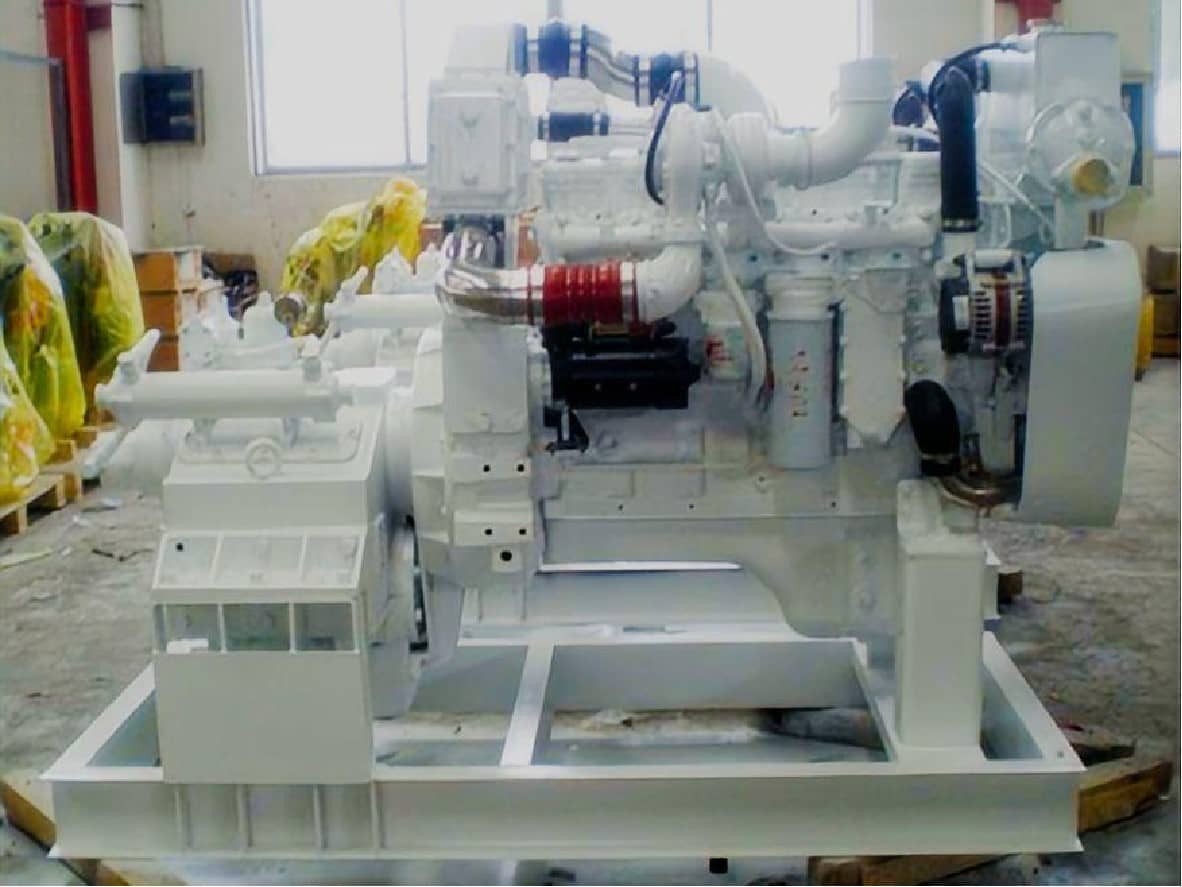

DCEC Cummins 6LTAA8.9-M300 Marine Propulsion Engine
The Cummins 6LTAA8.9-M300 is a 6-cylinder, inline, 8.9-liter mechanical diesel engine engineered specifically for heavy-duty commercial marine propulsion. Delivering a rated power output of 224 kW (300 HP) at 1800 RPM, this engine platform utilizes a highly reliable mechanical inline fuel injection pump rather than complex electronics. This design choice makes it a global favorite for vessel operators working in remote marine environments where electronic diagnostic tools are unavailable.
Tech Specs of Cummins 6LTAA8.9-M300
General Engine Data
Engine Model: Cummins 6LTAA8.9-M300
Type: 6 Cylinders, in Line
Displacement: 8.9 L
Bore * Stroke: 114 * 145
Net Weight (with flywheel & alternator): 674 Kg
Overall Dimension: 1360mm*780mm*988mm
Engine Configuration No.: D563014MX03
Key Performance Data
Rated Power/Max Power: 224 kW/300 HP, 245KW/328 HP
Rated Speed/Max Speed: 1800 rpm/1858 rpm
Low Idle Speed: 630-830 rpm
High Idle Speed: 2100 rpm
Fuel Consumption (Running Speed): ≤ 64 L/hr
Torque/Rated Speed: 1295 N.m @ 1800 rpm
Max Torque/Speed: 1250 N.m @ 1400 rpm
More Technical Data
Certification: CCS Certificates
Aspiration: Turbocharged and Charge Air Cooled
Compression Radio: 16.6:1
Fuel System: Weifu PW2000 Pump/ RQV-K Governor
Governor Type: Mechanical Control
Starting System: Electrical Start (12V/24V)
Lowest Starting Temp Without auxiliary system: -12℃
Cooling Method: Sea water pump, Heat exchanger, Water cooled
Engine Cooling Fluid Volume: 11.1 L
Technical Comparisons: M300 vs. Alternative Configurations
Differences Between Cummins M260, M280, and M300 Engine
The primary differences among the Cummins 6LTAA8.9 marine series variants lie in fuel pump calibration, fuel injector nozzle sizing, and turbocharger wastegate pressure settings. While all three share the exact same 8.9L engine block, the M260 is rated at 260 HP and the M280 at 280 HP. The M300 utilizes a higher-delivery fuel pump plungers and aggressive turbo mapping to extract 300 HP safely without violating structural thermal limits.
Cummins 6LTAA8.9 M300 vs. ISL Engine Comparison
Many buyers confuse the marine 6LTAA8.9 with the automotive or industrial Cummins ISL 8.9L engine. The fundamental difference is the fuel architecture and cooling system. The ISL uses a High-Pressure Common Rail (HPCR) electronic fuel system. The 6LTAA8.9-M300 relies entirely on a mechanical fuel pump. Furthermore, the marine version features water-cooled exhaust manifolds and an integrated seawater-jacketed heat exchanger to handle the continuous high-load demands of marine duty.
Real Application Scenarios for the 8.9L Engine Block
6LTAA8.9-M300 Commercial Fishing Boat Engine
For commercial gillnetters, longliners, and trawlers operating in coastal waters, reliability takes precedence over electronic sensors. The mechanical M300 engine ensures the boat can return to port even if the vessel's electrical charging system suffers a total saltwater failure.
Cummins 8.9L Truck Engine 300HP Application
Beyond marine propulsion, the 8.9-liter base engine block serves a broad industrial footprint. In heavy-duty logistics and vocational vehicles, the Dongfeng Cummins 6LTAA8.9 engine configuration provides the high torque density required for mining trucks, concrete mixers, and specialized transport rigs operating under severe terrain constraints.
Cummins 6LTAA8.9 Construction Equipment Engine
In the infrastructure sector, this 8.9L platform is deployed in heavy-duty excavators, rotary drilling rigs, and industrial air compressors. Its tolerance for varied fuel qualities makes it an exceptional choice for remote construction sites.
Cummins 8.9L Diesel Engine for 250kVA Generator Set
When paired with a high-efficiency alternator, the Cummins M300 generator set diesel engine functions as a reliable prime power unit or a critical industrial backup power application. It easily manages the sharp electrical load spikes typical of factories, hospital facilities, and deep-pit mining operations.
Maintenance, Troubleshooting, and Replacement Guide
Cummins 6LTAA8.9 Engine Rebuild and Replacement Guide
When a vessel or piece of heavy machinery hits its mid-life overhaul mark, fleet managers face a choice between a piecemeal rebuild or purchasing a complete Cummins M300 engine assembly. If your cylinder block walls exhibit deep cavitation or the crankshaft shows micro-fractures, executing a full engine swap is far more cost-effective than attempting field repairs.
When conducting a swap, always inspect your existing marine gearbox bell housing. The 6LTAA8.9-M300 typically uses standard SAE #1 or SAE #2 flywheel configurations, ensuring direct bolt-on compatibility with Twin Disc, ZF, or Advance marine transmissions.
Critical Marine Engine Maintenance Protocol
To ensure your engine achieves its engineered 15,000-hour operational lifespan before its first major overhaul, adhere to these hard service limits:
- Zinc Anode Inspection: Check and replace every 250 operating hours to stop galvanic corrosion inside the seawater heat exchanger.
- Valve Clearance Adjustments: Perform your first adjustment at 500 operating hours, and re-check every 1,500 hours thereafter. Intake clearance should measure 0.30 mm; exhaust must measure 0.61 mm.
- Fuel Filter Rotations: Replace secondary fuel filters every 250 hours to shield the mechanical injection pump from water contamination.
Sourcing and Global Supply Chain Intelligence
Cummins 8.9L Engine Supplier China
As an established engine supplier, HekoPower bridges the gap between factory assembly lines and international buyers. We supply genuine, brand-new engines sourced directly from Dongfeng Cummins Engine Co. (DCEC). Every unit is shipped with its original factory certificate, unique stamped engine serial number (ESN), and official global warranty documentation.
Export Packaging and Logistics Protocol
Industrial diesel engines require robust protective measures during extended ocean freight transit. HekoPower secures every Cummins 6LTAA8.9 replacement engine inside heavy-duty, fumigated wooden ocean crates. All machined surfaces receive an anti-corrosion marine spray coating, and the entire assembly is vacuum-sealed in heavy vapor-barrier plastic sheeting to block moisture intrusion during maritime transport.
Cummins L8.9-M Series (L8.9 Marine Engine), marine propulsion engines for commercial and recreational applications, original products from Dongfeng Cummins Engine Plant (DCEC), Cummins Joint Venture Plant since 1986, 50% shareholding by Cummins USA. This series mainly includes 6LTAA8.9-M300, 6LTAA8.9-M315. All engines complete with sea water pump, heat exchanger, CCS/IMO certificates.
Frequently Asked Questions
What is Cummins 6LTAA8.9 M300 engine specification?
The 6LTAA8.9-M300 is a 4-stroke, 6-cylinder inline diesel engine with an 8.9-liter displacement, a 16.6:1 compression ratio, and a mechanical fuel system. It generates 300 horsepower at an operational ceiling of 1800 RPM.
Is Cummins M300 engine reliable for long-term use?
Yes, its reliability stems from its simple mechanical architecture. Lacking electronic control units (ECUs), complex wiring harnesses, or sensitive sensors, it remains highly resilient against voltage spikes and saltwater corrosion.
Where to buy Cummins 6LTAA8.9 M300 engine in China?
You can source authentic assemblies directly through HekoPower. We provide transparent access to genuine Cummins M300 diesel engine wholesale channels, managing the entire inspection, certification, protective packaging, and customs clearance process at major Chinese export ports.
What are the main advantages of Cummins 8.9L diesel engine M300 version?
The M300 configuration provides an exceptional power-to-weight ratio for a mechanical engine, low fuel consumption rates, simple maintenance requirements, and excellent parts availability across global distribution networks.
Why choose Cummins 6LTAA8.9 over other 8.9L engines?
Unlike alternative 8.9L platforms that use electronic common-rail fuel systems, the 6LTAA8.9 retains a mechanical fuel system. This makes it far more tolerant of lower-grade diesel fuel and allows for straightforward servicing without requiring specialized diagnostic software.
