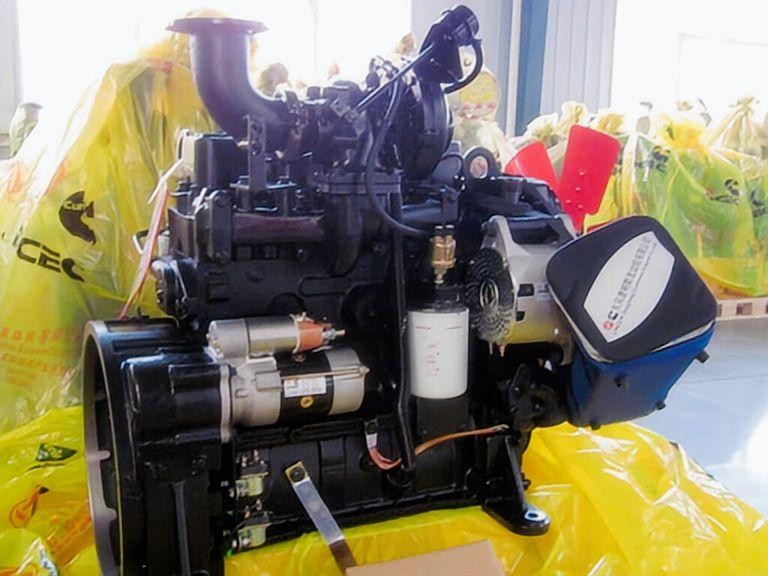

DCEC Cummins 4BTAA3.9-C130 Complete Engine Assembly
Securing a reliable power source for heavy machinery requires an engine built for harsh, high-load environments. The DCEC Cummins 4BTAA3.9-C130 industrial engine delivers exactly that. Rated at 130HP (97kW) at 2500 RPM, this Cummins 4-cylinder 3.9L turbo diesel C130 is engineered to provide consistent power across diverse industrial sectors.
As a dedicated engine supplier and exporter, HekoPower provides the complete 4BTAA3.9-C130 engine assembly. We ensure operators receive a genuine DCEC 4BTAA3.9-C130 engine designed for immediate integration into demanding construction and earthmoving equipment. With a bore and stroke of 102 x 120 mm, this compact block punches above its weight class, delivering 510 Nm of torque exactly where operators need it most.
Tech Specs of Cummins 4BTAA3.9-C130
General Engine Data
Engine Model: Cummins 4BTAA3.9-C130
Type: 4 Cylinders in Line
Displacement: 3.9 L
Bore * Stroke: 102 * 120
Overall Dimension: 867mm*544mm*988mm
Net Weight (with flywheel & alternator): 338 Kg
Key Performance Data
Rated Power: 97 kW/130HP
Rated Speed: 2500 rpm
Max Torque/Speed: 510 N.m @ 1400 rpm
Fuel Consumption @ Rated Power: 210 g/Kw.h
Max Continuous Running Altitude: 2000 m
More Technical Data
Certification: Euro II
Aspiration: Turbocharged-Intercooled
Fuel System: Diesel Injection Pump
Compression Ratio: 17.3:1
Electrical System (Starter Motor/Alternator): 12V/24V
Lowest Starting Temp Without auxiliary system: -12℃
Cooling Method: Water cooled
Engine Cooling Fluid Volume: 8.3 L
Technical Comparison: 4BTA3.9-C130 vs 4BTAA3.9-C130
When sourcing a replacement engine, equipment owners often confuse the 4BTA and the 4BTAA designations. Understanding the Cummins 4BTA vs 4BTAA difference is critical for proper fitment and thermal management.
Both engines displace 3.9 liters and utilize turbochargers, but they manage intake air temperatures differently. The standard 4BTA3.9 utilizes a jacket water aftercooler. This means the engine coolant itself is used to lower the temperature of the compressed air leaving the turbocharger. It is a compact design but has thermal limitations under sustained heavy loads.
In contrast, the 4BTAA3.9-C130 features an air-to-air aftercooler. This setup routes the hot, compressed intake air through a front-mounted intercooler positioned ahead of the radiator. Ambient air drawn by the engine fan cools this charge before it enters the intake manifold. The 4BTAA3.9-C130 vs 4BTA3.9-C130 intercooler comparison heavily favors the "AA" model for high-demand applications. The air-to-air system creates a much denser oxygen charge, resulting in cleaner combustion, better fuel economy, and sustained 130HP output without dangerous spikes in exhaust gas temperatures.
Real-World Construction and Industrial Applications
The power density of this Cummins 130HP industrial diesel engine makes it the backbone of mid-sized construction equipment globally. Because it produces peak torque at lower RPMs, the engine does not need to constantly operate at maximum speed to perform heavy work.
We frequently supply the Cummins 4BTAA3.9-C130 replacement engine for 13 to 18-ton excavators. The engine's rapid torque response allows the hydraulic pump to maintain steady pressure during aggressive bucket breakout maneuvers. Similarly, as a wheel loader engine or a road roller engine, it provides the sustained low-end grunt required to push heavy aggregates or maintain consistent compactor vibration frequencies.
Beyond mobile machinery, this model shines as a stationary industrial power unit. It is widely adapted as a reliable drilling rig engine or an air compressor engine. Companies building custom hydraulic power packs also favor this 97kW engine because the mechanical RSV governor maintains incredibly stable RPMs regardless of the hydraulic load applied.
Engine Footprint and Replacement Compatibility
Successful repowering projects depend on accurate dimensions and compatibility checks. While the Cummins 4BTAA3.9-C130 engine dimensions are relatively compact for a 130HP unit, operators looking for a direct replacement for DCEC 4BTAA3.9-C130 engine setups must verify their chassis space.
Because of the air-to-air aftercooler piping, the DCEC 4BTAA3.9-C130 engine footprint and installation dimensions differ slightly from standard 4BT models. Your machinery must have adequate clearance in front of the radiator package to accommodate the charge air cooler.
Furthermore, 4BTAA3.9-C130 engine mounting compatibility and 4BTAA3.9-C130 flywheel housing compatibility must be confirmed prior to wholesale ordering. Industrial equipment utilizes varying SAE bellhousing standards. Our team at HekoPower works closely with buyers to match the exact spline counts, flywheel depths, and mounting faces to ensure your new engine bolts seamlessly to your existing hydraulic pump or transmission.
Maintenance and Cooling System Management
To maximize the lifespan of this engine, operators must strictly manage the Cummins 4BTAA3.9-C130 cooling system capacity. Because this engine produces significant power from a small displacement block, the radiator and intercooler fins must be kept clear of job site debris. Overheating is the primary cause of premature head gasket failure in turbocharged industrial engines.
Additionally, operators should map their equipment's workload against the Cummins 4BTAA3.9-C130 fuel consumption curve. Running the engine continuously at its maximum 2500 RPM will exponentially increase fuel usage. Calibrating the machinery to perform heavy lifting closer to the engine's peak torque range will drastically reduce diesel costs over a single operating season.
When conducting maintenance, the debate between aftermarket vs OEM parts for Cummins 4BTAA3.9 engines always arises. While aftermarket filters might suffice in a pinch, HekoPower strongly advises using genuine original DCEC 4BTAA3.9-C130 engine parts for fuel delivery and internal components. Substandard aftermarket injection nozzles can easily alter the fuel spray pattern, leading to piston melting and catastrophic engine failure.
Common Misconceptions About Repowering
A frequent misconception is that any 3.9L Cummins engine will effortlessly replace another. Buyers often assume that if their broken engine says "Cummins 3.9L" on the valve cover, this C130 model will drop right in. In reality, a vehicle engine configuration is vastly different from a construction engine configuration. An automotive block will have different oil pan sumps, different injection pump timing, and electronic governors unsuitable for stationary industrial work. Always specify that you need the 4BTAA3.9-C130 construction engine to avoid installation nightmares.
Exploring the B3.9-C Engine Family
Matching the precise power output to your machinery is the most important step in purchasing a new industrial power unit. HekoPower supplies the entire spectrum of DCEC power plants to ensure you never over-power or under-power your equipment. If your machinery requires slightly less horsepower, or if your chassis cannot accommodate an air-to-air intercooler, exploring the broader B-series family will yield the perfect fit.
Cummins B3.9-C Series, original products from Dongfeng Cummins Engine Plant (DCEC), Cummins Joint Venture Plant since 1986, 50% shareholding by Cummins USA. This series mainly includes 4BT3.9-C80, 4BT3.9-C100, 4BT3.9-C105, 4BT3.9-C110, 4BTA3.9-C80, 4BTA3.9-C100, 4BTA3.9-C110, 4BTA3.9-C120, 4BTA3.9-C125, 4BTA3.9-C130, 4BTAA3.9-C80, 4BTAA3.9-C100, 4BTAA3.9-C110, 4BTAA3.9-C115, 4BTAA3.9-C125, 4BTAA3.9-C130.
Frequently Asked Questions
Can this engine directly replace a standard 4BT3.9 engine?
It depends on your machine's physical space and cooling configuration. While the physical engine block footprint is highly similar, the 4BTAA3.9-C130 requires an external air-to-air intercooler mounted in front of or alongside the radiator. If your old engine used a simple turbocharged setup without an intercooler, you will need to add an aftercooler core and custom air piping to accommodate the 130 hp version.
What type of engine oil is recommended for this model?
For standard operating environments, high-quality 15W-40 multi-grade heavy-duty diesel engine oil meeting API CH-4 or CI-4 specifications is recommended. If your machine operates in sub-zero winter temperatures, switch to a 5W-40 or 10W-30 weight synthetic blend to ensure rapid oil pressure buildup during cold starts and protect the turbocharger journal bearings.
Does the complete engine assembly include electric starters and alternators?
Yes, HekoPower delivers the complete engine assembly as a ready-to-run package. The standard industrial configuration includes the 24-volt electrical starter motor, a matching charging alternator, the water pump, the turbocharger, the complete fuel injection pump with lines, and all primary fuel and oil filters. Custom modifications for 12-volt electrical systems can be handled prior to shipment upon request.
Where can I find the exact torque specifications for Cummins 4BTAA3.9 130HP?
This specific engine generates a peak torque of 510 Nm. This high torque-to-horsepower ratio is achieved through the P7100 mechanical injection pump and charge air cooling, allowing the engine to handle heavy hydraulic loads without stalling.
