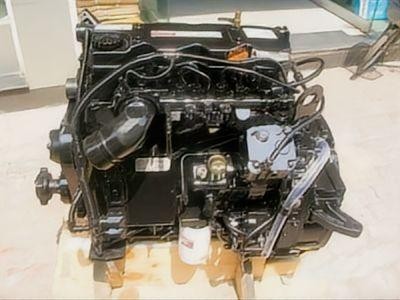

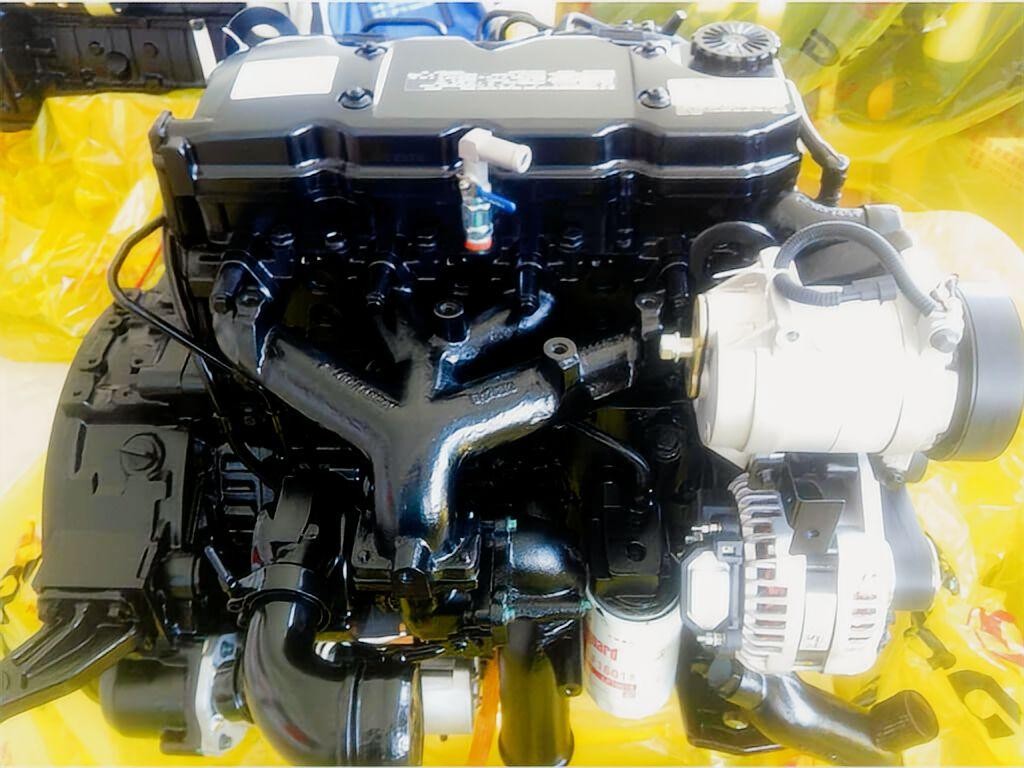

Genuine DCEC Cummins ISDe160-30 Engine Assembly
Sourcing a reliable powertrain for commercial vehicles requires careful consideration of performance, durability, and total cost of ownership. As a dedicated engine supplier, we provide the complete DCEC Cummins ISDe160-30 engine assembly to meet the rigorous demands of medium-duty transport. This 4.5L, 160HP powerhouse is engineered by the Dongfeng Cummins joint venture to deliver consistent torque and exceptional fuel efficiency. Designed specifically for the Euro III emissions standard, the ISDe160-30 truck engine remains a top choice for fleet operators needing dependable replacement options for their existing vehicles.
Understanding the specific requirements of your vehicle chassis is a critical step in the replacement process. While the 118kW Cummins ISDe160-30 engine offers excellent versatility for a wide range of trucks and buses, evaluating the entire engine family ensures a perfect match for your operational payload and regional emissions regulations.
DCEC ISDe Series, original products from Dongfeng Cummins Engine Plant (DCEC), Cummins Joint Venture Plant since 1986, 50% shareholding by Cummins USA. This series mainly includes ISDe140-30, ISDe140-40, ISDe160-30, ISDe160-40, ISDe180-30, ISDe180-40, ISDe185-30, ISDe185-40, ISDe200-30, ISDe210-30, ISDe210-40, ISDe230-30, ISDe245-30, ISDe270-30, ISDe285-30, ISDe300-40.
Tech Specs of Cummins ISDe160-30
General Engine Data
Engine Model: Cummins ISDe160-30
Type: 4 Cylinders in Line
Displacement: 4.5 L
Bore * Stroke: 107 * 124
Net Weight (with flywheel & alternator): 377 Kg
Overall Dimension: 901mm*723mm*815mm
Key Performance Data
Rated Power: 118 kW/160 HP
Rated Speed: 2700 rpm
Idle Speed: 600-800 rpm
Fuel Consumption @ Rated Power: 195 g/Kw.h
Max Continuous Running Altitude: 3000 m
Max. Torque/Speed: 425 N.m @ 2700 rpm
Torque/Rated Speed: 425 N.m @ 2700 rpm
Max. No-load Governed Speed: 3050 rpm
More Technical Data
Certification: Euro III
Aspiration: Turbocharged & Charge Air Cooled
Fuel System: Bosch Direct Injection (HPCR)
Compression Radio: 17.3:1
Starting System: Electrical Starting Motor 24V(750A)
Lowest Starting Temp Without auxiliary system: -10℃/-25℃
Cooling Method: Water cooled
Engine Cooling Fluid Volume: 7.0 L
Real-World Application Scenarios
The Cummins ISDe160-30 commercial vehicle engine is not a generic, one-size-fits-all product. It shines brightest in specific, demanding environments. Medium-duty truck operators frequently utilize this 160HP engine for urban logistics, box trucks, and regional freight delivery. The robust torque output ensures that fully loaded trucks can navigate stop-and-go city traffic and steep inclines without excessive strain on the powertrain.
Beyond freight, the Cummins ISDe160-30 bus engine is widely adopted in municipal transit systems and medium-sized coaches. Passenger transport demands smooth acceleration and low noise vibration harshness, both of which are managed expertly by the advanced acoustic design of the ISDe block. For operators managing Dongfeng commercial trucks and buses, choosing an original DCEC ISDe160-30 engine ensures seamless integration with the existing drivetrain, dashboard electronics, and engine mounts.
Technical Comparisons and Engine Distinctions
A common challenge for fleet managers is navigating the minor nomenclature differences across Cummins engine families. Understanding these distinctions is vital before you buy a Cummins ISDe160-30 engine for your fleet.
Differences Between Cummins ISDe160-30 and ISBe160-30
While both engines share a similar displacement and horsepower rating, their underlying architecture serves different primary markets. The ISDe series is specifically tailored by DCEC for the rigorous road conditions and load profiles typical of Asian and emerging markets. The ISDe160-30 features reinforced structural components and a fuel system calibrated to handle varying qualities of diesel fuel, whereas the ISBe is more closely aligned with European road transport standards. For operators running Dongfeng vehicles, the ISDe160-30 is almost always the correct native fit.
ISDe160-30 vs ISDe140-30 and ISDe160-40
When comparing the ISDe160-30 vs the ISDe140-30, the primary difference lies in the engine control module programming and the turbocharger configuration, which yields an additional 20 horsepower in the 160 model. This makes the 160HP version far superior for hilly terrain or higher payload capacities. When evaluating the ISDe160-30 vs the ISDe160-40, the conversation shifts entirely to emissions. The ISDe160-30 is a Euro III engine, while the ISDe160-40 meets Euro IV standards through the addition of selective catalytic reduction systems. Upgrading from a -30 to a -40 requires substantial exhaust system modifications and is not a simple drop-in replacement.
Navigating Engine Replacement and Compatibility
Executing an ISDe160-30 engine replacement requires precision. The primary step is verifying the ISDe160-30 engine serial number identification, which is stamped directly onto the engine dataplate located on the rocker lever cover. Matching this serial number ensures that the replacement engine compatibility aligns with your vehicle's transmission bell housing and electrical harness.
A frequent misconception in the transport industry is that any Cummins 4.5L 160HP engine can be swapped effortlessly into any truck. In reality, the specific oil pan configuration, dipstick location, and turbocharger mounting angle vary based on the chassis design. When securing a Cummins ISDe160-30 replacement engine, it is crucial to communicate your exact vehicle model to your engine supplier to confirm these external accessory arrangements.
Maintenance Tips for Optimal Performance
Maintaining the Cummins ISDe160-30 engine specifications over a long lifespan requires strict adherence to factory service intervals.
The heart of this 118kW Cummins ISDe160-30 engine is the Cummins ISDe160-30 Bosch HPCR fuel system. This high-pressure common rail engine technology delivers precise fuel atomization, directly contributing to the optimized ISDe160-30 fuel consumption rate and performance curve. However, this precision means the ISDe160-30 Bosch injector system is highly sensitive to fuel contamination. Operators must drain the water separator daily and replace the primary and secondary fuel filters strictly according to the Cummins ISDe160-30 maintenance schedule. Delaying fuel system maintenance is the leading cause of premature injector failure.
Furthermore, the ISDe160-30 cooling system must be flushed and refilled with the correct ratio of antifreeze and supplemental coolant additives every two years or 200,000 kilometers. This prevents cavitation erosion along the cylinder liners, a common issue in heavy-duty diesel operations. Regular inspection of the ISDe160-30 starter motor specification and alternator belts will also prevent unexpected electrical failures during transit.
Frequently Asked Questions (FAQs)
What is the displacement and torque of the ISDe160-30?
The Cummins ISDe160-30 displacement is exactly 4.5 liters. The ISDe160-30 torque specification typically peaks at 600 N.m at lower RPMs, providing excellent pulling power from a dead stop. The Cummins ISDe160-30 bore and stroke measure 107mm by 124mm, providing a robust foundation for heavy commercial use.
How do I identify a genuine ISDe160-30 engine?
To identify a genuine ISDe160-30 engine, inspect the proprietary DCEC dataplate, verify the casting marks on the cylinder block, and run the engine serial number through official verification channels. As an authorized Cummins ISDe160-30 engine China supplier, we guarantee the authenticity of every block we export.
What vehicles use the Cummins ISDe160-30?
The Dongfeng Cummins ISDe160-30 vehicle engine is predominantly used in 8 to 12-ton gross vehicle weight medium-duty trucks, urban delivery vans, and mid-sized passenger buses operating in regions observing Euro III emission regulations.
What is the typical ISDe160-30 fuel consumption?
The Cummins ISDe160-30 fuel consumption is highly optimized due to the turbocharged intercooled diesel engine design and electronic controls. While exact figures depend on load weight and driver habits, it is recognized industry-wide for offering a highly economical cost-per-kilometer ratio compared to older mechanical engines.
How can I get the Cummins ISDe160-30 engine price and lead time?
As a dedicated DCEC ISDe160-30 engine supplier and Cummins ISDe160-30 wholesale engine distributor, we offer competitive pricing based on order volume. The Cummins ISDe160-30 engine assembly for sale typically requires a lead time of around 10 business days. Contact our sales team directly for a customized quote tailored to your shipping destination.
