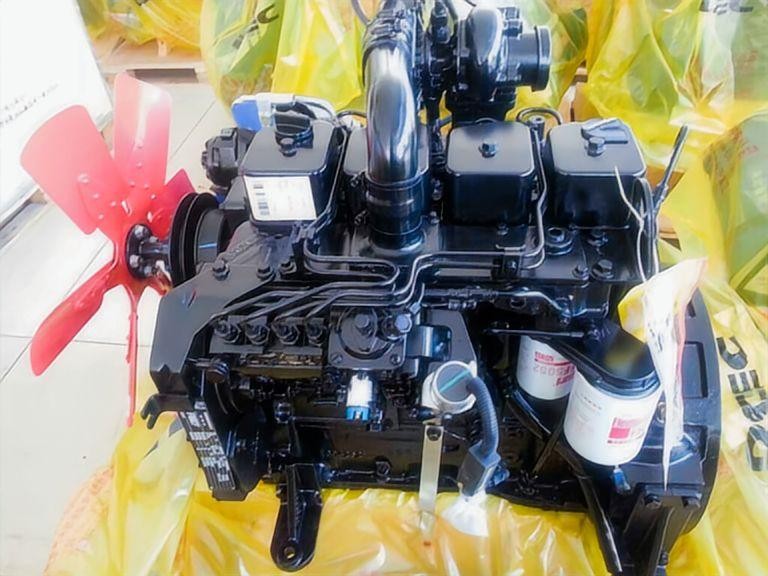

Cummins 4BT3.9-C105 Engine Assembly for Industrial Applications
The Cummins 4BT3.9-C105 engine assembly is a 3.9-liter inline 4-cylinder diesel power unit widely used in construction machinery and industrial equipment. It is produced under the DCEC (Dongfeng Cummins) manufacturing system and is known for its mechanical fuel system, stable output, and long service life.
As an engine supplier, HekoPower provides complete engine assemblies rather than loose components. Each unit is typically supplied with fuel system, alternator, starter motor, cooling package compatibility guidance, and installation reference data.
This engine is commonly selected where reliability is more important than electronic complexity, especially in harsh working environments such as mining sites, road construction, and material handling operations.
Tech Specs of Cummins 4BT3.9-C105
General Engine Data
Engine Model: Cummins 4BT3.9-C105
Type: 4 Cylinders in Line
Displacement: 3.9 L
Bore * Stroke: 102 * 120
Overall Dimension: 867mm*544mm*988mm
Key Performance Data
Rated Power: 77 kW/105HP
Rated Speed: 2800 rpm
Max Torque/Speed: 330 N.m @ 1500 rpm
Fuel Consumption @ Rated Power: 270g/Kw.h
Max Continuous Running Altitude: 2000 m
More Technical Data
Certification: Euro I
Aspiration: Turbocharged-Intercooled
Fuel System: Weifu PW/RSV
Compression Ratio: 17.3:1
Electrical System (Starter Motor/Alternator): 12V/24V
Lowest Starting Temp Without auxiliary system: -12℃
Cooling Method: Water cooled
Engine Cooling Fluid Volume: 7.9 L
Mechanical Fuel System Dynamics
The Cummins 3.9L industrial engine 4BT3.9-C105 relies on a highly dependable mechanical injection Cummins diesel engine architecture. Unlike modern common-rail electronic systems that easily fail due to poor fuel quality in remote mining or construction sites, this configuration uses a heavy-duty mechanical fuel pump.
This model features a Cummins Weifu fuel pump engine configuration paired with a responsive RSV governor. The RSV mechanical governor automatically manages fuel delivery relative to changing work loads, ensuring the engine maintains stable torque even when facing sudden hydraulic spikes in heavy machinery.
Core Engine Geometry and Efficiency
Built with a standard 102mm × 120mm bore stroke diesel engine design, this 3.9L 4-cylinder industrial engine delivers optimal thermal efficiency. The shorter stroke configuration allows for rapid acceleration and throttle response, which is crucial for cyclic construction work.
The DCEC 4BT3.9-C105 turbocharged engine achieves a highly optimized air-to-fuel ratio. This design yields a Cummins industrial engine low fuel consumption profile without sacrificing its raw 105HP output.
Comparative Advantages Over Alternative 4-Cylinder Designs
When comparing the Cummins 105HP industrial diesel engine to competing 4-cylinder engines in the market, several distinct advantages stand out:
- Simple Maintenance: The absence of complex electronic control units (ECUs) means local mechanics can service the engine with standard workshop tools.
- Parts Ubiquitousness: Internal components like pistons, liners, and bearings are highly interchangeable with global Cummins stock lines, lowering long-term operating costs.
- Physical Durability: The heavy duty 3.9L industrial diesel engine block uses high-strength cast iron with integrated web stiffeners, preventing cylinder distortion under continuous thermal loads.
Technical Comparison with Similar Engines
Many competitor websites only list specifications without explanation. This section adds differentiation value.
Compared with older 4B series engines:
The 4BT3.9-C105 offers improved torque stability and better thermal balance. The turbocharging system also improves combustion efficiency, reducing fuel consumption under medium-load conditions.
Compared with electronic Cummins ISF/ISBE series:
The mechanical 4BT3.9-C105 is simpler to maintain. It does not rely on ECU programming or sensor calibration, which reduces downtime risk in remote job sites.
Compared with competing Chinese industrial engines:
The DCEC platform offers more consistent OEM parts availability and better global service compatibility, especially for export equipment users.
Real Application Scenarios and Machinery Integration
Powering Hydraulic Excavators and Wheel Loaders
The Cummins 4BT3.9-C105 construction machinery engine is a standard powerplant for global earthmoving fleets. It serves as an exact Cummins 4BT3.9-C105 engine for wheel loader units and specialized track excavators.
In these applications, the engine handles high continuous duty cycles. It delivers the precise horsepower curve required to drive dual variable-displacement axial piston hydraulic pumps without bogging down.
Compaction Equipment and Stationary Power Units
Beyond digging machinery, the Cummins engine for road roller machine configurations delivers consistent vibrational power. Soil compactors and asphalt rollers require sustained RPM outputs for hours at a time, a task where this 4 cylinder turbocharged industrial diesel engine excels.
Furthermore, its compact footprint makes it a popular Cummins engine for hydraulic power unit builds, remote water pump stations, and field service air compressors.
Heavy Engineering Machinery Options
For custom industrial equipment, this unit can be ordered as an original 4BT3.9-C105 engineering machinery engine with PTO (Power Take-Off) capabilities. Whether your machine requires a front-end auxiliary pulley drive or an SAE standard flywheel housing extension, HekoPower configures the block to match your exact structural space requirements.
Maintenance, Diagnostic Guides, and Replacement Tips
Routine Preventive Maintenance Schedules
To maximize the operational life of your Cummins diesel engine for construction equipment, strict maintenance intervals must be observed.
- Oil Changes: Replace engine oil and the primary oil filter every 250 operating hours using high-quality 15W-40 diesel lubricants.
- Fuel System: Drain water separators daily. Replace fuel filters every 500 hours to protect the precise tolerances of the Weifu injection pump.
- Cooling System: Inspect the water pump belt tension and flush the radiator core every 1,000 operating hours to prevent localized hot spots.
Diagnosing Common Operational Issues
Even the most reliable Cummins 105HP engine for industrial machinery can encounter operational issues due to harsh worksite conditions.
- Black Smoke: This typically indicates a restricted air intake system, a malfunctioning turbocharger compressor wheel, or worn fuel injector nozzles.
- White Smoke during Startup: Often points to unburnt fuel from low cylinder compression, cold ambient glow plug failure, or water contamination in the diesel storage tank.
- Loss of Power under Load: Check the fuel supply line for air leaks or inspect the RSV governor linkage to ensure it moves smoothly to full throttle positions.
Drop-In Replacement Guidelines for Fleet Owners
When sourcing a Cummins 4BT3.9-C105 replacement for excavators and loaders, verify your existing flywheel housing size (typically SAE 3 or SAE 2) and flywheel configuration. Ensure your old engine mounts line up with the standard DCEC front engine support bracket.
HekoPower provides complete engine assemblies that include the starter motor, alternator, charging system, and fuel lines, minimizing machinery downtime during a swap out.
Cummins B3.9-C Series, original products from Dongfeng Cummins Engine Plant (DCEC), Cummins Joint Venture Plant since 1986, 50% shareholding by Cummins USA. This series mainly includes 4BT3.9-C80, 4BT3.9-C100, 4BT3.9-C105, 4BT3.9-C110, 4BTA3.9-C80, 4BTA3.9-C100, 4BTA3.9-C110, 4BTA3.9-C120, 4BTA3.9-C125, 4BTA3.9-C130, 4BTAA3.9-C80, 4BTAA3.9-C100, 4BTAA3.9-C110, 4BTAA3.9-C115, 4BTAA3.9-C125, 4BTAA3.9-C130.
Frequently Asked Questions
What is the lead time for an wholesale Cummins industrial engine China shipment?
HekoPower maintains a consistent stock of complete Cummins 4BT3.9-C105 engine assembly units. Standard order processing, testing, and maritime packing take approximately 7 to 10 business days. Export shipping transit times depend entirely on your destination port.
How does HekoPower ensure the authenticity of its DCEC engines?
Every genuine Dongfeng Cummins 4BT3.9-C105 diesel engine we ship features a permanent factory dataplate. This plate displays a unique engine serial number (ESN). This number can be verified directly through the official global Cummins parts and service database.
Can this engine operate safely in high-altitude environments?
Yes. The turbocharged design of the 4BT3.9-C105 compensates for thinner air at high altitudes. The turbocharger forces more oxygen into the combustion chambers, preventing the severe power losses commonly seen in naturally aspirated industrial engines.
What packaging options do you offer as an export Cummins diesel engine manufacturer?
We ship all complete engines inside heavy-duty, fumigated export wooden cases. The engine is securely bolted to a sturdy wooden base plate and wrapped in a moisture-proof VCI plastic shroud. This step prevents corrosion during long ocean voyages.
What are the payment and ordering terms for HekoPower industrial engines?
To buy genuine Cummins 4BT3.9-C105 engine units or request a bulk quote, contact our sales department with your machinery model and parts requirements. We provide flexible B2B payment terms, including wire transfers (T/T) and letters of credit (L/C), supported by complete commercial invoices and packing lists.
