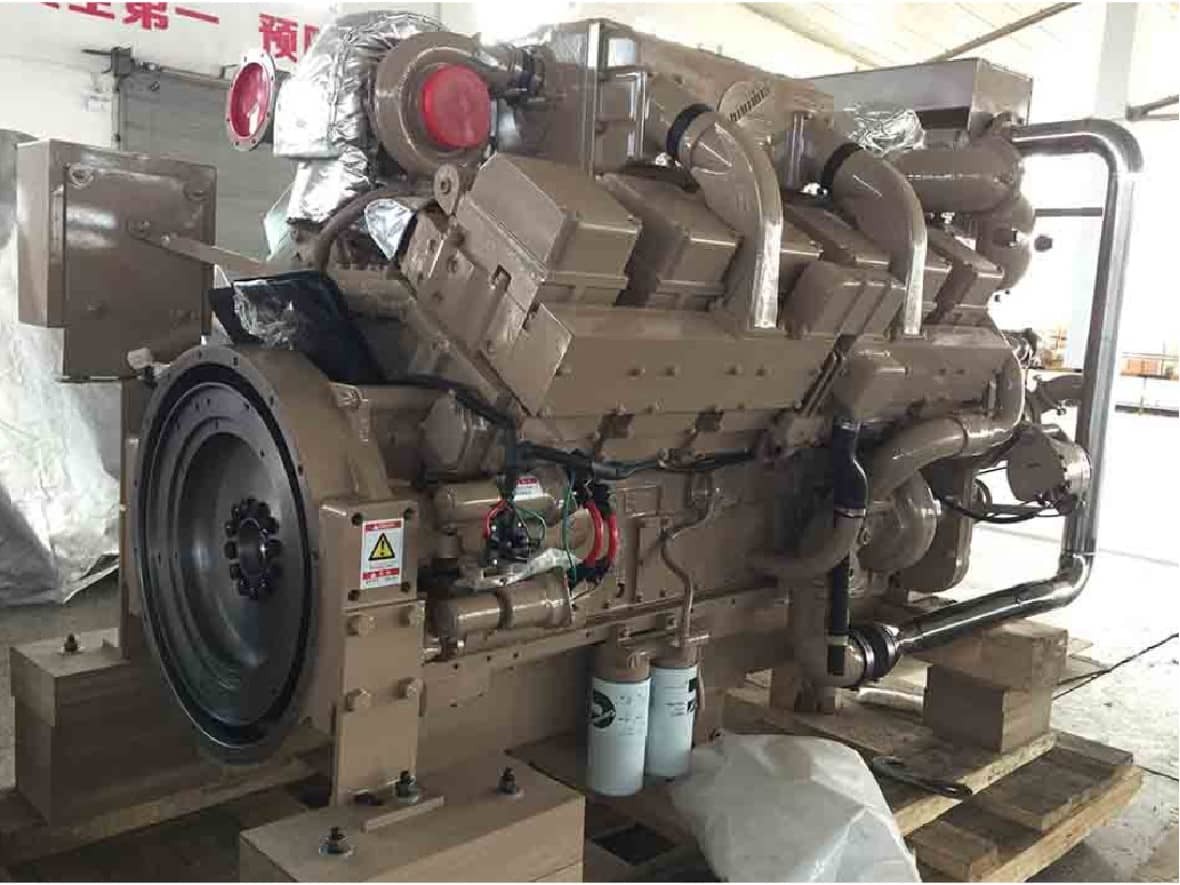

CCEC Cummins KT38-M600 Marine Propulsion Engine (600 HP / 448kW)
The CCEC Cummins KT38-M600 is a 38-liter, V12 heavy-duty marine propulsion engine delivering a continuous 600 HP (448 kW) at 1800 RPM. Engineered by Chongqing Cummins Engine Co., Ltd. (CCEC), this specific configuration is built strictly for commercial vessels that operate at uninterrupted, high-load capacities. HekoPower supplies complete, factory-tested KT38-M600 propulsion packages, replacement engines, and genuine marine spares globally. All units can be supplied with full CCS and IMO Tier II certifications to meet international maritime requirements.
Tech Specs of Cummins KT38-M600
General Engine Data
Engine Model: Cummins KT38-M600
Type: 12 Cylinders, V Type, 4 strokes
Displacement: 38 L
Bore * Stroke: 159 * 159
Net Weight (with flywheel & alternator): 4457 Kg
Overall Dimension: 2152mm*1462mm*2083mm
Engine Configuration No.: D232007MX02
Key Performance Data
Rated Power: 448 kW/600HP
Rated Speed: 1800 rpm
Low Idle Speed: 575-675 rpm
High Idle Speed: 1962-2200 rpm
Rating Type: Continuous Running
Fuel Consumption (Running Speed): 116 L/hr
Max Torque/Speed: 2612 N.m @ 1500 rpm
More Technical Data
Certification: CCS/IMO Certificates
Governor Type: Mechanical Control
Aspiration: Turbocharged
Compression Radio: 15.5:1
Fuel System: Cummins Pressure Time (PT Pump)
Starting System: Electrical Start (24V)
Lowest Starting Temp Without auxiliary system: -12℃
Cooling Method: Sea water pump, Heat exchanger, Water cooled
Technical Comparisons: KT38-M600 vs. Alternative Marine Power Plants
Selecting the correct 38-liter marine engine requires understanding how single-stage turbocharging compares to aftercooled or electronic variants.
KT38-M600 vs. Aftercooled KTA38 Marine Engines
The primary difference between the KT38-M600 and the KTA38 series lies in the induction system. The KT38-M600 relies strictly on direct single-stage turbocharging without an air-to-water or water-to-water aftercooler. This configuration intentionally caps the output at a conservative 600 HP (448 kW) to maintain extremely low cylinder pressures.
Higher-horsepower models, such as the KTA38-M1 or KTA38-M2, add jacket-water or auxiliary-circuit aftercooling to increase combustion air density. While these aftercooled models extract significantly more power from the same 38-liter block, the standard KT38-M600 offers a simpler mechanical profile. It features fewer heat exchangers to clean and fewer potential failure points. This makes it significantly easier to maintain during remote or shallow-water river operations.
Mechanical PT System vs. Electronic Common Rail (QSK38)
Modern electronic marine engines like the QSK38 utilize high-pressure common-rail injection governed by electronic control units. Electronic engines can yield minor exhaust smoke reductions at low idle. However, they require highly stabilized power supplies, complex wiring looms, and pristine fuel quality to function correctly.
The mechanical KT38-M600 uses a traditional gear-driven PT fuel pump and direct mechanical injectors. The mechanical PT pump circulates excess fuel back to the tank to naturally cool the injectors. This mechanical self-cooling system enables field maintenance using standard hand tools. It remains the most reliable option for remote commercial fleets operating far from specialized diagnostic technicians.
Maintenance Protocols, Replacement Guidance, and Common Misconceptions
Proper routine service preserves performance, prevents premature liner pitting, and maintains factory fuel efficiency throughout the engine's service life.
Essential Maintenance Protocols
Operators should check the PT pump rail pressure every 1,500 operating hours to maintain proper calibration. Inspecting injector pushrod settings and valve clearances ensures complete fuel combustion and prevents exhaust smoking.
Cooling system conditioning is equally critical. Monitor the supplemental coolant additive (SCA) levels strictly to prevent cavitation erosion on the wet cylinder liners. Ensure that the thermostats begin opening at 82°C and are fully open by 95°C to prevent thermal shock.
For the raw water circuit, inspect the raw water pump flexible impeller regularly. Marine heat exchanger bundles should be checked for marine growth or silt buildup every season. The raw water flow must remain unobstructed to effectively reject engine heat during high-load pushing.
Engine Replacement and Repowering Guidance
When replacing an aged marine diesel engine with a new CCEC KT38-M600, engine room dimensions and flywheel housing alignment must be verified before installation. The complete wet package weighs approximately 4,457 kg. Structural engine beds must be capable of supporting this mass under heavy marine torque loads.
Always verify the existing unit's Control Parts List code and Engine Option Number. The standard KT38-M600 continuous propulsion package is built under CPL 0975 and Performance Curve M-628. The specific engine configuration is D232007MX02. HekoPower verifies these CPL details prior to dispatch to ensure exact mounting footprints, exhaust piping orientations, and throttle linkages match your vessel's existing layout seamlessly.
Common Industry Misconceptions
A prevalent misconception is that a higher horsepower rating automatically guarantees better towing thrust. In reality, bollard pull and push efficiency depend on vessel displacement, low-end torque, and propeller diameter rather than peak horsepower alone. The KT38-M600 delivers its maximum 2612 N·m torque at a low 1500 RPM. This allows it to turn large, high-pitch propellers efficiently through heavy reduction gearboxes.
Another common misunderstanding is that keel cooling and heat exchanger systems are easily interchangeable. Converting a heat-exchanger-cooled engine to keel cooling requires matching internal thermostat bypass routes and expansion tank volumes to the external keel tube surface areas. Incorrect sizing leads directly to thermal overload under heavy continuous towing.
Real-World Marine Application Scenarios
The CCEC KT38-M600 is deployed globally across a wide range of demanding commercial marine sectors.
Inland Tugboats, Towboats, and River Barges
Pushing heavy barge trains along inland waterways requires steady, unrelenting low-RPM torque. The KT38-M600 operates continuously at 1800 RPM without thermal degradation. Its mechanical governor responds smoothly and predictably to sudden load changes when maneuvering through narrow locks or fighting strong river currents.
Commercial Fishing Trawlers and Dredgers
Deep-sea trawling and suction dredging demand continuous heavy power draw for hours or days at a time. The engine's conservative cylinder pressures and low rated fuel consumption of 116 liters per hour help optimize vessel operational economics. This fuel efficiency is vital during extended offshore deployments where refueling is impossible.
Passenger Ferries and Cargo Vessels
For coastal cargo carriers and regional ferries, unscheduled downtime directly impacts revenue and schedules. The KT38-M600's simplified mechanical architecture allows shipboard engineers to handle routine maintenance directly while underway. This minimizes port layovers and keeps transit schedules highly predictable.
CCEC K38 Marine Engine Series Integration
As an authorized supplier of genuine Chongqing Cummins marine engines, HekoPower provides complete propulsion solutions. We supply the bare engines alongside matching marine gearboxes, flexible couplings, marine shafting, and local classification society documentation. Our engineering team ensures your selected power profile perfectly aligns with your operational profile.
To help vessel owners explore varying power tiers within this engine family, we offer a comprehensive lineup. Depending on your required horsepower, induction method, and duty cycle. Cummins K38-M Series (K38 Marine Engine), marine propulsion engines for commercial and recreational applications, original products from Chongqing Cummins Engine Plant(CCEC). This series mainly includes KT38-M600, KT38-M780, KT38-M800, KT38-M850, KT38-M900, KTA38-M1 (1000 HP), KTA38-M1 (1100 HP), KTA38-M2 (545 HP), KTA38-M2 (1050 HP), KTA38-M2 (1200 HP), KTA38-M2 (1300 HP), KTA38-M2 (1350 HP). All engines complete with sea water pump, heat exchanger, CCS/IMO certificates.
Frequently Asked Questions (FAQs)
What is the exact fuel consumption of the Cummins KT38-M600 engine?
At its full continuous rating of 600 HP (448 kW) at 1800 RPM, the KT38-M600 consumes approximately 116 liters per hour. This translates to roughly 31 gallons per hour. Fuel consumption drops significantly along a standard cubic propeller curve at reduced operating speeds.
Can HekoPower supply the KT38-M600 with a matched marine gearbox?
Yes. HekoPower supplies complete propulsion packages featuring the KT38-M600 paired with matched marine gearboxes from brands such as Advance, Hangzhou, or Masson. We perform torsional vibration calculations to verify shafting and gear ratio compatibility for your specific vessel profile.
What marine classification certificates are available for this engine?
The CCEC KT38-M600 engine complies with IMO Tier II NOx emission standards. It can be supplied with marine class certificates from CCS (China Classification Society) as standard. Additional classification certifications from ABS, BV, DNV, or LR can be arranged upon request prior to factory dispatch.
What is the typical lead time for a genuine CCEC KT38-M600 marine engine?
Standard manufacturing and testing lead times at the Chongqing Cummins (CCEC) factory range from 15 to 30 working days. HekoPower also maintains select ready-to-ship stock packages for urgent vessel repowering projects or immediate export requirements.
