Details

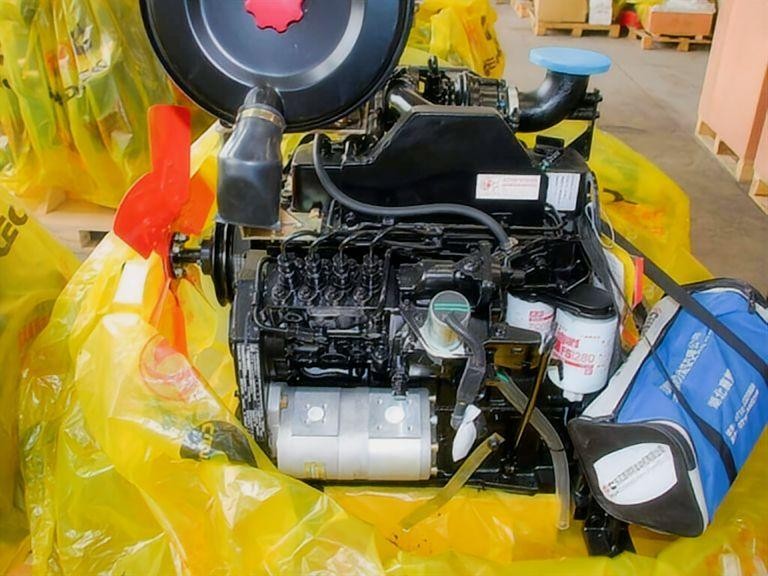

Genuine Cummins 4BTAA3.9-C80 Engine Assembly
The Cummins 4BTAA3.9-C80 engine is a turbocharged and air-to-air intercooled 4-cylinder diesel engine developed for industrial and construction equipment applications. Manufactured by Dongfeng Cummins Engine Co., Ltd. (DCEC), this 3.9L power unit is widely used in compact machinery requiring reliable continuous-duty performance and low maintenance complexity.
Compared with electronically controlled industrial engines, the 4BTAA3.9-C80 maintains a fully mechanical fuel system design. This configuration remains popular in export markets where equipment must operate under demanding environmental conditions, inconsistent fuel quality, or remote jobsite service limitations.
At HekoPower, this engine is commonly supplied for customers seeking replacement power units for:
- Excavators
- Road rollers
- Agricultural irrigation systems
- Hydraulic power stations
- Water pump systems
- Small loaders
- Construction machinery
The combination of compact dimensions, stable torque output, and durable cooling performance makes the engine suitable for long operating cycles under medium-to-heavy industrial loads.
Tech Specs of Cummins 4BTAA3.9-C80
General Engine Data
Engine Model: Cummins 4BTAA3.9-C80
Type: 4 Cylinders in Line
Displacement: 3.9 L
Bore * Stroke: 102 * 120
Overall Dimension: 867mm*544mm*988mm
Net Weight (with flywheel & alternator): 338 Kg
Key Performance Data
Rated Power: 60 kW/80HP
Rated Speed: 2200 rpm
Max Torque/Speed: 370 N.m @ 1300 rpm
Fuel Consumption @ Rated Power: 210 g/Kw.h
Max Continuous Running Altitude: 2000 m
More Technical Data
Certification: Euro I
Aspiration: Turbocharged-Intercooled
Fuel System: Diesel Injection Pump
Compression Ratio: 17.3:1
Electrical System (Starter Motor/Alternator): 12V/24V
Lowest Starting Temp Without auxiliary system: -12℃
Cooling Method: Water cooled
Engine Cooling Fluid Volume: 8.3 L
Air-to-Air Intercooled Mechanics vs. Standard Intake
A common mistake across competitor sites is confusing the "4BTA" series with the "4BTAA" series. The 4BTAA3.9-C80 Air-to-Air Intercooled Engine features a distinct intake design. Ambient air cools the compressed intake air before it reaches the cylinders. This setup lowers combustion temperatures significantly compared to water-jacketed cooling designs.
The structural system depends heavily on a robust Cummins 4BTAA3.9-C80 turbocharger configuration. The turbocharger feeds dense air into the 4-cylinder mechanical diesel engine block. This boost allows it to generate high cylinder pressure without demanding electronics. The simple, inline mechanical fuel system avoids complex electronic control modules (ECMs). This makes it highly resistant to electrical faults in wet, vibrating, or dusty environments.
Power Delivery Curves and Real Fuel Efficiency
The performance profile of this Cummins turbocharged industrial engine relies on a flat torque curve. The DCEC 4BTAA3.9 80HP engine torque curve hits peak efficiency at lower operational revolutions. This ensures heavy machinery maintains hydraulic flow without engine bogging.
When evaluating Cummins 4BTAA3.9-C80 fuel consumption, efficiency depends heavily on keeping the engine within its optimal RPM band. Fuel burn rates remain highly competitive for an 80 HP platform, averaging a low g/kW.h curve under standard load conditions. Because it relies on precise plunger timing within its mechanical pump, fuel is injected with strict mechanical consistency. This structural reliability prevents the fuel waste common in degraded electronic common-rail systems.
Field Applications: Real-World Use Cases for the 80 HP Engine
Every industrial platform requires a distinct engine configuration number, such as the Cummins engine configuration number D382043CX02. These identifiers guarantee that the flywheels, motor mounts, and PTO points fit your machinery exactly.
Hydraulic Power Units and Excavator Systems
A primary use for this 80 HP Cummins construction engine is the Cummins 4BTAA3.9-C80 power pack for excavator builds. Excavators expose an engine to rapid load changes as the bucket moves through clay or rock. The mechanical governor inside this unit responds instantly to sudden hydraulic oil pressure surges.
Beyond standard excavators, this layout serves as an effective Cummins industrial engine for loaders and small compactors. HekoPower matches the correct engine housing to your equipment’s hydraulic pump adapters. This step eliminates the alignment vibrations that cause premature crankshaft wear.
Continuous-Duty Irrigation and Water Pump Operations
Agricultural environments demand different operational traits than construction machinery. As a dedicated Cummins engine for water pump systems, this unit runs at set, unvarying speeds for hours. The heavy duty Cummins 4BTAA3.9-C80 cooling system is built to handle this continuous heat. It uses an oversized belt-driven water pump to prevent hot spots in the rear cylinders.
For fields using a Cummins engine for agricultural irrigation equipment, reliability is the top priority. Operators can run these mechanical engines in remote locations without laptop diagnostics. If clean diesel fuel flows and the air intake stays unobstructed, the engine runs reliably.
Comparison Between 4BTAA3.9-C80 and Other 4BT Series Engines
The Cummins 4BT engine platform includes several different configurations designed for varying industrial requirements.
The standard 4BT3.9 engine is generally used in lighter-duty applications and may not include air-to-air intercooling. The 4BTAA3.9-C80 variant is designed for improved intake efficiency and more stable output under demanding load conditions.
Compared with electronically controlled QSB-series engines, the 4BTAA3.9-C80 offers lower electronic complexity and easier maintenance access. However, electronically controlled engines may provide stricter emissions compliance in regulated markets.
For customers prioritising:
- Reliability
- Simpler maintenance
- Lower service complexity
- Export market adaptability
the 4BTAA3.9-C80 remains a practical industrial solution.
Fleet Management: Maintenance, Troubleshooting, and Overhauls
To keep your Cummins construction equipment engine running across a multi-thousand-hour lifecycle, you must follow clear maintenance timelines. Mechanical engines are highly durable, but they depend on strict schedule tracking.
Resolving Common Mechanical Diesel Engine Issues
Basic diagnostics can resolve most operational issues on this platform. If you experience unexpected power loss or grey exhaust smoke, inspect the mechanical fuel system first. Contaminated fuel often sticks the internal delivery valves inside the injection pump.
This issue disrupts the fuel delivery timing required by the 3.9L system. Our comprehensive Cummins 4BTAA3.9-C80 troubleshooting guidelines recommend checking the primary fuel lift pump pressure before replacing injectors. Air bubbles in the fuel line often mimic full injection pump failures.
Sourcing Spare Parts and Executing Rebuilds
When an engine nears its service limits, a complete rebuild is often more cost-effective than buying a new machine. HekoPower supports global fleets with both complete assemblies and original Cummins 4BTAA3.9-C80 spare parts.
During an engine overhaul, prioritize replacing the liner seals, piston rings, and main journal bearings. Always consult the official Cummins 4BTAA3.9-C80 service manual for rod bolt torque steps and valve clearance settings. Using genuine factory parts preserves original thermal tolerances and maintains your operational warranty protection.
Cummins B3.9-C Series, original products from Dongfeng Cummins Engine Plant (DCEC), Cummins Joint Venture Plant since 1986, 50% shareholding by Cummins USA. This series mainly includes 4BT3.9-C80, 4BT3.9-C100, 4BT3.9-C105, 4BT3.9-C110, 4BTA3.9-C80, 4BTA3.9-C100, 4BTA3.9-C110, 4BTA3.9-C120, 4BTA3.9-C125, 4BTA3.9-C130, 4BTAA3.9-C80, 4BTAA3.9-C100, 4BTAA3.9-C110, 4BTAA3.9-C115, 4BTAA3.9-C125, 4BTAA3.9-C130.
Frequently Asked Questions (FAQ)
What are the main shipping dimensions and weight of the Cummins 4BTAA3.9-C80?
The dry weight of this engine assembly is approximately 330 kg to 350 kg, depending on the flywheel housing selection. Total shipping dimensions average 850mm x 700mm x 950mm. HekoPower ships these units in heavy-duty, moisture-sealed export wooden crates to prevent damage during sea and air transit.
Can this engine directly replace an older 4BTA3.9 model?
Yes. However, you must verify the intake plumbing. The 4BTA uses an engine-mounted water jacket to cool intake air, while the 4BTAA requires an external air-to-air intercooler radiator core. Our engineering team helps you map out the space required to install this configuration safely.
How do I confirm that the engine assembly I receive from HekoPower is genuine DCEC?
Every engine we supply features a stamped metal dataplate from the Dongfeng Cummins factory. This plate displays your specific engine serial number (ESN) and configuration code. You can verify this identifier through any global Cummins tracking portal to confirm its build history and origin.
What warranty coverage comes with the Cummins 4BTAA3.9-C80 engine assembly?
HekoPower provides a comprehensive industrial warranty covering major internal components—including the engine block, crankshaft, and camshaft—against manufacturing defects. We also supply a full parts manual with every engine to simplify long-term maintenance tracking.
