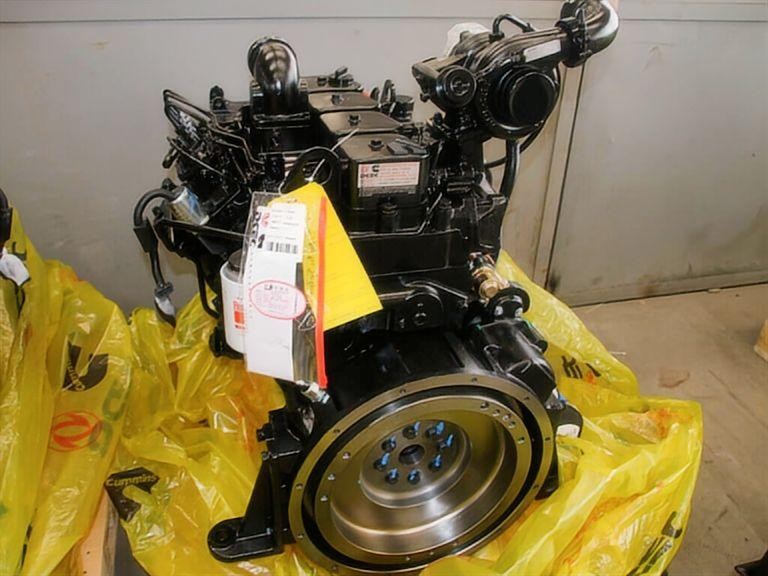

Genuine Cummins 4BTA3.9-C125 Diesel Engine: Technical Guide and Supplier Overview
The Cummins 4BTA3.9-C125 is a staple in the construction and industrial sectors. As a 4-cylinder, 3.9L turbocharged and aftercooled engine, it balances compact dimensions with a robust 93kW (125HP) output. At HekoPower, we specialize in supplying these units for heavy-duty machinery applications where reliability in harsh environments is non-negotiable.
Tech Specs of Cummins 4BTA3.9-C125
General Engine Data
Engine Model: Cummins 4BTA3.9-C125
Type: 4 Cylinders in Line
Displacement: 3.9 L
Bore * Stroke: 102 * 120
Overall Dimension: 867mm*544mm*988mm
Net Weight (with flywheel & alternator): 338 Kg
Key Performance Data
Rated Power: 93 kW/125HP
Rated Speed: 2200 rpm
Max Torque/Speed: 475 N.m @ 1500 rpm
Fuel Consumption @ Rated Power: 233 g/Kw.h
Max Continuous Running Altitude: 2000 m
More Technical Data
Certification: Euro I
Aspiration: Turbocharged-Intercooled
Fuel System: Weifu PW/RSV
Compression Ratio: 17.3:1
Electrical System (Starter Motor/Alternator): 12V/24V
Lowest Starting Temp Without auxiliary system: -12℃
Cooling Method: Water cooled
Engine Cooling Fluid Volume: 8.3 L
4BTA3.9-C125 Torque Curve and Power Delivery
Understanding the 4BTA3.9-C125 torque data is critical for matching the engine to your hydraulic system. This model delivers peak torque at 1500 RPM, providing the "lugback" capability needed for excavators to break through tough terrain without stalling.
Fuel Consumption and Efficiency
Efficiency is a primary concern for fleet operators. The Cummins 4BTA3.9-C125 fuel consumption per hour varies based on load factor, typically ranging from 18L to 22L per hour at full industrial load. Its direct injection system ensures Euro I compliance while maintaining simplicity in maintenance.
Detailed Comparisons: Choosing the Right 3.9L Model
Homogeneity is a common issue when choosing between the B-series engines. While the 4BT, 4BTA, and 4BTAA look similar, their internal cooling and aspiration systems differ significantly.
Cummins 4BTA3.9-C125 vs. 4BTAA3.9
A frequent question we receive at HekoPower is the difference between the 4BTA and 4BTAA models.
- 4BTA (Turbocharged & Aftercooled): Uses a jacket-water aftercooler. It is ideal for mid-range power requirements where engine bay space is limited.
- 4BTAA (Turbocharged & Air-to-Air Aftercooled): Uses an external radiator-style aftercooler. This allows for higher horsepower ratings because the intake air is cooled more efficiently, but it requires a larger cooling package.
If you are replacing a Cummins 4BTA3.9-C125 for a Liugong excavator, you must ensure your radiator setup matches the "A" or "AA" configuration, as the piping is fundamentally different.
Industrial vs. Marine B-Series Variants
While the 3.9L block is versatile, the C125 is calibrated for 2200 RPM. Using a marine-spec B-series engine in a construction environment will result in poor torque response and potential cooling failures due to the different heat exchanger designs.
Replacement Tips for Construction Machinery
Replacing a Cummins engine assembly involves more than just bolting it down. To ensure the longevity of your new 93kW 125HP Cummins engine, follow these HekoPower engineering tips.
Compatibility with Major Brands
The 4BTA3.9-C125 is the "workhorse" engine for several global brands. We frequently export this model as a replacement Cummins engine for excavators, wheel loaders, and pump sets produced by:
- Liugong & SDLG: Common in 12-15 ton excavators.
- Sany: Used in specialized drilling rigs and concrete mixers.
- Generic Pump Sets: Often used for high-head water pumps and forklifts.
Critical Components to Check During Installation
When installing your Cummins 4BTA3.9-C125 engine assembly, never reuse the old turbocharger or fuel injectors from a failed unit. Contaminants from a previous engine failure often hide in the oil lines.
- Turbocharger: Ensure the oil feed line is primed before the first start.
- Injection Pump: The 4BTA3.9-C125 uses a mechanical pump. Ensure the timing marks align perfectly with the flywheel.
- Cooling System: Flush the radiator to remove scale that could cause hot spots in the new 4-cylinder block.
Maintenance and Troubleshooting the B3.9-C Series
Preventative maintenance is the only way to avoid a full Cummins B3.9 engine rebuild. Because these engines often work in high-dust environments (mines, construction sites), filtration is your first line of defense.
Daily and 500-Hour Service Intervals
- Air Filtration: A clogged air filter on a 3.9L turbocharged Cummins engine will lead to "black smoke" and increased EGTs (Exhaust Gas Temperatures), eventually cracking the manifold.
- Oil Quality: Use high-quality 15W-40 oil. The B-series is sensitive to oil soot loading.
Common Troubleshooting: Hard Starting and Power Loss
If your 4BTA3.9-C125 exhibits power loss, check the fuel lift pump. These mechanical pumps are inexpensive to replace but are the most common cause of "starvation" issues. If the engine emits white smoke, it usually indicates a timing issue or water in the fuel—common in humid Southeast Asian or African construction sites.
Global Logistics and Genuine DCEC Sourcing
As a leading Cummins industrial engine manufacturer partner, HekoPower ensures that every unit is a Genuine DCEC 4BTA3.9-C125.
Understanding Price and Lead Time
The Cummins 4BTA3.9-C125 wholesale price fluctuates based on the inclusion of peripherals (alternators, starters, fans). A "complete" assembly from HekoPower includes the fuel system, turbo, and electricals, tested at the factory for 2 hours before crating. Lead times for standard builds are typically 7-10 days.
Exporting and Packaging
The Cummins 4BTA3.9-C125 engine weight is approximately 350kg (dry). We use ISPM-15 certified fumigated wooden crates to ensure no delays at international customs. Whether you are an OEM manufacturer or a repair shop, we provide the Cummins 4BTA3.9-C125 datasheet PDF and original CO (Certificate of Origin) with every shipment.
Cummins B3.9-C Series, original products from Dongfeng Cummins Engine Plant (DCEC), Cummins Joint Venture Plant since 1986, 50% shareholding by Cummins USA. This series mainly includes 4BT3.9-C80, 4BT3.9-C100, 4BT3.9-C105, 4BT3.9-C110, 4BTA3.9-C80, 4BTA3.9-C100, 4BTA3.9-C110, 4BTA3.9-C120, 4BTA3.9-C125, 4BTA3.9-C130, 4BTAA3.9-C80, 4BTAA3.9-C100, 4BTAA3.9-C110, 4BTAA3.9-C115, 4BTAA3.9-C125, 4BTAA3.9-C130.
Frequently Asked Questions (FAQ)
Is the 4BTA3.9-C125 compatible with synthetic oils?
Yes, however, for the initial "break-in" period of the first 50 hours, we recommend high-quality mineral oil to allow the piston rings to seat correctly against the cylinder liners.
Can I upgrade my 4BT to a 4BTA3.9-C125?
Usually, yes. The block dimensions are identical. However, you will need to accommodate the aftercooler piping. This upgrade provides a significant boost in efficiency and a cooler intake charge, which extends engine life.
What is the expected lifespan of a 4BTA3.9 engine assembly?
In industrial applications, with proper maintenance, these engines regularly exceed 10,000 to 15,000 hours before requiring an overhaul kit.
Can HekoPower provide complete engine assemblies for replacement projects?
Yes. HekoPower can supply complete engine assemblies as well as spare parts support for industrial equipment replacement and maintenance projects.
