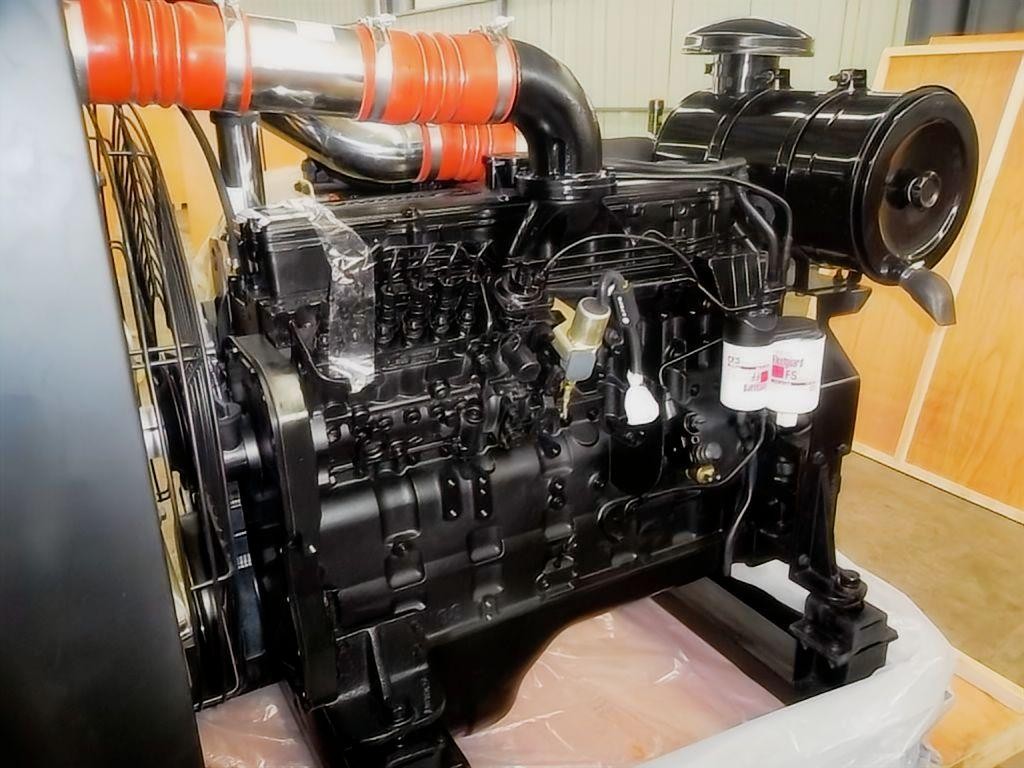

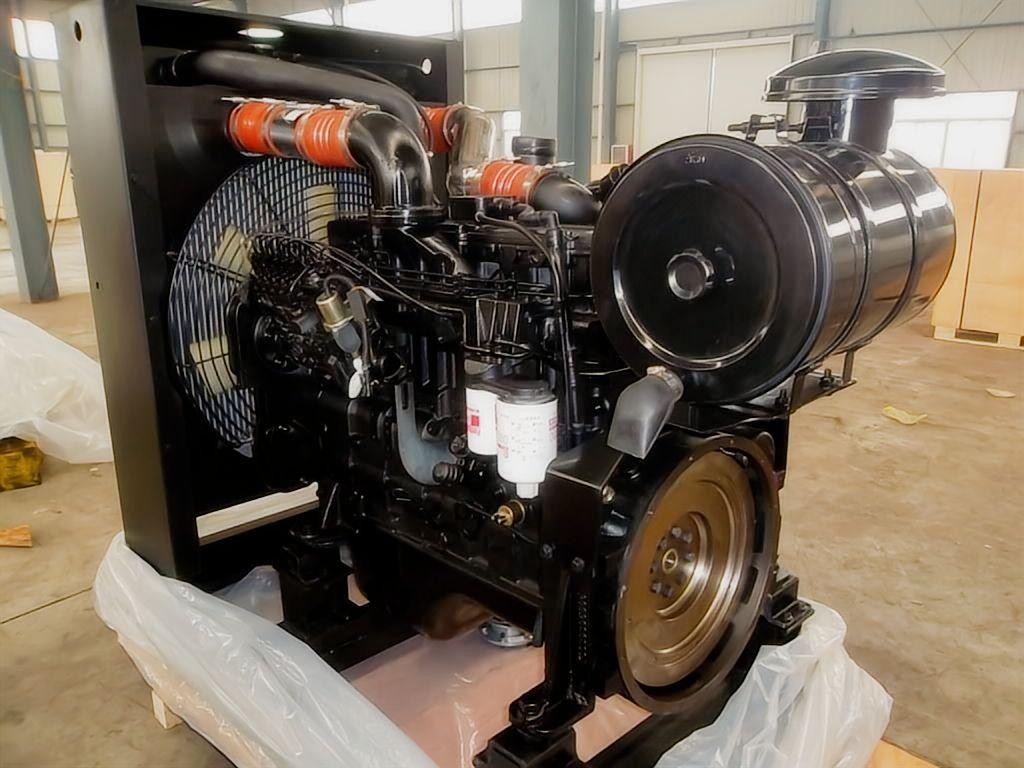

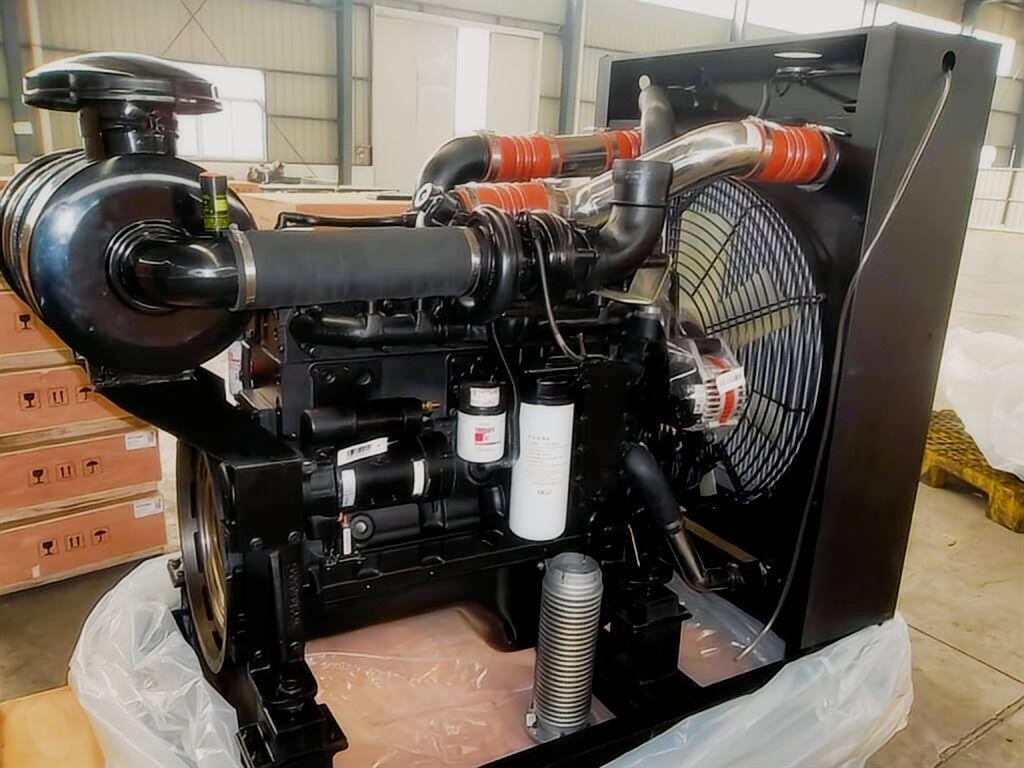

DCEC Cummins 6LTAA8.9-C340 Industrial Diesel Engine Assembly
When industrial operations demand consistent power under heavy transient loads, the Cummins 6LTAA8.9-C340 diesel engine delivers. Manufactured by Dongfeng Cummins (DCEC), this 8.9L mechanical engine is engineered specifically for heavy-duty construction machinery. As a trusted China Cummins 6LTAA8.9-C340 supplier, HekoPower provides complete engine assemblies configured for immediate integration into your equipment fleet. This 340HP engine bridges the gap between mid-range efficiency and heavy-duty power output.
Tech Specs of Cummins 6LTAA8.9-C340
General Engine Data
Engine Model: Cummins 6LTAA8.9-C340
Type: 6 Cylinders in Line
Displacement: 8.9 L
Bore * Stroke: 114 * 145
Overall Dimension: 1400mm*800mm*1040mm
Net Weight (with flywheel & alternator): 650 Kg
Key Performance Data
Rated Power: 250 kW/340HP
Rated Speed: 2200 rpm
Max Torque/Speed: 1380 N.m @ 1400 rpm
Fuel Consumption @ Rated Power: 210 g/Kw.h
Max Continuous Running Altitude: 2000 m
More Technical Data
Certification: Euro II
Aspiration: Turbocharged-Intercooled
Fuel System: Direct Injection Pump
Compression Ratio: 16.6:1
Electrical System (Starter Motor/Alternator): 12V/24V
Lowest Starting Temp Without auxiliary system: -12℃
Cooling Method: Water cooled
Engine Cooling Fluid Volume: 11.1 L
Technical Comparison: 6LTAA8.9-C340 vs. C325 and C360
A common challenge for procurement managers is selecting the correct horsepower rating within the L-Series. To avoid underpowering or overspending, you must match the engine to the specific hydraulic demands of your machinery.
The 325HP (C325) model is typically sufficient for standard 30-ton excavators operating in loose soil or urban construction environments. However, when working in quarrying or handling heavy wet clay, the C325 can experience slight hydraulic lag.
Upgrading to the Cummins 6LTAA8.9-C340 provides that critical 250kW baseline. This extra 15 horsepower drastically improves hydraulic recovery times during continuous bucket cycling. The operator will notice faster boom lift speeds when the bucket is fully loaded.
Conversely, the larger C360 model consumes more fuel at idle and light loads. If your equipment does not require 360HP to drive its hydraulic pumps, installing the C360 results in wasted fuel and unnecessary thermal stress. The 340HP Cummins industrial diesel engine assembly is the perfect middle ground. It maximizes hydraulic responsiveness while keeping thermal loads manageable inside standard engine compartments.
Real-World Application Scenarios
The versatility of this Cummins 6 cylinder 8.9L diesel engine makes it a prime candidate for a variety of heavy equipment repowers and OEM installations.
Earthmoving and Excavation Machinery
The most common application is serving as a Cummins 6LTAA8.9-C340 excavator engine. Excavators operating in the 33-ton to 36-ton weight class require exact torque matching to their main hydraulic pumps. This engine provides the precise rotational force needed to maintain hydraulic pressure during simultaneous tracking, swinging, and boom lifting. It is equally effective as a Cummins 6LTAA8.9-C340 loader engine, where breakout force at the bucket edge dictates loading efficiency at the quarry face.
Industrial Fluid Transfer
Beyond earthmoving, this engine thrives in stationary applications. A Dongfeng Cummins 6LTAA8.9 water pump power pack is heavily utilized in municipal flood control, agricultural irrigation, and mining dewatering. In these setups, the engine often runs at a constant RPM for days at a time. The mechanical fuel system and heavy-duty cooling package ensure the engine maintains stable operating temperatures even under continuous 24-hour full-load operation.
Engine Replacement and Maintenance Guide
When catastrophic failure occurs, you need to replace a damaged Cummins 8.9L engine quickly to minimize equipment downtime. HekoPower specializes in providing exact-match replacement engines to make this swap as efficient as possible.
Preparing for the Engine Swap
Before you buy a Cummins 6LTAA8.9-C340 engine for replacement, verify your bell housing dimensions and flywheel configuration. Industrial equipment engine replacement requires precise mating to the existing hydraulic pump drive or transmission. Ensure the cooling package in your machine is thoroughly flushed before installing the new engine assembly. Debris from a previous engine failure often hides in the radiator core and can quickly destroy a new engine.
Essential Maintenance Tips
Long-term reliability depends entirely on fluid management. We recommend changing the engine oil and filters every 250 hours in dusty construction environments, despite standard manuals suggesting longer intervals. Always use parts from the genuine Cummins 6LTAA8.9-C340 spare parts catalog. Aftermarket filters often lack the proper micron rating, allowing silica dust to score the cylinder walls.
Additionally, pay close attention to the charge air cooler (CAC) piping. The Cummins 8.9L turbocharged diesel engine relies on pressurized, cooled air to achieve its 340HP rating. Even a minor crack in a silicone boot will bleed boost pressure, resulting in high exhaust gas temperatures, black smoke, and significant power loss.
Addressing Common Misconceptions
A frequent misconception in the field is that any Cummins L-series engine replacement is a simple drop-in process across different equipment brands. This is false. A 6LTAA8.9 engine pulled from a generator set cannot simply be dropped into an excavator.
Generator engines are governed differently, specifically tuned to run at a fixed 1500 or 1800 RPM. The 6LTAA8.9-C340 is a variable-speed Cummins diesel engine for heavy equipment. Its governor is designed to respond to the dynamic throttle inputs required by heavy machinery operators. HekoPower ensures you receive the correct "C" (Construction) specification engine for your specific application.
Another misunderstanding involves the fuel system. Because this is a mechanical engine, some mechanics believe it does not require high-quality fuel filtration. While it is more tolerant than a modern Common Rail system, water in the diesel will still shatter the mechanical injector tips. Installing a high-capacity primary fuel-water separator is mandatory.
Cummins CL8.9-C Series, original products from Dongfeng Cummins Engine Plant (DCEC), Cummins Joint Venture Plant since 1986, 50% shareholding by Cummins USA. This series mainly includes 6LTAA8.9-C300, 6LTAA8.9-C325, 6LTAA8.9-C340, 6LTAA8.9-C360.
Frequently Asked Questions
How do I determine the exact Cummins 6LTAA8.9-C340 engine price?
Engine pricing fluctuates based on global material costs, shipping destinations, and whether you require a bare long block or a complete power unit with a radiator. Contact the HekoPower sales team with your destination port for a precise, updated quotation.
Is this engine compliant with modern emission standards?
This specific mechanical configuration is typically rated for Tier 2 or Euro II emission standards. It is intended for export to regions that accept these emission levels or for use as a direct replacement engine in older machinery where legally permitted.
How quickly can HekoPower ship a replacement engine?
As a dedicated Cummins 6LTAA8.9-C340 engine supplier, we maintain strong inventory networks. Standard configurations can often be prepared for sea freight within a few weeks. We manage the entire export documentation process to prevent delays at customs.
Can I use this engine to replace a smaller Cummins model?
Upgrading from a smaller engine, such as a 6BTA5.9, to the 8.9L engine for industrial equipment requires significant engineering modifications. The physical footprint, cooling requirements, and driveline torque limits must all be evaluated. We generally recommend exact-model replacements unless you are engineering a custom machine.
