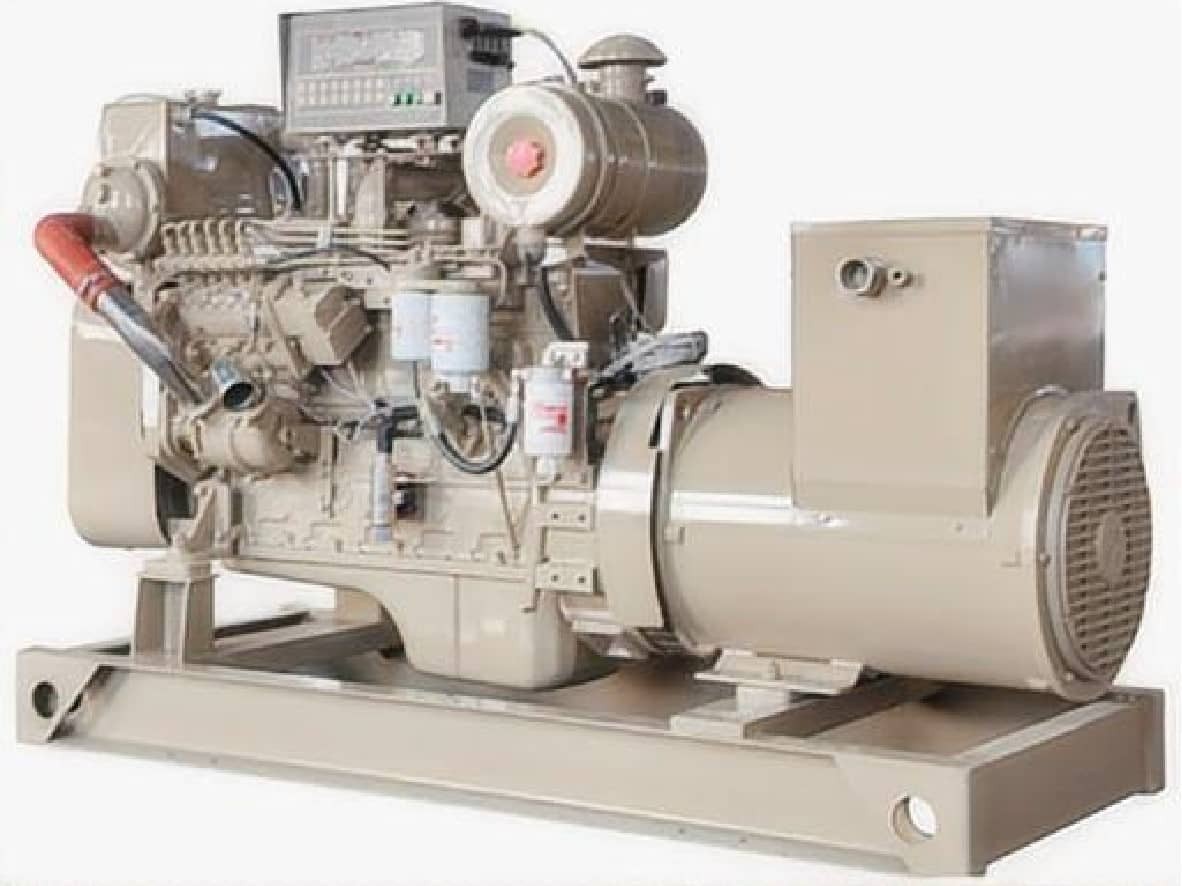

Genuine Dongfeng Cummins 6LTAA8.9-GM215 Engine Assembly for Marine Applications
Finding an authentic, factory-fresh power plant for demanding maritime applications requires looking beyond baseline specification sheets. The Cummins 6LTAA8.9-GM215 diesel engine represents a highly durable, mid-displacement workhorse engineering solution designed specifically for constant-speed duties. HekoPower supplies complete, genuine Dongfeng Cummins (DCEC) engine assemblies engineered to withstand continuous moisture, high thermal loads, and rigorous international marine safety standards.
Whether you need a reliable primary driver for a shipboard electrical grid or a responsive emergency power system, this inline 6-cylinder, 8.9-liter turbocharged aftercooled diesel engine delivers stable electrical frequency and robust transient load response. Every unit supplied by HekoPower undergoes rigorous factory test cell certification before export, ensuring immediate compliance and structural integrity upon arrival at your shipyard or repair facility.
Tech Specs of Cummins 6LTAA8.9-GM215
General Engine Data
Engine Model: Cummins 6LTAA8.9-GM215
Type: 6 Cylinders in Line
Displacement: 8.9 L
Bore * Stroke: 114 * 145
Net Weight (with flywheel & alternator): 650 Kg
Overall Dimension: 1149mm*799mm*1022mm
Engine Configuration No.: D563014MX03
Key Performance Data
Rated Power/Standby Power: 215 kW/288HP, 237 kW/318HP
Rated Speed: 1800 rpm
Continuous Output/Speed: 175 kW/235HP @ 1500 rpm
Low Idle Speed: 650-750 rpm
Fuel Consumption (Running Speed): ≤ 245 g/kW.hr
More Technical Data
Certification: CCS/IMO Certificates
Aspiration: Turbocharged and Charge Air Cooled
Fuel System: Bosch P7100 Pump/RQV-K Governor
Compression Ratio: 16.6:1
Starting Method: Electrical/Air Start (12V/24V)
Lowest Starting Temp Without auxiliary system: -12℃
Cooling Method: Water cooled
Engine Cooling Fluid Volume: 11.1 L
Ignition Order: 1-5-3-6-2-4
Technical Analysis of the 8.9L Marine Auxiliary Platform
Understanding the internal architecture of the 6LTAA8.9 platform reveals why it remains a preferred block for marine auxiliary power pack assemblies globally.
Fuel Systems and In-Line Mechanical Governance
At the heart of the Cummins 6LTAA8.9 GM215 diesel engine is a heavy-duty fuel system built around a specialized Bosch fuel pump configuration. Unlike modern, electronically controlled high-pressure common rail systems that struggle in high-moisture maritime environments due to sensor corrosion, this mechanical injection system uses a rugged, gear-driven inline pump. The mechanical governor reacts to instantaneous load changes within milliseconds, preventing voltage and frequency drops when heavy shipboard machinery cycles on.
The combustion chamber layout works in tandem with multi-hole injectors to ensure optimal fuel atomization. This system maintains a highly efficient 6LTAA8.9-GM215 fuel consumption and torque curve across the entire 1800 RPM power band, keeping operational costs low during long blue-water transits.
Cooling Circuit Configurations for Vessel Integration
Marine vessels require distinct thermal management solutions depending on where the machinery is installed on board. HekoPower supplies this 215 kW 1800RPM Cummins marine engine with custom-tailored 6LTAA8.9-GM215 heat exchanger vs radiator cooling options.
For standard installations inside the main engine room, an integrated sea-water heat exchanger system offers maximum thermal efficiency by using ambient ocean water to cool the internal freshwater loop. Alternatively, if you are configuring the unit as an emergency backup generator positioned on the upper decks, we supply a heavy-duty, skin-cooled or radiator-cooled package. This ensures the engine operates independently of the vessel’s primary sea-chest suctions.
Mid-Range Marine Engine Structural Comparisons
Selecting the correct block size dictates the long-term reliability and overhaul intervals of your marine power asset.
Cummins 6LTAA8.9 vs Cummins 6CTA8.3 Engine Comparison
The 6LTAA8.9 and the older 6CTA8.3 share similar foundational engineering heritages, but clear design variations set them apart. The 8.9-liter block features a longer piston stroke, which translates to a more stable torque delivery when running at a fixed 1800 RPM under heavy electrical load.
Furthermore, the 6LTAA8.9 utilizes advanced, reinforced cylinder head metallurgy and mid-stop cylinder liners. This structural enhancement drastically reduces liner pitting and cavitation compared to the standard 8.3L platform, allowing the 8.9L engine to run thousands of hours longer before requiring a top-end overhaul.
Cummins 8.9L vs 6BT Cummins Engine Difference
Upgrading from a 5.9-liter 6BT platform to the Cummins 6LTAA 8.9 marine diesel engine is an entry into heavy-duty commercial territory. While the 6BT is light and highly adaptable, its smaller displacement means it must work significantly harder to sustain continuous kilowatt demands.
The 8.9-liter block features a wide, structural ladder frame design on the oil pan rail, vastly increasing block rigidity. The internal crankshaft journals are significantly wider, allowing the 8.9L engine to easily handle high torsional vibrations during severe generator phase imbalances that would rapidly fatigue a 6BT crankshaft.
Cummins 6LTAA8.9 vs QSL8.9 Engine Performance Comparison
The primary difference between the 6LTAA8.9 and the QSL8.9 platform lies in their control architecture. The QSL8.9 relies on full Quantum electronic management, which requires clean fuel filtration down to sub-micron levels and constant monitoring of electronic control modules (ECMs).
The mechanical Cummins 6LTAA8.9 industrial diesel engine remains far more resilient against low-quality bunker fuel often encountered in remote international ports. For remote offshore auxiliary power systems and deep-sea fishing vessel deployments where on-board electrical troubleshooting must be kept simple, the mechanical 6LTAA8.9 offers superior mechanical survivability and straightforward repair parameters.
Practical Marine and Industrial Applications
The architectural versatility of this 8.9L power plant makes it a vital component across several commercial sectors.
6LTAA8.9-GM215 Engine for Marine Emergency Generator Sets
When main shipboard power fails, emergency generator sets must start instantly and accept 100% load capacity within seconds. The Cummins 6LTAA8.9-GM215 generator drive is engineered precisely for this high-stress profile, matching with top-tier alternators to form a cohesive Cummins 215 kW marine auxiliary power pack assembly. Its rapid turbocharger spooling capability makes it fully compliant with stringent international classification rules regarding emergency starting times.
Offshore Auxiliary Power Systems and Commercial Fishing
On commercial long-liners and deep-sea fishing vessels, this engine is frequently configured as a Cummins 6LTAA8.9 marine propulsion engine for fishing vessels or as a dedicated hydraulic auxiliary pump driver. It safely runs massive refrigeration compressors, deck winches, and bow thrusters under continuous, unyielding operating profiles.
Maritime Maintenance and Component Replacement Guide
Preventing unexpected down-time at sea requires an aggressive, proactive approach to component tracking and servicing schedules.
Managing Cylinder Liner Cavitation and Coolant Quality
One of the most critical aspects of maintaining the 8.9-liter block is checking the Supplemental Coolant Additives (SCAs) within the cooling system. The high-frequency vibration of the pistons creates tiny vacuum bubbles outside the wet cylinder liners. If the coolant chemistry is neglected, these bubbles implode violently, drilling microscopic pinholes through the liner wall and allowing coolant to contaminate the engine oil. Always check SCA levels every 250 hours or use fully formulated Organic Acid Technology (OAT) marine coolants.
Valve Lash Adjustments and Top-End Maintenance
To preserve your Cummins 6LTAA8.9 8.9L inline 6 cylinder diesel engine specification performance, perform an initial valve lash clearance adjustment within the first 500 hours of operation, and every 1,500 hours thereafter. Incorrect valve clearance alters injection timing parameters, degrades fuel economy numbers, and increases exhaust gas temperatures (EGTs), which can prematurely degrade the turbocharger turbine housing over time.
Procurement, Shipping Logistics, and International Supply
HekoPower streamlines global maritime supply chains by optimizing procurement and delivery frameworks.
Original 6LTAA8.9-GM215 Wholesale Price and Lead Time
As an established supplier, HekoPower provides direct factory-level access to the genuine Cummins 6LTAA8.9 GM215 engine wholesale price, avoiding middleman markups. Our baseline logistical framework maintains an optimized Cummins 6LTAA8.9 engine delivery time and specification sheet verification pipeline, meaning standard configurations ship from our export hubs within weeks of order confirmation.
Export Packaging and Documentation Integrity
Every engine assembly destined for overseas deployment is treated with industrial-grade anti-corrosion inhibitors, vacuum-sealed in heavy polymer shielding, and crated inside a rugged, fumigated ISPM-15 compliant wooden box. HekoPower handles all export documentation, providing original factory certificates of conformity, localized customs declarations, and official testing logs to facilitate seamless clearance at your destination port.
Cummins L8.9-GM Series, Marine Auxilliary Diesel Engines for commercial and recreational applications, original products from Dongfeng Cummins Engine Plant (DCEC), Cummins Joint Venture Plant since 1986, 50% shareholding by Cummins USA. This series mainly includes 6LTAA8.9-GM200, 6LTAA8.9-GM215. All engines complete with sea water pump, heat exchanger, CCS/IMO certificates.
Frequently Asked Questions
What official classification certificates are available for this specific model?
Our engine assemblies can be supplied with a CCS IMO tier II certified marine auxiliary engine design appraisal. Depending on shipyard requirements and order volumes, we work directly with classification societies to coordinate individual unit survey certificates before freight dispatch.
What components are included in a HekoPower complete engine assembly?
A complete engine assembly from HekoPower arrives as a fully built block from the oil pan to the valve cover. It includes the entire Bosch fuel pump system, fuel injectors, water pump, oil filter heads, air intake manifolds, and the turbocharger assembly, allowing for rapid drop-in replacement.
How do I source replacement parts for long-term overhauls?
Because this engine belongs to the global mid-range Cummins family, sourcing a Cummins 6LTAA8.9-GM215 maintenance parts and overhaul kit is incredibly easy. HekoPower carries a complete inventory of genuine replacement parts, including oversized pistons, main bearing kits, and top-end gasket sets to support your engineering crew.
