Details
L360-20
Original Cummins, new machines at absolute wholesale prices.
HekoPower Group is the reliable choice.
Our partner Cummins, a global power solutions leader, comprises five business segments – Components, Engine, Distribution, Power Systems and Accelera by Cummins – supported by Cummins global manufacturing and extensive service and support network, skilled workforce and vast technological expertise. In 1981, Chongqing Engine Plant started to license-produce Cummins engines, and in 1995, it jointly established a Chinese joint venture engine factory with Cummins.

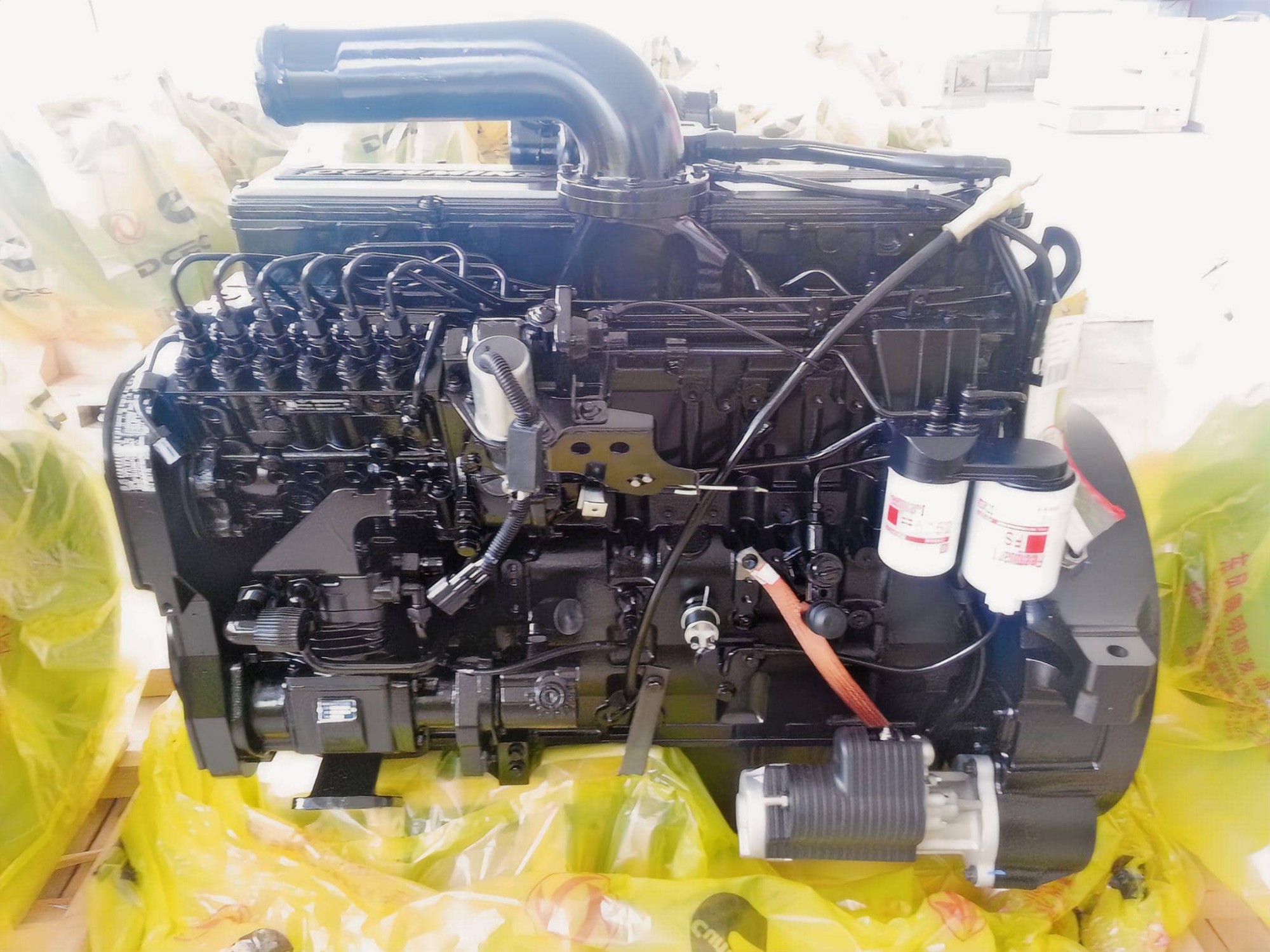

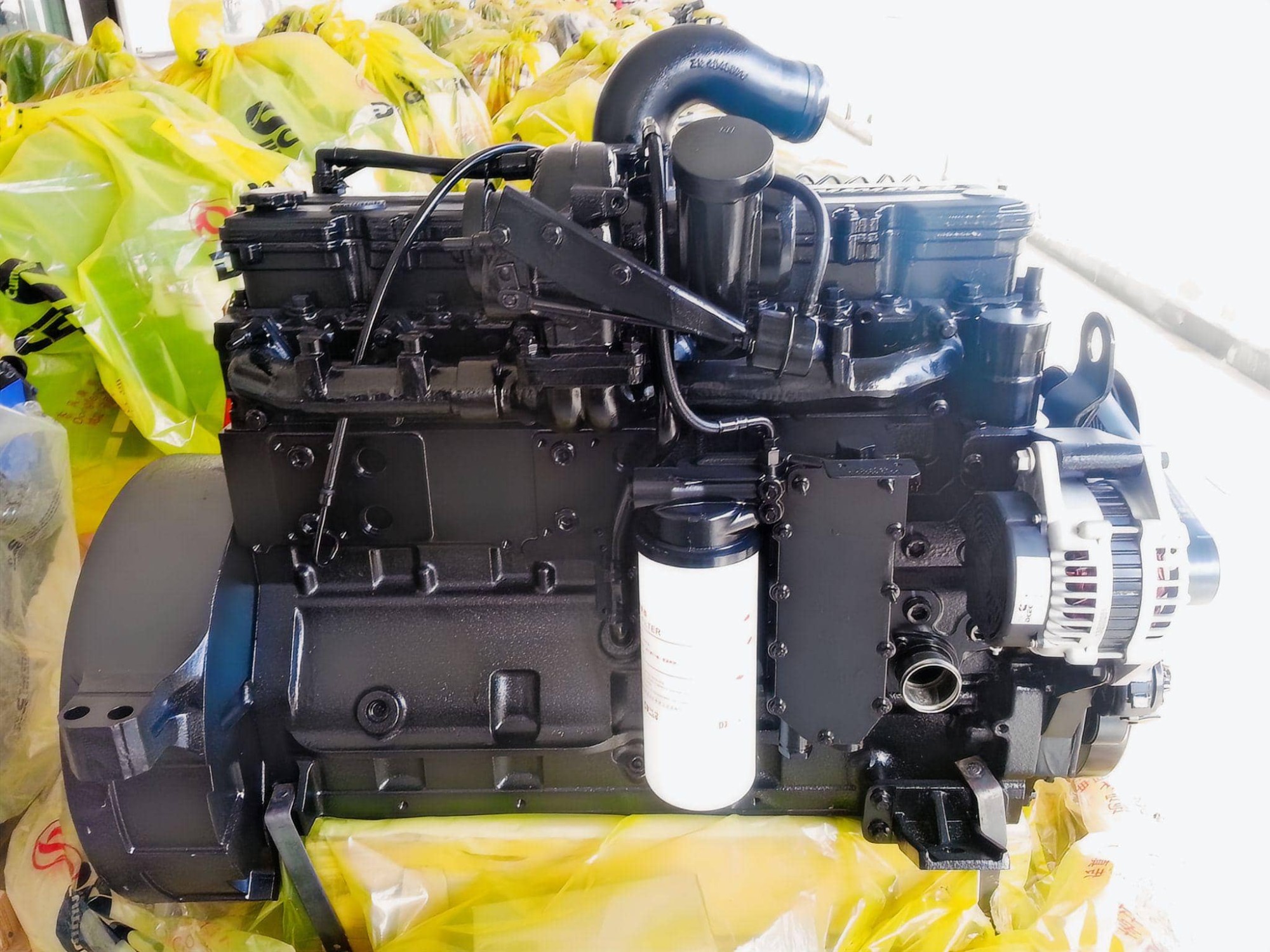

The Cummins L360-20 engine, with its 6-cylinder in-line design and 8.9-litre displacement capacity, is a highly versatile power source for a wide range of vehicles, including Dongfeng trucks, heavy-duty trucks, buses, vans, and commercial vehicles, as well as vehicle power packs. It delivers 264 kW (360 HP) at 2200 rpm and a maximum torque of 1480 N.m at 1400 rpm. The engine incorporates turbocharging and air-to-air intercooling, and is equipped with a BOSCH P7100 fuel system featuring a 16.6:1 compression ratio. Its fuel consumption at rated power is 228 g/kW.h, and it operates in a cooling system with 11.1 liters of fluid. The product has been certified to Euro II standards, making it suitable for use at altitudes of up to 2000 m. The engine weighs 650 kg with the flywheel and alternator, and has overall dimensions of 1149 mm x 799 mm x 1022 mm.
Specs - Technical standard
General Engine Data
Engine Model: Cummins L360-20
Type: 6 Cylinders in Line
Displacement: 8.9 L
Bore * Stroke: 114 * 145
Net Weight (with flywheel & alternator): 650 Kg
Overall Dimension: 1149mm*799mm*1022mm
Key Performance Date
Rated Power: 264 kW/360HP
Rated Speed: 2200 rpm
Max. Torque/Speed: 1480 N.m @ 1400 rpm
Max. No-load Governed Speed: 2500 rpm
Idle-Speed: 700±100 rpm
Max Continuous Running Altitude: 2000 m
Fuel Consumption @ Rated Power: 228 g/Kw.h
More Technical Data
Certification: Euro II
Aspiration: Turbocharged & Air-Air Intercooled
Fuel System: BOSCH P7100 Pump/RVQ-K Governor
Compression Radio 16.6:1
Electrical System (Starter Motor/Alternator): 12V(500A)/24V (250A)
Lowest Starting Temp Without auxiliary system: -10℃/-25℃
Cooling Method: Water cooled
Engine Cooling Fluid Volume: 11.1 L
Cummins L Series
Cummins L Series, original products from Dongfeng Cummins Engine Plant (DCEC), Cummins Joint Venture Plant since 1986, 50% shareholding by Cummins USA. This series mainly includes L270-30, L290-30, L300-20, L315-30, L325-20, L340-20, L360-20, L360-30, L375-20, L375-30.
