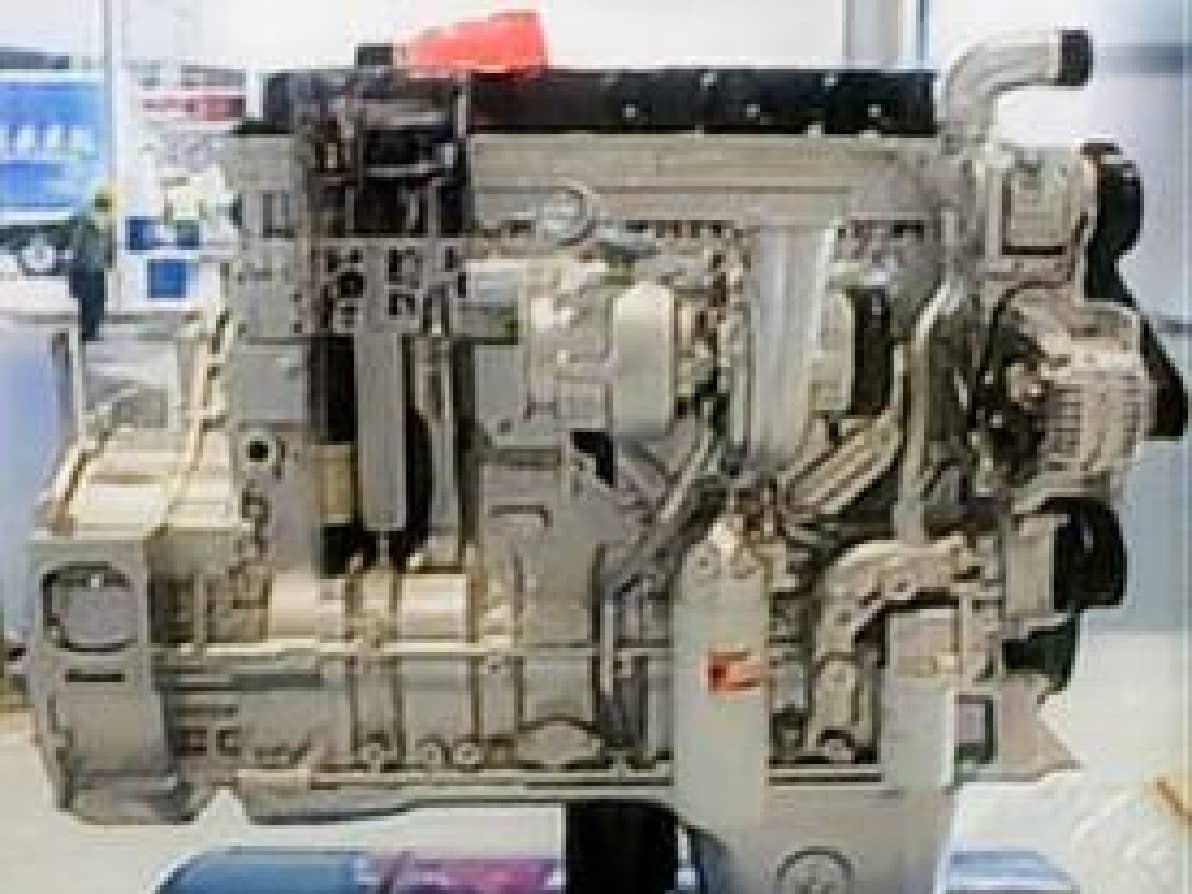

Genuine DCEC Cummins ISZ480-40 Engine Assembly: 13L 480HP Powerhouse
The DCEC Cummins ISZ480-40 stands as a premier 13-liter heavy-duty diesel engine engineered for high-demand commercial transport. Manufactured by Dongfeng Cummins Engine Co. (DCEC), this complete engine assembly is built to deliver massive low-end torque and exceptional highway fuel economy. As a dedicated wholesale engine supplier, HekoPower provides factory-new, genuine ISZ480-40 replacements for heavy tractor trucks, fleet repowering projects, and international export.
Producing a robust 480HP (353kW) at 2100 RPM, this Euro IV engine relies on the advanced Cummins XPI fuel system to optimize combustion. The result is a peak torque of 2321 Nm, providing commercial vehicles with the pulling force necessary for steep inclines and maximum gross vehicle weights.
Tech Specs of Cummins ISZ480-40
General Engine Data
Engine Model: Cummins ISZ480-40
Type: 6 Cylinders in Line
Displacement: 13 L
Bore * Stroke: 130 * 163
Net Weight (with flywheel & alternator): 1195 Kg
Overall Dimension: 1389mm*1016mm*1233mm
Key Performance Data
Rated Power: 353 kW/480 HP
Rated Speed: 2100 rpm
Idle Speed: 600-800 rpm
Max. Altitude For Continuous Running: 5200 m
Max. Torque/Speed: 2321 N.m @ 1200 rpm
Max. No-Load Speed: 2300 rpm
More Technical Data
Certification: Euro IV
Aspiration: Turbocharged & Charge Air Cooled
Fuel System: Cummins XPI Fuel System/ECM
Compression Radio: 17:1
Starting System: Electrical Starting Motor 24V(750A)
Lowest Starting Temp Without auxiliary system: -15℃/-30℃
Cooling Method: Water cooled
Engine Cooling Fluid Volume: 23.1 L
Technical Comparison: Evaluating the ISZ480-40 Against Alternative Platforms
Selecting the right commercial vehicle engine requires looking beyond peak horsepower. Fleet managers must evaluate thermal efficiency, drivetrain compatibility, and long-term operating costs.
Cummins ISZ480-40 vs ISZ525-40 Fuel Efficiency Comparison
When comparing the ISZ480-40 against the higher-output ISZ525-40, the primary differentiator is fuel economy under standard freight conditions. Both engines share the same 13L block and physical dimensions. However, the ISZ480-40 utilizes a modified calibration map specifically designed for optimal fuel consumption during standard long-haul cruising.
The 525HP model burns noticeably more fuel to produce its extra horsepower. For fleets operating within standard legal weight limits on regional highways, the extra output of the 525HP is rarely fully utilized. The Cummins ISZ480-40 operates at a lower thermal threshold, which reduces internal stress on cylinder liners and pistons, ultimately extending the engine's service life and saving significant fuel costs over millions of miles.
Advantages Over Heavy-Duty 12-Liter Engines
Upgrading from a standard 12-liter platform to the DCEC Cummins 13L 480HP diesel engine provides a major advantage in low-end lugging capability. The engine features a substantial 130x163 mm bore and stroke. This longer 163 mm stroke allows the engine to achieve its maximum 2321 Nm torque at much lower RPMs.
Smaller 12-liter engines must rev higher to achieve similar pulling power. This increases mechanical wear, cabin noise, and fuel consumption. The ISZ480-40 block absorbs vibration highly effectively, delivering smooth, consistent power that protects expensive drivetrain components like transmissions and rear differentials from sudden shock loads.
Maintenance Guidelines and Replacement Best Practices
High-pressure diesel systems require strict maintenance protocols. Adhering to these guidelines ensures your Cummins ISZ480-40 heavy truck engine operates at peak efficiency.
Protecting the Cummins ISZ480-40 XPI Fuel System
The XPI (Xtra-High Pressure Injection) common rail system is the heart of this Euro IV engine. It operates at extreme pressures to atomize fuel perfectly. Because of these tight tolerances, the system is highly sensitive to contaminated fuel.
Always utilize genuine 2-micron fuel-water separators and replace them strictly according to schedule. Microscopic water droplets or debris can easily erode injector nozzles or score the high-pressure pump plungers. Consistent use of premium fuel filters is the single most effective way to prevent costly downtime.
Streamlining the Cummins ISZ480-40 Engine Replacement
When repowering a heavy truck, purchasing a complete replacement engine assembly reduces shop labor and minimizes installation risks. Our complete assemblies arrive fully dressed. They include the cylinder block, head, XPI fuel system, turbocharger, starter, and wiring harness.
Before beginning the installation, mechanics should carefully verify the bell housing alignment, engine mount condition, and 24V electrical harness compatibility. Proper alignment of the intercooler piping is also critical to ensure optimal charge-air cooling.
Overcoming Common Misconceptions About the ISZ480-40
Fleet operators and mechanics often carry misconceptions about modern 13-liter engines that can lead to unnecessary repair costs.
The first major misconception involves rough idling. Mechanics frequently assume that a rough idle immediately dictates a failed XPI fuel injector. While injector wear is possible, the actual culprit is often much simpler. Minor air leaks in the low-pressure fuel supply line or a malfunctioning fuel pressure control valve will mimic injector failure. Always run a comprehensive diagnostic check on fuel supply pressure before discarding expensive injectors.
Another common error involves Engine Control Module (ECM) swapping. Because the physical footprint of the 13-liter engines is identical, some assume an ECM from an older ISZ model can be swapped directly onto a new ISZ480-40. The Euro IV emissions calibration, turbocharger actuator limits, and fan clutch engagement points are unique to the 480HP profile. Using an incorrect ECM calibration will severely restrict torque and trigger continuous fault codes.
Real-World Application Scenarios
The DCEC ISZ480-40 is not a general-purpose engine; it is purpose-built for demanding commercial logistics and heavy haulage.
Dongfeng Tianlong KX Replacement Cummins ISZ480-40 Engine
This 480HP platform serves as the premier factory power unit for the Dongfeng Tianlong KX (Kinland KX) tractor truck series. When paired with automated manual transmissions, this engine allows the truck to maintain high average speeds across vast highway networks. The broad torque curve minimizes the need for frequent downshifting, reducing driver fatigue on long cross-country routes.
Mountainous Freight and Heavy Haulage
Commercial vehicle operators dealing with mountainous terrain heavily favor this 13-liter engine. The advanced wastegated turbocharger compensates effectively for thin air at higher altitudes, preventing power loss on steep mountain passes. Furthermore, the engine's internal compression braking capabilities help manage downhill speeds safely, drastically reducing wear on the truck's service brakes during heavy haulage operations.
Exploring the DCEC Cummins ISZ Series Portfolio
Finding the exact power match for your commercial fleet is critical to maximizing operational profitability. While the 480HP configuration offers an incredible balance of torque and fuel efficiency, different payloads and regional terrains may require a different output profile. HekoPower is committed to helping you navigate these options to secure the perfect power plant for your specific chassis.
DCEC ISZ Series, original products from Dongfeng Cummins Engine Plant (DCEC), Cummins Joint Venture Plant since 1986, 50% shareholding by Cummins USA. This series mainly includes ISZ425-40, ISZ450-40, ISZ480-40, ISZ525-40.
B2B Frequently Asked Questions
What is the Cummins ISZ480-40 engine weight and export dimensions?
The net dry weight of the engine is approximately 1,195 kg. For international buyers, HekoPower secures the engine in an export-grade wooden crate. The packaged dimensions are roughly 1500 mm (Length) × 1100 mm (Width) × 1400 mm (Height), resulting in a gross shipping weight of about 1,300 kg.
Do you provide a warranty for the genuine DCEC ISZ480-40 complete engine assembly?
Yes. HekoPower operates as an authorized genuine Cummins ISZ480-40 supplier. Every factory-new complete engine assembly comes with a standard manufacturer's warranty covering core components against defects in materials and workmanship.
How do I get a Cummins ISZ480-40 engine quotation and what is the lead time?
You can request a quotation directly through our contact portal. Lead times for wholesale engine orders depend on current factory stock and your destination port. Standard dispatch from our warehouse typically takes 7 to 15 business days following order confirmation.
Can I buy just the bare engine block instead of the complete assembly?
While we do supply separate long blocks and short blocks, we highly recommend the Cummins ISZ480-40 complete replacement engine for repowering projects. Complete assemblies are factory hot-tested, ensuring the fuel system, turbocharger, and internal components work together flawlessly out of the box.
