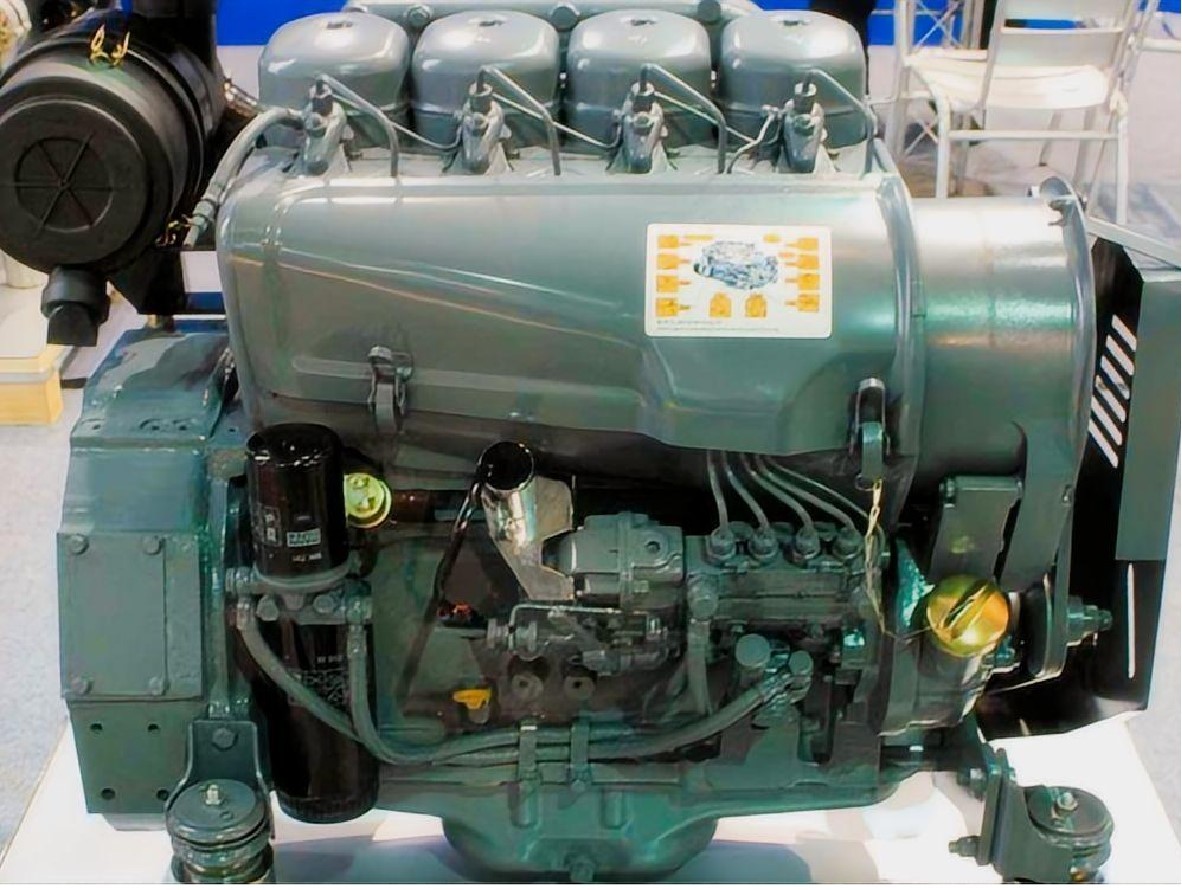

Deutz BF4L913 Air-Cooled Generator Engine: Reliable Power for Extreme Environments
The Deutz BF4L913 generator engine represents a benchmark in air-cooled diesel technology. Engineered for demanding off-grid power generation, this 4-cylinder Deutz generator engine delivers consistent performance where traditional thermal management systems fail. As a dedicated Deutz BF4L913 diesel generator engine supplier, HekoPower provides this robust power unit to OEM packagers and industrial operators worldwide.
This specific BF4L913 4.085L diesel engine utilizes advanced turbocharging and direct injection to maximize fuel efficiency. It is designed specifically for generator applications, offering a highly reliable solution for both continuous prime power and emergency backup scenarios.
Tech Specs of Deutz BF4L913 Generator Engine
General Engine Data
Engine Model: Deutz BF4L913-Generator Engine
Type: 4 Cylinders, in Line
Displacement: 4.085 L
Bore * Stroke: 102 * 125
Overall Dimension: 865mm*692mm*845mm
Net Weight: 350 Kg
Key Performance Data
Continue Power(1500 RPM): 47 kW
Continue Power(1800 RPM): 55 kW
Max. Power Output(1500 RPM): 60 kW/1500 rpm
Max. Power Output(1800 RPM): 60 kW/1800 rpm
Rated Speed: 1500/1800 rpm
Prime/Standby Generator Power: 40 kW/44 kW
Noise Standard: 105 dB(a)
Fuel Consumption with Full-Load: 232/218 g/kW.h
More Technical Data
Aspiration: Turbocharged
Fuel System: Direct Injection Pump
Cooling Method: Air Cooling
Electrical System (Starter Motor/Alternator): Electronic Starting (12V/24V)
Compression Ratio: 18:1
Exhaust Gas Flow & Temprature: 4.33 m³/min; 550℃
Governor Type: Mechanical/Electronic Governor
Lubricant Capacity: 12-15 L
Core Performance: 1500 RPM vs 1800 RPM Output Dynamics
Understanding the operational speeds of the BF4L913 genset engine is critical for proper alternator pairing. The engine is precision-calibrated to support both 50Hz and 60Hz power grids without major mechanical overhauls.
When configured as a BF4L913 1500 rpm generator engine for 50Hz markets, the unit produces a steady 47kW. This output makes it an ideal prime power diesel engine for continuous operations. The mechanical governor responds rapidly to load changes, ensuring stable voltage and frequency.
For 60Hz applications, the BF4L913 1800 rpm generator engine configuration pushes the output to 55kW. In emergency standby setups, operators can even leverage a BF4L913 60kW maximum output for short durations. Fuel consumption scales efficiently between these two speeds. The turbocharged generator engine design ensures that even at the higher 1800rpm threshold, the fuel burn rate remains economical compared to older, naturally aspirated models.
Technical Comparison: Air-Cooled BF4L913 vs. Water-Cooled Alternatives
When selecting a power plant for a 50kVA genset, engineers often weigh the benefits of the Deutz 913 series against liquid-cooled alternatives. The primary differentiator is the complete elimination of the radiator, water pump, coolant hoses, and antifreeze.
Water-cooled engines introduce multiple failure points in severe climates. Coolant can freeze in sub-zero temperatures, causing block damage, or boil over during intense desert heat waves. The air cooled Deutz generator engine sidesteps these vulnerabilities entirely. It utilizes a high-efficiency axial cooling fan driven by reliable V-belts. This direct cooling mechanism forces high-velocity air across heavily finned cylinder heads and liners.
Furthermore, the absence of a liquid cooling jacket drastically reduces the engine's physical footprint and weight. The BF4L913 350kg generator engine dry weight is significantly lighter than comparable liquid-cooled units. This weight reduction simplifies mobile generator packaging, lowers shipping costs for the BF4L913 engine export supplier, and reduces stress on trailer mounts during transit.
Overcoming Common Misconceptions About Air-Cooled Gensets
A persistent misconception in the power generation industry is that air-cooled engines are prone to overheating under sustained heavy loads. This is historically inaccurate for the modern BF4L913 direct injection diesel engine.
Some operators mistakenly believe that only liquid coolant can stabilize engine temperatures during prime power generation. However, the BF4L913 is engineered with precise internal oil cooling jets that spray the underside of the pistons. This oil cooling, combined with the massive exterior surface area of the 102x125mm diesel engine cylinders, provides exceptional thermal dissipation. The BF4L913 generator engine operating temperature remains remarkably stable even when running at near-maximum capacity in ambient temperatures exceeding 40 degrees Celsius.
Real Application Scenarios for the 4-Cylinder G-Drive
The unique thermal properties of the BF4L913 make it the preferred choice for specific, challenging environments. HekoPower frequently supplies this Deutz 4-cylinder G-drive engine for telecommunications towers located in arid, remote regions. In these desert environments, securing clean water for coolant maintenance is logistically difficult, making the air-cooled design a necessity rather than a luxury.
Construction firms also rely heavily on the BF4L913 backup generator engine for high-altitude projects. The integrated turbocharger compensates for thin air, preventing the severe power loss typically experienced by naturally aspirated engines in the mountains. Whether deployed as a BF4L913 engine for a 40kW prime generator on an isolated farm or a BF4L913 engine for a 44kW standby generator at a rural medical clinic, the unit delivers fail-safe reliability.
Alternator Compatibility and Installation Requirements
For generator packagers, streamlining the assembly process is vital. The BF4L913 engine to alternator coupling dimensions adhere to strict SAE standards. The standardized flywheel housing ensures seamless mating with globally recognized alternators.
When reviewing BF4L913 generator engine installation requirements, operators must ensure adequate airflow within the generator canopy. Because the engine sheds heat directly into the surrounding air, the genset enclosure must feature properly sized intake louvers and exhaust venting. The BF4L913 12V 24V starting system options provide flexibility for integrating with various automated transfer switches and control panels.
Maintenance and Replacement Tips for the 913 Series
Maintaining an air cooled BF4L913 genset engine requires a different approach than servicing a liquid-cooled unit. The Deutz 913 series air-cooled engine maintenance schedule focuses heavily on airflow management and lubrication.
Operators must regularly inspect the cylinder cooling fins. Dust, debris, or oil buildup in these fins will restrict airflow and elevate core temperatures. Cleaning the fins with compressed air should be a mandatory part of routine BF4L913 air cooled engine maintenance.
Belt tension is another critical maintenance point. Since the V-belt drives the primary cooling fan, a loose or snapped belt will lead to rapid overheating. Operators should inspect the belt for cracking and proper deflection every few hundred hours. For heavy-duty users, HekoPower operates as a reliable BF4L913 generator engine wholesale distributor, providing immediate access to fast-moving consumables and complete BF4L913 replacement generator engine blocks to minimize facility downtime.
Troubleshooting Operational Issues
Effective BF4L913 generator engine troubleshooting often starts with the fuel and air systems. If the engine struggles to hit its rated 1500rpm or 1800rpm under load, the first step is checking the turbocharger connections for boost leaks. A drop in intake pressure will cause the engine to run rich, producing black smoke and reducing power output.
Operators should also monitor fuel quality. The direct injection system requires clean diesel to prevent injector fouling. If the engine experiences hard starting in cold weather, verifying the integrity of the 12V or 24V starting system and ensuring the battery holds sufficient cranking amps will usually resolve the issue.
Exploring the Complete Deutz FL913 Series
As an experienced BF4L913 genset engine manufacturer supply partner, HekoPower understands that power generation requirements vary significantly across different projects and environments. While the turbocharged BF4L913 offers an excellent balance of power and efficiency for 40kW to 50kVA gensets, your specific application might require naturally aspirated configurations or higher-displacement models for larger power demands. We support the entire air-cooled family to ensure exact matching for your specific alternator parameters, canopy designs, and budget constraints.
Deutz F2L912/FL913-Generator Engine Series, original products from Beinei Deutz Engine Plant. This series mainly includes Deutz F2L912, Deutz F3L912, Deutz F3L913, Deutz F4L912, Deutz F4L912T, Deutz F4L913, Deutz BF4L913, Deutz F6L912, Deutz F6L912T, Deutz F6L913, Deutz BF6L913, Deutz BF6L913C. In accordance with the criteria of Machinery Safety Directive 2006/42, movable elements such as distribution belts, fans, and parts that acquire high temperatures during operation, such as exhaust manifolds, have their respective safeguards. Before being delivered, the generator is thoroughly checked at the factory. Voltage, frequency, and load are all tested, as well as the appropriate operation of warnings and the influence of engine oil temperature on stop.
Frequently Asked Questions (FAQs)
How do I choose a generator for a BF4L913 engine?
When learningHere is the updated, anti-AI content optimization plan for the Deutz BF4L913 generator engine page on HekoPower.
Should I choose a 1500 rpm or 1800 rpm BF4L913 engine for my generator set?
Choose 1500 rpm for 50Hz electrical grids (common in Europe, Asia, Africa, and South America), yielding a prime rating around 47kW. Choose 1800 rpm for 60Hz grids (common in North America and parts of South America), delivering a prime rating around 55kW.
Can the Deutz BF4L913 replace a liquid-cooled engine on an existing generator canopy?
Yes. However, ensure adequate fresh air intake and hot air exhaust ducting within the enclosure. Air-cooled engines require free air movement across the engine block rather than a front-mounted radiator airflow setup.
Does HekoPower supply complete BF4L913 replacement engines and spare parts?
Yes. HekoPower supplies complete Deutz BF4L913 generator engines, short blocks, long blocks, and genuine replacement spare parts including turbochargers, fuel injection pumps, air cooling blowers, and gasket kits for global export.
