Genuine DCEC Cummins 4B3.9-G1 Wholesale for Global Generator Assembly
Finding a reliable supply of authentic Dongfeng Cummins 4B3.9-G1 50Hz engine supply channels requires technical transparency. At HekoPower, we ship the genuine OEM generator drive diesel engine directly from the DCEC manufacturing facilities to international genset packagers and fleet operators.

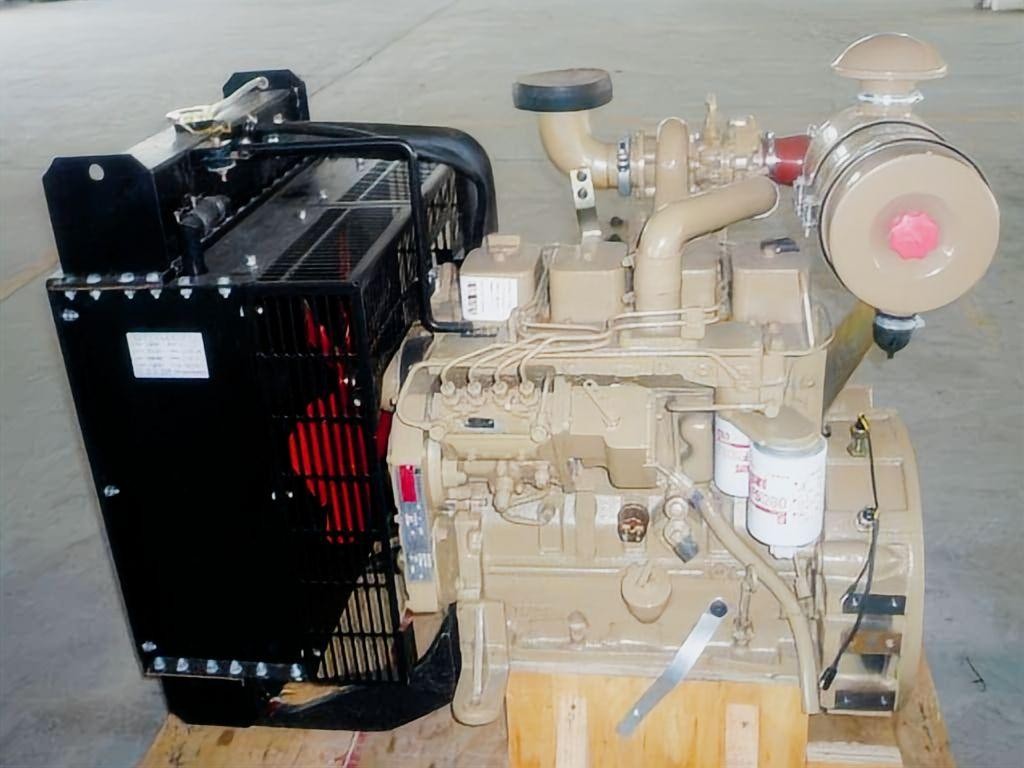

The DCEC Cummins 4B3.9-G1 diesel engine is a globally recognized workhorse. This 4-cylinder 3.9L Cummins generator engine delivers highly stable power configurations, making it a staple for continuous and standby grid installations. It features a robust inline design, meaning maintenance is straightforward, and structural stress points are minimal compared to V-configured alternatives.
Tech Specs of Cummins 4B3.9-G1
General Engine Data
Engine Model: Cummins 4B3.9-G1-24kw
Type: 4 Cylinders in Line, 4 Stroke Diesel
Displacement: 3.9 L
Bore * Stroke: 102 * 120
Net Weight: 308 Kg
Overall Dimension: 867mm*544mm*988mm
Key Performance Data
Rated Power/Standby Power: 24 kW/32HP, 27 kW/36HP
Rated Speed: 1500 rpm
Low Idle Speed: 950-1050 rpm
Fuel Consumption (Running Speed): ≤ 275 g/kW.hr
Torque @ Rated/Standby Output: 153/172 N.m @ 1500 rpm
More Technical Data
Aspiration: Natural Aspiration
Fuel System: BYC A Pump/RSV
Compression Ratio: 16.6:1
Electrical System (Starter Motor/Alternator): 12V/24V
Lowest Starting Temp Without auxiliary system: -12℃
Cooling Method: Water cooled
Engine Cooling Fluid Volume: 7.2 L
Governor Type: Electronic, Regulation ≤5%
Technical Specifications & Integration Engineering
Selecting a 24kW Cummins engine for generator set builds means understanding how the engine behaves under real-world mechanical loads. This model relies on a naturally aspirated aspiration footprint, which offers unparalleled thermal stability in high-temperature environments.
Cummins 4B3.9-G1 Alternator Matching Configurations
Achieving correct Cummins 4B3.9-G1 alternator matching prevents torsional vibration and premature coupling failure. The flywheel housing and drive disc dimensions follow strict international SAE standards, ensuring easy integration with industry-standard alternators.
- Stamford Alternator Matching: This engine aligns with the Stamford PI144H or SOL2-G1 frames. We highly recommend a 24kW Cummins engine for Stamford alternator configurations for commercial export due to universal global service support.
- Marathon & Leroy Somer Setup: For alternative industrial setups, ensure the alternator configuration matches the SAE 3 flywheel housing and SAE 11.5 coupling disc specifications of the engine.
Fuel Efficiency and Governor Mechanics
Fuel economy dictates operational profitability. Understanding the Cummins 4B3.9-G1 fuel consumption per hour at 100% load helps operators size their integrated storage tanks. At full 24kW prime output, this unit burns approximately 6.5 to 7 liters of diesel fuel per hour.
This model utilizes a premium BYC A-type mechanical injection pump. Control is maintained via an 4B3.9-G1 RSV mechanical governor adjustment and troubleshooting assembly. The mechanical governor reacts to sudden electrical load steps by adjusting the fuel rack mechanically, eliminating the need for delicate, electronic control control units (ECUs) that can fail in harsh environments.
Technical Comparisons: Why Choose the 4B3.9-G1 Engine?
When source planning, B2B buyers often evaluate multiple engine options within the 24kW to 30kW band. Evaluating the structural design choices clarifies the unique strengths of this specific model.
4B3.9-G1 vs. 4BT3.9-G1: Aspiration and Maintenance Realities
The primary difference between the 4B3.9-G1 and its sibling, the 4BT3.9-G1, centers on the air intake system. The 4B3.9-G1 is a naturally aspirated 4-cylinder Cummins engine for 30 kVA alternator applications, drawing air at ambient atmospheric pressure. The 4BT variant uses a turbocharger.
- Thermal Stress: Because it lacks a turbocharger, the 4B3.9-G1 experiences lower internal cylinder temperatures and pressures. This lowers component fatigue and reduces the risk of exhaust manifold cracking.
- Component Simplicity: No turbocharger means fewer oil supply lines, no risk of turbine bearing failures, and simpler exhaust plumbing configurations. This makes it ideal for remote, off-grid locations where expert mechanics are scarce.
Competitive Advantages Over Non-Cummins Alternatives
Compared to competitor options from regional brands, this compact Cummins generator drive engine provides significantly better parts interchangeability. The B-series engine block shares common internal components with millions of engines running globally, safeguarding your operations against unexpected supply chain delays.
Maintenance Guide, Overhaul, and Spare Parts Compatibility
Long-term survival of an industrial standby diesel engine 24kW configuration relies entirely on structured maintenance intervals and authentic component use.
Critical Cummins 4B3.9-G1 Maintenance Interval Routine
To preserve the structural integrity of this heavy-duty 1500RPM diesel engine, adhere to a strict service timeline. Change the lubricating oil and replace the spin-on oil filter every 250 operational hours under normal conditions, or every 6 months for standby equipment.
Inspect the Cummins 4B3.9-G1 cooling system specification metrics weekly. Clean the radiator fins to prevent debris accumulation from reducing airflow. Change the coolant mixture completely every two years or 2000 operating hours to replenish anti-cavitation additives, protecting the wet-sleeve cylinder liners from pitting corrosion.
Troubleshooting the RSV Mechanical Governor
If you experience engine speed hunting or erratic RPM drops during heavy electrical load connections, look at the RSV governor links.
- Check for physical binding or friction in the external throttle linkage and return springs.
- Ensure the governor housing contains the correct volume of clean engine oil; low oil levels disrupt the internal flyweight stability.
- If speed droop is excessive, adjust the internal droop spring tension screw according to factory technical manual benchmarks.
Cummins 4B3.9-G1 Spare Parts Compatibility Checklist
Our warehouse stocks a complete DCEC 4B3.9-G1 replacement parts compatibility list to ensure seamless repairs. Because the 3.9-liter platform is standardized, component tracking is secure.
- Top Overhaul Parts: Cylinder head gaskets, valve stem seals, and injector copper washers are standard items. Always match the exact DCEC part numbers to your specific engine serial number plate.
- Bottom End Components: Main bearings, connecting rod bearings, and wet cylinder liners match standard B-series dimensions, making Cummins 4B3.9-G1 engine overhaul support highly accessible globally.
Real-World Application Scenarios and Environmental Limits
This engine is engineered for specific structural integration fields, ensuring dependable delivery of continuous power Cummins genset engine energy.
Telecom Backup and Data Infrastructure Integration
A major commercial use case for the Cummins 4B3.9-G1 engine for telecom backup power involves remote cellular transceiver stations. These towers need an engine that can start reliably after weeks of dormancy.
The simplistic electrical demand of this engine requires only a basic 24-volt starting circuit, making it perfect for pairing with simple automatic transfer switches (ATS). It provides a quick path to stable generation, allowing full Cummins generator engine for data center backup or telecom node operations within seconds of grid failure.
Climate Tolerances: Tropical Heat and Low-Temperature Operation
Operating environment variables can significantly impact engine output capacity.
Tropical Environments: The Cummins 4B3.9-G1 diesel engine for tropical climate configurations utilizes a wide-fin radiator matrix. This handles high ambient temperatures without derating engine power, ensuring a full 24kW delivery even in humid equatorial conditions.
Cold Starts: Conversely, managing industrial 3.9L Cummins engine low temperature starting limits requires proper options. In environments dropping below -15°C, we supply optional block jacket heaters and intake air glow plugs to ensure immediate ignition without overtaxing the starting motor.
Cummins B3.9-G Series, original products from Dongfeng Cummins Engine Plant (DCEC), Cummins Joint Venture Plant since 1986, 50% shareholding by Cummins USA. This series mainly includes 4B3.9-G1-24kw, 4B3.9-G2-24kw, 4BT3.9-G1-36kw, 4BT3.9-G2-36kw, 4BTA3.9-G2-50kw, 4BTA3.9-G2-58kw, 4BTA3.9-G11-70kw.In accordance with the criteria of Machinery Safety Directive 2006/42, movable elements such as distribution belts, fans, and parts that acquire high temperatures during operation, such as exhaust manifolds, have their respective safeguards. Before being delivered, the generator is thoroughly checked at the factory. Voltage, frequency, and load are all tested, as well as the appropriate operation of warnings and the influence of engine oil temperature on stop.
Frequently Asked Questions Regarding the Cummins 4B3.9-G1 Engine
What is the exact continuous vs. standby rating for this engine?
The engine is rated at 24kW prime power at 1500 RPM for continuous duty cycle applications. For short-term emergency standby needs, it can reach a peak output of 27kW for up to one hour within a twelve-hour operational window.
Can I run this 1500RPM engine at 1800RPM for 60Hz power markets?
No. The 4B3.9-G1 model is specifically configured, balanced, and fuel-pump calibrated for 1500RPM (50Hz) generator applications. For 60Hz regions requiring 1800RPM operation, please consult our sales team to source the dedicated 60Hz variant from our inventory.
How does HekoPower ensure the engine is a genuine DCEC product?
Every single Cummins 4B3.9-G1 genuine OEM engine supplied by HekoPower features a verified Dongfeng Cummins factory data plate. This plate contains a unique engine serial number (ESN), which can be cross-referenced and verified directly through the official Cummins global tracking database.
What packaging options do you offer for international shipping?
We ship all industrial engines in heavy-duty, export-approved wooden crates. This packaging safeguards the fuel injection pump, radiator connections, and mechanical governor assembly against impact and moisture during long-distance maritime freight transport.
