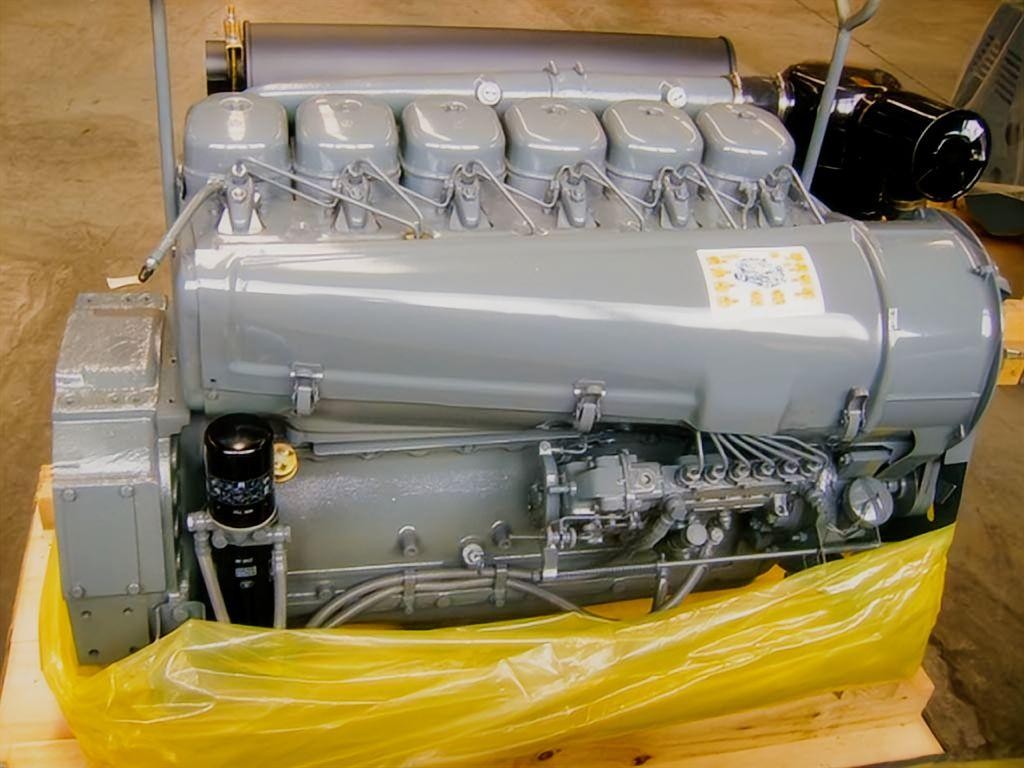

Deutz F6L912 Generator Engine: Heavy-Duty G-Drive Power
The Deutz F6L912 generator engine serves as a cornerstone of independent, mid-tier industrial power generation. As an un-turbocharged, naturally aspirated 6-cylinder power unit, this engine provides unmatched thermal resilience and mechanical simplicity.
Engineering teams and genset assemblers worldwide choose the Beinei Deutz F6L912 diesel engine because it bypasses the most common failure point in continuous-duty power plants: the liquid cooling system. By eliminating radiators, water pumps, coolant hoses, and anti-freeze maintenance, your operations gain localized energy security with drastically reduced overhead.
HekoPower supplies this air-cooled Deutz F6L912 engine as a complete, factory-tested generator drive diesel engine. It comes ready for seamless integration with premier global alternator brands, backed by an expert global supply chain.
Tech Specs of Deutz F6L912 Generator Engine
General Engine Data
Engine Model: Deutz F6L912-Generator Engine
Type: 6 Cylinders, in Line
Displacement: 5.655 L
Bore * Stroke: 100 * 120
Overall Dimension: 1120mm*673mm*815mm
Net Weight: 410 Kg
Key Performance Data
Continue Power(1500 RPM): 48 kW
Continue Power(1800 RPM): 55 kW
Max. Power Output(1500 RPM): 52 kW/1500 rpm
Max. Power Output(1800 RPM): 62 kW/1800 rpm
Rated Speed: 1500/1800 rpm
Prime/Standby Generator Power: 40 kW/44 kW
Noise Standard: 105 dB(a)
Fuel Consumption with Full-Load: 228 g/kW.h
More Technical Data
Aspiration: Natural Intake
Fuel System: Direct Injection Pump
Cooling Method: Air Cooling
Electrical System (Starter Motor/Alternator): Electronic Starting (12V/24V)
Compression Ratio: 17:1
Exhaust Gas Flow & Temprature: 4.37 m³/min; 500℃
Governor Type: Mechanical/Electronic Governor
Lubricant Capacity: 14 L
Technical Performance and Global Alternator Integration
Power Calibration across Global Power Grids
This flexible generator power unit is precision-balanced to meet dual synchronized operational parameters.
- 50Hz Power Grids: The engine runs at 1500RPM, outputting a continuous prime power rating of 48kW. This performance profile is ideal for driving synchronized 50kVA prime power industrial gensets.
- 60Hz Power Grids: The engine steps up to 1800RPM, supplying 55kW of continuous mechanical output. This makes it an ideal engine match for 60kW emergency standby systems across North American and offshore marine infrastructures.
Standard Mechanical Interface Configurations
Unlike many competitors who provide bare base engines with varying regional bellhousing configurations, HekoPower delivers an OEM Deutz generator engine configured specifically for industrial power generation.
The rear machining architecture utilizes a standard SAE 3 flywheel housing matched with an SAE 11.5 coupling disc. This exact spatial footprint ensures drop-in mechanical alignment when building a custom genset package. It allows direct coupling to a Deutz generator engine for Stamford alternator configurations, alongside flawless fitting with Leroy Somer and Marathon alternator models.
Technical Comparisons: F6L912 vs. Competitor Power Systems
Air-Cooled vs. Water-Cooled Systems in Harsh Environments
Standard liquid-cooled engines from alternative engine manufacturers rely heavily on a balanced chemical coolant mixture and continuous airflow through an unblocked radiator core. In mining applications, desert drilling locations, or remote agricultural pumping stations, airborne dust and extreme ambient heat rapidly degrade these systems.
The air-cooled engineering of this 6-cylinder unit eliminates these issues entirely. Deeply finned cast-iron cylinder barrels and individual aluminum alloy cylinder heads are directly blasted by a high-capacity, belt-driven cooling fan. There is no risk of water jacket scaling, cavitation erosion, or radiator punctures. If your operation requires a low fuel consumption generator engine that can sit idle for months in freezing or blistering conditions and start instantly, air-cooled technology outpaces liquid-cooled alternatives.
Why Choose the F6L912 Over the Smaller F4L912 Model
While the 4-cylinder F4L912 shares identical internal components—such as pistons, rings, and valve trains—it cannot match the structural advantages of the 6-cylinder Deutz generator engine.
The F6L912 provides a wider power cushion, meaning it does not need to operate near its thermal limit to maintain a stable 50kVA generator load. The inherently superior mechanical balance of an inline 6-cylinder configuration cancels out primary and secondary engine vibrations. This directly reduces mechanical fatigue on your alternator components, copper windings, and structural base frames over thousands of operating hours.
Industrial Applications and Real-World Field Deployments
Remote Telecom Networks and Mining Infrastructure
Telecom infrastructure providers rely on continuous power to maintain cell towers in off-grid terrain. The F6L912 is highly valued as a generator engine for telecom power due to its mechanical governor system. It handles the sudden step-loads of cellular switching equipment without voltage sags.
In extraction zones, this unit operates reliably as a rugged generator engine for mining generators, driving rock crushers, ventilation blowers, and site lighting systems where grid power is non-existent.
Construction Projects and Emergency Backup Systems
Civil engineering operations require portable, unyielding field power. Serving as a temporary generator engine for construction site power, this engine runs smoothly on standard industrial diesel fuels, maintaining stable voltage even when subjected to dirty, real-world fuel variations.
For facilities requiring absolute operational uptime, it serves effectively as a heavy duty standby generator engine. It provides critical protection as a generator engine for hospital backup generator applications, emergency shelters, and local infrastructure projects.
Maintenance and Professional Replacement Strategies
- Every 250 Hours: [Clean Cylinder Cooling Fins] + [Check Fan Belt Tension]
- Every 500 Hours: [Replace Engine Oil & Spin-On Filters] + [Adjust Valve Clearance]
- Every 1500 Hours: [Inspect Fuel Injector Spray Patterns & Opening Pressures]
Essential Lifespan Extension Procedures
To maximize the service life of your continuous power diesel engine, your maintenance crews must focus on clean airflow. Because this engine relies on ambient air for thermal regulation, you must clean the cylinder cooling fins with compressed air every 250 operating hours. Dust, oil film buildup, or debris accumulation between the cooling fins creates local hot spots that can cause piston ring scuffing.
Keep an exact eye on the cooling fan drive belt tension. A slipping belt reduces airflow volume, causing the cylinder head temperatures to exceed safe operational boundaries. Change your engine oil and spin-on fuel filters every 500 operating hours using a high-quality 15W-40 oil designed for heavy-duty industrial diesel applications.
Drop-In Replacement Framework
When executing a generator engine replacement, the F6L912 acts as a straightforward swap for older power units. Its compact, self-contained footprint means you do not need to reroute external cooling lines or mount bulky remote radiators.
When replacing an older, worn-out unit, check that your structural skid mountings are level within a 0.2mm tolerance. This precaution prevents crankshaft centerline misalignment with your single-bearing alternator, protecting your entire drive system from premature bearing failures.
Deutz F2L912/FL913-Generator Engine Series, original products from Beinei Deutz Engine Plant. This series mainly includes Deutz F2L912, Deutz F3L912, Deutz F3L913, Deutz F4L912, Deutz F4L912T, Deutz F4L913, Deutz BF4L913, Deutz F6L912, Deutz F6L912T, Deutz F6L913, Deutz BF6L913, Deutz BF6L913C. In accordance with the criteria of Machinery Safety Directive 2006/42, movable elements such as distribution belts, fans, and parts that acquire high temperatures during operation, such as exhaust manifolds, have their respective safeguards. Before being delivered, the generator is thoroughly checked at the factory. Voltage, frequency, and load are all tested, as well as the appropriate operation of warnings and the influence of engine oil temperature on stop.
Frequently Asked Questions
Can the Deutz F6L912 handle continuous prime power operations?
Yes, this unit is engineered specifically as a continuous power diesel engine. Unlike automotive variants, its mechanical governor and robust internal clearances are optimized to run 24/7 under variable or constant industrial loads without suffering power derating.
Does this engine include an electronic or mechanical governing system?
This model features a highly responsive generator engine with mechanical governor. This completely mechanical design eliminates complex engine control units (ECUs), sensitive wiring harnesses, and digital sensors. This makes it exceptionally reliable for remote regions where electronic diagnostic tools are unavailable.
Where can I source genuine replacement components for this engine series?
HekoPower is a global generator engine supplier, maintaining a large inventory of genuine spare parts for the entire Deutz FL912/FL913 series. We supply replacement cylinder heads, piston kits, fuel injectors, and complete overhaul gasket sets to keep your power installations operating for decades.
What are the main shipping terms for international wholesale orders?
As an established China Deutz generator engine manufacturer and exporter, HekoPower coordinates flexible international freight options. We offer secure industrial packaging with shipping terms including FOB, CIF, and CFR through major international ports, backed by clear T/T and L/C payment paths.
