Deutz F6L912T Generator Engine: The Definitive G-Drive Engineering Profile

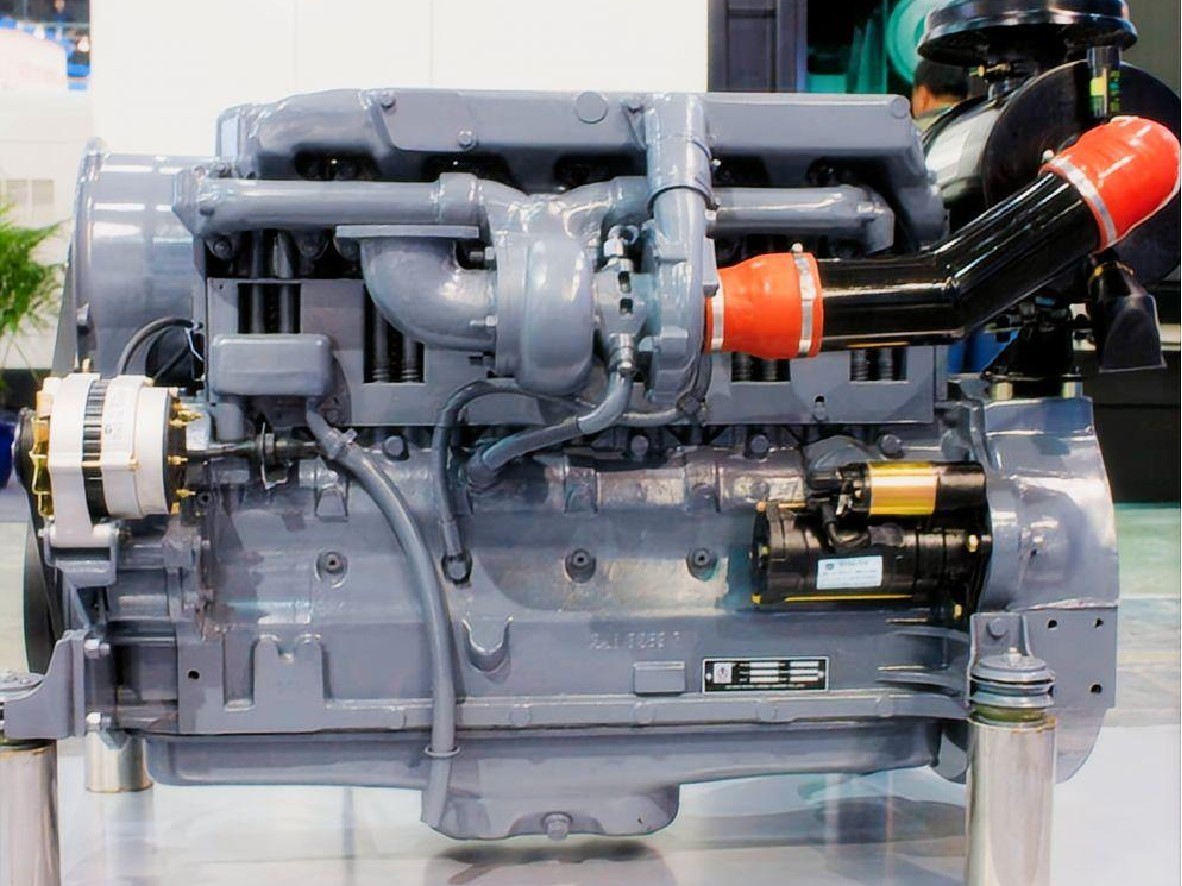

The Deutz F6L912T generator engine stands out as a unique beast in the stationary power sector. Unlike modern water-cooled engines wrapped in fragile electronics, this turbocharged Deutz air-cooled generator engine thrives in environments that destroy other machinery. Licensed under the strict technical legacy of Beinei Deutz, this 6 cylinder Deutz generator engine delivers consistent mechanical grit for heavy-duty genset applications.
As a premier China Deutz generator engine manufacturer and global export supplier, HekoPower provides this complete engine assembly optimized specifically for generator drive applications. Whether you are building a new prime power genset or looking for a direct F6L912T diesel engine replacement, understanding its specific thermal behavior, structural setup, and application matching is critical to maximizing your asset lifecycle.
Tech Specs of Deutz F6L912T Generator Engine
General Engine Data
Engine Model: Deutz F6L912T-Generator Engine
Type: 6 Cylinders, in Line
Displacement: 5.655 L
Bore * Stroke: 100 * 120
Overall Dimension: 1125mm*673mm*815mm
Net Weight: 420 Kg
Key Performance Data
Continue Power(1500 RPM): 61 kW
Continue Power(1800 RPM): 71 kW
Max. Power Output(1500 RPM): 65 kW/1500 rpm
Max. Power Output(1800 RPM): 77 kW/1800 rpm
Rated Speed: 1500/1800 rpm
Prime/Standby Generator Power: 50 kW/53 kW
Noise Standard: 105 dB(a)
Fuel Consumption with Full-Load: 228/226 g/kW.h
More Technical Data
Aspiration: Turbocharged
Fuel System: Direct Injection Pump
Cooling Method: Air Cooling
Electrical System (Starter Motor/Alternator): Electronic Starting (12V/24V)
Compression Ratio: 17:1
Exhaust Gas Flow & Temprature: 5.45 m³/min; 550℃
Governor Type: Mechanical/Electronic Governor
Lubricant Capacity: 14 L
Technical Architecture & Power Matching Gaps
Most digital catalogs list generic, copy-pasted specification grids that leave out crucial engineering adjustments. When buying a Deutz F6L912T G-Drive engine, the configuration must precisely match your alternator’s mechanical load profile.
F6L912T Generator Engine Specifications vs. Competitor Baselines
The core distinction of the F6L912T lies in its combining of turbocharging with an inline, modular air-cooling setup. Competitors often blur the lines between automotive variants and generator power units. This engine features dedicated high-inertia flywheels designed specifically to minimize cyclic speed fluctuations during sudden electrical load changes.
- Engine Type: 6 Cylinder Deutz generator engine, inline, air-cooled, direct injection.
- Aspiration: Turbocharged air cooled diesel engine (optimizing high-altitude oxygen density).
- Continuous Output Profile: Perfectly tuned as a Deutz F6L912T standby generator engine or continuous prime power unit.
Deutz F6L912T Electronic Governor vs. Mechanical Governor Options
Choosing the correct governing system dictates your generator’s power quality. Standard distributor listings rarely explain how this choice affects downstream electronics.
The mechanical governor option utilizes a traditional centripetal flyweight setup. It is incredibly rugged, immune to electrical surges, and simple to repair in remote mining or agricultural zones. However, it permits a steady-state speed droop of roughly 3% to 5%. This makes it ideal for rugged, basic industrial loads like pumps, welding rigs, and simple construction site lighting.
For sensitive operations, HekoPower builds the Deutz F6L912T G drive engine with an electronic governor upgrade. This system pairs a magnetic speed sensor on the flywheel housing with an electronic actuator tied to the injection pump rack. It achieves a near-instantaneous load response with less than 1% speed droop. Specify this configuration if your genset powers digital telecom towers, sensitive field equipment, or modern hybrid microgrids.
Real Application Scenarios & Environmental Limits
Generic websites claim their engines run anywhere. In the field, engineering limits dictate real-world success. The turbocharged, air-cooled layout makes this F6L912T diesel generator engine perfect for environments where liquid cooling fails.
The Elimination of Hydronic Vulnerabilities in Remote Sites
Over 40% of standard diesel engine breakdowns stem directly from cooling system failures—leaking hoses, cracked radiators, cavitated water pumps, or frozen coolant blocks. The air cooled Deutz F6L912T entirely removes these failure points.
Individual cylinders feature deep cooling fins exposed to a massive axial cooling fan driven directly by the crankshaft via heavy-duty V-belts. Because it lacks a liquid jacket, this engine reaches its optimal operating temperature within minutes, drastically reducing cold-start cylinder wear during emergency standby deployment.
Thermal Resilience in Extreme Operational Zones
This engine excels where standard engines fail:
- Arid & High-Dust Environments: Without a radiator core to plug up with windblown sand, chaff, or dust, the F6L912T runs continuously in desert mining camps without thermal choking.
- Sub-Zero Operations: In extreme northern or alpine settings, there is no cooling fluid to freeze and crack the engine block. It starts reliably and runs without the risk of internal ice damage.
- High-Altitude Prime Power: The turbocharger actively compensates for thin air, maintaining fuel-efficient combustion even at altitudes exceeding 2,500 meters. This makes it a preferred choice for high-altitude telecommunication relays and isolated infrastructure.
Maintenance Metrics, Fuel Profiles, and Component Longevity
Achieving a low total cost of ownership requires looking past the initial Deutz F6L912T engine price to study the actual operational metrics.
Deutz F6L912T Fuel Consumption & Real Thermal Efficiency
The direct-injection system combined with precision turbocharging yields a highly efficient combustion profile. The fuel consumption curve remains remarkably flat across the vital 50% to 100% load range, which prevents wet-stacking (unburnt fuel buildup) during extended light-load runs.
To preserve long-term injector health when drawing from contaminated regional fuel tanks, HekoPower fits these units with a high-capacity primary fuel-water separator alongside dual parallel spin-on secondary fuel filters.
Preventive Maintenance Guide for High-Hour Operation
Keep your air cooled turbocharged generator engine running smoothly by following these clear operational checkpoints:
- Cooling Fin Inspection (Every 125 Hours): Because the engine relies entirely on unrestricted airflow, inspect the spaces between the individual cylinder cooling fins. Remove any accumulated dirt, grease, or debris using compressed air or a pressure washer. A blocked fin creates localized hot spots, accelerating piston ring wear.
- V-Belt Tension Calibration (Every 250 Hours): The axial cooling fan relies on absolute belt integrity. Check belt tension frequently. A slipping belt reduces airflow, causing rapid cylinder head temperature spikes.
- Valve Clearance Adjustment (Every 500 Hours): Maintain mechanical valve clearances strictly at 0.15mm for intake and 0.25mm for exhaust on a completely cold engine. Correct adjustment ensures precise gas exchange and prevents valve face burning.
Procurement Guide: Global Logistics & Sourcing Clarity
Navigating the global supply chain requires absolute transparency regarding manufacturing origins, component authenticity, and physical shipping footprints.
Genuine Beinei Deutz F6L912T Identification
HekoPower supplies authentic, heavy-duty industrial power units manufactured under strict licensed frameworks, ensuring dimensional and metallurgical equivalence to original global designs. Each genuine Beinei Deutz F6L912T features an engraved, serialized steel data plate mounted directly onto the crankcase block.
Every engine shipment includes official factory test reports, performance curve documentation, and a certified certificate of origin. This protects your operation from unverified third-party builders who often construct engines from non-hardened, recycled aftermarket parts.
Deutz F6L912T Engine Container Shipping Weight and Dimensions
For international logistics planners and genset builders calculations, use these exact physical metrics to map out container layout space, freight costs, and port handling needs.
Every complete engine assembly shipped by HekoPower undergoes an anti-corrosion wash, is sealed in a heavy-duty vapor-barrier vacuum bag, and is bolted securely inside an ISPM-15 compliant, heat-treated wooden sea freight box.
Deutz F2L912/FL913-Generator Engine Series, original products from Beinei Deutz Engine Plant. This series mainly includes Deutz F2L912, Deutz F3L912, Deutz F3L913, Deutz F4L912, Deutz F4L912T, Deutz F4L913, Deutz BF4L913, Deutz F6L912, Deutz F6L912T, Deutz F6L913, Deutz BF6L913, Deutz BF6L913C. In accordance with the criteria of Machinery Safety Directive 2006/42, movable elements such as distribution belts, fans, and parts that acquire high temperatures during operation, such as exhaust manifolds, have their respective safeguards. Before being delivered, the generator is thoroughly checked at the factory. Voltage, frequency, and load are all tested, as well as the appropriate operation of warnings and the influence of engine oil temperature on stop.
Engineering FAQs & System Integration
How do I properly align the F6L912T engine to a single-bearing alternator?
Every Deutz F6L912T wholesale engine ordered for generator assembly features standard SAE flywheel and housing dimensions (typically SAE 3 housing with an 11.5-inch flywheel configuration). When coupling to a single-bearing alternator, ensure the flexible coupling discs are completely flush against the flywheel recess before tightening the grade 10.9 bolts to the specified torque. Use a dial indicator to check that axial and radial runout stays well within 0.05mm to avoid premature rear main seal leaks or bearing failures.
What specific grade of lubricating oil is required for this air-cooled engine?
Because an air-cooled engine operates with higher cylinder wall temperatures than a liquid-cooled engine, oil stability is absolutely critical. Use a high-performance, shear-stable heavy-duty diesel engine oil matching API CH-4 or CI-4 specifications. For standard ambient operating conditions between -15°C and +40°C, a high-quality 15W-40 viscosity grade provides excellent thermal protection and prevents oil film breakdown at peak engine loads.
Can the F6L912T operate safely at variable speeds for industrial pumping?
While optimized as a fixed-speed Deutz F6L912T industrial generator engine, this rugged block can be modified with a variable-speed mechanical throttle linkage for industrial power unit applications. However, if you plan to run it below 1200 RPM for extended periods, contact the HekoPower engineering team first. Running at lower speeds reduces the cooling fan's RPM, which requires careful management of fuel injection limits to prevent overheating.
What is the standard warranty and spare parts availability framework?
HekoPower covers every wholesale Beinei Deutz F6L912T engine assembly with a comprehensive 12-month or 1,000-operating-hour warranty (whichever comes first), starting from the day it passes through your port of entry. Because we maintain a dedicated industrial warehouse, we guarantee ongoing access to genuine Deutz F6L912T spare parts—including complete cylinder liner kits, injection nozzles, turbochargers, and gasket kits—ensuring your power systems stay up and running for years to come.
