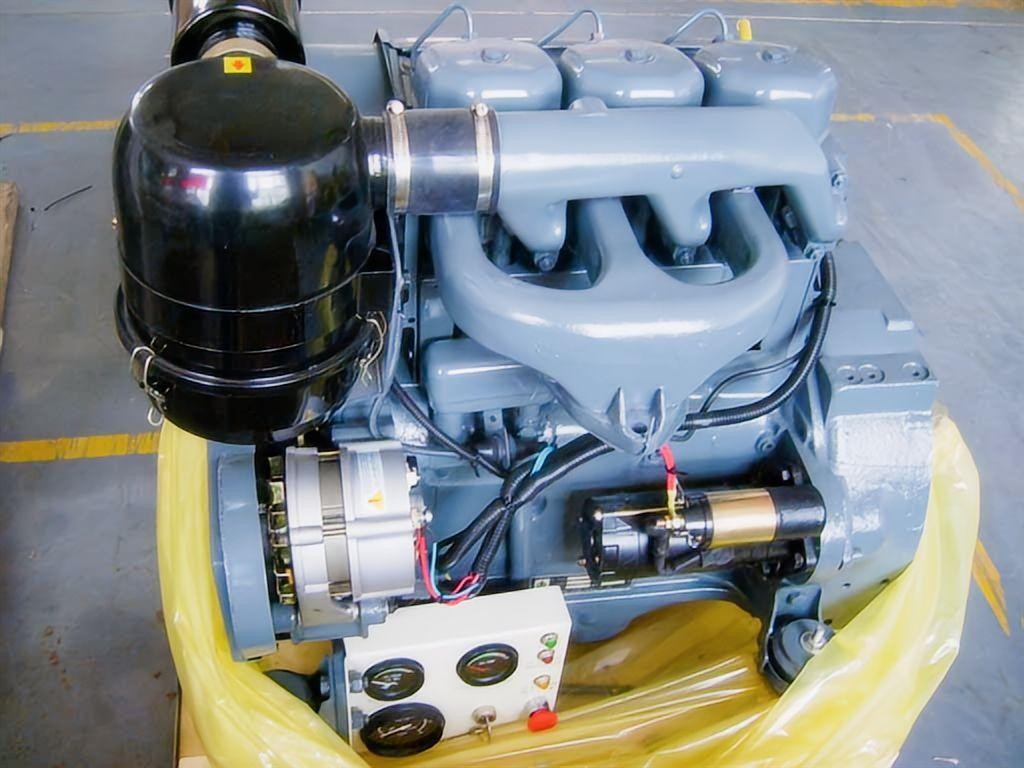

Deutz F3L913 Generator Engine: Reliable 3-Cylinder Air-Cooled Power
When you need uninterrupted power in remote or harsh environments, liquid cooling systems can become a liability. The Deutz F3L913 generator engine eliminates this risk entirely. As a cornerstone of the Deutz FL913 Series, this naturally aspirated, 3-cylinder Deutz engine delivers uncompromising mechanical reliability.
HekoPower supplies original Beinei Deutz F3L913 engines designed specifically for continuous and standby power generation. Whether you are assembling a new genset or seeking a Deutz F3L913 replacement engine for an aging unit, this engine provides a straightforward, robust power solution.
Tech Specs of Deutz F3L913 Generator Engine
General Engine Data
Engine Model: Deutz F3L913-Generator Engine
Type: 3 Cylinders, in Line
Displacement: 3.064 L
Bore * Stroke: 102 * 125
Overall Dimension: 730mm*673mm*820mm
Net Weight: 280 Kg
Key Performance Data
Continue Power(1500 RPM): 25 kW
Continue Power(1800 RPM): 31 kW
Max. Power Output(1500 RPM): 27 kW/1500 rpm
Max. Power Output(1800 RPM): 33 kW/1800 rpm
Rated Speed: 1500/1800 rpm
Prime/Standby Generator Power: 20 kW/23 kW
Noise Standard: 103 dB(a)
Fuel Consumption with Full-Load: 232 g/kW.h
More Technical Data
Aspiration: Natural Intake
Fuel System: Direct Injection Pump
Cooling Method: Air Cooling
Electrical System (Starter Motor/Alternator): Electronic Starting (12V/24V)
Compression Ratio: 17:1
Exhaust Gas Flow & Temprature: 2.4 m³/min; 500℃
Governor Type: Mechanical/Electronic Governor
Why Choose the Air-Cooled Deutz F3L913 Genset Engine?
Many procurement managers default to water-cooled engines without considering the operational environment. The air-cooled Deutz F3L913 diesel engine offers distinct advantages that directly impact your total cost of ownership.
The Air-Cooled Advantage in Extreme Environments
Water pumps fail. Radiators leak. Coolant freezes. The Beinei Deutz F3L913 bypasses these common failure points. By utilizing a heavy-duty cooling fan driven directly by the engine, it maintains optimal operating temperatures without relying on external fluid systems.
This makes the Deutz F3L913 industrial engine the preferred choice for desert construction sites, high-altitude mining camps, and sub-zero environments. It is a highly sought-after Deutz F3L913 engine for remote power supply applications where daily maintenance access is impossible.
Mechanical Simplicity vs. Electronic Complexity
Modern engines often rely on complex electronic control units (ECUs). While efficient, an ECU failure in the field requires specialized diagnostic laptops to repair. The Deutz mechanical diesel engine design of the F3L913 is refreshingly traditional.
It utilizes mechanical fuel injection. A skilled technician with basic hand tools can service, tune, and repair this engine anywhere in the world. This simplicity makes it a highly requested Deutz F3L913 engine for telecom backup power, where technicians may not have access to OEM diagnostic software.
Ideal Application Scenarios for the F3L913
The power profile of this engine makes it versatile, but it excels in specific genset configurations.
Prime Power for Small Industrial Sites
A Deutz F3L913 generator engine 25kw 1500rpm configuration provides excellent prime power for mobile construction lighting towers, small agricultural irrigation pumps, and off-grid cabins. Its fuel consumption curve is optimized for running at a constant load for 12 to 24 hours at a time.
Standby Power Generation
When the grid fails, you need an engine that starts immediately, even if it has been sitting idle for months. The Deutz F3L913 engine for standby generator sets is highly reliable. Because it lacks a water jacket, there is no risk of internal coolant corrosion during long periods of inactivity. A Deutz F3L913 replacement engine 31kw 1800rpm is a common upgrade for legacy backup systems in small manufacturing facilities.
Maintenance and Longevity Insights
Keeping your Deutz 3 cylinder generator engine running requires a slightly different approach than maintaining a standard water-cooled engine.
Managing Heat and Airflow
A common misconception is that air-cooled engines can operate anywhere. While they don't need water, they absolutely need fresh air. Ensure your generator enclosure has adequate ventilation. The cooling fan must draw in cool ambient air; if it recirculates hot exhaust air, the engine will overheat. Regularly inspect the cylinder cooling fins. Dust and debris can pack between the fins, insulating the cylinder and causing localized overheating. Blow out the fins with compressed air during every oil change.
Oil is Your Coolant
In a Deutz natural aspirated generator engine like the F3L913, the engine oil does double duty. It lubricates the moving parts, but it also absorbs a significant amount of heat from the pistons and carries it to the oil cooler. You cannot ignore oil change intervals on this engine. Never use a lower grade oil than specified; thermal breakdown of the oil will lead to catastrophic failure.
Replacing Your Existing Deutz F3L913
When a catastrophic failure occurs on an older genset, repairing the engine is often more expensive than replacing it. HekoPower operates as a primary Deutz F3L913 generator engine supplier in China, providing direct replacements.
When ordering a replacement, it is crucial to match the governor settings. An engine tuned for a water pump will not govern engine speed tightly enough for power generation, resulting in fluctuating electrical frequency. Specify that you need a Deutz F3L913 power generation engine to ensure the fuel injection pump is calibrated for constant RPM operation (1500 or 1800 rpm).
Deutz F2L912/FL913-Generator Engine Series, original products from Beinei Deutz Engine Plant. This series mainly includes Deutz F2L912, Deutz F3L912, Deutz F3L913, Deutz F4L912, Deutz F4L912T, Deutz F4L913, Deutz BF4L913, Deutz F6L912, Deutz F6L912T, Deutz F6L913, Deutz BF6L913, Deutz BF6L913C. In accordance with the criteria of Machinery Safety Directive 2006/42, movable elements such as distribution belts, fans, and parts that acquire high temperatures during operation, such as exhaust manifolds, have their respective safeguards. Before being delivered, the generator is thoroughly checked at the factory. Voltage, frequency, and load are all tested, as well as the appropriate operation of warnings and the influence of engine oil temperature on stop.
Frequently Asked Questions
Is the Beinei Deutz F3L913 the same as a German Deutz?
Beinei operates under a joint venture and technology transfer agreement with Deutz AG. The Beinei Deutz F3L913 engine supplier network produces engines that are structurally and mechanically identical to the original German designs, utilizing the exact same manufacturing tolerances and metallurgy. Parts are fully interchangeable.
What is the fuel consumption of this engine?
Deutz F3L913 fuel consumption is highly dependent on the electrical load applied to the generator. However, mechanical Deutz engines are renowned for their fuel efficiency compared to similar displacement indirect-injection engines.
Where to buy a Deutz F3L913 generator engine with genuine parts?
You can source original equipment directly through HekoPower. We provide affordable Deutz F3L913 genset engine options complete with factory testing certificates, ensuring you receive a genuine, load-tested engine ready for integration.
Can I run the F3L913 at variable speeds?
While the engine architecture allows for variable speeds (often used in tractors or excavators), the specific fuel pump and governor configuration supplied for generator sets is locked to a specific RPM. You must specify whether you need a Deutz F3L913 1500 rpm generator engine (for 50Hz) or a Deutz F3L913 1800 rpm generator engine (for 60Hz) at the time of order.
