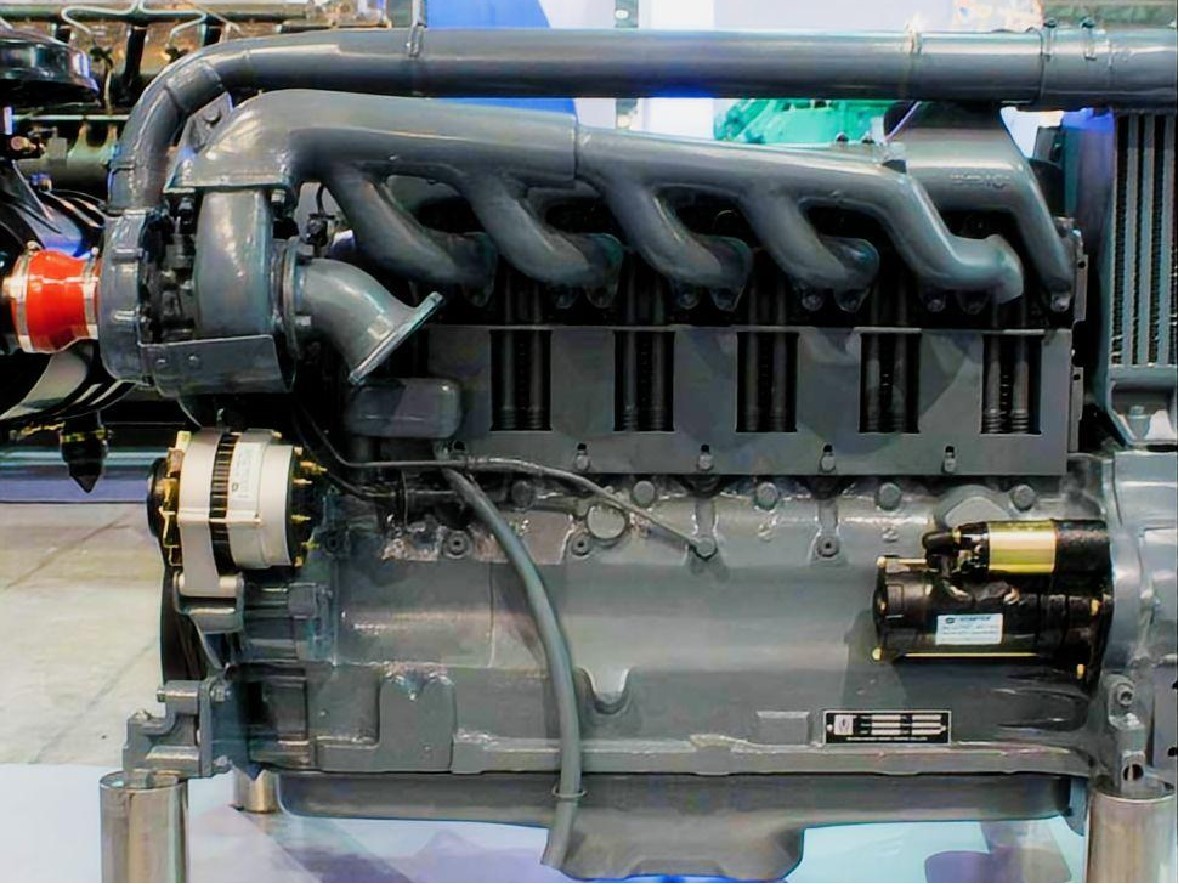

Deutz BF6L913 Turbocharged Air-Cooled Generator Engine
The Deutz BF6L913 generator engine represents a benchmark in dependable off-grid power generation. Manufactured to rigorous standards, this air-cooled 6 cylinder Deutz generator engine is specifically engineered for environments where liquid-cooled systems fail. HekoPower supplies the complete Huachai Deutz BF6L913 prime mover, delivering a robust solution for clients building or repowering industrial gensets.
With a total displacement of 6.128L and a precise 102 x 125 mm diesel engine bore and stroke, this model is built for high volumetric efficiency. It operates seamlessly across global electrical standards, functioning as a 1500RPM 1800RPM Deutz BF6L913 engine. This allows it to serve as a reliable 50Hz generator engine or 60Hz generator engine with minimal mechanical adjustment.
Tech Specs of Deutz BF6L913 Generator Engine
General Engine Data
Engine Model: Deutz BF6L913-Generator Engine
Type: 6 Cylinders, in Line
Displacement: 6.128 L
Bore * Stroke: 102 * 125
Overall Dimension: 1134mm*711mm*910mm
Net Weight: 485 Kg
Key Performance Data
Continue Power(1500 RPM): 65 kW
Continue Power(1800 RPM): 78 kW
Max. Power Output(1500 RPM): 69 kW/1500 rpm
Max. Power Output(1800 RPM): 82 kW/1800 rpm
Rated Speed: 1500/1800 rpm
Prime/Standby Generator Power: 55 kW/60 kW
Noise Standard: 108 dB(a)
Fuel Consumption with Full-Load: 220 g/kW.h
More Technical Data
Aspiration: Turbocharged
Fuel System: Direct Injection Pump
Cooling Method: Air Cooling
Electrical System (Starter Motor/Alternator): Electronic Starting (12V/24V)
Compression Ratio: 18:1
Exhaust Gas Flow & Temprature: 6.04 m³/min; 550℃
Governor Type: Mechanical/Electronic Governor
Lubricant Capacity: 14-20 L
Turbocharged Power for 75kVA to 100kVA Gensets
Sizing an engine correctly is the most critical step in generator design. The Deutz BF6L913 engine for 75kVA to 100kVA generator set applications hits a highly sought-after power node. When configured as a Deutz BF6L913 65kW generator engine running at 1500 rpm, it provides stable 50Hz continuous power.
For regions requiring 60Hz, the engine scales up effortlessly. The Deutz BF6L913 78kW generator engine configuration runs at 1800 rpm, maintaining exceptional load acceptance. Whether you need a BF6L913 55 kW prime generator engine for continuous duty or a BF6L913 60 kW standby generator engine for emergency backup power, the turbocharged aspiration ensures consistent torque delivery even under sudden electrical load shifts.
Real-World Application Scenarios
The true value of the BF6L913 air cooled generator engine lies in its environmental resilience. Liquid-cooled engines require radiators, water pumps, hoses, and coolant—all of which introduce potential failure points in extreme climates. The BF6L913 eliminates these risks entirely.
This makes the BF6L913 generator engine for remote power installations the ultimate choice. Telecommunication towers in arid deserts, mining camps operating off-grid, and stationary generators in freezing high-altitude environments rely on this architecture. The high-capacity axial cooling fan ensures the engine maintains optimal operating temperatures regardless of ambient weather. Furthermore, as a BF6L913 direct injection generator engine, it offers excellent cold-start capabilities without the need for complex pre-heating systems.
Technical Comparisons: Navigating the 913 Series
Buyers frequently ask us to clarify the differences between the various 6-cylinder models in the 913 family. Understanding the nomenclature is vital for selecting the right prime mover. The "B" in BF6L913 denotes a turbocharger, which significantly alters the engine's performance profile compared to its naturally aspirated and intercooled siblings.
BF6L913 vs F6L913 Generator Engine
When evaluating the Deutz BF6L913 vs F6L913, the core difference is aspiration. The F6L913 is naturally aspirated, relying solely on atmospheric pressure to draw air into the cylinders. This makes it slightly simpler, but it limits its power output and altitude capability.
The BF6L913 turbocharged vs F6L913 naturally aspirated debate usually comes down to required output and operating elevation. The turbocharger on the BF6L913 forces compressed air into the combustion chamber. This allows more fuel to be burned efficiently, resulting in a higher power density from the exact same 6.128L footprint. If a client asks which Deutz 913 engine for 60 kW generator applications is best, the 65 kW BF6L913 vs F6L913 generator engine comparison heavily favors the BF6L913. The turbocharged model easily handles a 60 kW electrical load with a comfortable mechanical buffer, whereas the F6L913 would be running too close to its absolute maximum limit, risking premature wear.
BF6L913 vs BF6L913C Generator Engine
Moving up the power band, we look against the BF6L913C. The "C" indicates the addition of a charge air cooler, or intercooler. When comparing the BF6L913C vs BF6L913 power, the intercooled model produces even higher output because it cools the compressed air from the turbocharger before it enters the engine, making it denser.
However, the Deutz BF6L913 vs BF6L913C generator engine decision isn't just about maximizing power. The standard BF6L913 is often preferred for 75kVA to 100kVA applications because it lacks the added plumbing and maintenance requirements of an intercooler. For a strictly 65kW to 78kW requirement, the BF6L913 offers the perfect balance of high power and mechanical simplicity.
Installation, Maintenance, and Replacement Tips
HekoPower is a premier Deutz BF6L913 replacement engine complete assembly supplier. When replacing an aging engine, integration is straightforward thanks to standardized Deutz BF6L913 engine mounting dimensions and the standard SAE flywheel housing. This ensures seamless coupling with major alternator brands.
Proper installation requires careful attention to the Huachai Deutz BF6L913 heat rejection and airflow requirement. Because the engine relies entirely on air for cooling, the generator canopy must be designed with adequate intake louvers and exhaust venting. Restricting the airflow to the axial fan will cause overheating.
When tuning the BF6L913 turbocharged diesel engine governor system for genset operation, mechanics must ensure the linkage is entirely free of binding. This mechanical diesel generator engine utilizes a highly responsive mechanical governor to maintain strict frequency control. Regular maintenance should focus on keeping the cylinder cooling fins clean; dirt and oil buildup on these fins acts as insulation, trapping heat and reducing engine lifespan.
A Common Misconception About Mechanical Engines
There is a frequent misconception that mechanical engines like the BF6L913 are outdated compared to modern electronically controlled (ECU) common-rail engines. In reality, for off-grid power, mechanical injection is a deliberate advantage. Electronic engines are highly sensitive to poor fuel quality and require computerized diagnostic tools to troubleshoot. The BF6L913 will run reliably on lower-grade diesel found in remote areas, and any experienced diesel mechanic can service it using standard hand tools.
Explore the Complete 913 Engine Family
Selecting the perfect engine often requires looking at the broader product family to ensure your exact power and space constraints are met. While the turbocharged BF6L913 is the optimal choice for the 65kW to 78kW range, your specific project might require the naturally aspirated simplicity of the standard models or the maximized output of the charge-air-cooled variants.
Deutz F2L912/FL913-Generator Engine Series, original products from Beinei Deutz Engine Plant. This series mainly includes Deutz F2L912, Deutz F3L912, Deutz F3L913, Deutz F4L912, Deutz F4L912T, Deutz F4L913, Deutz BF4L913, Deutz F6L912, Deutz F6L912T, Deutz F6L913, Deutz BF6L913, Deutz BF6L913C. In accordance with the criteria of Machinery Safety Directive 2006/42, movable elements such as distribution belts, fans, and parts that acquire high temperatures during operation, such as exhaust manifolds, have their respective safeguards. Before being delivered, the generator is thoroughly checked at the factory. Voltage, frequency, and load are all tested, as well as the appropriate operation of warnings and the influence of engine oil temperature on stop.
Frequently Asked Questions (FAQ)
What is the Deutz BF6L913 fuel consumption rate at full load?
Fuel efficiency is a strong point for this model. The Deutz BF6L913 fuel consumption rate at full load generally hovers around 210 to 225 g/kWh, depending on the exact tuning and environmental conditions. This low consumption makes it highly economical for continuous prime power applications.
Can this engine be easily switched between 50Hz and 60Hz operation?
Yes. The engine can be configured as a BF6L913 1500 rpm 50Hz generator engine or a BF6L913 1800 rpm 60Hz generator engine. This change involves adjusting the mechanical governor settings to lock in the new operating speed.
Is HekoPower a direct supplier for these engines?
Yes, HekoPower is a leading Deutz BF6L913 generator engine supplier and exporter. We operate as a trusted Deutz BF6L913 diesel engine supplier in China, providing competitive BF6L913 engine wholesale pricing. We offer the BF6L913 complete engine assembly ready for immediate coupling.
Can I use this engine for emergency backup power?
Absolutely. It is an exceptional BF6L913 engine for standby generator setups. Because it is air-cooled, there is no engine coolant to pre-heat in cold climates, allowing the BF6L913 engine for emergency generator applications to reach full load acceptance incredibly fast during a grid failure.
