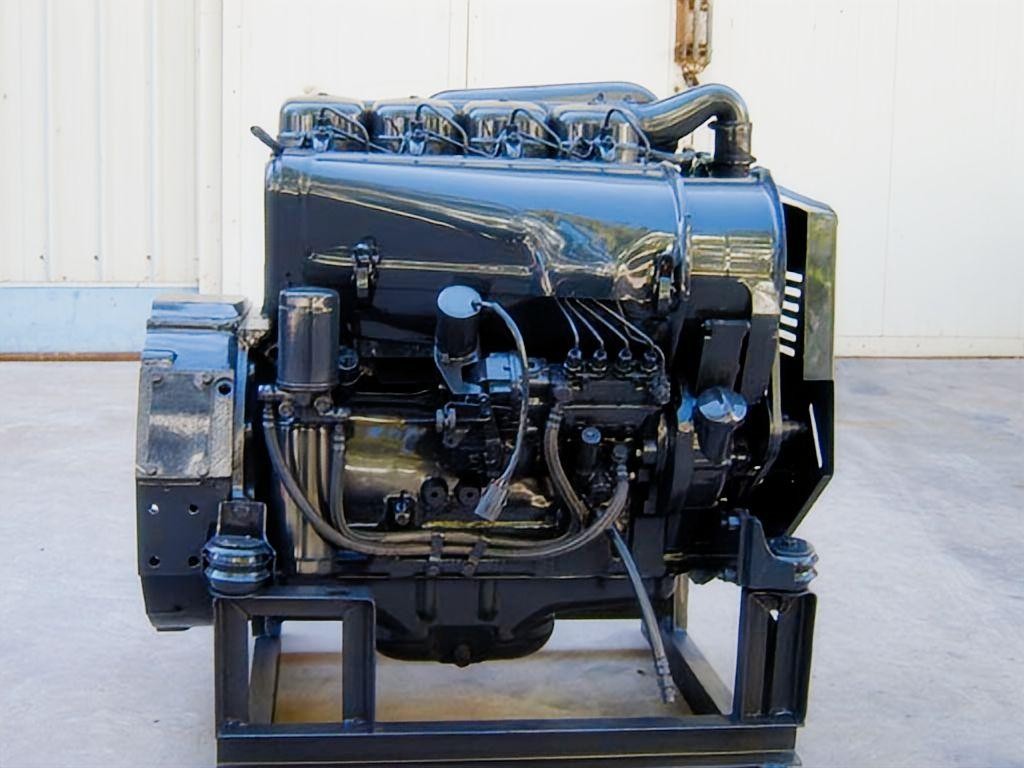

Deutz F4L912 Air-Cooled Generator Engine
The Deutz F4L912 generator engine represents a highly durable solution for continuous and standby power generation. Built as a 4-cylinder air-cooled diesel engine, it delivers a consistent power output tailored for mid-range electrical demands. Customers configuring a 30 kW generator or 40 kW generator frequently select this exact naturally aspirated generator engine due to its straightforward mechanical design, robust thermal management, and proven field reliability.
Tech Specs of Deutz F4L912
General Engine Data
Engine Model: Deutz F4L912-Generator Engine
Type: 4 Cylinders, in Line
Displacement: 3.77 L
Bore * Stroke: 100 * 120
Overall Dimension: 860mm*673mm*815mm
Net Weight: 300 Kg
Key Performance Data
Continue Power(1500 RPM): 32 kW
Continue Power(1800 RPM): 38 kW
Max. Power Output(1500 RPM): 35 kW/1500 rpm
Max. Power Output(1800 RPM): 42 kW/1800 rpm
Rated Speed: 1500/1800 rpm
Prime/Standby Generator Power: 24 kW/28 kW
Noise Standard: 103 dB(a)
Fuel Consumption with Full-Load: 232 g/kW.h
More Technical Data
Aspiration: Natural Intake
Fuel System: Direct Injection Pump
Cooling Method: Air Cooling
Electrical System (Starter Motor/Alternator): Electronic Starting (12V/24V)
Compression Ratio: 17:1
Exhaust Gas Flow & Temprature: 2.4 m³/min; 500℃
Governor Type: Mechanical/Electronic Governor
Lubricant Capacity: 11 L
Technical Comparisons: 1500 rpm vs 1800 rpm Configurations
Procurement managers and engineers frequently evaluate the F4L912 1500 rpm vs 1800 rpm generator engine configurations to match their regional electrical grids.
Operating the engine at 1500 rpm paired with a 4-pole alternator generates 50Hz electrical power, providing a steady 32 kW output. This F4L912 32 kW generator engine setup is the standard requirement for industrial and commercial applications across Europe, Asia, Africa, and Oceania.
Conversely, increasing the engine speed to 1800 rpm yields 60Hz power and pushes the mechanical output to 38 kW. The 38 kW F4L912 diesel generator engine configuration is strictly utilized for North American and specific South American markets where the grid frequency operates at 60Hz.
Both the F4L912 32 kW diesel engine and the F4L912 38 kW diesel engine maintain identical physical dimensions, block designs, and mounting points. They also share the same F4L912 mechanical governor diesel engine control system. This mechanical governing provides rapid load response and stable frequency control without requiring complex, sensitive digital electronic control units (ECUs). Ultimately, choosing between the F4L912 32 kW vs 38 kW models simply dictates the geographic application and the specific alternator pairing required for your genset assembly.
Real Application Scenarios for the F4L912 Genset Engine
The Beinei Deutz F4L912 engine excels in challenging operating environments where liquid-cooled engines struggle to survive. In remote telecom tower installations, routine maintenance of coolant levels is logistically difficult and expensive. The air-cooled nature of the F4L912 makes it the preferred engine for backup power in these uncrewed, isolated locations.
Construction sites operating heavy industrial genset equipment also heavily favor this specific model. The absence of a delicate radiator core means that heavy vibrations from adjacent earth-moving machinery, or impacts during frequent site relocations, will not cause catastrophic coolant leaks.
Furthermore, mining and quarry operations utilize the F4L912 prime power generator engine to drive continuous dewatering pumps and illuminate underground lighting plants. The reliable 12V 24V starting system ensures the engine fires up immediately, even in harsh, dust-heavy conditions where operational downtime results in severe financial losses.
Maintenance and Deutz Generator Engine Replacement
Routine Deutz F4L912 engine maintenance involves significantly fewer steps than servicing liquid-cooled counterparts. Service technicians can entirely skip coolant flushes and radiator pressure tests. Instead, maintenance focuses primarily on monitoring the cooling fan belt tension and keeping the cylinder cooling fins free of heavy dust or oil debris.
Regular valve clearance adjustments and timely changes of the lubricating oil are essential for maintaining the target F4L912 generator engine fuel consumption figures. When it comes to comprehensive F4L912 generator engine troubleshooting, the straightforward mechanical design means mechanics can quickly diagnose issues without proprietary computer diagnostic software.
When managing a Deutz generator engine replacement, the standard SAE flywheel housing allows for quick and seamless coupling to most major global alternator brands. For older, heavily utilized gensets, installing a complete Deutz F4L912 replacement generator engine is often much faster and more cost-effective than undertaking a major overhaul of a worn-out block. HekoPower stocks a comprehensive inventory of F4L912 generator engine service parts, including the critical direct injection pump for Deutz F4L912, guaranteeing minimal downtime for our clients.
Proper F4L912 generator engine installation requires specific attention to airflow. Because it relies entirely on ambient air for cooling, the genset canopy or generator room must be designed to prevent the hot exhaust air from recirculating back into the axial cooling fan intake.
Common Misconceptions About Air-Cooled Diesel Engines
A frequent misconception in the power generation industry is that an air cooled genset engine will overheat faster than a liquid-cooled engine in high ambient temperature environments. In reality, the Deutz FL912 Series G-Drive Engine operates with a much larger temperature differential between the hot cylinder wall and the cooling medium (ambient air) than a water-cooled engine does with its liquid coolant. This stark temperature difference allows heat transfer to occur rapidly and highly effectively, enabling the F4L912 to operate safely even in extreme desert climates.
Another persistent misunderstanding involves the engine's acoustic profile. While early generations of air-cooled engines were notably loud due to the absence of a water jacket to dampen internal combustion noise, modern acoustic enclosures designed specifically for the F4L912 32 kW standby generator engine effectively mitigate operating noise. Proper canopy design allows these units to easily meet stringent urban residential acoustic standards.
Deutz FL912 Series Overview
While the 4-cylinder F4L912 provides an excellent balance of compact size and reliable power for mid-range applications, different power generation projects demand varied outputs. To accommodate precise power requirements across our global client base, HekoPower provides the complete lineup of related air-cooled engines.
Deutz F2L912/FL913-Generator Engine Series, original products from Beinei Deutz Engine Plant. This series mainly includes Deutz F2L912, Deutz F3L912, Deutz F3L913, Deutz F4L912, Deutz F4L912T, Deutz F4L913, Deutz BF4L913, Deutz F6L912, Deutz F6L912T, Deutz F6L913, Deutz BF6L913, Deutz BF6L913C. In accordance with the criteria of Machinery Safety Directive 2006/42, movable elements such as distribution belts, fans, and parts that acquire high temperatures during operation, such as exhaust manifolds, have their respective safeguards. Before being delivered, the generator is thoroughly checked at the factory. Voltage, frequency, and load are all tested, as well as the appropriate operation of warnings and the influence of engine oil temperature on stop.
Frequently Asked Questions (FAQ)
What is the standard Deutz F4L912 engine price?
Pricing fluctuates based on the specific electrical configuration required for your project, such as selecting a 12V versus 24V starting system, and the volume of the order. Whether you need a single replacement unit or are placing a wholesale Deutz F4L912 generator engine order for an OEM assembly line, we provide competitive terms. Contact our sales engineering team directly for the most current Deutz F4L912 agent wholesale price.
Can I use this engine for a continuous prime power application?
Yes. The F4L912 is officially rated for both prime and standby duty cycles. As a prime power generator engine, it is designed to run continuously under varying loads, with a 10% overload capacity available for one hour within every twelve hours of operation.
Where can I source a Deutz F4L912 generator engine for sale?
As a specialized Deutz F4L912 engine exporter and dedicated Deutz F4L912 diesel engine supplier, HekoPower ships these generator drive engines globally. We provide complete factory testing and quality assurance documentation prior to every international dispatch.
What are the first steps for troubleshooting a starting failure?
If the engine fails to crank or start, technicians should first verify the voltage drop across the 12V 24V starting system. If the starter engages but the engine does not fire, inspect the fuel delivery lines and the direct injection pump. Because this is a mechanical engine without an ECU, fuel starvation or air in the fuel lines is the most common cause of starting failure, rather than complex electrical sensor breakdowns.
