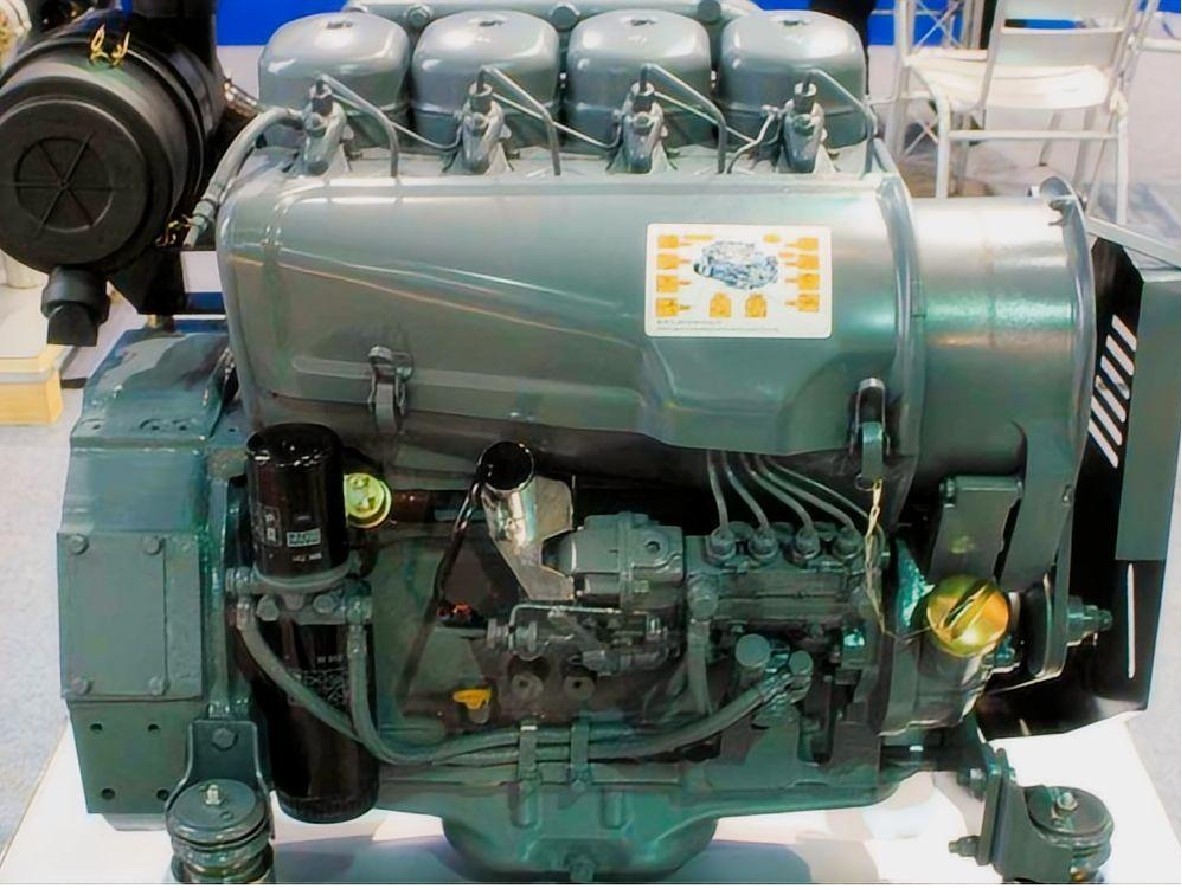

Deutz F4L912T Generator Engine: 41kW / 48kW Air-Cooled Power
The Deutz F4L912T generator engine is a robust, turbocharged solution designed for demanding continuous and emergency power generation. As a dedicated engine supplier, HekoPower provides this 4 cylinder inline air-cooled Deutz engine directly to equipment manufacturers, mining operators, and industrial facilities globally. Engineered for high reliability in harsh environments, this specific model leverages advanced air-cooling technology, eliminating the maintenance burdens associated with traditional liquid-cooled radiators.
Whether you are designing a new mobile lighting tower or seeking an original Deutz F4L912T replacement engine supplier for an aging fleet, this model delivers consistent voltage stability. It provides a rated output of 41kW at 1500rpm for 50Hz applications, and scales up to 48kW at 1800rpm to meet 60Hz requirements.
Tech Specs of Deutz F4L912T Generator Engine
General Engine Data
Engine Model: Deutz F4L912T-Generator Engine
Type: 4 Cylinders, in Line
Displacement: 3.77 L
Bore * Stroke: 100 * 120
Overall Dimension: 865mm*673mm*815mm
Net Weight: 310 Kg
Key Performance Data
Continue Power(1500 RPM): 41 kW
Continue Power(1800 RPM): 48 kW
Max. Power Output(1500 RPM): 45 kW/1500 rpm
Max. Power Output(1800 RPM): 52 kW/1800 rpm
Rated Speed: 1500/1800 rpm
Prime/Standby Generator Power: 35 kW/40 kW
Noise Standard: 105 dB(a)
Fuel Consumption with Full-Load: 220/217 g/kW.h
More Technical Data
Aspiration: Turbocharged
Fuel System: Direct Injection Pump
Cooling Method: Air Cooling
Electrical System (Starter Motor/Alternator): Electronic Starting (12V/24V)
Compression Ratio: 17:1
Exhaust Gas Flow & Temprature: 3.17 m³/min; 550℃
Governor Type: Mechanical/Electronic Governor
Lubricant Capacity: 12 L
Technical Comparison: The Turbocharged Advantage
To avoid confusion among the Deutz 912 series diesel engine lineup, it is vital to understand the distinction between the standard F4L912 and the F4L912T. The "T" designation indicates the integration of a turbocharger. This single component transforms the operational profile of the engine.
While the standard naturally aspirated four-cylinder model is suitable for lightweight, sea-level applications, the turbocharged Deutz F4L912T generator engine thrives under heavy electrical load steps and high-altitude environments. The forced induction system packs more dense air into the combustion chamber. This allows the engine to recover engine speed (RPM) much faster when a sudden electrical demand is applied to the generator set. For facilities relying on a Deutz F4L912T emergency power engine, this rapid load acceptance prevents voltage dips and protects sensitive connected equipment.
Real-World Industrial Generator Applications
The versatility of the Deutz F4L912T 48kW generator engine makes it an industry standard across multiple sectors. Its air-cooled design removes the risk of coolant freezing in sub-zero climates or boiling over in extreme desert heat, making it the preferred choice for mobile power generation.
In the mining and quarrying sector, dust and debris rapidly clog standard water radiators, leading to catastrophic overheating. The wide cooling fins on the Beinei Deutz F4L912T engine block allow particulate matter to pass through without restricting airflow. This makes it a highly reliable Deutz F4L912T prime power generator engine for off-grid worker camps and extraction sites.
In urban environments, it frequently serves as a Deutz F4L912T standby generator engine for commercial buildings and telecommunications towers. Because air-cooled engines have fewer peripheral components—no water pumps, coolant hoses, or thermostats—the likelihood of a startup failure during a sudden grid blackout is drastically reduced.
Installation, Maintenance, and Replacement Guidelines
Proper maintenance extends the lifecycle of any Deutz FL912 series generator engine. Because this engine relies entirely on a mechanical cooling blower, keeping the external cooling fins clean is the most critical maintenance task. Operators should use compressed air to blow out any accumulated dirt or oil residue from the cylinder heads every 250 operating hours.
Engine oil acts as a secondary cooling medium in air-cooled designs. Adhering to strict oil and filter change intervals is non-negotiable. Ensure you are using heavy-duty diesel engine oil rated for high-temperature stability.
When replacing an older unit, the Deutz F4L912T engine specifications and dimensions (approximately 865x673x815mm) allow for seamless drop-in replacements. As an established China Deutz F4L912T engine manufacturer and supplier, HekoPower ensures that all mounting points, flywheel housings, and PTO connections match your existing skid base perfectly, minimizing downtime during the swap.
Common Misconceptions About Air-Cooled Diesel Generator Engines
Many facility managers mistakenly believe that an air-cooled diesel generator engine cannot operate safely in high summer ambient temperatures. This is a myth. The Deutz integrated axial cooling fan is driven directly by the engine gear train, pushing high-velocity air across precisely engineered cast-iron cooling fins. The system is designed to dissipate heat efficiently even in ambient temperatures exceeding 50°C (122°F).
Another frequent misconception is regarding noise. While early generation air-cooled engines were undeniably loud, modern Deutz F4L912T genset engine configurations utilize optimized combustion chambers and advanced sound-attenuating canopy designs. When installed in a proper acoustic enclosure, these generator sets easily meet strict urban noise emission standards.
Deutz F2L912/FL913-Generator Engine Series, original products from Beinei Deutz Engine Plant. This series mainly includes Deutz F2L912, Deutz F3L912, Deutz F3L913, Deutz F4L912, Deutz F4L912T, Deutz F4L913, Deutz BF4L913, Deutz F6L912, Deutz F6L912T, Deutz F6L913, Deutz BF6L913, Deutz BF6L913C. In accordance with the criteria of Machinery Safety Directive 2006/42, movable elements such as distribution belts, fans, and parts that acquire high temperatures during operation, such as exhaust manifolds, have their respective safeguards. Before being delivered, the generator is thoroughly checked at the factory. Voltage, frequency, and load are all tested, as well as the appropriate operation of warnings and the influence of engine oil temperature on stop.
Frequently Asked Questions
What is the difference between prime and standby ratings for this engine?
The Deutz F4L912T prime and standby power rating depends on the operational hours. Prime power (typically around 38kW continuous) means the engine can run for an unlimited number of hours per year under variable loads. The standby rating represents the absolute maximum output available for a short duration during a utility power outage.
Is the Beinei Deutz F4L912T identical to the original German specifications?
Yes. Beinei manufactures these engines utilizing the original Deutz technical drawings, metallurgy standards, and tooling. Parts are highly interchangeable, making it an excellent replacement engine for Deutz FL912/FL913 series equipment globally.
Do you provide engines for 60Hz markets?
Absolutely. The Deutz F4L912T 1800 rpm genset engine configuration is calibrated specifically for 60Hz electrical generation, providing up to 48kW of mechanical output. We calibrate the governor prior to dispatch based on your specified alternator requirements.
Can I purchase this engine in bulk for manufacturing?
Yes. As a primary Deutz diesel engine manufacturer and distributor, HekoPower provides scaled pricing. If you are an OEM looking to integrate a 4 cylinder 41kW Deutz generator engine into your assembly line, please contact our sales engineering team to discuss Deutz F4L912T engine wholesale price tiers and long-term supply contracts.
