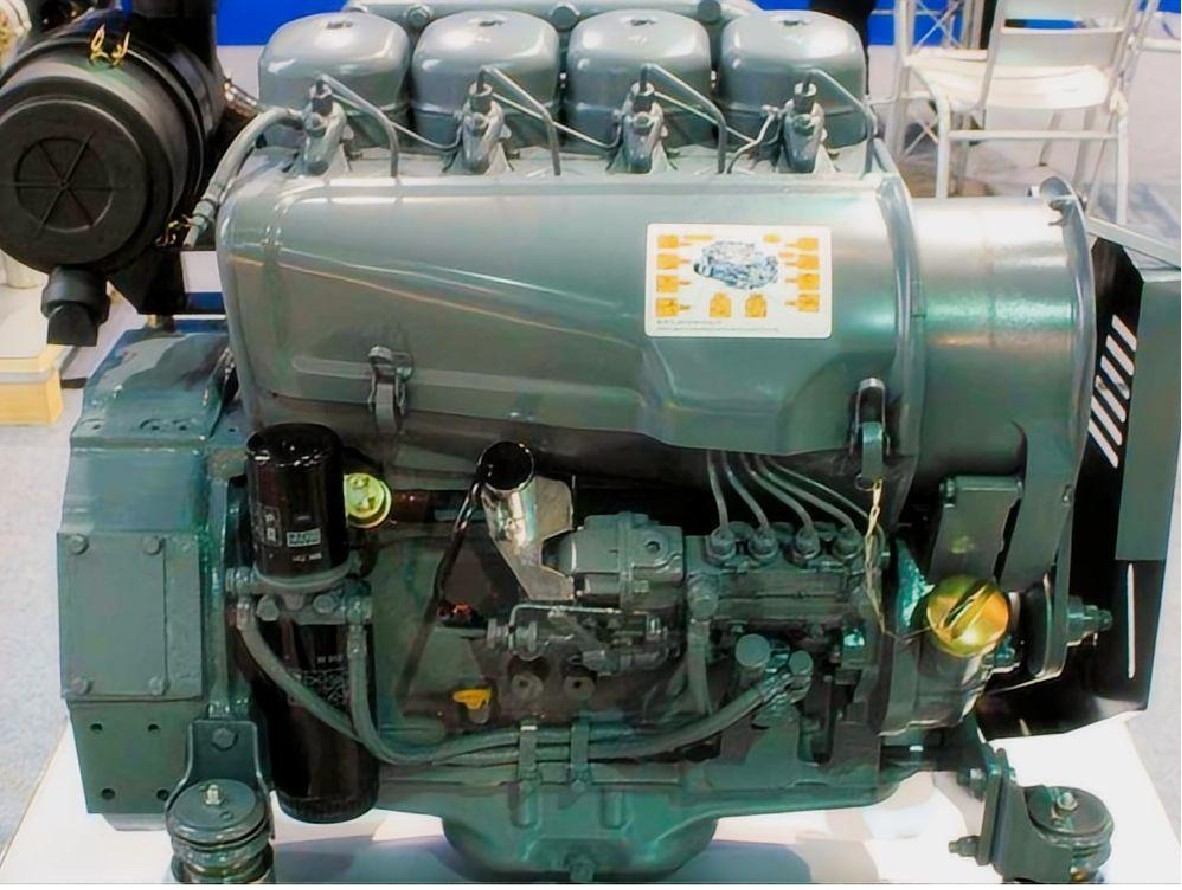

Deutz F4L913 Air-Cooled Generator Engine: 34kW to 40kW Power Solutions
When sourcing a reliable power source for industrial or commercial applications, the Deutz F4L913 generator engine stands out as a highly resilient option. HekoPower supplies this 4-cylinder air-cooled diesel engine specifically for clients who demand durability without the complexities of a water-cooled system. This F4L913 Deutz engine assembly delivers a consistent 34kW at 1500 rpm for 50Hz applications and ramps up to 40kW at 1800 rpm for 60Hz requirements. It is a robust, mechanical governor Deutz F4L913 land generator engine designed to perform under demanding conditions, offering a streamlined solution for prime and backup power generation.
Tech Specs of Deutz F4L913 generator engine
General Engine Data
Engine Model: Deutz F4L913-Generator Engine
Type: 4 Cylinders, in Line
Displacement: 4.085 L
Bore * Stroke: 102 * 125
Overall Dimension: 860mm*673mm*815mm
Net Weight: 310 Kg
Key Performance Data
Continue Power(1500 RPM): 34 kW
Continue Power(1800 RPM): 40 kW
Max. Power Output(1500 RPM): 37 kW/1500 rpm
Max. Power Output(1800 RPM): 44 kW/1800 rpm
Rated Speed: 1500/1800 rpm
Prime/Standby Generator Power: 26 kW/30 kW
Noise Standard: 105 dB(a)
Fuel Consumption with Full-Load: 238 g/kW.h
More Technical Data
Aspiration: Natural Intake
Fuel System: Direct Injection Pump
Cooling Method: Air Cooling
Electrical System (Starter Motor/Alternator): Electronic Starting (12V/24V)
Compression Ratio: 17:1
Exhaust Gas Flow & Temprature: 3.2 m³/min; 500℃
Governor Type: Mechanical/Electronic Governor
Lubricant Capacity: 12 L
Real Application Scenarios for the Deutz F4L913 Diesel Engine
The defining characteristic of the Deutz F4L913 is its integrated air-cooling mechanism. This engineering choice makes the engine incredibly valuable in environments where water scarcity is an issue or where extreme temperature fluctuations cause liquid coolants to freeze or boil.
We frequently supply the F4L913 generator engine for industrial backup power setups in arid regions. Mining sites, remote agricultural stations, and temporary construction camps rely heavily on the F4L913 34kW diesel generator engine. Its naturally aspirated setup means fewer delicate moving parts, significantly reducing the risk of mechanical failure in dusty or harsh environments where regular maintenance is difficult.
For commercial standby power, the Deutz F4L913 40kW 1800rpm generator engine provides immediate, reliable starting capabilities. It is routinely paired with a standard 12V or 24V starting system depending on the control panel requirements. Whether you are building a small diesel genset for an isolated telecom tower or sourcing a Deutz F4L913 engine for a 50Hz generator powering a factory, its direct injection technology ensures an efficient fuel burn and steady, reliable power delivery.
Technical Comparisons: Navigating the Deutz 912 and 913 Series
Selecting the right engine requires understanding the subtle engineering differences between models. HekoPower receives many inquiries regarding how the F4L913 compares to its immediate predecessors and turbocharged counterparts.
Deutz F4L913 vs F4L912 Generator Engine
A frequent decision point for generator builders is choosing between the F4L912 and the F4L913. Both are 4-cylinder air-cooled engines, but the F4L913 represents a calculated step up in displacement and overall power output. The F4L913 features a slightly larger bore and stroke, bringing its displacement to 4.085 liters compared to the smaller internal capacity of the F4L912.
This increase in volumetric capacity allows the F4L913 to comfortably handle higher electrical loads without strain. It makes the F4L913 40kW generator engine highly suitable for prime power applications where the F4L912 might only be rated to serve as a standby option. The Deutz F4L913 naturally aspirated generator engine maintains the mechanical simplicity of the 912 series but offers that crucial extra margin of power output.
Deutz F4L913 vs BF4L913 Air Cooled Diesel Engine
The primary difference between the F4L913 and the BF4L913 comes down to air aspiration. The addition of the "B" in the BF4L913 nomenclature indicates that the engine is turbocharged. While the turbocharged BF4L913 will produce significantly more power within the same physical footprint, the naturally aspirated Deutz F4L913 generator engine offers unparalleled simplicity.
Without a turbocharger attached to the exhaust manifold, there is absolutely no risk of turbo lag, excessive exhaust heat buildup, or sudden turbocharger failure. For buyers who prioritize rock-solid reliability, longer intervals between overhauls, and lower overall maintenance costs over maximum power density, the naturally aspirated F4L913 diesel generator engine remains the preferred choice. It is widely considered the ultimate plug-and-play power plant for a small diesel genset.
Common Misconceptions About the F4L913 4-Cylinder Engine
One of the most prevalent misunderstandings in the generator industry is the assumption that air-cooled engines like the Deutz F4L913 cannot operate continuously in hot climates. In reality, the integrated high-velocity cooling fan and carefully engineered cooling fins dissipate heat exceptionally well. This allows the Deutz F4L913 engine for standby generator or prime power use to operate flawlessly even in high ambient temperatures, provided the enclosure is properly ventilated.
Another common misconception involves the F4L913 1500 rpm vs 1800 rpm generator application. Some buyers assume they can simply throttle a 1500 rpm engine up to 1800 rpm to extract more power. However, running a Deutz F4L913 1500 rpm diesel engine at 1800 rpm requires highly specific governor adjustments and precise alternator pairing to ensure the 60Hz electrical frequency remains stable. As a professional Deutz F4L913 replacement engine supplier, HekoPower calibrates the mechanical governor to match your exact frequency requirements long before the engine is packaged for shipment.
Maintenance and Replacement Tips for Long-Term Reliability
Extending the lifespan of your Deutz F4L913 engine assembly relies on strict adherence to a few simple maintenance routines. Because it lacks a radiator, coolant hoses, and a water pump, you completely eliminate coolant leaks from your maintenance checklist. However, you must remain highly vigilant about engine airflow.
Managing the Air-Cooled System
The deep cooling fins cast into the cylinder heads and engine blocks must be kept entirely clean. Dirt, oil, and debris can easily accumulate between these fins over time. This debris acts as insulation, trapping heat against the block and eventually causing the engine to overheat under heavy loads. You must also regularly inspect the cooling fan belt for proper tension and wear. If you are sourcing a Deutz F4L913 replacement generator engine to install in an existing canopy, you must ensure the engine room or soundproof enclosure has adequate ventilation to allow hot air to escape. Otherwise, the cooling fan will simply recirculate heated air, severely diminishing performance.
Optimizing Fuel Consumption and Performance
To maintain optimal Deutz F4L913 fuel consumption at 100% load, the fuel injectors and mechanical governor require periodic professional inspection. The direct injection generator engine relies entirely on precise fuel atomization to generate power efficiently. Worn or clogged injectors will quickly lead to increased fuel consumption, heavy black exhaust smoke, and a noticeable drop in the overall Deutz F4L913 generator engine power rating. HekoPower strongly recommends following the official Deutz F4L913 generator engine maintenance schedule, paying special attention to regular valve clearance adjustments and routine oil changes to protect the internal reciprocating components.
Exploring the FL912/FL913 Generator Engine Series
The F4L913 is just one component of a broader, highly versatile engine family. When sizing a generator for your commercial facility or agricultural project, you might find that your exact power requirements sit slightly above or below the 34kW to 40kW range offered by the F4L913. HekoPower supplies the complete range of Deutz air-cooled engines to ensure you get the exact prime or standby generator rating you need without over-investing in unnecessary capacity or settling for an underpowered unit. We encourage our clients to review the entire product line to find their perfect match.
Deutz F2L912/FL913-Generator Engine Series, original products from Beinei Deutz Engine Plant. This series mainly includes Deutz F2L912, Deutz F3L912, Deutz F3L913, Deutz F4L912, Deutz F4L912T, Deutz F4L913, Deutz BF4L913, Deutz F6L912, Deutz F6L912T, Deutz F6L913, Deutz BF6L913, Deutz BF6L913C. In accordance with the criteria of Machinery Safety Directive 2006/42, movable elements such as distribution belts, fans, and parts that acquire high temperatures during operation, such as exhaust manifolds, have their respective safeguards. Before being delivered, the generator is thoroughly checked at the factory. Voltage, frequency, and load are all tested, as well as the appropriate operation of warnings and the influence of engine oil temperature on stop.
Frequently Asked Questions (FAQs) About the Deutz F4L913
Buyers often have highly specific questions before they commit to purchasing industrial equipment. Here are a few common inquiries we receive at HekoPower regarding the Deutz F4L913 generator engine.
What is the difference between the Deutz F4L913 prime vs standby generator rating?
The prime rating refers to the maximum power the engine can deliver continuously under a variable electrical load for an unlimited number of hours per year. The standby rating represents the maximum power available for a limited time during a sudden utility power outage. The Deutz F4L913 safely handles its rated output with a standard 10% overload capability available for one hour in every twelve hours of continuous operation.
What is the standard lead time when ordering this engine?
The Deutz F4L913 engine price and lead time depend entirely on the exact configuration you require, such as specific flywheels or 12V versus 24V starting systems. As a dedicated Deutz F4L913 generator engine supplier and exporter, HekoPower typically maintains a 15 to 20 business day lead time. This window ensures your engine is fully load-tested, calibrated, and securely prepped for international shipping.
Can this engine be used to upgrade an older generator set?
Yes. Because the Deutz F4L913 generator engine dimensions and mounting points are strictly standardized within the 913 family, it serves as an excellent Deutz F4L913 replacement generator engine. It easily integrates into existing canopies or mounting skids when replacing older or failed units, minimizing expensive downtime for your industrial generator set.
