Details

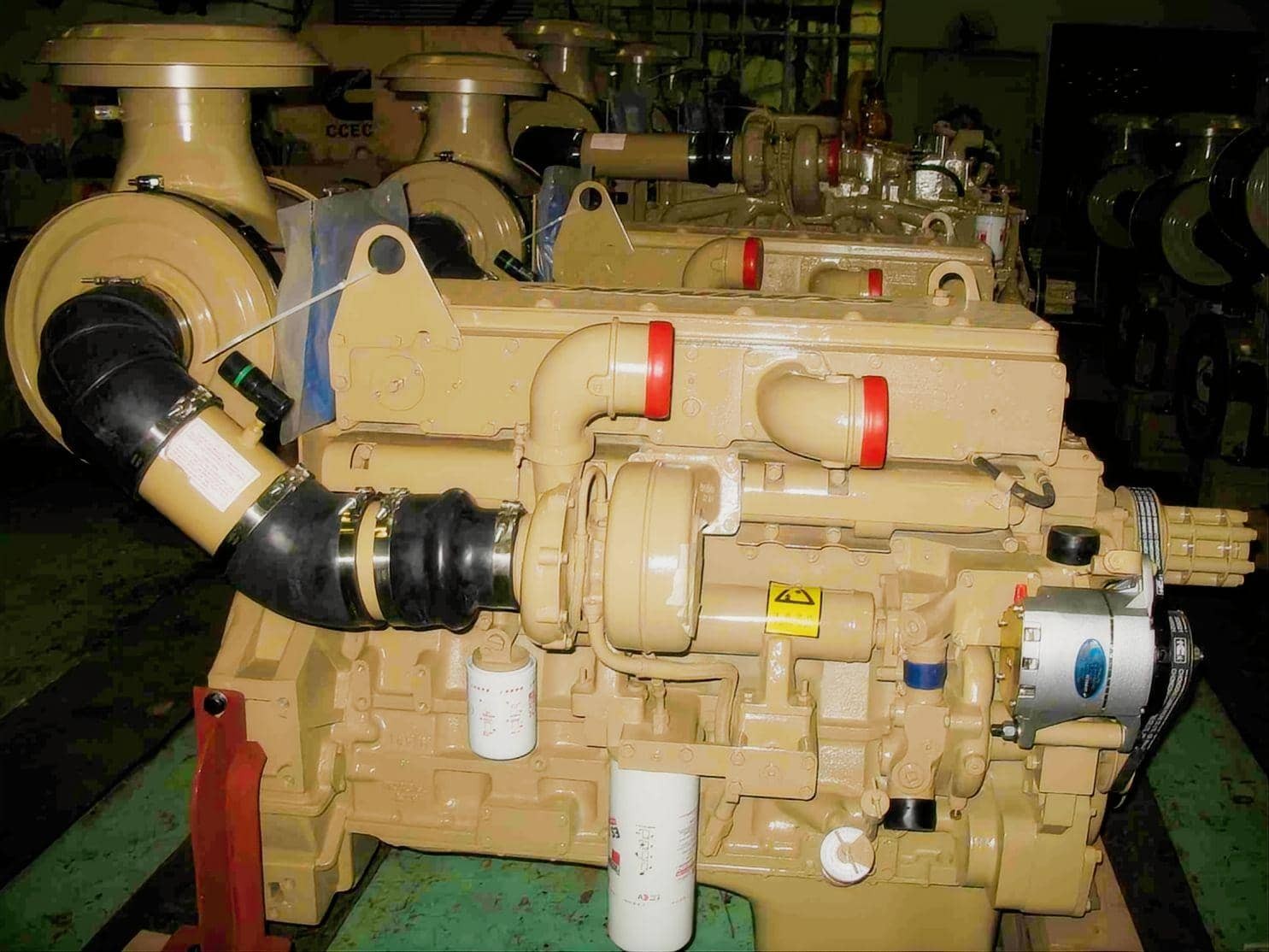

Genuine CCEC Cummins M11-C250 Construction Diesel Engine
The Cummins M11-C250 engine delivers reliable power for heavy-duty construction machinery. Operating at a rated output of 184kW (250HP) at 2100 RPM, this 10.8L Cummins M11 10.8L engine is a proven workhorse. As a trusted M11-C250 engine supplier in China, HekoPower provides the complete engine assembly with a standard 12-month warranty and an efficient lead time of around 15 business days. Our genuine CCEC M11-C250 engine units are ready for global export, supporting projects that require uncompromising durability.
Tech Specs of Cummins M11-C250
General Engine Data
Engine Model: Cummins M11-C250
Type: 6 Cylinders in Line
Displacement: 10.8 L
Bore * Stroke: 125 * 147
Overall Dimension: 1450mm*950mm*1010mm
Net Weight (with flywheel & alternator): 980 Kg
Key Performance Data
Rated Power: 184 kW/250HP
Rated Speed: 2100 rpm
Max Torque/Speed: 1146 N.m @ 1300 rpm
Max. No-Load Speed: 2450 rpm
Fuel Consumption @ Rated Power: 64.4 L/hr
Idle Speed: 675-750 rpm
Max. Continuous Running Altitude: 3048 m
More Technical Data
Certification: Tier 1
Aspiration: Turbocharged-Intercooled
Fuel System: Direct Injection PT Pump, STC
Compression Ratio: 16.1:1
Electrical System (Starter Motor/Alternator): 12V/24V
Lowest Starting Temp Without auxiliary system: -12℃
Cooling Method: Water cooled
Engine Cooling Fluid Volume: 9.5 L
Performance Positioning and Technical Comparisons
When evaluating the industrial diesel engine M11-C250, buyers often need to compare it against other models within the CCEC lineup to ensure the right fit for their specific torque and horsepower requirements.
M11-C250 vs M11-C225
The jump from the C225 to the M11-C250 primarily involves fueling and turbocharger mapping adjustments. While both share the exact same physical M11-C250 engine dimensions and M11-C250 engine weight, the C250 provides that critical extra 25 horsepower needed for machinery that operates under heavier, sustained loads, such as fully loaded wheel loaders working on steep inclines.
M11-C250 vs M11-C270 and M11-C300
Moving up the power band, the M11-C270 and M11-C300 offer more top-end power but often at the cost of slightly higher fuel consumption. The M11-C250 hits a specific sweet spot for mid-sized equipment where the M11-C250 torque at 1300 rpm—reaching an impressive 1146 Nm—provides maximum digging or pushing force without the thermal stress associated with the higher-output 300HP variants.
Navigating Emissions Variants: M11-C250 vs M11-C250E20
A common point of confusion arises regarding emissions standards. The standard M11-C250 is typically a Tier 1 engine. The M11-C250E20 variant incorporates different tuning and sometimes different piston bowl designs to meet stricter Tier 2 emissions standards. Furthermore, minor revisions between older M11-C250A vs M11-C250B blocks usually involve minor casting updates, but they generally retain identical mounting points for M11-C250 complete engine replacement scenarios.
Real-World Application Scenarios
The 184kW 250HP Cummins construction engine is not a generic power plant; it is engineered for specific, high-stress applications. Its power curve is tailored for machinery that requires massive low-end torque rather than high-speed operation.
A primary application is serving as a Cummins M11-C250 replacement for excavators in the 30 to 40-ton class. In these machines, hydraulic pumps demand consistent rotational force to operate boom and bucket cylinders simultaneously. The 1146 Nm torque of the M11-C250 ensures the hydraulic system does not bog down when breaking hard ground.
Similarly, it is an ideal diesel engine for heavy-duty loader 250HP applications. Wheel loaders depend on responsive torque to drive into aggregate piles and lift heavy loads in a single, fluid motion. We frequently supply the M11-C250 engine power pack to mining and quarry operations upgrading their aging fleet.
Maintenance, Replacement, and Longevity
Proper upkeep dictates the lifespan of any CCEC Cummins M11-C250 engine. Implementing a rigorous Cummins M11-C250 maintenance schedule is the most cost-effective way to avoid catastrophic failures on the job site.
A critical aspect of M11-Series maintenance involves the PT fuel system. Mechanics should regularly inspect the M11-C250 PT fuel pump for signs of gear wear and ensure the injectors are properly calibrated. A common misconception is that mechanical injection requires less filtration than electronic systems; however, clean fuel is vital to prevent premature wear on the PT pump's internal tolerances.
When approaching the 10,000 to 12,000-hour mark, operators should plan for a comprehensive in-frame rebuild. Sourcing a complete M11-C250 overhaul parts kit ensures all wear items—including the distinct wet cylinder liners used in the 10.8L block—are replaced simultaneously. During this time, consulting Cummins M-Series engine troubleshooting guides can help identify if excessive blow-by or oil consumption warrants a full block replacement rather than just a rebuild.
For major equipment failures, opting for an M11-C250 replacement engine is often faster and more economically viable than a complex field rebuild. HekoPower verifies M11-C250 engine replacement compatibility, ensuring the new M11-C250 complete engine assembly aligns perfectly with your machinery's bell housing and motor mounts, minimizing downtime.
Explore the Full M-Series Lineup
While the M11-C250 offers exceptional performance for mid-range heavy machinery, different applications require different power outputs. Understanding the broader family of engines helps ensure you select the absolute best fit for your operational needs.
Cummins M11-C Series, original products from Chongqing Cummins Engine Plant(CCEC). This series mainly includes M11-C225, M11-C245, M11-C250, M11-C265, M11-C270, M11-C275, M11-C280, M11-C290, M11-C300, M11-C310, M11-C315, M11-C320, M11-C330, M11-C335, M11-C350.
Frequently Asked Questions (FAQ)
How do I confirm the M11-C250 replacement for construction equipment will fit my specific machine?
Verifying fitment requires checking the engine data plate for the CPL (Control Parts List) number and the configuration number. Providing these details to HekoPower ensures we match the exact bell housing, oil pan sump location, and accessory drives.
What factors influence the M11-C250 engine price?
The wholesale engine price depends primarily on the configuration—whether you require a bare long block or a fully dressed M11-C250 engine power pack complete with starter, alternator, and turbocharger. Volume orders for Chongqing Cummins M11-C250 wholesale distribution also affect the final pricing.
Where can I find reliable M11-C250 spare parts after purchase?
As a comprehensive supplier, HekoPower provides ongoing support. We maintain a robust inventory of genuine M11-C250 spare parts to support your maintenance schedules long after the initial engine delivery.
