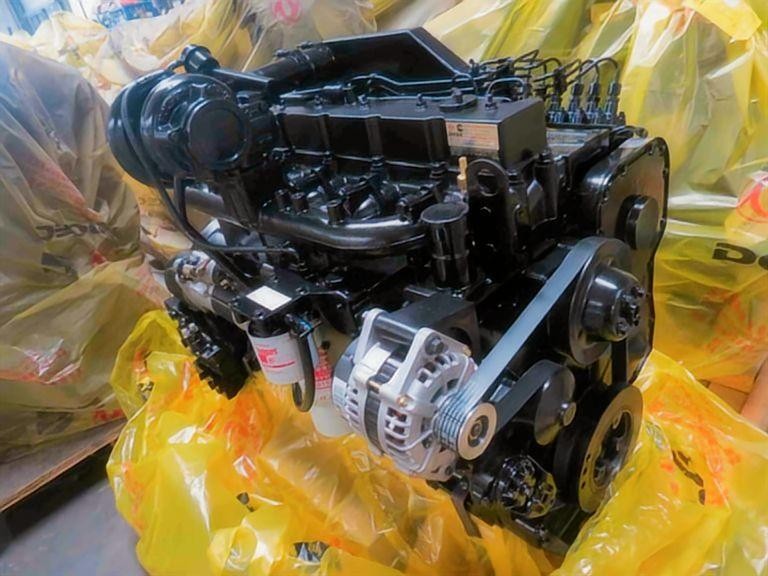

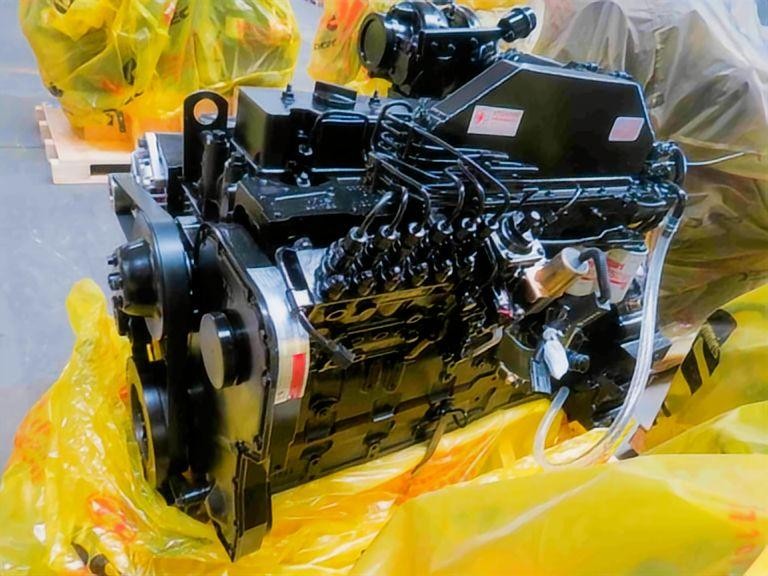

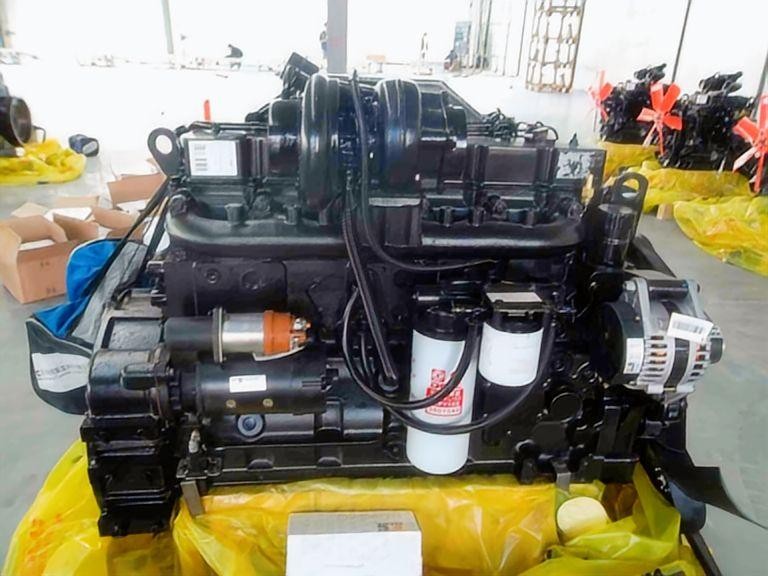

Genuine Dongfeng Cummins 6CTA8.3-C230 Industrial Engine Assembly
The engineering foundation of this power unit centers around an inline, 6-cylinder layout. It features an advanced 6-cylinder turbocharged aftercooled diesel engine framework. This configuration allows the engine to maintain an optimal thermal equilibrium even under a continuous load profile. Utilizing a displacement of 8.3 liters, this unit outputs a net rated power of 230HP (170 kW) at a rated speed of 2200 RPM.
Unlike newer Tier 4 or Stage V engines that rely on complex exhaust after-treatment and fragile sensors, this unit meets Euro Stage II emissions standards. The lack of an EGR or DPF system drastically lowers the failure rate when working in remote regions with variable fuel qualities. The physical architecture includes a water-cooled setup, cast-iron engine block, and replaceable wet cylinder liners. These features simplify major overhauls and extend the total operational lifespan well beyond standard industry benchmarks.
Finding a reliable heavy-duty powertrain for industrial machinery requires looking past basic technical brochures. The Dongfeng Cummins 6CTA8.3-C230 industrial engine serves as a workhorse across global construction and mining sectors. As an established, direct export supplier, HekoPower provides complete, brand-new 6CTA8.3-C230 complete engine long block configurations and fully populated turn-key assemblies. This 8.3-liter powerhouse delivers robust mechanical reliability where modern electronic power units often fail due to extreme field conditions.
Tech Specs of Cummins 6CTA8.3-C230
General Engine Data
Engine Model: Cummins 6CTA8.3-C230
Type: 6 Cylinders in Line
Displacement: 8.3 L
Bore * Stroke: 114 * 135
Overall Dimension: 1560mm*900mm*1400mm
Net Weight (with flywheel & alternator): 637 Kg
Key Performance Data
Rated Power: 172 kW/230HP
Rated Speed: 2200 rpm
Max Torque/Speed: 1003 N.m @ 1500 rpm
Fuel Consumption @ Rated Power: 224 g/Kw.h
Max Continuous Running Altitude: 2000 m
More Technical Data
Certification: Euro I
Aspiration: Turbocharged-Intercooled
Fuel System: Wuxi Weifu PW2000 Pump/ RSV Govenor
Compression Ratio: 18:1
Electrical System (Starter Motor/Alternator): 12V/24V
Lowest Starting Temp Without auxiliary system: -12℃
Cooling Method: Water cooled
Engine Cooling Fluid Volume: 9.8 L
The Mechanical Fuel System Advantage: Weifu PW2000 Pump
The heart of this mechanical injection Cummins 6CTA8.3-C230 builds upon a fully mechanical fuel delivery apparatus. HekoPower supplies these engines equipped with an authentic 6CTA8.3-C230 with Weifu PW2000 fuel pump paired with a highly responsive mechanical governor.
The Weifu PW2000 inline injection system operates completely independent of an electronic control unit (ECU). High-pressure fuel lines deliver precise volumetric amounts directly into the combustion bowls. This reliance on a traditional mechanical governor eliminates the risk of electrical short circuits, sensor corrosion, and voltage spikes. It ensures your machine keeps running in high-humidity or deep-mining applications where sensitive electronics regularly trip error codes.
Real-World Applications in Heavy Construction Machinery
Industrial fleet managers choose the Cummins 230HP construction machinery engine because of its torque curve. It delivers maximum torque at lower engine speeds, providing immediate hydraulic breakout force without excessive fuel consumption.
High-Torque Performance for Heavy Excavators and Diggers
This specific engine profile serves as a drop-in Cummins 6CTA8.3-C230 engine replacement for excavators in the 22 to 30-ton operating weight class. It supplies stable power to primary hydraulic twin-pumps, allowing seamless simultaneous operations of the boom, arm, and bucket. When handling heavy rock or deep ditching, the mechanical fuel system compensates for sudden hydraulic pressure peaks. This rapid response prevents engine stalling or sudden RPM drops during heavy load transitions.
Reliable Duty Cycles for Drilling Rigs and Air Compressors
Beyond standard earthmoving machines, this power unit functions as a premier Cummins 230HP engine for drilling rig operations and large rotary piling machines. Rotary drilling demands high, continuous torque profiles for hours on end. The integrated Holset turbocharger optimizes the air-to-fuel ratio across variable engine speeds, reducing black smoke emissions during heavy drilling depth changes. Similarly, when deployed as a Cummins industrial engine for compressor networks, the engine sustains a flat torque curve. This enables efficient, long-duration air tank pressurization under harsh ambient conditions.
Heavy Machinery Engine Replacement & Retrofit Guide
Replacing a worn-out engine requires more than simply checking the horsepower rating. Mechanics must match the flywheel housing dimensions, front-end accessory drives, and engine mount locations exactly to prevent costly field modifications.
Swapping Your Weary Construction Engine with a New 6CTA8.3-C230 Assembly
When executing a 6CTA8.3-C230 engine replacement or an industrial equipment engine retrofit, you must verify the existing configuration of your hydraulic pump drive adapters. The Cummins engine repower solution provided by HekoPower utilizes standard SAE #2 or SAE #3 flywheel housings, adapting easily to most major Japanese and European hydraulic pump brands.
During a machine overhaul, switching to a completely new OEM Cummins 6CTA8.3-C230 assembly cuts field downtime from weeks to days. Instead of spending labor hours diagnosing cracked blocks, worn crankshafts, or internal oil leaks, technicians simply drop in the new assembly. This minimizes the revenue losses associated with idle machinery on critical construction jobsites.
Technical Comparison with Electronic Cummins Engines
Many buyers compare mechanical engines with newer electronic platforms before purchasing.
Electronic engines offer better emissions control and digital monitoring, but they also introduce:
- ECU dependency
- complex wiring systems
- sensor-related failures
- higher maintenance costs
The mechanical injection Cummins 6CTA8.3-C230 remains popular because:
- maintenance is simpler
- spare parts are widely available
- field repair is easier
- fuel quality tolerance is higher
For export markets where fuel quality and diagnostic equipment may vary, mechanical engines often provide better long-term operating reliability.
Sourcing, Packaging, and Global Export Logistics from China
Sourcing heavy machinery parts globally requires absolute transparency regarding packaging standards, shipping weights, and lead times. HekoPower operates as a verified, high-volume Cummins 6CTA8.3-C230 engine supplier China hub. We ensure every power unit passes rigorous quality control testing before leaving our warehouse.
Every brand new 6CTA8.3-C230 engine price and quotation includes complete, secure preparation for export. The typical Cummins 6CTA8.3-C230 lead time and shipping weight metrics are tightly controlled:
- Net Dry Weight: Approximately 630 kg to 680 kg depending on external accessories.
- Packaging Method: Heavy-duty, fumigated wooden ocean freight crates featuring internal moisture barrier wraps.
- Standard Lead Time: 7 to 15 business days from order confirmation to port delivery inside China.
- Pre-Shipment Verification: Every engine undergoes a 30-minute operational test bench run to verify baseline oil pressure, thermal stability, and fuel pump calibration.
Cummins C8.3-C Series, original products from Dongfeng Cummins Engine Plant (DCEC), Cummins Joint Venture Plant since 1986, 50% shareholding by Cummins USA. This series mainly includes 6CTA8.3-C145, 6CTA8.3-C175, 6CTA8.3-C180, 6CTA8.3-C195, 6CTA8.3-C205, 6CTA8.3-C215, 6CTA8.3-C230, 6CTA8.3-C240, 6CTA8.3-C260, 6CTAA8.3-C215, 6CTAA8.3-C260.
Frequently Asked Questions Regarding the 6CTA8.3-C230 Assembly
What is the difference between an engine long block and a complete assembly?
A 6CTA8.3-C230 complete engine long block consists of the cylinder block, cylinder head, crankshaft, pistons, and valvetrain. A complete Cummins 6CTA8.3-C230 engine assembly arrives fully dressed with the Weifu PW2000 injection pump, turbocharger, water pump, air compressor, charging alternator, and starter motor.
Can this engine replace an older Cummins 6CT 8.3 engine?
Yes. The 6CTA8.3 series is an evolved version of the older 6CT 8.3 models. It shares identical structural engine mounting points, making it a perfect excavator engine replacement Cummins upgrade for older model machinery.
How do I verify that the engine is a genuine DCEC production unit?
Every genuine DCEC Cummins 6CTA8.3-C230 engine shipped by HekoPower features a clear, metal data plate on the gear housing. This plate displays the unique Engine Serial Number (ESN). You can cross-reference this ESN directly with the official Dongfeng Cummins tracking database to verify its build history and authenticity.
