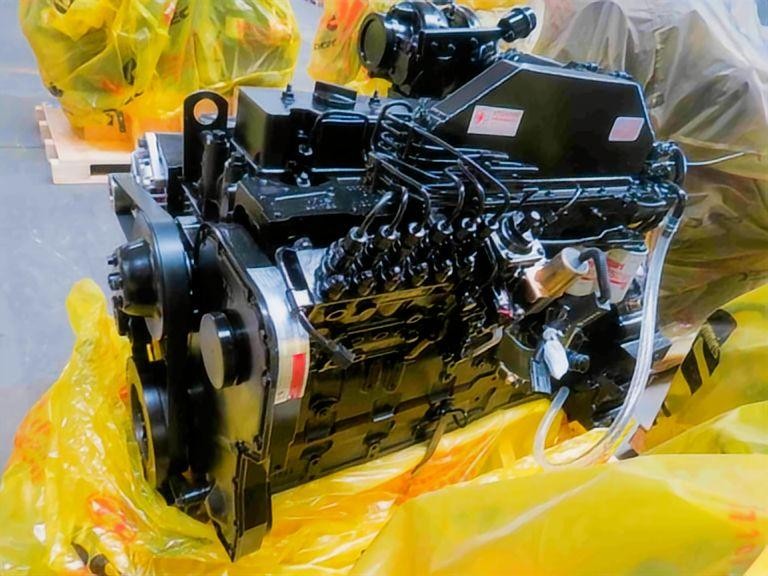

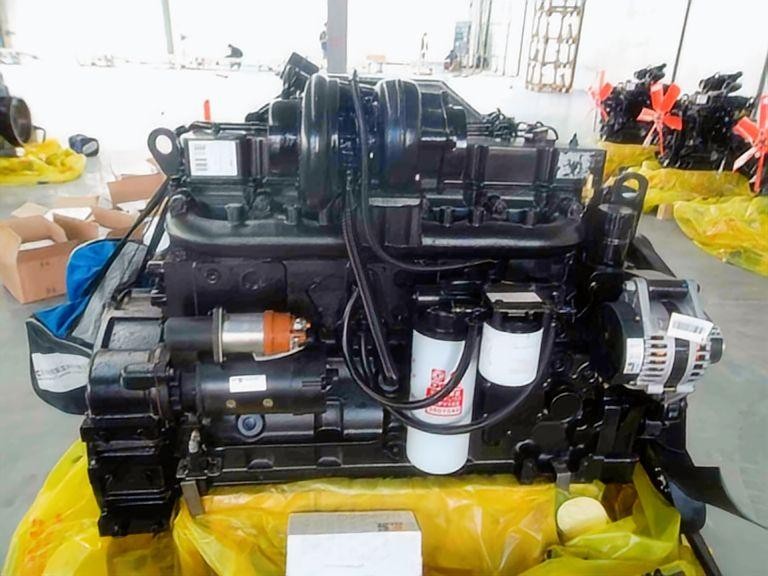

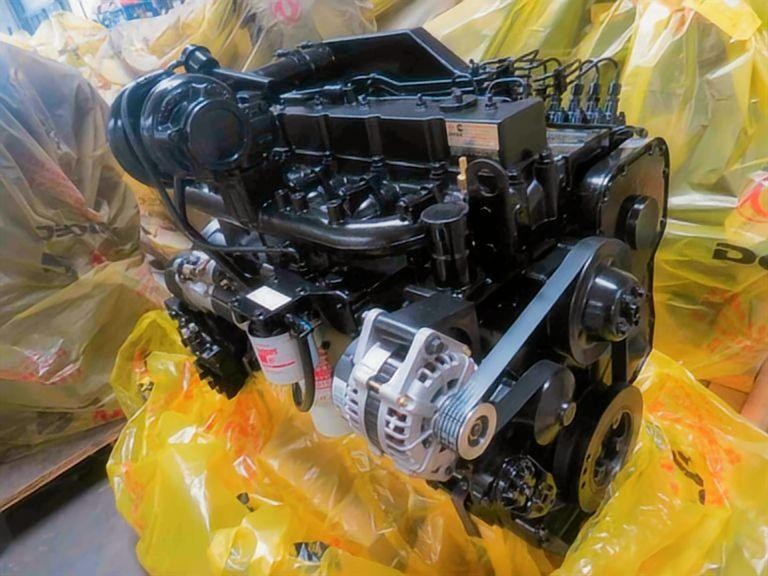

Cummins 6CTA8.3-C195 Engine Assembly: Industrial Power Solutions by HekoPower
The Cummins 6CTA8.3-C195 engine is a heavy-duty industrial diesel power unit developed for demanding construction and engineering applications. As part of the Cummins C series engine platform, this model combines stable torque delivery, durable mechanical control technology, and strong fuel efficiency for continuous industrial operation.
This engine is manufactured under the Dongfeng Cummins joint venture system and is widely used in equipment operating under high-load and long-duration working conditions. Compared with smaller displacement industrial engines, the 8.3L inline six-cylinder platform provides stronger low-speed torque output and improved reliability in dusty, high-temperature, and vibration-intensive job sites.
The 6CTA8.3-C195 diesel engine assembly is commonly selected for:
- hydraulic excavators,
- wheel loaders,
- drilling rigs,
- road rollers,
- concrete machinery,
- mining support equipment,
- and industrial cranes.
Unlike electronically controlled engines designed primarily for emission-sensitive environments, the mechanical-control structure of the 6CTA8.3-C195 offers easier field maintenance and lower diagnostic complexity. This remains an important advantage for customers operating in remote mining areas, infrastructure projects, and regions with limited technical support availability.
Tech Specs of Cummins 6CTA8.3-C195
General Engine Data
Engine Model: Cummins 6CTA8.3-C195
Type: 6 Cylinders in Line
Displacement: 8.3 L
Bore * Stroke: 114 * 135
Overall Dimension: 1560mm*900mm*1400mm
Net Weight (with flywheel & alternator): 637 Kg
Key Performance Data
Rated Power: 145 kW/195HP
Rated Speed: 1900 rpm
Max Torque/Speed: 820 N.m @ 1500 rpm
Fuel Consumption @ Rated Power: 219 g/Kw.h
Max Continuous Running Altitude: 2000 m
More Technical Data
Certification: Euro I
Aspiration: Turbocharged-Intercooled
Fuel System: Direct Injection Pump
Compression Ratio: 18:1
Electrical System (Starter Motor/Alternator): 12V/24V
Lowest Starting Temp Without auxiliary system: -12℃
Cooling Method: Water cooled
Engine Cooling Fluid Volume: 9.8 L
Technical Architecture and Performance Advantages
Understanding the core mechanical layout of the inline 6-cylinder Cummins diesel engine reveals why it outpaces newer electronic engines in extreme conditions. The Cummins 6CTA8.3-C195 Engine features a physical configuration built around an 8.3L displacement platform with a 114mm bore and a 135mm stroke. The key to its long-term durability lies in its mechanical simplicity and its heavy-duty industrial power engine blocks.
Air Handling and Thermodynamic Efficiency
This specific model utilizes an 8.3L turbocharged aftercooled design. By combining a Holset wastegate turbocharger with a high-efficiency water-to-air intercooler, the engine packs dense, cool air directly into the combustion chambers. This design achieves an optimal compression ratio of 18:1. This thermal balance allows the engine to output its full 145 kW (195 HP) rating at a conservative 1900 RPM. This lower operational speed reduces long-term component wear compared to competitive engines running at higher rotational limits.
Fuel Injection and Mechanical Reliability
Unlike modern common-rail setups, this 195HP mechanical control diesel engine depends on a highly resilient Weifu PW2000 inline fuel injection pump paired with an RSV mechanical governor. This mechanical setup offers two distinct advantages for operators in remote regions:
- It displays high fuel adaptability, allowing the engine to run smoothly even on lower-grade or highly variable industrial diesel.
- It eliminates the need for complex electronic control modules (ECUs) and wiring harnesses that frequently fail in high-vibration mining or construction environments.
Structural and Weight Dynamics
With a net dry weight of approximately 646 kg and an overall configuration size of 1560mm x 900mm x 1400mm, the engine delivers an exceptional power-to-weight ratio. The cylinder block integrates a platform mesh honing structure alongside high-nickel cast iron pistons. This reduces internal friction, minimizes oil consumption, and yields a high torque construction diesel engine that delivers 820 N.m of peak torque at just 1500 RPM.
Comprehensive Cross-Model Technical Comparisons
When procuring a replacement engine, fleet managers often confuse different configurations within the broader Cummins 8.3L diesel engine family. Selecting the incorrect suffix identifier can result in incorrect torque curves, mismatched flywheel connections, or incompatible cooling systems.
Construction Engines (6CTA8.3-C) vs. Generator Drives (6CTA8.3-G)
The model suffix code is critical. The "C" in 6CTA8.3-C195 designates a construction/industrial application profile. Industrial applications require a variable speed governor (RSV style) capable of modulating fuel delivery instantly as mechanical loads fluctuate wildly during excavation or lifting operations.
Conversely, the generator drive variants (such as the 6CTAA8.3-G2) feature fixed-speed G-drive governors designed to lock specifically at 1500 RPM (for 50Hz power generation) or 1800 RPM (for 60Hz generation). Installing a G-drive engine into an engineering vehicle will cause the hydraulic pumps to stall or fail under heavy load adjustments.
Modulating Power Outputs Within the 8.3L Cummins Platform
The 6CTA8.3 block supports several distinct power tiers. While the C195 model provides 195 HP at 1900 RPM, other variants like the 6CTA8.3-C215 raise the output to 215 HP at 2200 RPM, and the 6CTA8.3-C240 peaks further up the curve.
The primary differences across these models are the fuel injection pump calibration, internal plunger diameters, and specific turbocharger wastegate configurations. Sourcing a genuine Dongfeng Cummins engine with the precise factory rating ensures that your machinery’s hydraulic torque converters match perfectly with the engine’s factory performance curve.
Real-World Engineering Application Scenarios
The Dongfeng Cummins construction engine platform is a highly adaptable power unit found across multiple industrial sectors. Its ability to maintain structural integrity under persistent, high-load cycles makes it a preferred choice for several distinct machine formats.
Earthmoving and Excavation Machinery
In the earthmoving sector, this engine serves as a direct Cummins 6CTA8.3-C195 engine for excavator upgrades. It supplies reliable, continuous hydraulic pump drive power for mid-sized tracked excavators. The low fuel consumption Cummins engine layout allows these machines to run extended 12-hour shifts without excessive refueling breaks.
Foundation Drilling and Mining Equipment
For deep foundation work, the platform operates as a dedicated Cummins engine for drilling machine systems. The high low-end torque output is vital when turning large-diameter earth augers through rock or compacted clay. Similarly, as a Cummins diesel engine for mining machinery, it resists dust, grit, and thin air up to a maximum continuous running altitude of 2000 meters.
Infrastructure and Material Handling
The unit functions perfectly as a Cummins engine for road construction equipment, including heavy asphalt pavers, soil stabilizers, and large pneumatic rollers. It is also found as a drop-in Cummins engine for wheel loader frames and acts as a rigid Cummins industrial engine for crane winches, where immediate torque delivery is mandatory for controlled vertical lifting.
Essential Sourcing, Maintenance, and Replacement Tips
Purchasing an engine is an investment that requires precise logistical planning and strict technical care during the initial swap out. To maximize your equipment's service life, follow these core professional operational guidelines.
Verifying Engine Authenticity and Traceability
Due to the popularity of the C series, the market contains various rebuilt, cloned, or substandard engine blocks. When you buy genuine Cummins 6CTA8.3-C195 units from an OEM DCEC Cummins diesel engine supplier like HekoPower, always verify the factory data tag. Every legitimate engine features a unique 8-digit Engine Serial Number (ESN) stamped directly onto the data plate, which can be verified against the official global Cummins database.
Initial Commissioning and Safe Installation Protocols
When replacing an old unit with an original Cummins construction engine assembly, clean and inspect the radiator core completely before installation. Ensure the water-cooled industrial diesel engine lines are free of scale build-up. Fill the block with premium heavy-duty engine coolant to safeguard the wet cylinder liners against cavitation erosion. Prior to turning the ignition key, prime the oil filters and the Weifu fuel injection pump manually to avoid cold-start dry friction across the main bearings.
Supply Chain Logistics, Wholesale Prices, and Lead Times
For corporate procurement managers tracking project budgets, securing a competitive Cummins 6CTA8.3-C195 wholesale price requires direct B2B sourcing channels. HekoPower works directly with production networks to provide premium OEM Cummins power solutions with standard lead times ranging from 15 to 30 working days. Every engine complete assembly is safely anchored inside an export-grade, fumigated wooden shipping crate to prevent any structural damage during long maritime transport routes.
Cummins C8.3-C Series, original products from Dongfeng Cummins Engine Plant (DCEC), Cummins Joint Venture Plant since 1986, 50% shareholding by Cummins USA. This series mainly includes 6CTA8.3-C145, 6CTA8.3-C175, 6CTA8.3-C180, 6CTA8.3-C195, 6CTA8.3-C205, 6CTA8.3-C215, 6CTA8.3-C230, 6CTA8.3-C240, 6CTA8.3-C260, 6CTAA8.3-C215, 6CTAA8.3-C260.
Frequently Asked Questions Regarding the 6CTA8.3-C195
What parts are included in a complete engine assembly from HekoPower?
Our factory-new engine assemblies arrive as complete, drop-in mechanical power units. This includes the core cylinder block, cylinder head, crankshaft, camshaft, and pistons. It also comes fully dressed with the complete fuel injection system (Weifu pump and fuel injectors), the Holset turbocharger, the water-to-air intercooler, the starter motor, a 24V charging alternator, water pump, lubricating oil pump, and all primary fluid filters.
Can the Weifu injection pump be repaired or serviced using standard parts?
Yes. The mechanical Weifu PW2000 series injection pump relies on highly standardized mechanical plungers and delivery valves. Because it does not use complex electronic solenoids or proprietary digital locking codes, any qualified industrial diesel repair workshop worldwide can service, calibrate, or rebuild the fuel system using standard, widely accessible replacement parts.
What specific warranty terms and post-delivery testing does HekoPower provide?
Every Cummins 6CTA8.3-C195 engine complete assembly supplied by HekoPower is covered by a comprehensive 1-year or 1000-hour operational warranty (whichever limit is reached first). Before crating and shipping, each engine undergoes a formal dynamometer testing protocol. This bench test verifies that oil pressure, thermal management, exhaust emissions, and full-load horsepower output align perfectly with original factory specifications. Testing documentation and video records can be provided to the client prior to final port dispatch.
Is the Cummins 6CTA8.3-C195 suitable for excavators?
Yes. This engine is widely used in medium and large excavators requiring stable hydraulic power output and continuous heavy-load operation.
Is this engine mechanically controlled or electronically controlled?
The 6CTA8.3-C195 is generally configured as a mechanical-control diesel engine, which simplifies maintenance and field servicing.
What are the advantages of the 8.3L Cummins platform?
The 8.3L platform provides strong torque output, stable continuous-duty operation, mature maintenance support, and good fuel efficiency for heavy industrial applications.
Does HekoPower supply complete engine assemblies?
HekoPower can supply complete engine assemblies as well as selected replacement components depending on customer requirements.
