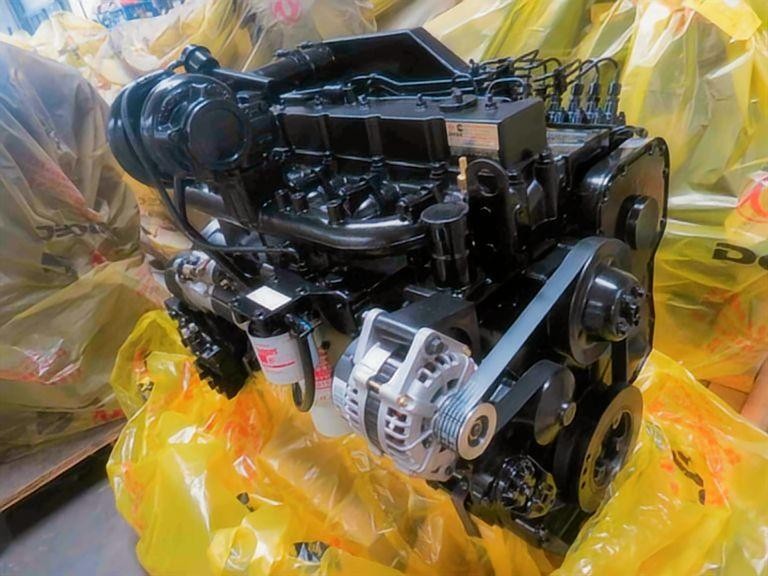

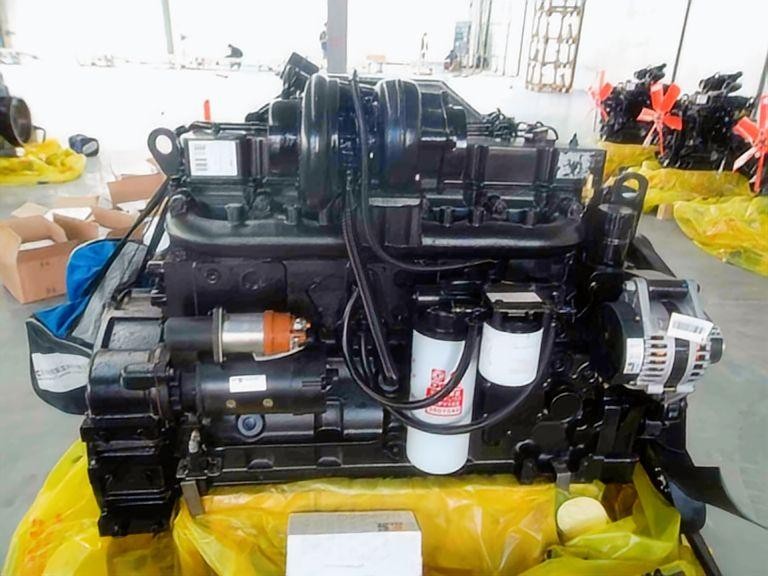

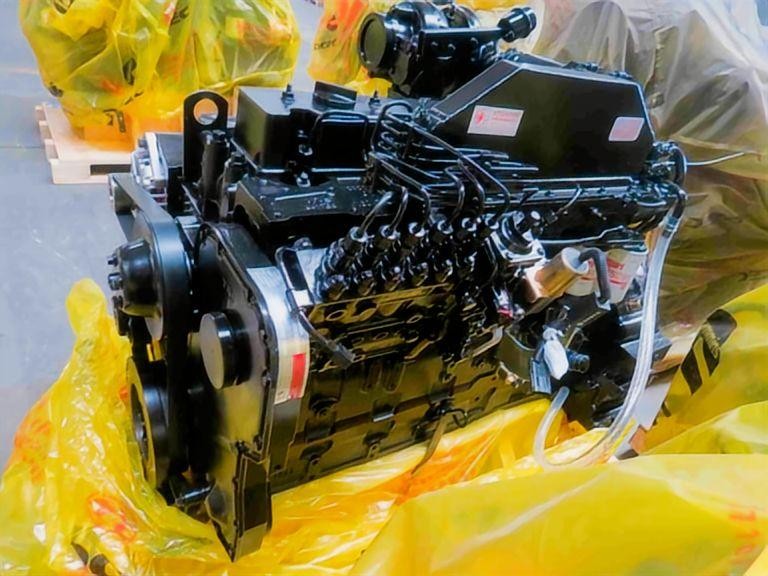

Cummins 6CTA8.3-C145 Industrial Engine Assembly (108kW / 145HP)
The Cummins 6CTA8.3-C145 is a heavy-duty, 8.3-liter mechanical diesel engine produced by Dongfeng Cummins Engine Co., Ltd. (DCEC). Designed specifically for harsh operational environments, this 6-cylinder inline power plant delivers a steady 108kW, or 145HP, at a low operating speed of 1900 RPM. This specific configuration is engineered for sustained heavy-load applications, offering exceptional low-end torque that is crucial for construction equipment and industrial power packs. As a dedicated engine supplier, HekoPower provides these complete engine assemblies fully configured and ready for immediate integration into your heavy machinery.
Operators relying on hydraulic equipment require power units that do not stall under sudden load spikes. The 6CTA8.3-C145 achieves this through a robust cast-iron engine block utilizing replaceable wet cylinder liners. This block design features a generous 114mm bore and a 135mm stroke. Such dimensional specifications allow the engine to generate massive rotational force at lower speeds, significantly reducing internal component wear while maximizing the breakout force available to your machinery.
Tech Specs of Cummins 6CTA8.3-C145
General Engine Data
Engine Model: Cummins 6CTA8.3-C145
Type: 6 Cylinders in Line
Displacement: 8.3 L
Bore * Stroke: 114 * 135
Overall Dimension: 1560mm*900mm*1400mm
Net Weight (with flywheel & alternator): 637 Kg
Key Performance Data
Rated Power: 108 kW/145HP
Rated Speed: 2100 rpm
Max Torque/Speed: 672 N.m @ 1300 rpm
Fuel Consumption @ Rated Power: 219 g/Kw.h
Max Continuous Running Altitude: 2000 m
More Technical Data
Certification: Euro I
Aspiration: Turbocharged-Intercooled
Fuel System: Beiyou PB Pump/ RSV Govenor
Compression Ratio: 17.3:1
Electrical System (Starter Motor/Alternator): 12V/24V
Lowest Starting Temp Without auxiliary system: -12℃
Cooling Method: Water cooled
Engine Cooling Fluid Volume: 9.8 L
Advanced Mechanical Systems and Aspiration
A primary reason fleet managers choose the 6CTA8.3-C145 over modern alternatives is its reliance on purely mechanical fuel delivery. The engine is equipped with a highly durable BYC PB series inline fuel injection pump, meticulously governed by an RSV mechanical governor. This fuel system and governor combination ensures immediate throttle response when a wheel loader penetrates a dense pile of material or when an excavator engages its main hydraulic pump.
Furthermore, this mechanical setup is highly tolerant of varying fuel qualities often found in remote mining or construction sites. The lack of delicate electronic sensors means the engine maintains its Euro Stage I emission compliance without requiring complex diagnostic software or ultra-low sulfur diesel, making field maintenance straightforward and cost-effective.
The aspiration system of the 6CTA8.3-C145 utilizes a turbocharged water-air intercooler configuration. Instead of routing hot compressed air to a large external radiator at the front of the machine, the intake air is cooled by engine coolant circulating through a compact heat exchanger built directly into the intake manifold. This design dramatically reduces the physical footprint of the engine package, making it an ideal choice for machinery with restrictive engine bays.
Technical Comparisons in the Heavy-Duty Sector
Selecting the exact replacement engine requires understanding how the 6CTA8.3-C145 differs from superficially similar models in the marketplace. Fleet owners frequently face the decision between mechanical injection and modern high-pressure common-rail systems. When comparing the mechanical 6CTA8.3-C145 to the electronic QSB8.3, the primary distinction lies in operational simplicity. The electronic QSB requires extensive wiring harnesses, an Engine Control Module (ECM), and specific diagnostic tooling for any troubleshooting. The mechanical 6CTA8.3 completely bypasses these requirements, offering a prime advantage for export markets and remote job sites where specialized electronic technicians are unavailable.
Another vital comparison is the cooling method. Buyers often confuse the 6CTA designation with the 6CTAA designation. The 6CTA8.3-C145 utilizes water-air intercooling, which is entirely self-contained within the engine's coolant loop. In stark contrast, 6CTAA engines rely on air-to-air intercooling, demanding external piping that routes charge air to a massive front-mounted cooler. Attempting to install an air-to-air engine into a machine designed for a water-air engine will result in severe spatial conflicts and require extensive modification of the machine's hood and radiator framework.
Finally, power rating and RPM calibration play a critical role in equipment matching. While the Cummins 8.3L block is capable of producing well over 250HP in automotive applications, the C145 variant is deliberately restricted to 145HP at 1900 RPM. Comparing this to a 2200 RPM high-output version reveals a completely different torque curve. Installing a high-speed engine into a slow-speed industrial application like a rotary drilling rig leads to severe hydraulic pump cavitation and premature drivetrain failure. The C145 is precisely calibrated for slow, heavy, and continuous pulling power.
Real Application Scenarios and Industrial Fitment
The DCEC 6CTA8.3-C145 excels in environments demanding uninterrupted torque. One of the most common applications is powering 20-ton to 25-ton hydraulic excavators. In these machines, the engine must provide continuous power to the main hydraulic pumps while enduring extreme tilt angles and heavy dust. The deep-sump oil pan configuration available on this engine ensures that oil pickup remains submerged even when the excavator is working on steep inclines.
Wheel loaders represent another primary application. The RSV mechanical governor perfectly complements the cyclical loading nature of wheel loader operations. As the bucket rams into a stockpile, the engine RPM drops, and the governor instantly commands maximum fuel delivery to recover speed, ensuring the hydraulic lift cylinders have maximum pressure. The engine’s robust block easily handles these rapid thermal and mechanical shock loads hour after hour.
Additionally, the 6CTA8.3-C145 is heavily utilized in foundation drilling machines, mining equipment, and heavy-duty cranes. For these specialized applications, HekoPower provides the complete engine assembly with the appropriate heavy-duty flywheel configuration and engine mounting brackets, ensuring the unit mates perfectly with existing hydraulic splitters or transmission torque converters.
Maintenance Practices and Replacement Guidance
Maximizing the lifespan of your 6CTA8.3-C145 industrial power pack requires strict adherence to a scheduled maintenance manual. Given the engine's reliance on clean lubrication, fleet operators must utilize high-quality diesel engine oil, strictly observing replacement intervals based on fuel consumption rates and operating hours. Operating in heavy dust requires daily inspection of the turbocharger compressor wheel and the primary air filtration system to prevent dirt ingestion, which rapidly deteriorates the bore and stroke tolerances.
Maintaining proper valve clearance specifications is equally critical for the 6CTA8.3 engine. Over time, the constant pounding of the valves against the cylinder head seats causes the clearances to tighten. Mechanics must manually adjust the intake and exhaust valve clearances during major service intervals to prevent valve burning and maintain optimal compression. Neglecting this simple mechanical adjustment is a leading cause of hard starting and excessive fuel consumption.
Before buying a replacement diesel engine, equipment owners must verify several compatibility metrics. Never assume that any 8.3L Cummins is a direct drop-in replacement. You must confirm the engine flywheel configuration, usually denoted by an SAE housing size, to ensure it bolts to your transmission. Furthermore, verify the starter voltage. Industrial equipment typically runs on a 24V starter voltage, while some lighter machinery utilizes a 12V system. Installing an engine with the incorrect voltage configuration will cause immediate electrical damage to the machine's wiring harness.
Common Misconceptions in Engine Sourcing
A prevalent misconception among machinery buyers is that a higher horsepower engine will automatically make their old equipment perform better. Installing a 215HP engine to replace a factory 145HP 6CTA8.3-C145 often results in catastrophic failure of the machine's hydraulic pumps, which are not rated for the increased input shaft torque. Always replace an engine with one matching the original power specifications to maintain system equilibrium.
Another costly misunderstanding surrounds the engine configuration number and the CPL number. Many buyers believe the basic engine model name is sufficient for ordering parts or complete replacements. The Control Parts List (CPL) dictates the exact internal components, injection pump timing, and piston bowl shape used in your specific build. Failing to match the CPL can lead to serious performance issues and physical fitment problems during installation.
Finally, there is a false assumption regarding engine rebuild kits versus complete replacement. While rebuilding seems economical, a severely overheated engine often suffers from micro-cracking in the cast-iron block that a standard rebuild kit cannot fix. Purchasing a complete, factory-assembled 6CTA8.3-C145 from a verified engine exporter like HekoPower eliminates machining errors and drastically reduces equipment downtime.
The Complete Cummins C-Series Engine Range
Understanding where the 145HP variant fits within the broader manufacturing landscape helps clarify your procurement options. The versatility of the 8.3-liter platform has allowed DCEC to engineer numerous variations tailored to distinct industrial requirements.
This series mainly includes a wide spectrum of power outputs and aspiration methods designed to accommodate everything from stationary generator sets to high-speed marine vessels. Exploring the full family of engines ensures that buyers who may need slightly more power, or a different intercooling setup for a different machine in their fleet, can find the exact match.
By reviewing the related engines in this category, procurement specialists can standardize their fleet maintenance, stocking common replacement parts that span across multiple C-series configurations while relying on HekoPower for consistent supply and technical support.
Cummins C8.3-C Series, original products from Dongfeng Cummins Engine Plant (DCEC), Cummins Joint Venture Plant since 1986, 50% shareholding by Cummins USA. This series mainly includes 6CTA8.3-C145, 6CTA8.3-C175, 6CTA8.3-C180, 6CTA8.3-C195, 6CTA8.3-C205, 6CTA8.3-C215, 6CTA8.3-C230, 6CTA8.3-C240, 6CTA8.3-C260, 6CTAA8.3-C215, 6CTAA8.3-C260.
Frequently Asked Questions
How do I identify a genuine Cummins 6CTA8.3-C145 engine?
Identification begins with locating the engine data plate, typically riveted to the timing gear housing or the valve cover. This plate contains the engine serial number identification, the CPL number, and the exact engine configuration number. Providing these specific alphanumeric codes to HekoPower allows us to cross-reference factory databases and guarantee you receive an authentic, perfectly matched replacement unit.
What affects the 6CTA8.3-C145 engine price and lead time?
Pricing is influenced by the completeness of the assembly. A base long block will cost less than a complete power pack that includes the starter, alternator, turbocharger, and fuel injection pump. Lead time depends on the specific flywheel and oil pan configuration required for your machinery. As a direct engine supplier, HekoPower maintains extensive inventory to minimize lead times for standard construction equipment configurations.
What is the typical fuel consumption rate for this model?
The 6CTA8.3-C145 fuel consumption rate per hour varies heavily based on the machine's duty cycle. A wheel loader constantly surging into material will consume more fuel than a crane lifting loads intermittently. However, the mechanical BYC PB fuel pump is calibrated for maximum efficiency at the 1900 RPM rated speed, ensuring cost-effective operation under continuous heavy loads.
Where can I buy genuine 6CTA8.3-C145 replacement parts and complete engines?
HekoPower serves as a primary exporter and supplier for the complete DCEC engine range. We supply fully assembled, tested, and crated engines ready for global deployment. Whether you require a single engine for a broken-down excavator or multiple units for a fleet repower project, we provide direct access to authentic industrial power solutions.
