Details

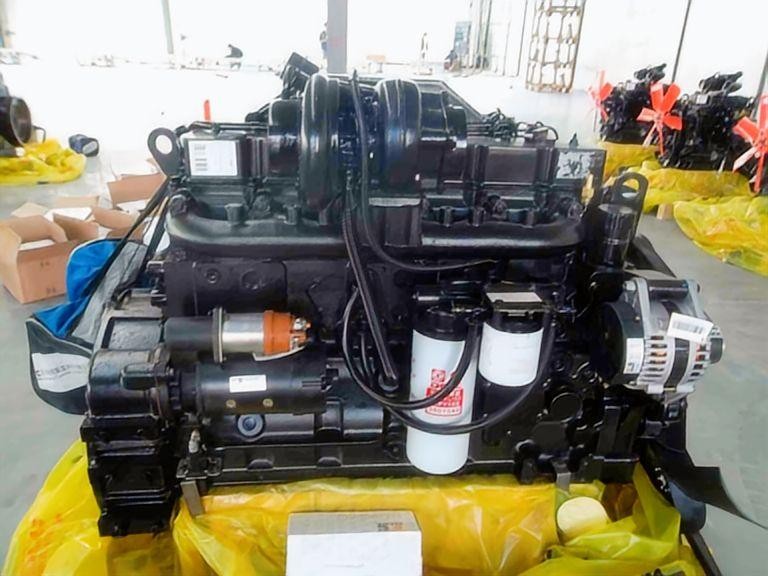

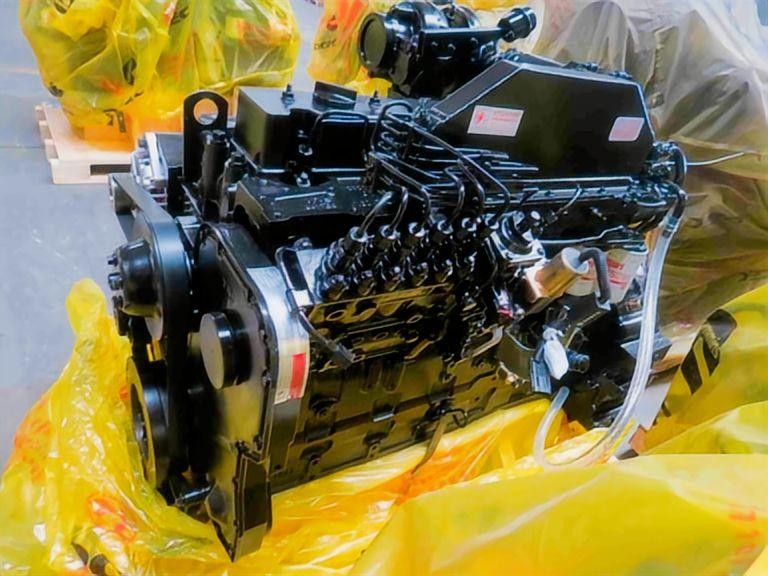

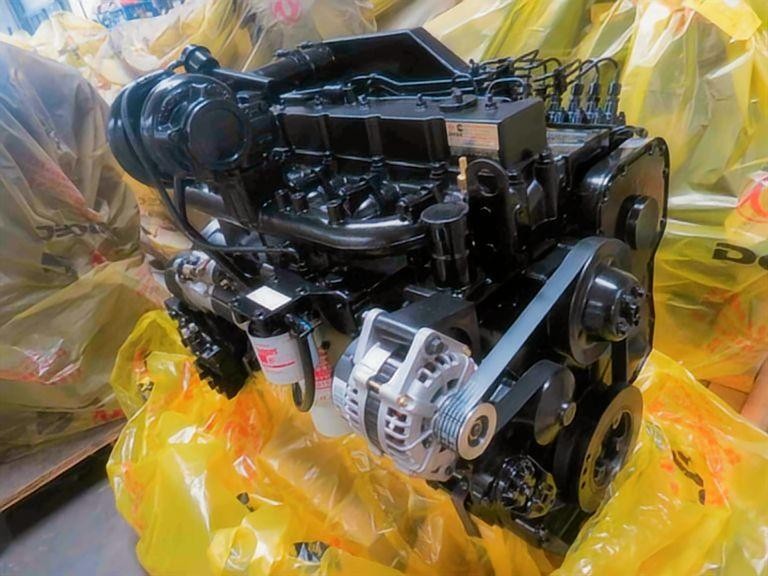

Genuine DCEC Cummins 6CTA8.3-C240 Industrial Engine Assembly
The Dongfeng Cummins (DCEC) 6CTA8.3-C240 is a foundational power unit for industrial engineering machinery worldwide. Delivering a rated output of 179 kW (240 HP) at 2200 RPM, this 8.3-liter, inline 6-cylinder diesel engine is engineered for heavy duty continuous operation under extreme structural loads.
As an established industrial engine supplier, HekoPower provides complete, factory-fresh Cummins 6CTA8.3-C240 engine packs. Our inventory includes the fully dressed mechanical configuration, ready for immediate integration or field replacement.
Tech Specs of Cummins 6CTA8.3-C240
General Engine Data
Engine Model: Cummins 6CTA8.3-C240
Type: 6 Cylinders in Line
Displacement: 8.3 L
Bore * Stroke: 114 * 135
Overall Dimension: 1560mm*900mm*1400mm
Net Weight (with flywheel & alternator): 637 Kg
Key Performance Data
Rated Power: 179 kW/240HP
Rated Speed: 2460 rpm
Max Torque/Speed: 782 N.m @ 2200 rpm
Fuel Consumption @ Rated Power: 231 g/Kw.h
Max Continuous Running Altitude: 2000 m
More Technical Data
Certification: Euro I
Aspiration: Turbocharged-Intercooled
Fuel System: Wuxi Weifu PW2000 Pump/ RSV Govenor
Compression Ratio: 18:1
Electrical System (Starter Motor/Alternator): 12V/24V
Lowest Starting Temp Without auxiliary system: -12℃
Cooling Method: Water cooled
Engine Cooling Fluid Volume: 9.8 L
Technical Performance and Fuel Injection Architecture
Mechanical Fuel System Integrity: The Weifu PW2000 Fuel Pump
Unlike high-pressure common rail engines that rely on complex electronic control units (ECUs), the 6CTA8.3-C240 engine assembly utilizes an entirely mechanical injection configuration. It features a genuine Weifu PW2000 fuel pump paired with a highly responsive mechanical governor.
This mechanical blueprint delivers a critical competitive edge in remote industrial settings. It tolerates highly variable diesel fuel qualities—including fuel with high sulfur content or trace moisture—without triggering emergency derate codes or structural safe-mode shutdowns.
For operators running mining machinery or drilling rigs in harsh environments, this means uninterrupted field uptime.
Turbocharged and Aftercooled Thermodynamic Design
The Cummins C Series 240HP engine achieves its high power density through a holistic turbocharger and jacket-water aftercooler layout. By compressing intake air and cooling it before it reaches the combustion chambers, the system guarantees high thermal efficiency.
The structural advantages of this inline 6-cylinder system include:
- Natural primary and secondary balancing, which radically limits chassis vibration transfer.
- Low fuel consumption characteristics across the mid-range torque curve.
- Simplified single-side maintenance access to fuel, oil, and air filtration arrays.
Real Application Scenarios and Structural System Integration
Excavator Hydraulic System Integration
The 240 HP Cummins construction machinery engine serves as the standard replacement powerplant for 22-ton to 30-ton crawler excavators. When swapping or installing a replacement engine, the rear flywheel housing matches standard SAE #2 or SAE #3 bell housings. This ensures clean, direct alignment with main hydraulic pump groups from major brands like Kawasaki, Rexroth, and Uchida. The engine provides an exceptionally stable torque backup, allowing the excavator hydraulic system to pull maximum pressure without causing engine lugging or stalling during deep trenching operations.
Heavy Loaders and Mining Machinery
For heavy-duty wheel loaders operating in high-dust quarries, the 8.3L turbocharged diesel engine delivers the instant low-end torque required for heavy bucket breakout force. The engine block features mid-stop wet cylinder liners. This design dissipates internal heat away from the piston crowns much faster than parent-bore engine blocks, eliminating thermal cracking risk during continuous uphill hauling cycles under full load.
Engineering Machinery and Utility Drives
The 179kW Cummins engineering machinery engine is highly versatile and frequently adapted to alternate heavy applications:
- Concrete Pumps: Provides stable, continuous RPM to maintain uniform concrete line delivery pressures.
- Drilling Rigs: Drives high-torque rotary heads through rugged mechanical or hydraulic transmissions.
- Road Rollers: Delivers dependable tractive power alongside the auxiliary output needed for high-frequency vibratory systems.
- Water Pump Drives: Runs reliably at constant speeds for high-volume agricultural drainage or mine dewatering lines.
Technical Comparisons: Replacement and Long Block Alternatives
Complete Engine Assembly vs. Original Long Block
When a field asset suffers catastrophic engine failure, procurement managers face a choice between an original Cummins 6CTA8.3-C240 long block or a complete engine assembly.
- The Complete Engine Assembly: Arrives fully dressed from the factory. It includes the fuel injection pump, fuel lines, injectors, turbocharger, water pump, charging alternator, starter motor, and manifolds. It minimizes assembly labor and provides a true drop-in solution.
- The Long Block Option: Includes only the sealed block, crankshaft, connecting rods, pistons, camshaft, and cylinder head assembly. Fleet owners choose this option if their existing bolt-on accessories and Weifu injection systems are recently updated and fully reusable.
Compliance Profile: Tier 1 / Euro I Limitations
The DCEC 6CTA8.3-C240 is inherently a Tier 1 / Euro I emission engine. It features zero exhaust aftertreatment systems—no diesel particulate filters (DPF), no selective catalytic reduction (SCR), and no AdBlue requirements.
While this mechanical simplicity makes it highly reliable for international export markets across Africa, South America, Southeast Asia, and Central Asia, it cannot be legally registered for new equipment installations within regions enforcing strict Tier 4 Final or Stage V regulations. It is strictly recommended as a direct replacement engine for existing machinery fleets or stationary export power setups.
Maintenance Schedules and Troubleshooting Protocols
Recommended Engine Service Intervals
To secure the long-term operational lifespan of your mechanical C Series engine in demanding operational conditions, adhere to these service markers:
- Engine Oil and Filter Changes: Every 250 operating hours using high-grade CH-4 or CI-4 diesel engine oils.
- Fuel Filtration Maintenance: Replace both the primary fuel filter and secondary water separator every 250 hours to protect the internal tolerances of the Weifu injection pump.
- Cooling System Overhauls: Drain and flush the system every 2,000 hours or two years using a proper 50/50 ethylene glycol and treated water mixture to prevent wet liner cavitation pitting.
Step-by-Step Troubleshooting Guide for Common Issues
If your engine experiences an unexpected loss of field power or hard-starting issues, execute these mechanical diagnostic steps:
- Air Intrusions in Fuel Lines: Inspect low-pressure lines and connection seals. Loosen the bleed bolt on top of the fuel filter header and use the manual priming pump on the fuel lift pump until clear fuel escapes without air bubbles.
- Heavy Black Smoke Emission: Inspect your primary air filter element for severe dust blockages. Check all charge-air cooler piping connections for boost pressure leaks, and evaluate the turbocharger wheel shaft for excessive radial play.
- Crankcase Blow-By Compression Loss: Examine the engine breather tube for obstructions. If structural smoke pulses heavily from the breather, carry out a manual cylinder compression test to isolate worn piston rings or scored cylinder liners.
Wholesale Procurement and Sourcing from China
As a trusted China Cummins 6CTA8.3-C240 supplier and wholesaler, HekoPower bypasses middleman trading markups. We supply genuine units directly via factory production channels. Every engine features an unalterable factory-stamped data plate detailing its unique Engine Serial Number (ESN). This number can be verified inside the global Cummins QuickServe database to confirm its genuine production pedigree and component authenticity before shipping FOB Shanghai or Ningbo ports.
Cummins C8.3-C Series, original products from Dongfeng Cummins Engine Plant (DCEC), Cummins Joint Venture Plant since 1986, 50% shareholding by Cummins USA. This series mainly includes 6CTA8.3-C145, 6CTA8.3-C175, 6CTA8.3-C180, 6CTA8.3-C195, 6CTA8.3-C205, 6CTA8.3-C215, 6CTA8.3-C230, 6CTA8.3-C240, 6CTA8.3-C260, 6CTAA8.3-C215, 6CTAA8.3-C260.
Frequently Asked Questions
Does HekoPower provide a genuine Cummins engine warranty with these units?
Yes. Every genuine DCEC Cummins 6CTA8.3-C240 engine supplied by HekoPower carries standard commercial warranty coverage against manufacturing defects. Spare parts support and component warranties are synchronized with global manufacturing standards.
What are the standard lead times for an engine order?
For standard configurations held in our central inventory, processing, crate packaging, and export customs clearance takes 7 to 15 working days. Custom industrial housing modifications or specialized flywheel adaptations may require additional manufacturing lead time.
Can this engine directly replace an imported USA-built Cummins 6CT 8.3 engine?
Yes, the dimensional footprints, structural engine block mounting points, and crankshaft centerlines are identical. The DCEC engine uses the same design prints as historical US-manufactured C Series engines, making it a perfect, cost-effective drop-in replacement engine option for older engineering machinery.
