Details

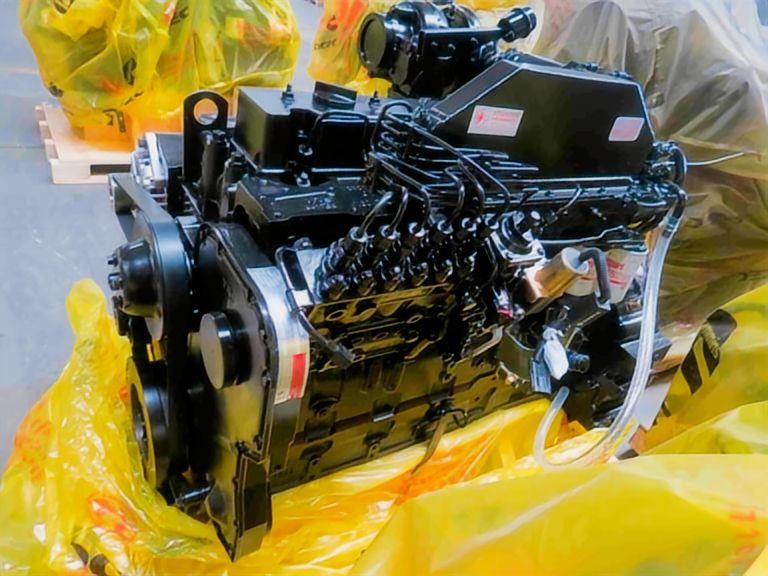

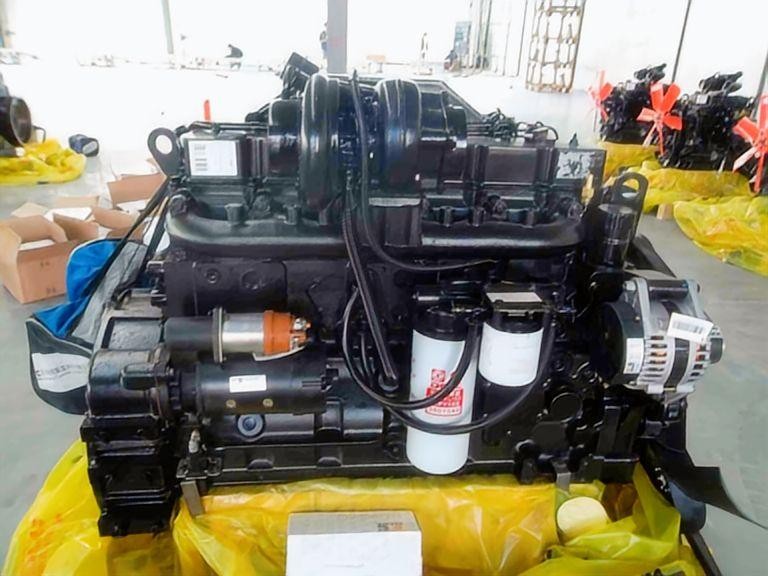

Genuine DCEC Cummins 6CTAA8.3-C215 Engine Assembly for Industrial Applications
The DCEC Cummins 6CTAA8.3-C215 industrial diesel engine is a heavy-duty, 8.3L inline 6 turbocharged diesel engine designed to deliver sustained, high-torque mechanical power under punishing conditions. Generating a rated output of 160kW (215HP) at 2200 RPM and a peak torque of 980 N.m at a low 1500 RPM, this engine series provides the continuous hydraulic pressure and structural rigidity required by heavy industrial machinery.
As an established commercial supplier, HekoPower delivers this complete Cummins 6CTAA8.3-C215 engine assembly fully built from the original Dongfeng Cummins joint venture facility. Every unit arrives brand new and fully outfitted with all critical ancillary components—including the turbocharger, mechanical fuel injection system, electrical starter, alternator, and internal filtration networks—ensuring immediate drop-in replacement capability for fleet operators and field maintenance engineers.
Tech Specs of Cummins 6CTAA8.3-C215
General Engine Data
Engine Model: Cummins 6CTAA8.3-C215
Type: 6 Cylinders in Line
Displacement: 8.3 L
Bore * Stroke: 114 * 135
Overall Dimension: 1560mm*900mm*1400mm
Net Weight (with flywheel & alternator): 604 Kg
Key Performance Data
Rated Power: 160 kW/215HP
Rated Speed: 2200 rpm
Max Torque/Speed: 980 N.m @ 1500 rpm
Fuel Consumption @ Rated Power: 223 g/Kw.h
Max Continuous Running Altitude: 2000 m
More Technical Data
Certification: Euro II
Aspiration: Turbocharged-Intercooled
Fuel System: Wuxi Weifu PW2000 Pump/ RSV Govenor
Compression Ratio: 18:1
Electrical System (Starter Motor/Alternator): 12V/24V
Lowest Starting Temp Without auxiliary system: -12℃
Cooling Method: Water cooled
Engine Cooling Fluid Volume: 9.8 L
Technical Comparisons and Mechanical Architecture
Understanding the distinct engineering boundaries of the Cummins 6CTAA8.3-C215 power pack is essential for proper fleet selection and equipment integration. The section below details how this exact mechanical layout differs from adjacent electronic engine families and older platform variations.
Mechanical Fueling vs. Electronic Injection Control
The core advantage of the original Cummins 6CTAA8.3-C215 engine rests on its complete reliance on mechanical fuel management. While newer electronic power systems utilize high-pressure common rail (HPCR) lines managed by an Electronic Control Unit (ECU), the C215 configuration relies heavily on a high-efficiency Weifu PW2000 fuel pump paired with an RSV mechanical governor.
- Fuel Adaptability: Mechanical injection systems handle varying fuel grades far better than common-rail engines, where minor fuel sediment easily scores expensive electronic injectors.
- Electrical Simplicity: Because the system operates without complex wire harnesses or engine sensors, troubleshooting is straightforward even in remote environments.
- On-Site Survival: If your machinery operates in high-humidity zones or sub-zero mining sectors, eliminating electronic control modules significantly reduces electrical breakdown risks.
Comparing the 6CTA8.3 vs. the 6CTAA8.3 Configuration
When sourcing replacement options for Cummins 6CTAA8.3 C215 systems, operators often confuse the base 6CTA platform with the more advanced 6CTAA tier. The specific differences are found within the intake plumbing and thermal efficiency properties:
The double "A" in the 6CTAA designation stands for Air-to-Air Intercooled. While a standard 6CTA layout often uses water-to-air cooling jackets integrated within the engine block, the 6CTAA8.3-C215 features a dedicated air-to-air charge air cooler. This drops the charge air temperature sharply before it reaches the intake valves, maximizing air charge density. This thermal layout directly allows the engine to achieve its 215HP rating reliably while maintaining strict Euro II emission standard compliance.
Real Application Scenarios and Fleet Integration
The performance curves of the 215HP Cummins construction machinery engine make it an ideal power source for mid-to-heavy industrial equipment. Because the torque peaks cleanly at 1500 RPM, the system delivers immediate hydraulic recovery and high lugging capability when heavy resistance hits the drive components.
Heavy Excavator and Earthmoving Machinery
In the field, the Cummins 6CTAA8.3-C215 for excavator applications powers main hydraulic twin-pump systems. Main industrial brands rely on this exact displacement profile to manage sudden trenching resistance without causing high engine RPM drops.
Geotechnical Drilling and Piling Equipment
Continuous duty cycles represent the most demanding operating environment for any Cummins C8.3 industrial power unit. When configured for high-torque drilling machines, the engine runs at a sustained RPM for hours at a time. The rugged layout—featuring a massive main bearing area and dual Ni-Resist pistons—manages internal friction forces easily, preventing thermal warping during non-stop boring tasks.
Concrete Pumps, Road Rollers, and High-Volume Cranes
The 160kW 215HP Cummins 6CTAA8.3-C215 engine provides the foundational power for the following industrial machinery types:
- Concrete Pumps: Manages continuous high-pressure piston strokes without line pulsations.
- Road Rollers: Drives heavy vibratory drums while providing reliable tractive effort across rough sub-grades.
- All-Terrain Cranes: Delivers dual-purpose power for chassis transport and high-pressure hydraulic hoist winches.
Maintenance Protocols and Replacement Engineering
To secure the maximum service life from your factory new Cummins industrial engine, field mechanics must maintain exact service schedules and understand the specific part numbers that govern the 8.3L engine family.
Managing the Mechanical Fuel System
The Weifu PW2000 fuel pump engine layout must be protected against water contamination. The high mechanical pressures within the injection pump will cause immediate internal scoring if water breaches the primary fuel filter assembly. Mechanics should check and drain the water-separator bowl daily, replacing fuel filter elements every 250 operating hours without exception.
Critical Engineering Component References
Maintaining parts commonality across fleets requires precise cross-referencing of internal components. The following genuine DCEC production specifications must be preserved during routine rebuilds or component overhauls:
Shipping, Packaging, and Global Logistics Support
As an experienced China DCEC Cummins engine supplier, HekoPower uses standardized international packing systems to guarantee that your complete engine assembly arrives undamaged and ready for field installation.
Weight and Freight Dimensions
The total Cummins 6CTAA8.3-C215 shipping weight and packing dimensions are carefully calculated to prevent movement inside sea containers or flatbed transports. The bare engine net weight sits at approximately 760 Kg, while the final gross weight inside a reinforced wooden crate averages 850 Kg. Standard crating dimensions run 1680mm × 1020mm × 1480mm, making it fully optimized for standard forklift handling and international LCL or FCL ocean shipping setups.
Cummins C8.3-C Series, original products from Dongfeng Cummins Engine Plant (DCEC), Cummins Joint Venture Plant since 1986, 50% shareholding by Cummins USA. This series mainly includes 6CTA8.3-C145, 6CTA8.3-C175, 6CTA8.3-C180, 6CTA8.3-C195, 6CTA8.3-C205, 6CTA8.3-C215, 6CTA8.3-C230, 6CTA8.3-C240, 6CTA8.3-C260, 6CTAA8.3-C215, 6CTAA8.3-C260.
Cummins 6CTAA8.3-C215 Frequently Asked Questions
What is included in a complete Cummins 6CTAA8.3-C215 engine assembly from HekoPower?
Every engine arrives as a factory-new, fully dressed unit. This includes the cylinder block assembly, complete rotating assembly, fuel injection pump, injectors, lines, Holset turbocharger, water pump, lube oil pump, starter motor, charging alternator, and primary oil and fuel filtration brackets.
Can this engine replace an electronic Cummins QSB8.3 unit?
While both shares an 8.3-liter displacement footprint, the 6CTAA8.3-C215 utilizes a full mechanical fuel injection system, whereas the QSB8.3 relies on an ECU and common-rail injection wiring. Swapping to the mechanical engine requires minor modifications to the operator control panel, fuel return lines, and physical accelerator linkages, making it a popular choice for operators wanting to eliminate electrical fault vulnerabilities.
What wholesale warranty terms apply to this industrial diesel engine?
HekoPower protects all genuine Dongfeng Cummins diesel engine units with an industry-standard commercial warranty covering 12 months or 1500 operational hours, whichever milestone occurs first from the date of port delivery.
How does HekoPower ensure this engine is an authentic Cummins C series unit?
Every engine shipped displays an official DCEC engine data plate detailing the unique engine serial number (ESN) and manufacturing configuration code. This serial history can be cross-verified directly through global Cummins warranty networks, confirming its genuine assembly origin.
