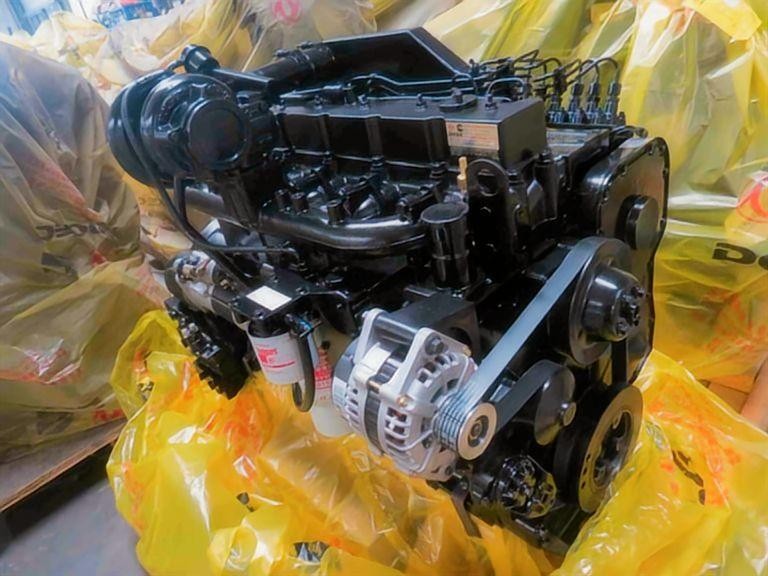

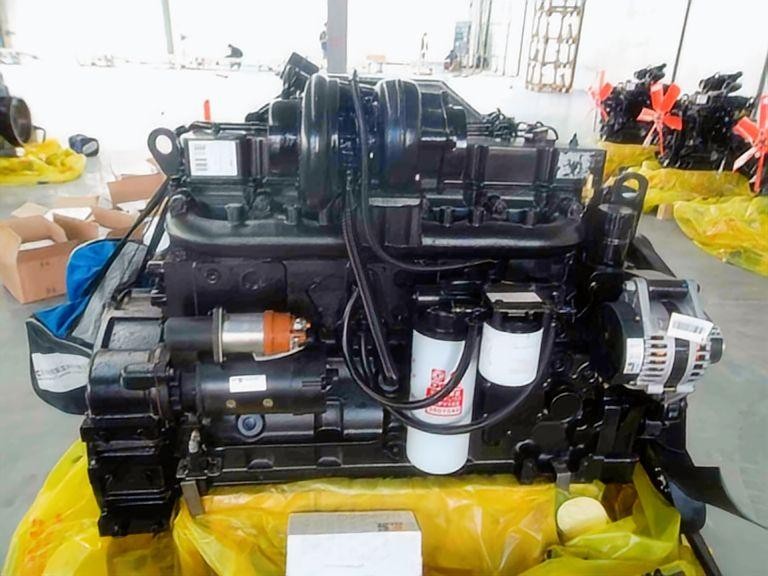

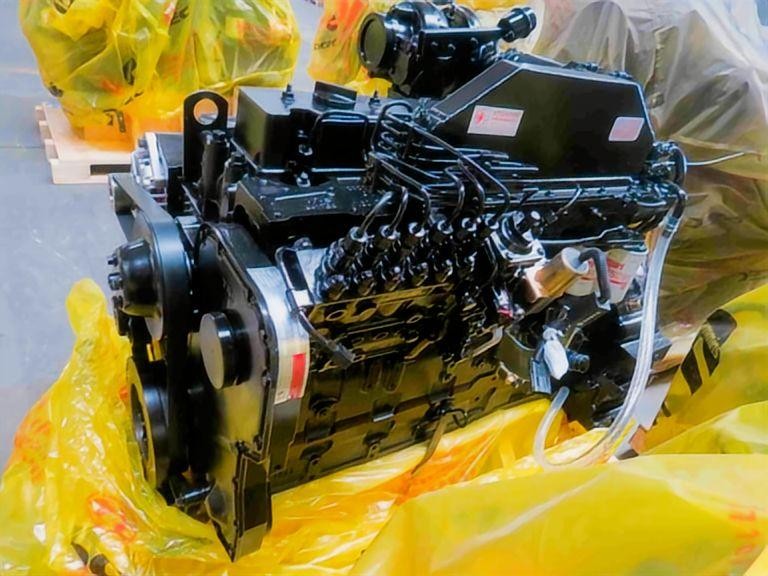

Genuine DCEC Cummins 6CTAA8.3-C260 Engine
HekoPower is a direct supplier of the genuine DCEC Cummins 6CTAA8.3-C260 engine assembly. This 8.3L turbocharged diesel engine delivers a rated power of 191kW (260HP) at 2200 RPM. Built with a highly reliable mechanical injection system, the Cummins C series mechanical industrial engine offers high torque backup and simple maintenance. We supply complete Cummins 6CTAA8.3-C260 power unit configurations, customized with radiators, air cleaners, and structural mountings for immediate drop-in replacement.
Tech Specs of Cummins 6CTAA8.3-C260
General Engine Data
Engine Model: Cummins 6CTAA8.3-C260
Type: 6 Cylinders in Line
Displacement: 8.3 L
Bore * Stroke: 114 * 135
Overall Dimension: 1560mm*900mm*1400mm
Net Weight (with flywheel & alternator): 646 Kg
Key Performance Data
Rated Power: 194 kW/260HP
Rated Speed: 2200 rpm
Max Torque/Speed: 1100 N.m @ 1400 rpm
Fuel Consumption @ Rated Power: 230 g/Kw.h
Max Continuous Running Altitude: 2000 m
More Technical Data
Certification: Euro II
Aspiration: Turbocharged-Intercooled
Fuel System: Wuxi Weifu PW2000 Pump/ RSV Govenor
Compression Ratio: 18:1
Electrical System (Starter Motor/Alternator): 12V/24V
Lowest Starting Temp Without auxiliary system: -12℃
Cooling Method: Water cooled
Engine Cooling Fluid Volume: 9.8 L
Injection Systems and Mechanical Reliability
Unlike modern common-rail engines that require ultra-pure, low-sulfur diesel, this Cummins C260 industrial engine exporter model uses an inline mechanical fuel injection pump. This heavy-duty mechanical injection pump tolerates varying fuel qualities found across remote construction sites in Africa and Southeast Asia. The mechanical governor reacts instantly to variable loads without relying on complex Electronic Control Units (ECUs) or sensitive wiring harnesses that fail in high-vibration applications.
Direct Competitor Comparison: Why the 6CTAA8.3-C260 Outperforms Alternatives
When sourcing a new 191kW 260HP Cummins construction engine, B2B procurement managers often evaluate it against the smaller Cummins 6BTAA5.9 or the electronic QSB6.7 series.
Displacement Advantage vs. Cummins 5.9L Engines
While some highly tuned 5.9L engines can reach close horsepower outputs, they lack the displacement needed for continuous duty cycles. The 8.3L footprint provides a 40% larger displacement. This physical advantage translates to lower internal thermal stress, thicker crankshaft journals, and an extended life cycle before a major overhaul becomes necessary.
Mechanical Simplicity vs. Cummins QSB6.7 Engines
The QSB6.7 electronic engine relies on a high-pressure common rail (HPCR) system. If your worksite operates in high-dust, high-humidity fields with inconsistent fuel filtration, common rail injectors risk immediate failure from microscopic water contamination. The mechanical 6CTAA8.3-C260 bypasses electrical sensors entirely. It requires only a basic 24V electrical connection to activate the fuel shutoff solenoid, guaranteeing uptime in the most demanding environments.
Real Application Scenarios in Global Construction Machinery
The Cummins 6CTAA8.3-C260 engine for construction equipment powers primary machinery lines from prominent global manufacturers like LiuGong, XCMG, Sany, and Zoomlion.
Heavy Excavators and Rotary Drilling Rigs
As a specialized Cummins 6CTAA8.3-C260 engine for excavator systems, this motor directly couples with high-pressure tandem hydraulic pumps (such as Kawasaki K3V112 series). The flat torque curve prevents engine stalling when the excavator faces sudden hard-rock resistance during deep trenching operations. In drilling applications, its continuous 260HP output maintains steady rotational torque for deep-hole drilling rigs.
Road Rollers, Cranes, and Air Compressors
Beyond excavators, this engine acts as the primary powertrain for heavy crawler cranes, high-capacity road rollers, and industrial air compressors.
- For Cranes: It provides steady, non-fluctuating power for smooth line-pull winch controls.
- For Compressors: It handles the continuous high thermal load of driving high-CFM rotary screws at 100% duty cycle.
Maintenance Guide and Replacement Strategies
A proper maintenance protocol protects your capital investment and prevents catastrophic downtime on remote jobsites.
Preventive Maintenance Schedules
To maximize the service life of your new Cummins 6CTAA8.3-C260 diesel engine, strictly enforce these maintenance windows:
- First 50 Hours: Perform the initial break-in oil change. Drain the factory oil, clean the oil pan plug, and replace the oil filters to catch any initial seating debris.
- Every 250 Hours: Replace the engine oil (15W-40 CH-4 or CI-4 grade) and the primary oil filter. Replace the primary fuel filter and water separator element. Clean the air intake pre-cleaner housing.
- Every 1000 Hours: Adjust valve clearances (Intake: 0.30 mm / Exhaust: 0.61 mm). Inspect the belt tensioner and flush the cooling radiator pack to eliminate scale buildup.
Mid-Life Overhaul Guidelines
When the engine approaches its major overhaul window—typically between 12,000 to 15,000 operational hours depending on load factors—procure a complete Cummins 6CTAA8.3-C260 overhaul kit and parts catalog from HekoPower. A standard mid-life rebuild must include replacing the cylinder liners, piston rings, main bearings, thrust washers, and a complete top-and-bottom gasket set to restore original compression ratios.
Global Supply and Export Support from HekoPower
As a professional engine supplier, HekoPower supports customers requiring:
- OEM diesel engine supply
- industrial engine export
- replacement power units
- construction machinery engine sourcing
- international shipping support
The Cummins 6CTAA8.3-C260 engine supplier China market remains highly competitive, but many buyers increasingly focus on:
- genuine product sourcing
- export packaging quality
- technical support capability
- spare parts availability
- logistics coordination
HekoPower can provide engine configurations suitable for different regional operating requirements and shipping arrangements.
Cummins C8.3-C Series, original products from Dongfeng Cummins Engine Plant (DCEC), Cummins Joint Venture Plant since 1986, 50% shareholding by Cummins USA. This series mainly includes 6CTA8.3-C145, 6CTA8.3-C175, 6CTA8.3-C180, 6CTA8.3-C195, 6CTA8.3-C205, 6CTA8.3-C215, 6CTA8.3-C230, 6CTA8.3-C240, 6CTA8.3-C260, 6CTAA8.3-C215, 6CTAA8.3-C260.
Frequently Asked Questions
What is the exact difference between a 6CTA8.3 and a 6CTAA8.3 engine?
The extra "A" in 6CTAA8.3 denotes "Air-to-Air Aftercooling." The older 6CTA models used a jacket-water aftercooler (cooling fluid), whereas the 6CTAA utilizes an external radiator-mounted air cooler. This drops intake temperatures drastically, allowing the engine to increase power safely from 215HP up to the 260HP threshold without melting internal components.
Can I use this engine to replace an electronic common-rail engine?
Yes. Many fleet owners choose this engine as a Cummins 6CTAA8.3-C260 replacement engine for excavators originally equipped with Tier 3 electronic engines. This mechanical swap eliminates recurring electronic sensor errors. However, you must verify your local environmental and emissions regulations, as mechanical engines typically fall under Tier 2 emission standards.
Does the engine come complete with all necessary bolt-on accessories?
Our complete Cummins 6CTAA8.3-C260 engine assembly includes the fuel injection pump, injectors, turbocharger, water pump, oil pump, starter motor, and charging alternator. If you select the Dongfeng Cummins 6CTAA8.3-C260 power unit package, we also include a matched cooling radiator pack, industrial silencer, air cleaner assembly, and an integrated control panel.
What parts should I buy alongside the complete engine for remote projects?
We highly recommend bundling your engine purchase with our essential field maintenance kit. This includes three sets of oil and fuel filters, an extra alternator belt, a spare fuel shutoff solenoid, and a top-end head gasket kit to guarantee uninterrupted uptime during your initial operating season.
