Details

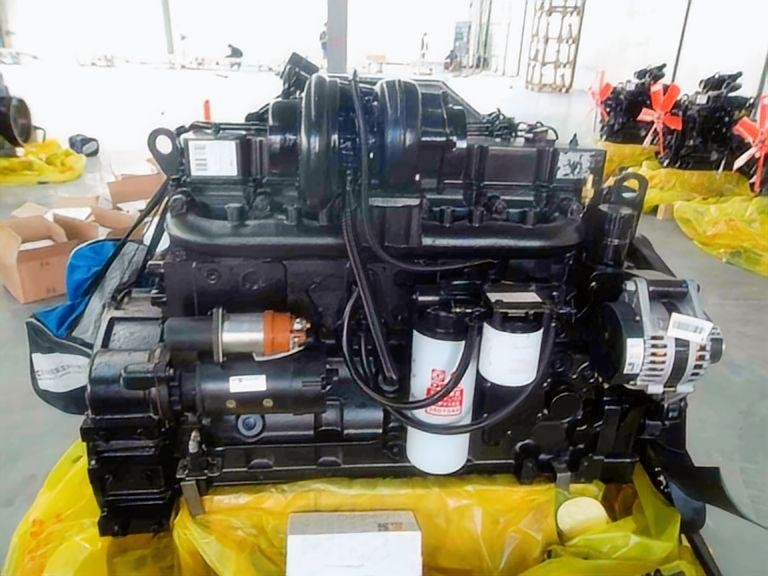

Genuine Cummins 6CTA8.3-C180 Engine Assembly for Construction Machinery
The Cummins 6CTA8.3-C180 engine is a cornerstone of heavy industrial applications globally. Manufactured by the Dongfeng Cummins Engine Company (DCEC) joint venture in China, this 8.3-liter, 6-cylinder in-line power plant outputs a reliable 134 kW (180 HP) at 2000 RPM. Engineered specifically for harsh mechanical environments, the DCEC Cummins 6CTA8.3-C180 balances mechanical simplicity with heavy-duty torque delivery.
HekoPower supplies this complete engine assembly to global contractors, fleet managers, and machinery repair shops requiring an absolute drop-in replacement. By sourcing a brand new original 6CTA8.3-C180 engine assembly, industrial operations eliminate the downtime risks associated with partial rebuilds or low-tier aftermarket components.
Tech Specs of Cummins 6CTA8.3-C180
General Engine Data
Engine Model: Cummins 6CTA8.3-C180
Type: 6 Cylinders in Line
Displacement: 8.3 L
Bore * Stroke: 114 * 135
Overall Dimension: 1560mm*900mm*1400mm
Net Weight (with flywheel & alternator): 637 Kg
Key Performance Data
Rated Power: 134 kW/180HP
Rated Speed: 2000 rpm
Max Torque/Speed: 837 N.m @ 1400 rpm
Fuel Consumption @ Rated Power: 219 g/Kw.h
Max Continuous Running Altitude: 2000 m
More Technical Data
Certification: Euro I
Aspiration: Turbocharged-Intercooled
Fuel System: Direct Injection Pump
Compression Ratio: 17.3:1
Electrical System (Starter Motor/Alternator): 12V/24V
Lowest Starting Temp Without auxiliary system: -12℃
Cooling Method: Water cooled
Engine Cooling Fluid Volume: 9.8 L
The Role of the Weifu PW2000 Fuel Pump
A major differentiator for the Chinese-manufactured DCEC version is its precise fuel delivery setup. HekoPower delivers this 6CTA8.3-C180 engine with Weifu PW2000 fuel pump assemblies pre-calibrated to factory specifications. The inline mechanical pump ensures exact injection timing and equalized fuel pressure across all six cylinders. This mechanical configuration dramatically drops Cummins 6CTA8.3-C180 fuel consumption metrics during high-load operations, sustaining an efficient fuel consumption rate of approximately 211 g/kW.h.
Genuine Holset Turbocharged Systems
Every unit features a genuine Holset turbocharged intercooled Cummins engine design. The matched Holset wastegated turbocharger maximizes air intake volume, matching the fuel curve dictated by the Weifu pump. The air-to-air charge cooling reduces combustion temperatures, which lowers thermal stress on the cylinder head and valve guides.
Technical Comparisons: 6CTA8.3-C180 vs. Alternative Power Units
Selecting the correct engine replacement requires analyzing how the 6CTA8.3 series stands against adjacent configurations like the smaller 6BT5.9 or larger 6LTAA8.9 series.
Power Density and Footprint Advantages
When sourcing a Cummins 180HP construction engine, buyers often weigh the 6BT5.9 (180HP variant) against the 8.3L Cummins 180 HP engine assembly. While the 5.9L version occupies less space, its smaller displacement requires running at higher RPMs to maintain peak torque. The Cummins C8.3-C180 diesel engine achieves the same horsepower at a lower operating temperature and lower RPM, which doubles its operational lifespan under severe continuous duty cycles.
Component Durability Upgrades
Unlike standard automotive or light-duty industrial engines, the C8.3 platform incorporates plateau-honed wet cylinder liners. These liners allow direct coolant contact for superior heat dissipation, reducing localized hot spots. Mid-stop cylinder liner seals block any internal coolant migration into the oil pan, an engineering advantage not found on smaller block castings.
Real Application Scenarios Across Global Industrial Sectors
The versatile footprint and robust output curves mean the Cummins 6CTA8.3-C180 excavator engine and loader variations are standard power packages among major Chinese equipment exporters.
Motor Grader Applications
The C180 variant is widely utilized as a standard Cummins 6CTA8.3-C180 replacement engine for XCMG grader units, specifically the XCMG GR180 series. The mechanical engine governor ensures stable ground speeds during heavy blade operations when leveling hard-packed soils.
Earthmoving and Loaders
This power plant serves regularly as a Cummins 6CTA8.3-C180 loader engine. It provides the sudden hydraulic lift power needed when a wheel loader crowd fills a bucket. It is a drop-in replacement option for classic Liugong and Sany equipment working in mining and quarry operations.
Deep Hole Exploration Drilling
Rigidity makes this model an ideal choice for a Cummins engine for drilling machine integration. Remote exploration projects rely on the mechanical simplicity of this 180HP motor because it can be fully serviced in the field without diagnostic software or specialized electronics.
Maintenance, Overhaul, and Lifetime Replacement Strategies
Maximizing the operational lifespan of a Cummins C8.3 engine for construction equipment requires adherence to specific preventive maintenance sequences.
Essential Overhaul Intervals
Under standard operating envelopes, a genuine Cummins engine assembly requires an in-depth inspection or minor top-end overhaul at roughly 8,000 operational hours. If severe dust or high-sulfur diesel fuel is present, operators should monitor blow-by levels. When a total Cummins engine overhaul replacement becomes necessary due to component fatigue, deploying a complete factory-tested engine assembly from HekoPower often costs less than buying individual Cummins C8.3 engine parts and paying local machine shop labor rates.
Filtration and Oil Specifications
Always use multi-grade 15W-40 lubrication oils rated API CH-4 or higher. The mechanical fuel system relies heavily on clean fuel; replacing the primary fuel filter and water separator every 250 hours protects the internal tolerances of the Weifu pump barrels from abrasive wear.
Global Sourcing Logistics and Procurement Options
HekoPower operates as an established Cummins industrial engine supplier and exporter in China, tailoring shipping workflows to reduce project downtime.
Shipping Dimensions and Weight Profiles
For international logistics planning, the Cummins 6CTA8.3-C180 lead time and shipping weight must be coordinated accurately. The dry weight of a complete engine assembly totals approximately 630 kg. Standard packaging in export-ready, fumigated wooden enclosures adds roughly 50 kg to the total crate weight.
Ordering Processes for Overseas Projects
We facilitate direct procurement workflows for companies managing a Cummins engine for overseas project equipment. We offer flexible FOB, CIF, and CFR arrangements, supplying the necessary original DCEC certifications, export paperwork, and custom clearance invoices needed for rapid port entry.
Cummins C8.3-C Series, original products from Dongfeng Cummins Engine Plant (DCEC), Cummins Joint Venture Plant since 1986, 50% shareholding by Cummins USA. This series mainly includes 6CTA8.3-C145, 6CTA8.3-C175, 6CTA8.3-C180, 6CTA8.3-C195, 6CTA8.3-C205, 6CTA8.3-C215, 6CTA8.3-C230, 6CTA8.3-C240, 6CTA8.3-C260, 6CTAA8.3-C215, 6CTAA8.3-C260.
Frequently Asked Questions
What is the exact difference between a genuine DCEC engine and an imported Cummins engine?
A genuine DCEC 6CTA8.3-C180 for sale is built by the Dongfeng Cummins joint venture facility in China under strict global factory standards. It utilizes the same internal components, metallurgical standards, and quality controls as US-built platforms, but is tailored with mechanical fuel systems optimized for international markets.
Is this engine compatible with equipment originally using an OEM Cummins C8.3 180HP engine?
Yes, the external mounting dimensions, flywheel housings, and plumbing connections are standardized. This unit drops directly into existing engine bays configured for the C8.3 industrial block, reducing custom fabrication requirements.
What wholesale Cummins C8.3 engine options does HekoPower provide?
As a specialized Cummins construction diesel engine manufacturer partner and exporter, HekoPower provides complete new engine assemblies, long blocks, short blocks, and comprehensive genuine spare parts support for major fleet overhauls.
What is the typical lead time for a wholesale Cummins 6CTA8.3-C180 supplier China order?
Standard configuration assemblies are typically prepared, test-run on our dynamometer rigs, and packed within 7 to 10 business days from order confirmation. Ocean transit times vary based on the destination port.
How does HekoPower protect engines against corrosion during sea transit?
All engine assemblies are drained of temporary testing fluids, treated with internal anti-rust oil, wrapped in heavy-duty vapor-barrier plastic wrap, and secured inside a solid wood crate designed to withstand multi-port handling.
