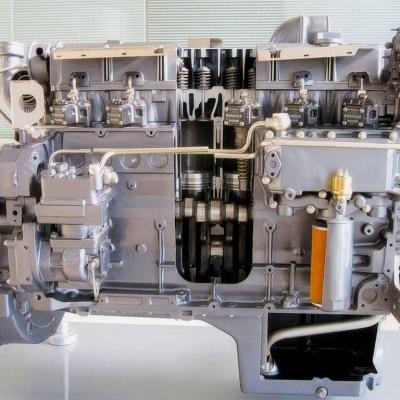

Deutz BF6M1013FC 183kW Generator Engine: Technical Overview, Application, and Supply Insights
The Deutz BF6M1013FC 183kW generator engine is a proven 6-cylinder, 4-stroke inline diesel power unit built specifically for heavy-duty power generation applications. Operating at a steady 1500 rpm, this 7.15L water-cooled engine serves as the ideal prime mover for 50Hz commercial and industrial generator sets.
As a specialized commercial diesel engine supplier, HekoPower provides complete original Deutz Dalian BF6M1013FC generator drive engine assemblies, complete power packs, and bare engines to packagers, generator manufacturers, and fleet engineering teams worldwide. Whether you need an engine assembly for a new 200 kVA diesel generator project or a direct drop-in replacement for a worn-out unit, we offer direct factory sourcing, competitive agent wholesale pricing, and full technical export support.
Tech Specs of Deutz BF6M1013FC 183 kW Drive Engine
General Engine Data
Engine Model: Deutz BF6M1013FC
Type: 6 Cylinders, in Line
Displacement: 7.146 L
Bore * Stroke: 108 * 130
Overall Dimension: 1971mm*1054mm*1373mm
Net Weight: 770 Kg
Key Performance Data
Rated Power: 183 kW
Max. Torque/Speed: 1165 N.m @ 1500 rpm
Rated Speed: 1500 rpm
Specific Fuel Consumption: 226 g/kW.h
Net Frequency: 50Hz
Noise db(A): ≤ 113
More Technical Data
Certification: Tier II
Aspiration: Turbocharged & Intercooling
Fuel System: Mechanical Unit Pump in Line
Cooling Method: Water Cooled
Electrical System (Starter Motor/Alternator): Electronic Starting (24V)
Compression Ratio: 18:1
Sizing for 200 kVA 50Hz Generator Sets
At 1500 rpm, the engine produces a rated prime power of 183 kW (245 hp). When matched with a high-efficiency brushless alternator (assuming an average alternator efficiency of 90% to 92% and a 0.8 power factor), this engine matches the power requirements of a 200 kVA prime power diesel generator or a 220 kVA standby unit.
Technical Comparisons: BF6M1013FC 183 kW vs. Alternative Models
Selecting the right engine within the Deutz BFM1013 family requires understanding how tuning options, cooling systems, and power ratings affect long-term performance.
BF6M1013FC 183 kW vs. BF6M1013FC 201 kW (G2 vs. G3 Tuning)
Within the same 7.15L platform, Deutz offers the BF6M1013FC in multiple output ratings, including 183 kW and 201 kW. The 183 kW variant typically aligns with G2 power class ratings, while the 201 kW variant is tuned for G3 requirements demanding higher transient load acceptance.
A common misconception among equipment buyers is that choosing the higher 201 kW rating is always better. However, operating a 201 kW engine continuously at lighter loads (below 30% capacity) can lead to wet stacking, unburnt fuel buildup in the exhaust, and premature cylinder glazing. For standard continuous 200 kVA prime power applications, the 183 kW rating operates closer to its optimal brake specific fuel consumption (BSFC) sweet spot, delivering lower operating costs and longer engine life.
BF6M1013FC vs. BF6M1013EC Series
The distinction between the FC and EC model designations relates directly to power output and charge air cooling. The BF6M1013EC uses an engine-coolant-to-air heat exchanger or a lower-capacity intercooler setup, yielding lower power outputs across the series. In contrast, the BF6M1013FC utilizes an advanced air-to-air charge cooling architecture, allowing it to produce higher horsepower per liter without exceeding thermal boundaries. Substituting an EC engine for an FC engine without modifying the radiator and cooling ductwork will cause rapid engine overheating under full electrical load.
Replacement Considerations for Older BFM1013 Engines
When performing a Deutz BFM1013 engine replacement on an existing generator set, verify the flywheel housing size (typically SAE 2 or SAE 3) and flywheel connection SAE dimensions. While overall block dimensions across the BFM1013 series remain uniform, turbocharger orientation and oil pan clearance can vary between industrial construction models and generator drive configurations.
Real Application Scenarios and Duty Cycle Demands
Continuous Prime Power Installations
In off-grid locations like construction sites, agricultural facilities, and remote mining operations, electrical grids are unreliable or absent. The Deutz BF6M1013FC 183 kW generator drive engine is designed to handle continuous load cycles with low maintenance downtime. Its mechanical governor system (with optional electronic control upgrades) maintains frequency stability during heavy motor startups, such as powering water pumps, air compressors, and stone crushers.
Standby Power in Industrial Infrastructure
For manufacturing plants, commercial buildings, and municipal facilities, the BF6M1013FC serves as a dependable standby generator engine. Its cold-start capability ensures fast starting and rapid power delivery, reaching full rated operational speed and picking up emergency loads within seconds during sudden utility power failures.
Maintenance Best Practices and Engine Replacement Guidance
To maximize service life and prevent unexpected downtime on your Deutz 183 kW generator engine, follow these maintenance procedures:
- Fuel Quality Management: Mechanical unit injection pumps rely on fuel for lubrication. Change primary fuel filters and water separators every 250 to 500 operating hours to prevent moisture and particulate contamination from damaging the injectors.
- Cooling System Care: The water-cooled 6-cylinder system requires a 50/50 glycol-water mixture with proper corrosion inhibitors. Inspect water pump belt tension and clean external radiator fins regularly, especially in dusty ambient environments.
- Lube Oil Maintenance: Use heavy-duty diesel engine oil matching Deutz quality standards (such as API CI-4 or CJ-4). Replace oil and spin-on oil filters at scheduled intervals to prevent soot accumulation.
- Correcting Common Misconceptions: A frequent mistake is assuming that mechanical injection engines do not require precise valve clearance adjustments. Inspect and adjust intake and exhaust valve clearances every 1,000 operational hours to maintain peak combustion efficiency and prevent valve seat erosion.
Deutz BFM1013 Series Engine Selection & Power Range
The BF6M1013FC 183 kW engine is part of the broader Deutz BFM1013 family, which encompasses various power outputs, cylinder layouts, and application-specific configurations designed to meet distinct power generation demands.
Deutz BFM1013-Generator Engine Series, original products from Dalian Deutz Engine Plant. This series mainly includes Deutz BF4M1013EC, Deutz BF4M1013FC, Deutz BF6M1013EC, Deutz BF6M1013FC, Deutz BF6M1013FC-G3. In accordance with the criteria of Machinery Safety Directive 2006/42, movable elements such as distribution belts, fans, and parts that acquire high temperatures during operation, such as exhaust manifolds, have their respective safeguards. Before being delivered, the generator is thoroughly checked at the factory. Voltage, frequency, and load are all tested, as well as the appropriate operation of warnings and the influence of engine oil temperature on stop.
Frequently Asked Questions (FAQs)
How does the Deutz BF6M1013FC 183 kW fit into a 200 kVA generator configuration?
At 1500 rpm, the engine provides 183 kW of mechanical power. Accounting for typical alternator conversion efficiency, this translates directly to 160 kW / 200 kVA of prime electrical output, making it an exact match for 200 kVA 50Hz generator packaging.
What is the main difference between the BF6M1013FC 183 kW and 201 kW models?
Both share the same 7.15L mechanical engine block, but differ in fuel delivery calibration and turbocharger boost pressures. The 183 kW engine is optimized for steady prime load duty, while the 201 kW model accommodates higher standby outputs or demanding G3 transient response requirements.
Can the BF6M1013FC replace an older Deutz BFM1013 unit directly?
Yes. The external mounting points and bell housing dimensions are standardized. When replacing an older unit, ensure that your existing radiator matches the intercooled (charge air cooled) airflow setup of the FC series.
What supply options does HekoPower offer for this model?
HekoPower supplies original Deutz Dalian BF6M1013FC engine assemblies, complete generator drive power units (with radiator and air cleaner mounted), and genuine replacement spare parts. We provide global export packaging, technical support, and wholesale pricing for commercial volume orders.
